Unflanged 4" nozzle.

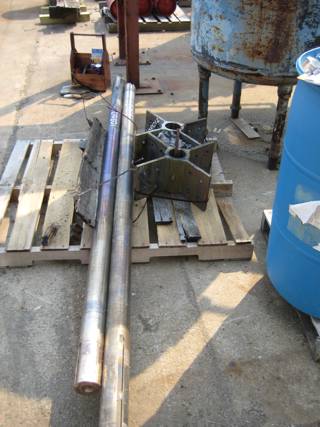

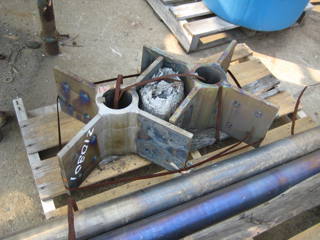

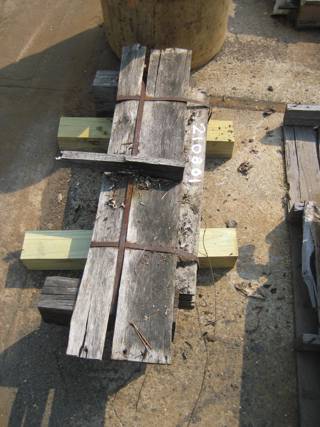

set of agitator shafts with hubs and paddles Shafts are broached for key ways 0.5" wide x 6.25"long on one end 0.75" wide x 13" long on the other end Hubs are four blade design 8" high by 19.75" across and 0.75" thick Blades are 0.5" thick by 26.5" long by 9.75" high Blades bolt to hub with 1/2" bolts Diameter: 88.9 mm (3.5 in). Length: 2,718 mm (107 in). Number of Blades: 4.

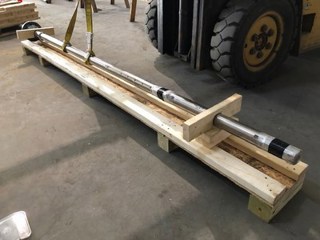

approximate 2-1/2" diameter x 139.5" long CS hub/flange. Crate OAD 170"L X 17"W X 17"T Diameter: 63.5 mm (2.5 in). Length: 3,543 mm (139.5 in).

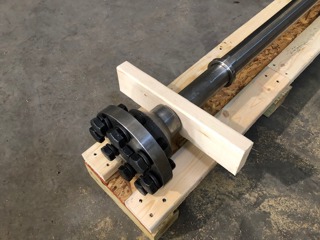

2-1/2" diameter x 117.5" long CS hub/flange. OAD 146"L X 17"W X 17"T. Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange. Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange. Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange. Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
CS hub/flange Diameter: 63.5 mm (2.5 in). Length: 2,985 mm (117.5 in).
Singe end mount with one 7" triangular hub. Diameter: 82.6 mm (3.3 in). Length: 4,064 mm (160 in).
Single end mount with one 6" hub. Diameter: 82.6 mm (3.3 in). Length: 4,064 mm (160 in).
CS hub/flange. Diameter: 63.5 mm (2.5 in). Length: 3,543 mm (139.5 in).

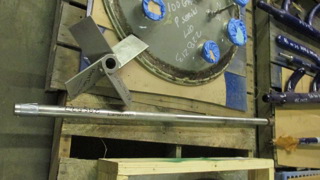

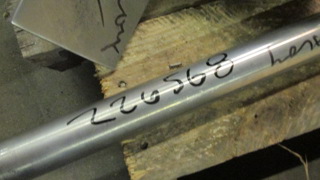

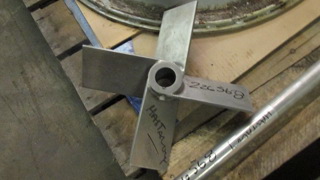

agitator shaft and blades 3.5" wide 0.25" thick Shaft is 1.5" diameter with Woods coupling on drive end. Impellar Type: Pitch Blade. Length: 1,295 mm (51 in). Number of Blades: 4. Span: 330.2 mm (13 in).
Agitator drives mount on top of reactor or tanks to provide agitation to the contents of the vessel. There are many different manufacturers of Agitator Drives.
Agitator Drives for alloy vessels and reactors are rated by horsepower.
The Agitator Drives for Glass Lined vessels and reactors have specific types and manufacturers. IPP specializes in the various types of agitator drives for glass-lined vessels and reactors
