cored for heating all wetted parts are 321 stainless steel, (1) 321 stainless steel screw feeder driven by 1.1kw, 3/50/380-420/220-240 volt, 1410 rpm motor (1) 321 stainless steel agitated feed hopper bolt flat top, weld coned bottom all mounted on a carbon steel frame Diameter: 150 mm (5.9 in). Motor Power: 3 kW (4 HP). Briquetter Type: Briquetter. Number of Rolls: 2. Roll details: 150mm diameter x 100mm face 321 stainless steel rolls, manual roll gap adjustment, rolls driven by 3 kw, 3/50/220/380 volt 960 rpm IP54 motor, 321 stainless steel knife discharge.

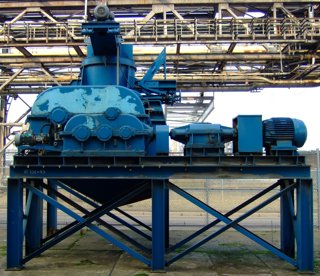

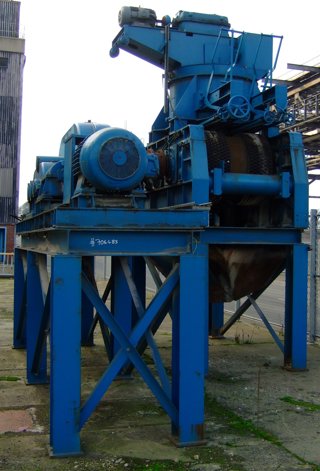

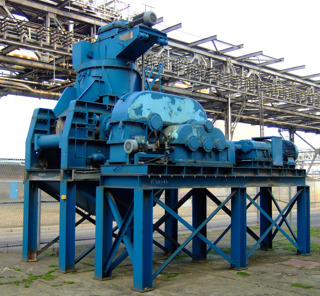

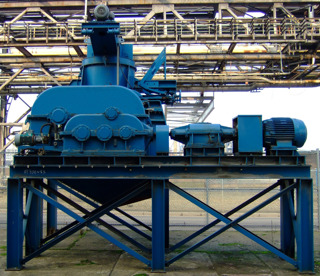

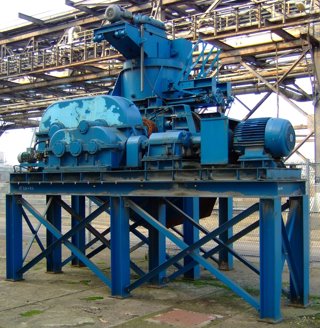

RECONDITIONED, Approximately 25 - 30 tonnes of material per hour (dependant on density) cast steel Briquetter very similar in design to Sahut Conreur and Komerak Greaves Roller size: 1.2m diameter, 925 Ovoid type briquettes per revolution briquette size approximately 45mm diameter x 35-40mm thick Twin hydraulic rams 80 tonnes a piece (2500 psi) each side gives a separating force of 320 tonnes English electric main drive motor with a fluid coupling to a two speed W.G.W inline gearbox. Two speed 8.5 or 11 Rpm (at the rolls) Machine has undergone a full refurbishment and is in full working order: As part of the refurbishment the following was done: Gearbox rebuilt and gears refaced where necessary Reconditioned fluid coupling Reconditioned main drive motor and feeder unit motor New Gearbox oil circulation pump Fresh oil in gearbox and transfer box All new hydraulic lines and couplings All four rams are refurbished New safety valves and couplings fitted to the hydraulic power pack Main Bearings disassembled, checked and re-greased (all OK), new lube points/grease nipples installed Main roll surfaces polished and checked Feeder unit was stripped and checked, feed control gates greased. Reconditioned feeder unit motor Fully blasted undercoated and painted Custom made stand as shown Also a custom made out feed hopper to attach to the stand and machine. Diameter: 45 mm (1.77 in). Motor Power: 55.9 kW (75 HP). Briquetter Type: Briquetter. Capacity (Design): 30,000 kg/h (66,139 lb/h). Roll details: Main roll surfaces polished and checked.
Diameter: 254 mm (10 in). Motor Power: 11.2 kW (15 HP). Briquetter Type: Briquetter. Capacity (Design): 362.9 kg/h (800 lb/h). Number of Rolls: 2. Roll details: two roll briquetter. 3 rows briquettes..
with feed hopper serial #10 486 Diameter: 300 mm (11.8 in). Motor Power: 22 kW (29.5 HP). Briquetter Type: Briquetter. Number of Rolls: 431. Roll details: (dimensions of the roles: 300mm diameter; 200mm wide), material roles SS (431) 1.4057.
Used Briquetters and Used Chilsonators
A "briquetter" is a machine that compresses loose materials like sawdust, metal shavings, or other materials including waste into dense, solid blocks called briquettes, while a "Chilsonator" is a specific type of roller compactor machine, often used in the pharmaceutical industry, that compresses powders into dense, free-flowing granules, with the brand name "Chilsonator" primarily associated with Fitzpatrick Company products; essentially, both machines use high pressure to compact materials into a more manageable form, but they are used in different industries and for different types of materials.
Uses high pressure to compress loose materials into briquettes, which are easier to store and transport than loose particles.
Can be used to process waste materials from wood, metal, paper, and other industries to create usable fuel or raw materials.
Typically involves feeding the material between two rotating rollers with indentations that shape the briquettes.
Key points about Chilsonators:
Briquetters and Chilsonators are roll presses that compact raw material. The material is compacted as it is carried into the gap between two rolls which are rotating at equal speeds. The size and shape of the agglomerates are determined by the geometry of the roll surfaces. Pockets or indentations in the roll surfaces form briquettes the shape of squares, eggs, pillows, teardrops, or similar forms, weighing from a few grams up to 2 kg or more in weight. Smooth or corrugated rolls produce a solid sheet which can be granulated into the desired particle size on conventional grinding equipment. Briquetters and Chilsonators can produce large quantities of material at low cost, but the product is less uniform than that from molding or tableting presses. To get the proper quantity of material into each of the rapidly rotating pockets in the rolls, various types of feeders are used.
