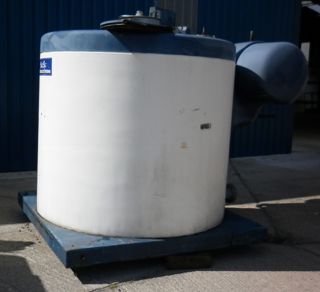

2 ton/hr flaked ice making system, consisting of: (2) model 60, 1 ton/hr (each) flaked ice making machines, manufactured by Northstar, each with a refrigerant capacity of 0.25 cu.m, refrigerant R-717, chamber 74" diameter x 72" high, scraper type agitator, M.D.M.T -50 deg F @ -7.5 psi (1) 78.8 tons capacity single rotary screw Ammonia chiller compressor, manufactured by FES International, model 225-HE, serial # 2030179J, refrigerant R-717, power 185 kw, saturated suction pressure 3.6 psig @ -20 deg F, saturated discharge pressure 181.1 psig @ 95 deg F, driven by 185 kw, 3/50/415 volt, 2950 rpm drip proof motor, 2-oil filters, economiser, (1) oil separator, serial # 87516, N.B # 3439, working pressure 250 psig @ 200 deg F(max), 24" diameter x 108 long, (1) c/steel horizontal liquid receiver, 480mm diameter x 1960mm straight side, dished heads, mounted on c/steel feet, (1) Evapco cooling tower condenser, model LSCA-110, serial # EUR-672 (1) de-oil tank (1) Sub-cooler heat exchanger, manufactured by Ketema Inc, type DXMB Ammonia cooler, size 807-0-8P-10, N.B # 1431, tube side M.A.W.P 300 psi @ 300 deg F, M.D.M.T -20 deg F @ 300 psi, shell side M.A.W.P 300 psi @ 300 deg F, M.D.M.T -20 deg F @ 300 psi. (1) approx 22.7-56.6 m3/hr chiller compressor, manufactured by Bitzer, serial # 900394, model 4P.3, 3/50/1450 rpm, belt driven by 11 kw, 3/50/415 volt, 1460 rpm motor Capacity Design: 6,048 kcal/h (2 Ref. Ton). Pressure: 10.3 bar (150 psi). Temperature: 148.9 °C (300 °F).
International Process Plants has many used chillers for sale and other used processing equipment for use in industrial refrigeration.
Much like a Boiler is used to heat a process, a Chiller and other Refrigeration equipment is typically used to cool a process.
Chillers work by compressing a refrigeration gas (R132A, Freon, R22) into a liquid, and using a special refrigeration valve, releasing the compressed liquid back into a gas.
The conversion of the liquid back into a gas removes heat and creates cold. It is the same principal as when you use a can of compressed air to clean your computer keyboard. The longer you release the compressed air, the colder the can gets.
You use the cold that is created by using a heat exchanger for liquid cooling or air exchanger if you are cooling air.
Chillers are further grouped by the type of cooling used to dispense the heat generated:
Chillers are typically a packaged design with the compressor, condenser, evaporator, pumps, valves and controls all skid mounted.
Chillers are often distinguished by the Tons of Refrigeration they produce and at what temperature. A rule of thumb to use when looking for the capacity of a chiller is 1 ton of refrigeration @ 40 degrees F for each horsepower the compressor uses. The lower the discharge temperature, the more horsepower is required.
Cooling towers are designed to take water that is heated during the refrigeration process and cool it quickly by passing it through a cooling tower where large fans cool the water.
Manufacturers include: Advantage, AEC, BAC, Berg, Bry-Air, Budzar, Carrier, Cincinnati, Conair, Cooling Technologies, DUNHAM BUSCH, Dunham/Bush, Fasti, FES, Frick, FTS SYSTEMS, GES, Jensen, Kinectic Dispersion, McQuay Snyder, McSaw, Neslab, R, Sterlco, Teco, Thermalcare/Mayer, Trane, Trane Co, Transtore, York .
