5.6 lb/hour
3340 BHP
Suction pressure 273 psi
Differential pressure is 429 psi. Rated for the following: Temperature 111 degrees F., Specific Gravity 0.992,
Has heat exchangers and pump for cooling oil to the bearings on its shaft. .
No motor.
Type: Pump
Subtype: Centrifugal
Manufacturer: Byron Jackson
Model: DSJH
Condition: Unused
Material: Carbon Steel
Flow Rate: 2,600 m3/h (11,400 GPM)
Pressure: 29.6 bar (429 psi)

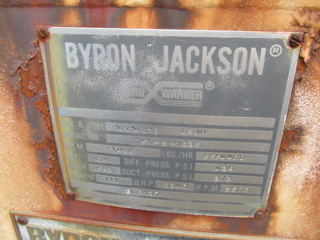

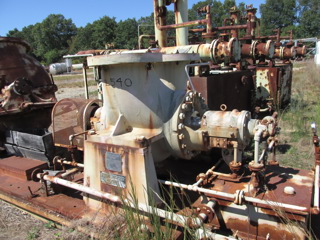

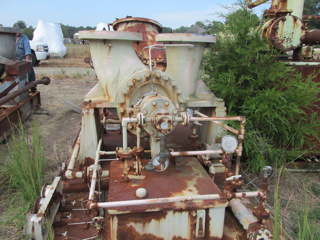

Manufactured by Byron Jackson (Borg Warner) Pump rated 5,654,400 lbs/hr, differential pressure 429 psi, suction pressure 273 psi, 3340 bhp, Bare pump only. Rotation counter clockwise. Specific gravity 0.992. # 2CP 137. No Driver, designed to take an electric motor.
Orientation: Horizontal. Powered By: Electric. Temperature: 43.9 °C (111 °F).
Type: Pump
Subtype: Centrifugal
Manufacturer: Goulds ITT
Model: 3410
Condition: Used
Material: Carbon Steel
Clad: Yes
Flow Rate: 295.3 m3/h (1,300 GPM)
Pump Head: 36.6 m (120 ft)
split case single stage double suction pump Seals: John Crane 1-BP1D1, CF-SP-47517 Close coupled to a General Electric Tri Clad AC motor. Model 5K326A1250D. Rated for 50 Hp at 1775 rpm. 230/460, 60 hz, 3 ph. 121.4/60.7 amps. Current: 121.4/60.7 amps Additional features: Explosion proof thermocouple for water temp, Trico Opto-Matic oilers
Orientation: Horizontal. Powered By: Electric. Motor Power: 37.3 kW (50 HP). Motor Speed (RPM): 1,775.
Type: Pump
Subtype: Centrifugal
Manufacturer: Goulds ITT
Model: 3410
Condition: Used
Material: Carbon Steel
Clad: Yes
Flow Rate: 312.3 m3/h (1,400 GPM)
Pump Head: 36.6 m (120 ft)
split case single stage double suction pump John Crane seals 1-BP1D1, CF-SP-47517 Current: 174.4/87.2 amps Close coupled to a General Electric Tri Clad AC motor Motor model: 5K365AL250D Current: 174.4/87.2 amps Additional features: Explosion proof thermocouple for water temp, Trico Opto-Matic oilers
Orientation: Horizontal. Powered By: Electric. Motor Power: 55.9 kW (75 HP). Motor Speed (RPM): 1,780.
Type: Pump
Subtype: Centrifugal
Manufacturer: Goulds ITT
Model: 3410
Condition: Used
Material: Carbon Steel
Clad: Yes
Flow Rate: 312.3 m3/h (1,400 GPM)
Pump Head: 36.6 m (120 ft)
split case single stage double suction pump Seals: John Crane 1-BP1D1, CF-SP-47517 Close coupled to a General Electric Tri Clad AC motor Amperage: 121.4/60.7 amps Additional features: Explosion proof thermocouple for water temp, Trico Opto-Matic oilers
Orientation: Horizontal. Powered By: Electric. Motor Power: 55.9 kW (75 HP). Motor Speed (RPM): 1,775.
