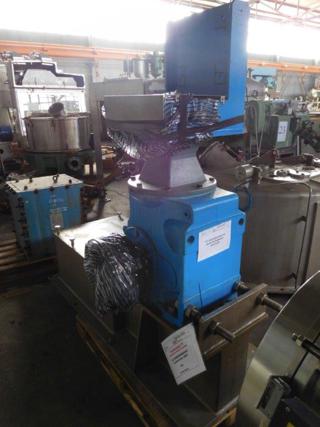

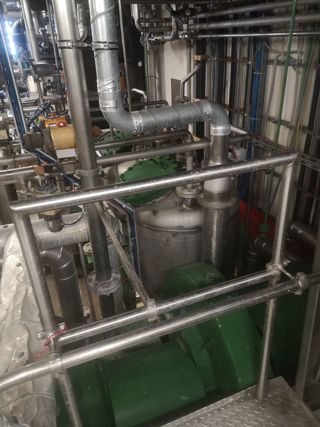

vertical vacuum dryer system Shell 1800 mm diameter x 900 mm straight side x 1400 mm conical section. With vertical rotating screw. Vibratory hammers on the conical section. Openings on dryer/mixer: Top 500 mm manway with cover, 1-200 mm. With vertical stainless steel condenser/ preheater, 300 mm diameter x 1600 mm long, single pass design. Under the filter is a stainless steel rotary airlock driven by 0.37kW 3/50/220/380V 1390 RPM motor. With Werner & Pfleiderer type DRT 250/6, serial number 163305, 1.4571 dryer rated 4700 KJ/Hour. Spiral rated 6 bar, jacket rated 6 bar @ 200 degrees C. Spiral driven by 0.37 kW, 3/50/380V motor. Mixer/ dryer discharges into a rotary airlock type GAC 187, with 200 mm feed and 100 mm discharge openings. With variable speed drive. Bottom of mixer has a pneumatic operated valve. From airlock product is fed into a 1.4571 rotating screen manufactured by Gericke, 200 mm diameter x 750 mm long, driven by 2.2 kW 3/50/220/380V 450 RPM motor. system includes a screw conveyor to the filler, manufactured by Independent Scale, serial number 18273, rated 25 KG @ 1250 RPM.

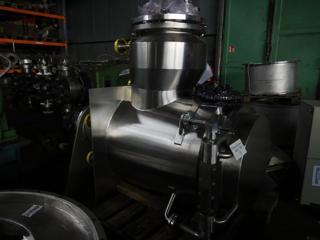

Type: Dryer-Rotary Vacuum

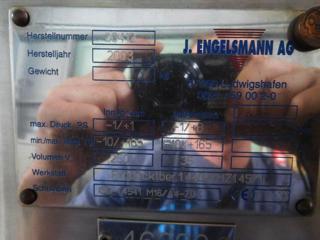

Manufacturer: Engelsmann AG
Model: K127AM200/180
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 0.25 m3 (8.8 ft3)
Capacity Working: 0.17 m3 (6 ft3)

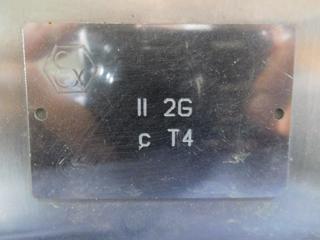

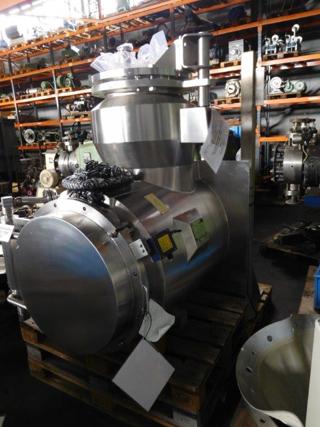

Vacuum dryer system internal pressure rated -1/+1bar @ -10/+165 degrees C (volume 250 liter), jacket pressure rated -1/+8bar @ -10/+165 degrees C (volume 35 liter) type CD180M-4 3~/50Hz/230-400V/1,460rpm CE confirm, EExdeIICT4, system including: (1) 3.1m² 1.4571 stainless steel tube and shell heat exchanger/condenser, (1) 8m³/h @ 3m head iron cast centrifugal pump, (1) 50 liter 1.4571 stainless steel condensate receiver, (1) 20 liter 1.4571 stainless steel gas separator, (1) 17.5 liter 1.4571 stainless steel jacketed pressure tank, (1) Frequency converter on pallet, (2) stainless steel guards on pallet, (2) Valves and (1) chain on pallet, Accessories on pallet
Diameter: 600 mm (23.6 in). Length: 2,300 mm (90.6 in). Height: 2,195 mm (86.4 in). Temperature: 165 °C (329 °F). Pressure: 1 bar (14.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 4.4 m² (47 ft²). Agitation Seal Type: Mechanical. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 165 °C (329 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Giovanola
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 2.2 m3 (78.4 ft3)
Capacity Working: 1.6 m3 (56.5 ft3)

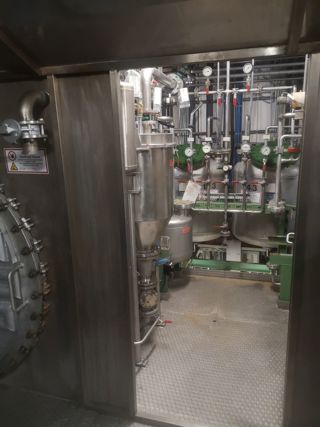

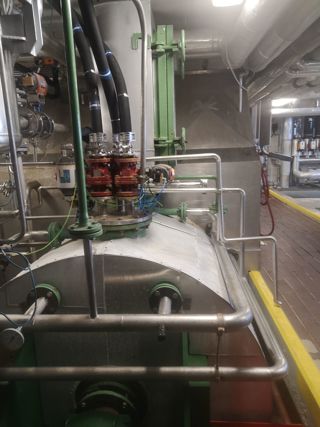

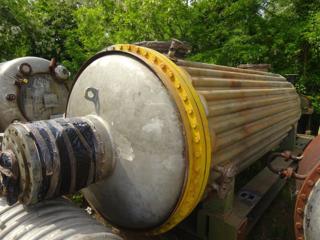

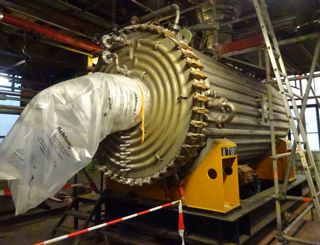

Rotary vacuum paddle dryer system system includes tanks, filters, pumps and other ancillaries
Diameter: 1,500 mm (59.1 in). Length: 3,985 mm (156.9 in). Height: 2,950 mm (116.1 in). Temperature: 165 °C (329 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 5.1 m² (55.2 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Stainless Steel Other. Jacket Pressure: 6.5 bar (94.3 psi). Jacket Temperature: 165 °C (329 °F). Jacket Type: Half Pipe/Limpet.
Type: Dryer-Rotary Vacuum
Manufacturer: Giovanola
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 10 m3 (353.1 ft3)
Capacity Working: 6.7 m3 (236.6 ft3)

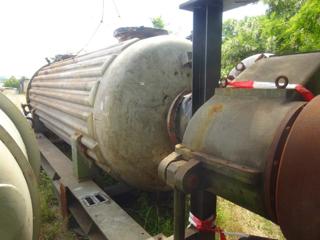

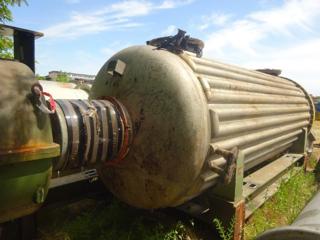

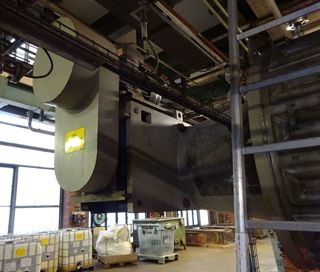

internal design pressure -1/3.2 bar @ 200 degrees C (10000 liter), jacket 6 bar @ 200 degrees C (420 liter) jacketed rotary vacuum paddle dryer shaft/paddle 3 bar @ 200 degrees C (520 liter) (1) weld dished end, (1) bolt dished end paddle belt driven by 30kw motor, paddle speed 3 rpm paddle is cored for steam heating, rotary union joint, center bottom outlet
Diameter: 1,794 mm (70.6 in). Length: 4,491 mm (176.8 in). Temperature: 200 °C (392 °F). Pressure: 3.2 bar (46.4 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 25.1 m² (270 ft²). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Jacket Material: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet.
Type: Dryer-Rotary Vacuum
Manufacturer: 3V Cogeim
Model: EC10000
Condition: Used
Material: Stainless Steel Austenitic
Capacity Design: 10 m3 (353.1 ft3)
Capacity Working: 6.7 m3 (236.6 ft3)

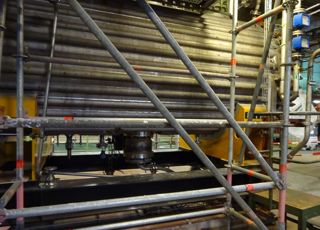

jacketed rotary vacuum paddle dryer Internal design pressure: -1/6 bar @ -10/150 degrees C (10180 liter) Coil jacket: 6 bar @ -10/150 degrees C (500 liter) Rotor/paddle: 6 bar @ -10/150 degrees C (300 liter) (1) bolt flat end (drive), (1) clamped flat end, rotor/paddle with union joint and cored for steam heating, rotor/paddle driven by approx 100kw motor via a gearbox center bottom discharge
Diameter: 1,800 mm (70.9 in). Length: 4,075 mm (160.4 in). Temperature: 150 °C (302 °F). Pressure: 6 bar (87 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 22.7 m² (244 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Jacket Material: Stainless Steel 321. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 150 °C (302 °F). Jacket Type: Half Pipe/Limpet.
