Carbon Steel Power Generator 1.01 MW For Sale - IPP# 207926

Type: Power Generator

Manufacturer: Elliott

Model: BYRH-UG

Condition: Used

Capacity: 1 MW

Amperage: 163 amp

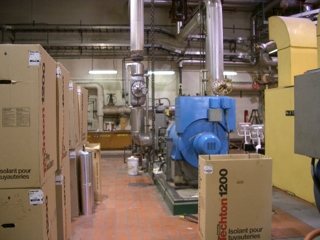

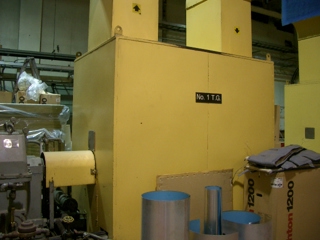

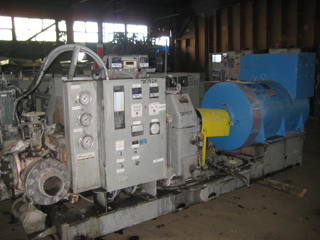

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units We believe this unit only has 100 hours runtime since overhaul.

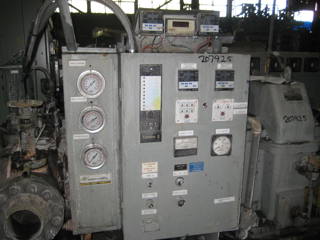

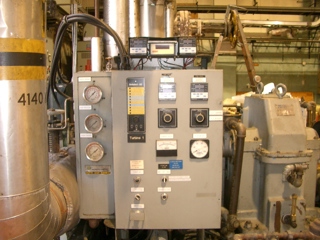

Engine, gearbox and generator are mounted in a common skid. The Elliott gearbox reduces the turbine speed of 5750 RPM to a final speed of 1800 RPM to drive a conventional 4-pole, 2-bearing alternator rated 1000kW/1176kVA with 0.85 PF, 163 Amps and wound for 2400/4160V/3/60 Hz service. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G1, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2624. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-102, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump. The package includes generator control and synch panels with scope, no boilers with units.

Cycle: 60. Drive Power: 1,007 kW (1,350 HP). Controls: Yes.

Type: Power Generator

Manufacturer: Caterpillar Inc

Model: G3516

Condition: Used

Material: Carbon Steel

Capacity: 0.8 MW

Amperage: 1,200 amp

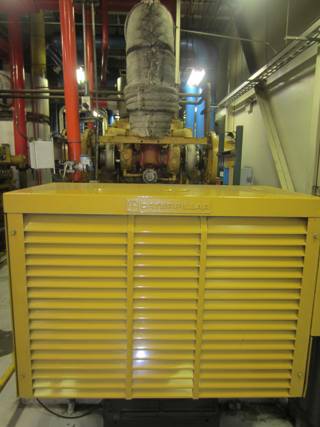

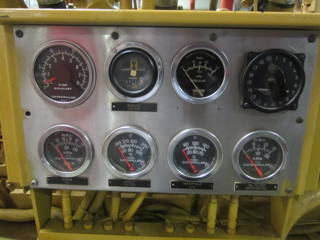

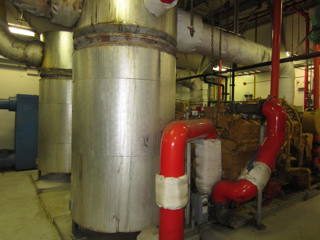

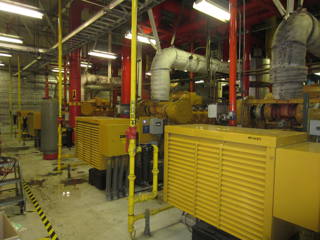

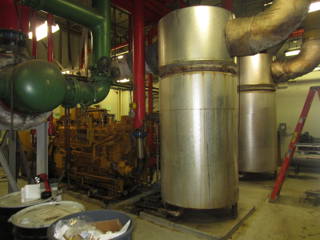

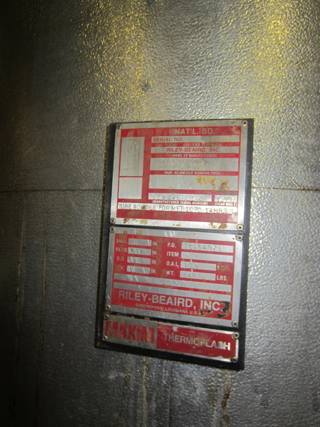

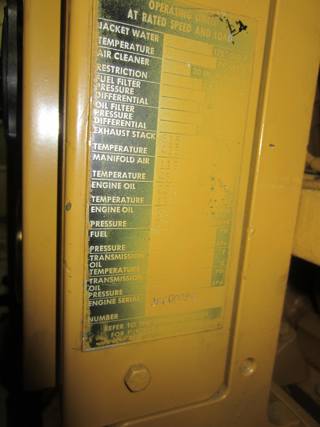

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00095,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H

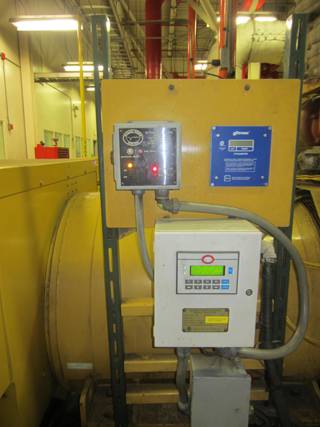

Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 657,774. Drive Power: 809.1 kW (1,085 HP). Fuel Type: Natural Gas. Power Transmission: Direct Coupled. Powered By: Engine. Engine Manufacturer: Caterpillar. Engine Model Number: G3516. Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes.

Type: Power Generator

Manufacturer: Caterpillar Inc

Model: G3516

Condition: Used

Material: Carbon Steel

Capacity: 0.8 MW

Amperage: 1,200 amp

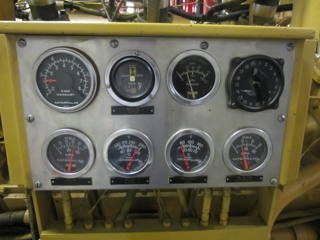

Natural Gas Electric Generator Set Number 20502Cat Engine Model G3516 SITA SN 3RC00088,1085HPThe drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut downOperating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H

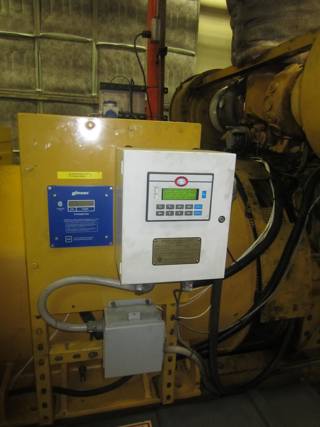

Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 651,146. Drive Power: 800 kW (1,073 HP). Fuel Type: Nat_Gas. Engine Manufacturer: Caterpillar. Engine Model Number: G3516. Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes. Controls: Yes.

Type: Power Generator

Manufacturer: Caterpillar Inc

Model: G3516

Condition: Used

Material: Carbon Steel

Capacity: 0.8 MW

Amperage: 1,200 amp

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00096,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs 4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H

Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 682,525. Drive Power: 800 kW (1,073 HP). Fuel Type: Nat_Gas. Batteries: Yes. Battery Charger: Yes. Controls: Yes.
