307 KW packaged reciprocating chiller type JS 84 EF 3S, serial # L9024/08J, factory test pressure 450 PSIG voltage by 3~/400 V/50Hz/207 FW LRA/975 PW LRA 8 cylinder, with reduction capacity 100-75-50-25 (1) control micro panel, mfd by YORK International LTD - UK, type LCHM115WL 50E, serial # 20270, voltage by 3~/380-415 V/50Hz (1) 54m³/Hr c/steel evaporator, type 1207 H 272 tubes with 90 liters volume (1) 372 KW c/steel Condenser WL, Type PC98, 127 tubes with capacity 77 liters Flow 5.2-22 l/s Flow 5.2-22 l/s. Main condenser water out 30-41 degrees C, main condenser water recovered 30-52 degrees C. Power absorption by motor 112 kw Localized temperature Min. 4,4 degrees C, Max. 46 degrees C With separately KSB c/steel centrifugal pump, ETANORM-G 65-200 G11, serial # 1-917-946154/1with 18.5 ABB e-moter,data: 220-380 V/50Hz/2.930 rpm
Type: Chiller
Subtype: Water Cooled
Manufacturer: York
Model: LCHM 115 WL
Condition: Used
Material: Carbon Steel
Pressure: 31 bar (450 psi)
Refrigerant Type: R-22
307 KW packaged reciprocating chiller type JL 84EF 3S serial # L9024/08J voltage by 3~/400 V/50Hz/169 FW LRA/780 PW LRA 8 cylinder, with reduction capacity 100-75-50-25 mfd by YORK International LTD - UK, type LCHM115WL 50E, serial # 20270, voltage by 3~/380-400 V/50Hz; (1) 54m³/Hr evaporator, type 1207 H, 272 tubes with 90 liters volume 272 tubes with 90 liters volume; (1) 372 KW Condenser WL, Type PC98, 127 tubes with capacity 77 liters Flow 5.2-22 l/s Main condenser water out 30-41 degrees C, main condenser water recovered 30-52 degrees C Power absorption by motor 112 kw Localized temperature Min. 4,4 degrees C, Max. 46 degrees C With separately KSB c/steel centrifugal pump, ETANORM-G 65-200 G11, serial # 1-917-844015/1 with 18.5-22.0 KW LEROY SOMER e-moter, CE confirmed, data: 380-460V /50-60Hz/2.933-3.540 rpm
Temperature: 10 °C (50 °F).

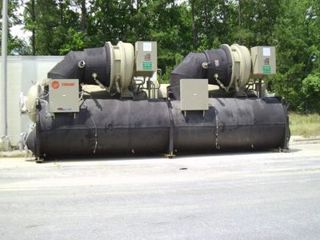

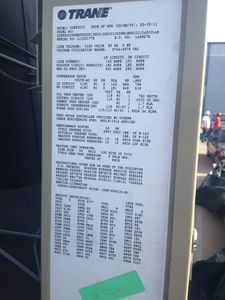

Type: Chiller
Subtype: Water Cooled
Manufacturer: Trane
Model: CDHF3000
Condition: Unused
Material: Carbon Steel
Capacity Design: 9,071,847 kcal/h (3,000 Ref. Ton)
Pressure: 1.03 bar (15 psi)
Dual direct drive semi-hermetic centrifugal compressors rated 0.45Kw/ton efficiency. Driven by (1) 893KW (LH Circuit) and (1) 946KW (RH Circuit) motors, 4160V, 60Hz, 3 Phase. Uses low pressure refrigerant to produce low refrigerant emissions. (R-123 Charge- LH 2650 lbs & RH 2650 lbs.) Maximum working pressure is 15 psi on both high and low sides. The condenser and evaporator have high efficiency tubing providing greater surface area. Packaged design with electronic controls employing the latest in technology for energy usage.
Refrigerant Type: R-123. Temperature: 1.11 °C (34 °F).
Type: Chiller
Subtype: Water Cooled
Manufacturer: Edwards
Model: CE2AHP
Condition: Used
Material: Carbon Steel
Capacity Design: 30,239 kcal/h (10 Ref. Ton)
Temperature: 4.4 °C (40 °F)
Height: 1,372 mm (54 in). Length: 1,219 mm (48 in). Width: 1,829 mm (72 in).
