Overview

Type:

Evaporator

Condition:

Used

Material:

Hastelloy - C22

Additional Information

Individual Components:

IPP #233138: 18" diameter packed column, fabricated from C-22
IPP #233139 and 233140: 16 Sq. Ft., Hastelloy C-276 Plate and frame heaters
IPP #233141: 639 Sq. Ft., Asthenic Stainless Steel shell and tube heater
IPP #233142: 6,500 GPM Hastelloy elbow recirculation pump
IPP #233143: 5,000 Gallon, glass lined recirculation tank
IPP #233455: 169 Sq. Ft., 316 SS vertical shell and tube heat exchanger
IPP #233454: 484 Sq. Ft., 316 SS shell and tube condenser
IPP #233146: 12,000 Gallon, 304 SS, vertical storage tank
IPP #233496: 24" column, 316 SS Alloy Fab, 270" overall length.

Hastelloy - C22 Clad Wiped/Thin Film Evaporator

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: SMS Buss

Model: LN 1400

Condition: Used

Material: Hastelloy - C22

Clad: Yes

Evaporation Rate: 340.2 kg/h (750 lb/h)

Total Heat Transfer Surface Area: 14 m² (150.7 ft²)

with 316 SS rotor, Jacket rated for 218 psi at 482 degrees F. Heating surface area 150.7 Sq. Ft., Serial numbers: Lower Body Serial Number 1400/56, National Board Number 717; Interm body Serial Number 1400/56, National Board Number 716; Upper Body Serial Number 1400/56, National Board Number 715; Lower cone Serial Number 1400/56, National Board Number 718. Body is 850 mm inside diameter x 6320 mm to bottom of cone. Rotor assembly is 4 blade 316 SS construction, bottom cone is solid Hastelloy, shell is Hastelloy Clad. Unit driven by a 25 hp, 3 phase, 60 cycle, 230/460 volt motor, with Class 1 Group D label, Rotor speed is 880 rpm.

Orientation: Vertical. Diameter: 850 mm (33.5 in). Height: 6,300 mm (248.8 in). Pressure: 1.72 bar (25 psi). Temperature: 250 °C (482 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.

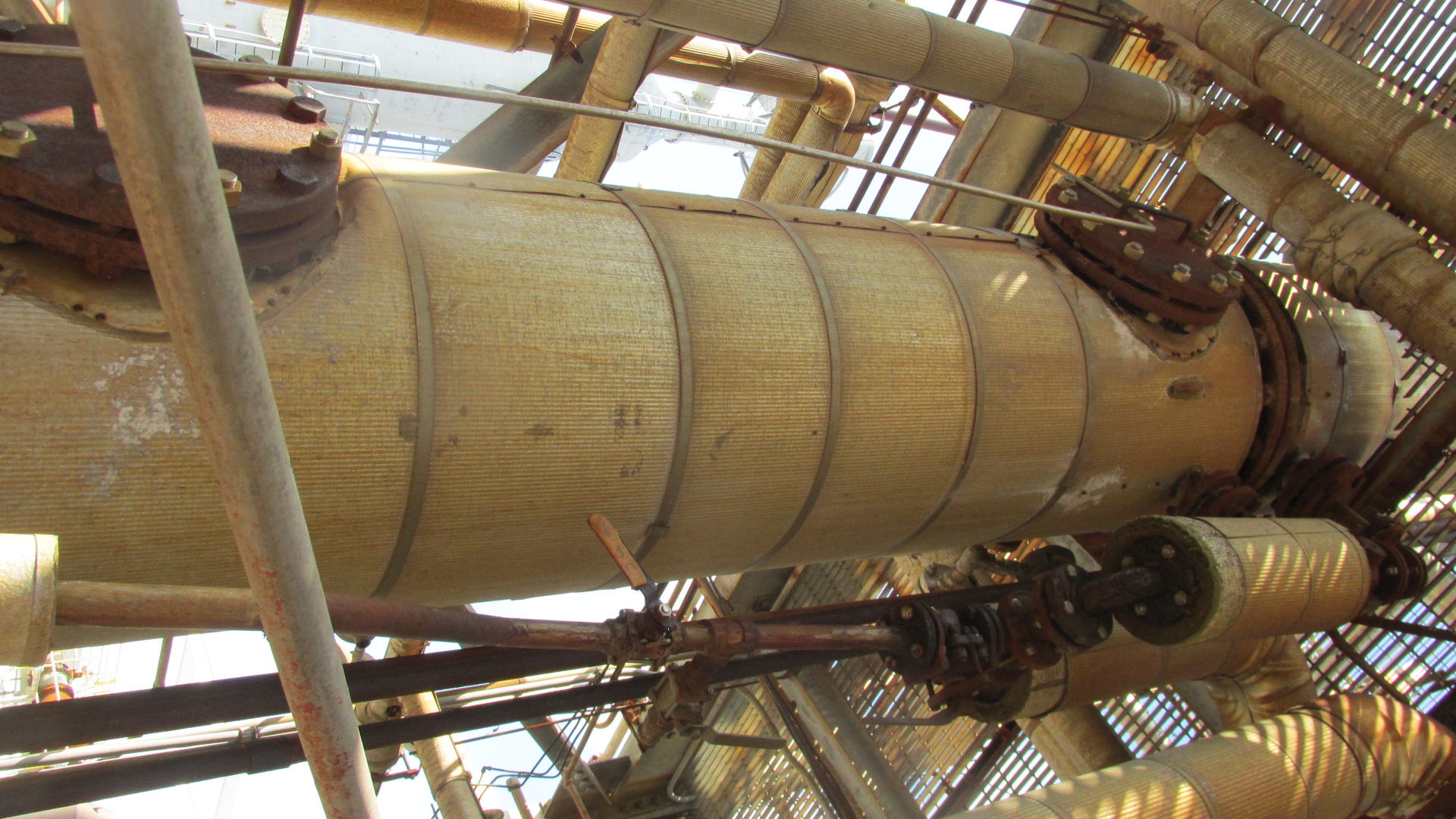

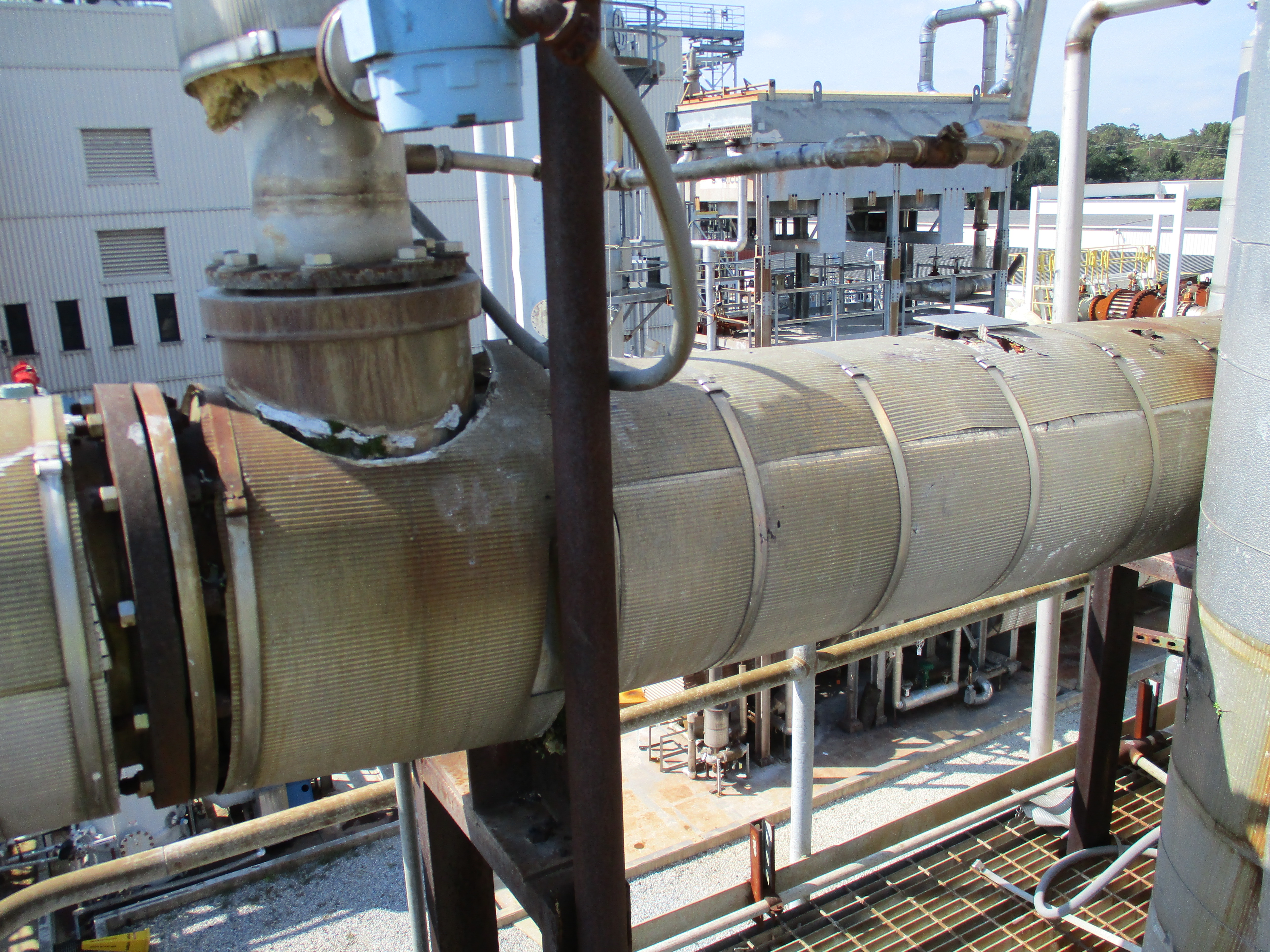

Hastelloy - C22 Evaporator - IPP# 233281
