Overview

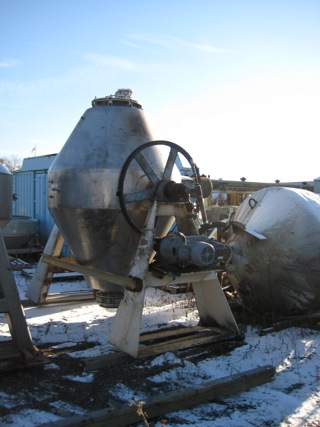

Dryer-Twin Shell & Double Cone
Paul O Abbe
66 RCD
Used
Stainless Steel 304
Capacity
2.35 m3 (83 ft3)
1.53 m3 (54 ft3)
Jacket
1.03 bar (15 psi)
Other Specifications
1.42 m3 (50 ft3)

jacket surface area is 93 Sq.Ft..
Standard jacket rated 15 psi and not code stamped
Operating capacity is 65% of total volume, based on 50 lbs./ft3. material.
Approximately 236" circumference with 36" cones.

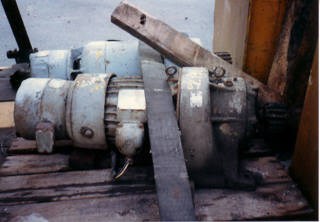

Gear driven by a SEW Eurodrive motor with brake
230/460v, 13.6/6.8 amps
Motor type DFT100L4BM64 HR
Motor is CE certified.
Can be used with Chromalux electric oil heater stock # 234972, available at additional cost.

Similar Equipment

Stainless Steel 304 Paul O Abbe Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Paul O Abbe

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.708 m3 (25 ft3)

Capacity Operating: 0.566 m3 (20 ft3)

  • jacket with sheet metal covering insulation.
  • vacuum arm with packing gland
  • 14" diameter charge port (no cover) and an 8" discharge with a manual butterfly valve.
  • Dryer shell has outboard pillow block bearings
  • 220/440 volt With electric brake Has rotary joint for jacket.
  • Suitable for hot oil or water

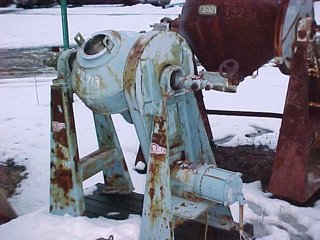

Stainless Steel 304 Paul O Abbe 18RCVD Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Paul O Abbe

Model: 18RCVD

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.0481 m3 (1.7 ft3)

Capacity Operating: 0.0311 m3 (1.1 ft3)

w/packing gland
4" dia discharge w/manual butterfly valve
3/60/230/460 volt,
Has outboard bearings

Jacket Pressure: 2.76 bar (40 psi). Product Density: 1.42 m3 (50 ft3).

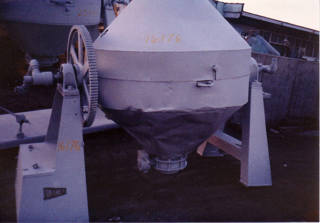

Stainless Steel 316 Paul O Abbe Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Paul O Abbe

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.83 m3 (100 ft3)

Capacity Operating: 2.12 m3 (75 ft3)

60 degree cones,
insulated with 321SS shroud over insulation
18" charge port with cover

Unused Stainless Steel 304 Dryer-Twin Shell & Double Cone

Type: Dryer-Twin Shell & Double Cone

Condition: Unused

Material: Stainless Steel 304

Capacity Design: 0.283 m3 (10 ft3)

Capacity Operating: 0.187 m3 (6.6 ft3)

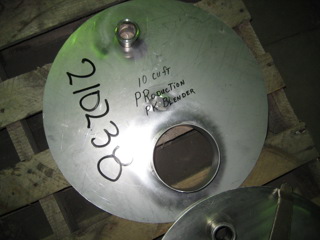

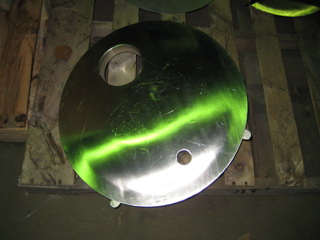

doors for a PK dryer.
21" diameter by 1/8" thick, 2 have clamps.
Each door has a five inch opening and a 1.25" sanitary connection.
Three doors are available.
