rebuilt disc bowl self cleaning solids 1.25 kg/dm3, heavy solid 1.1 kg/dm3, The product flows into the bowl through inlet and is separated in disk stack into a light and a heavy liquid phase with simultaneous removal of the solids which collect in the sediment holding space. The light liquid phase flows towards the center and is discharged foam-free and under pressure by centrifugal pump through outlet. The heavy liquid phase flows to the periphery and is discharged under pressure by centrifugal pump through outlet. The separated gums and solids collect in sediment holding space and are instantaneously ejected through ports at pre-set intervals by lowering the sliding piston. Closing water drains via the bowl valve. The ejection cycles are initiated by a control unit

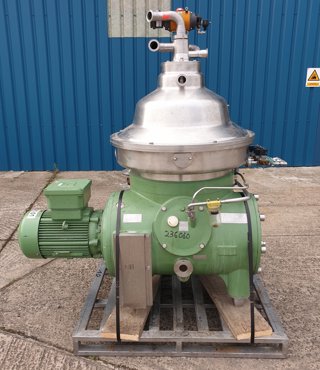

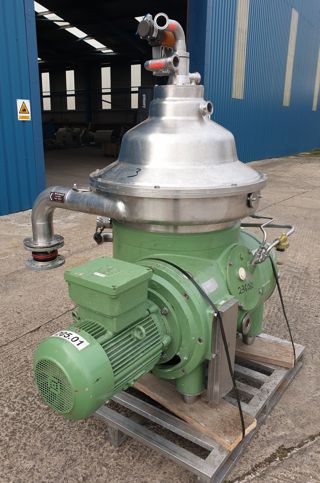

Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia

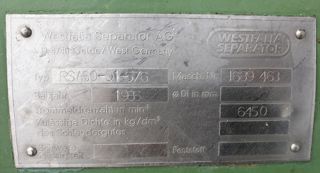

Model: RSA 60-01-576
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 15 kW (20.1 HP)
Bowl Diameter: 790 mm (31.1 in)
disk bowl separator system, solids 1.3 kg.dm3, heavy solid 1 kg/dm3
(1) 450 liter 316Ti stainless steel vertical tank, manufactured by Hinke, fabrik #8784, pressure -0.3/+0.49 bar @ -0/+90 degrees C (450 liter), weld flat top and bottom, mounted on legs, (1) 3.5/5/12 m3/hr @ 51/50/47m head 316 stainless steel centrifugal pump, manufactured by Dickow Pumpen, type NMBh 26/210, fabrik #9716261, 2900 rpm, 4.1/3.3/4.1kw, driven by 2.5kw, 3/50/380/660 volt, 2840 rpm motor mounted on a baseplate
The separator is equipped with a self-cleaning disc-type bowl. The product flows into the bowl through inlet and is separated in disk stack into a light and a heavy liquid phase with simultaneous removal of the solids which collect in the sediment holding space. The light liquid phase flows towards the center and is discharged foam-free and under pressure by centripetal pump through outlet. The heavy liquid phase flows to the periphery and is discharged under pressure by centripetal pump through outlet. The separated gums and solids collect in sediment holding space and are instantaneously ejected through ports at pre-set intervals by lowering the sliding piston. Closing water drains via the bowl valve. The ejection cycles are initiated by a control unit
Inlet Diameter: 40 mm (1.57 in). RPM Maximum: 6,450.
Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia
Model: TA 140-02-576
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 29.8 kW (40 HP)
Inlet Diameter: 50.8 mm (2 in)
316SS bowl and cover 21" OD disk stack Sediment Holding: 4.6 gallons, Rated capacity: 7,926 Gallons per Hour Motor: Driven by a Louis Allis 230/460 volt Explosion proof enclosure
Bowl Volume: 70 L (18.5 gallons). Number of Phases: 2. RPM Maximum: 5,000.
Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia
Model: TA 140-02-576
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 29.8 kW (40 HP)
Inlet Diameter: 38.1 mm (1.5 in)
Seperator Sediment Holding: 4.6 gallons, Rated capacity: 7,926 Gallons per Hour Driven by a Motor: 230/460 volt Explosion proof enclosure
Bowl Volume: 70 L (18.5 gallons). RPM Maximum: 4,910.
Type: Centrifuge-Disc Bowl
Manufacturer: Westfalia
Model: HDA50-06-006
Condition: Used
Material: Stainless Steel 316
Motor Horsepower: 30 kW (40.2 HP)
RPM Maximum: 5,600
nozzle bowl disc stack centrifuge Clarifier design, with centrifugal pump for liquid discharge Nozzle continuous discharge of solids Horizontal flange type motor with clutch
