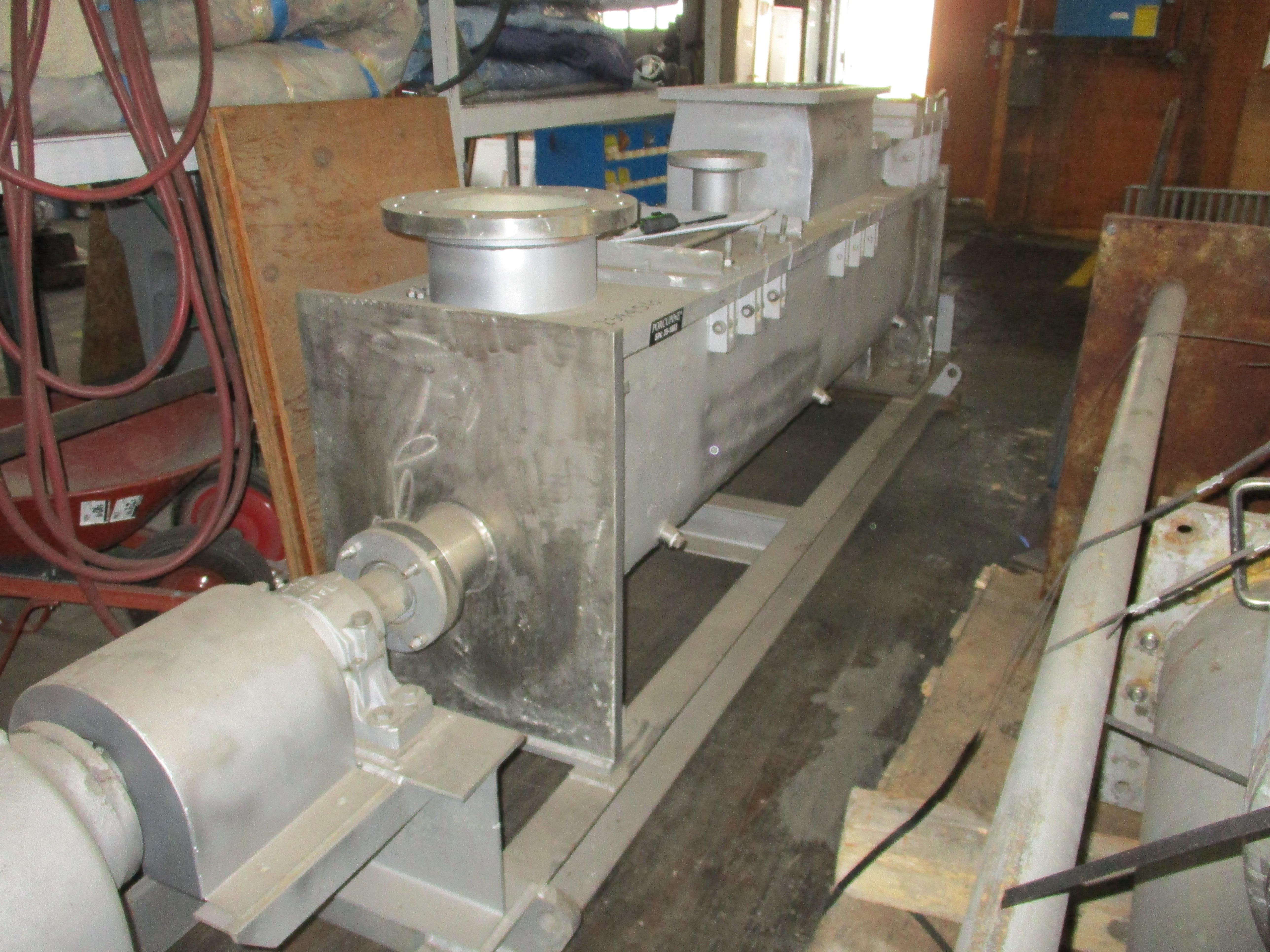

Unused Porcupine Dryer 1P1208JTC Stainless Steel 316L Gale Process Solutions - IPP# 239456

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1208JTC

Condition: Unused

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• UNUSED One agitator.
• Jacketed trough
• Completely fabricated and assembled except for the following: Johnson rotary joint, drive motor, drive gear and coupling
• No cover, agitator 35 sq.ft. trough 55 sq.ft.
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 2,438 mm (96 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 5.1 m² (55 ft²). Porcupine Surface Area: 3.3 m² (35 ft²). Total Heat Transfer Surface Area: 8.4 m² (90 ft²). Size: 1208.

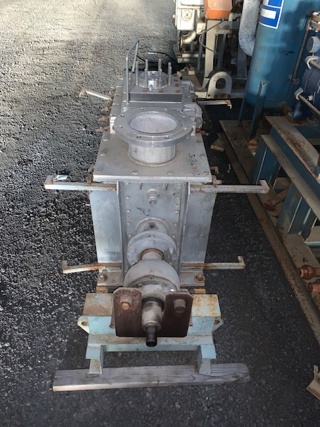

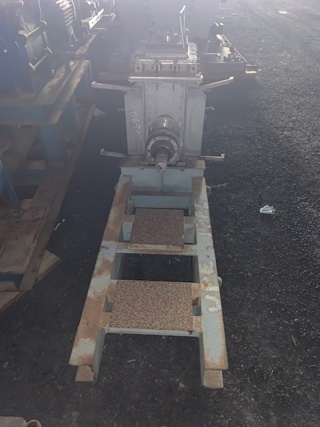

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

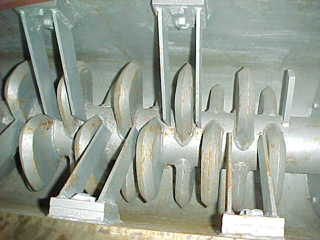

• Agitator 12" diameter, 3' long. (18% Cr, 11% nickel)
• hot oil or steam and full vacuum
• Working volume 1.89 cubic feet
• Agitator 12.4 square feet of heating area and jacket 7.3 square feet
• (requires motor and gear drive)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.86 m² (20 ft²).

Type: Dryer-Porcupine

Subtype: Parts

Manufacturer: Gale Process Solutions

Model: 5416

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Diameter: 1,372 mm (54 in)

• Spare trough Size 54-16
• Shell rated for 5 psi at 325 degrees F Capacity of trough is 213 cu.ft
• Twin rotor chamber 36" deep x 191" long
• Designed to use two screws
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 4,877 mm (192 in). Number of Shafts: 2. Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 162.8 °C (325 °F). Jacket Operating Pressure: 5.2 bar (75 psi). Jacket Operating Temperature: 162.8 °C (325 °F). Total Heat Transfer Surface Area: 64.1 m² (690 ft²).

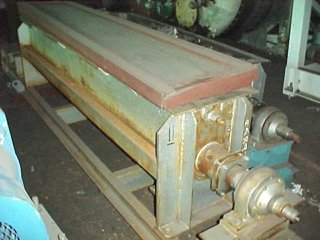

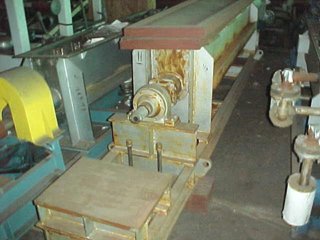

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3012

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Diameter: 762 mm (30 in)

• With drive and panel coils utilizing steam as the heat transfer medium agitator is ;142 sq. ft Trough is; 208 sq. ft
• The working volume is, 39.3 cu.ft It has a single shaft design supported by pillow block bearings with packing glands on shaft output rpms, 37 Ratio:48:11 service rating HP= 35.1
• Motor:80/40 amps3 phase AC electric motor Trough heating by four separate Tranter plate coils designed for 150 psi at 375 degrees F All have 1" inlets and outlets with weld neck flanges Serial and NB numbers are a follows: NB # 22173-SN PC13125; NB # 22174 SN # PC13126, NB # 22176 SN # PC 13128, NB # 22175 SN # PC 13127
• Bottom opening *' valve with Jamsbury automatic actuator Steam lines to rotary joint are 1.5" inlet & outlet
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 3,658 mm (144 in). Number of Shafts: 1. Porcupine Surface Area: 13.2 m² (142 ft²). Total Heat Transfer Surface Area: 32.5 m² (350 ft²).
