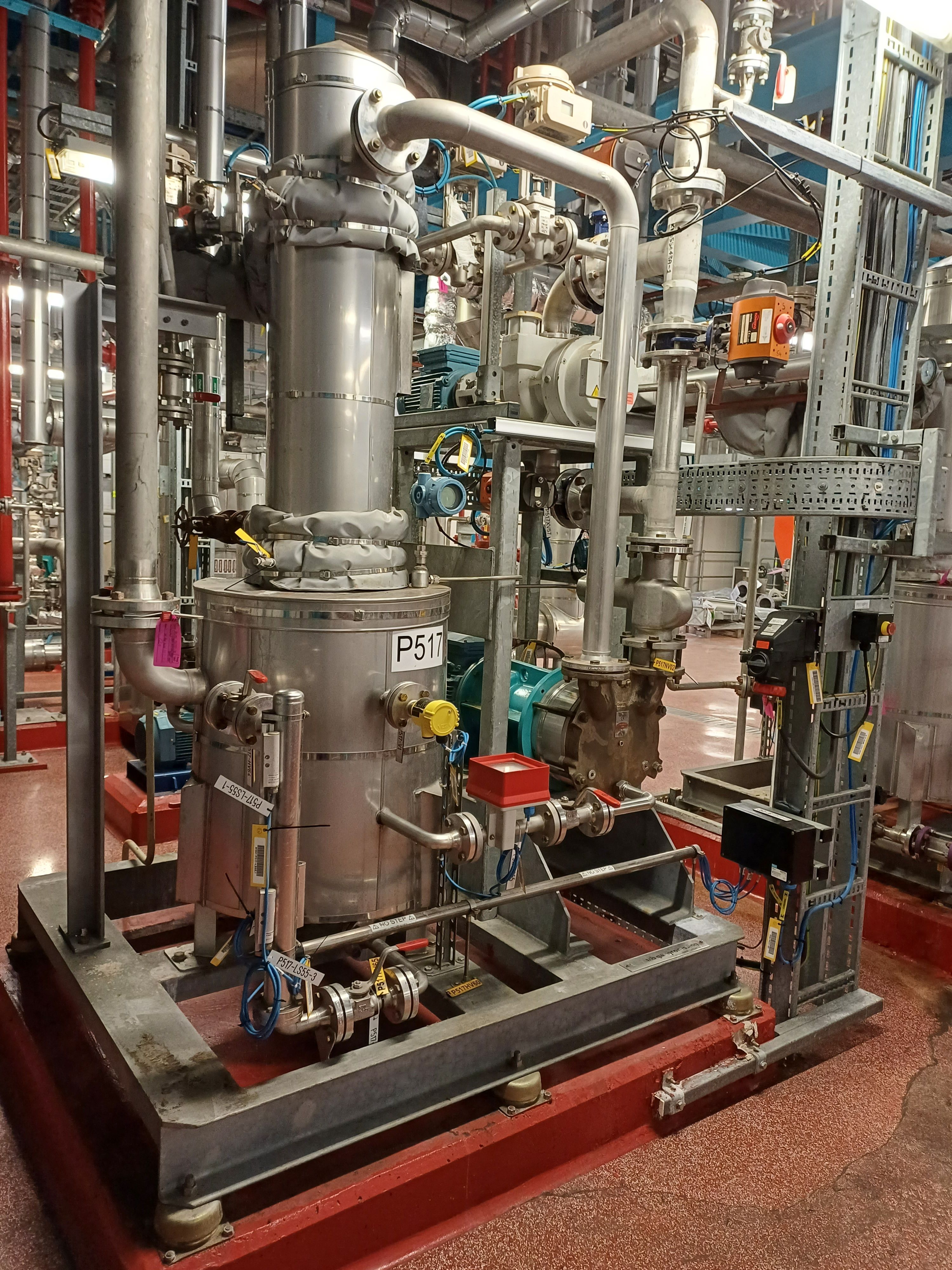

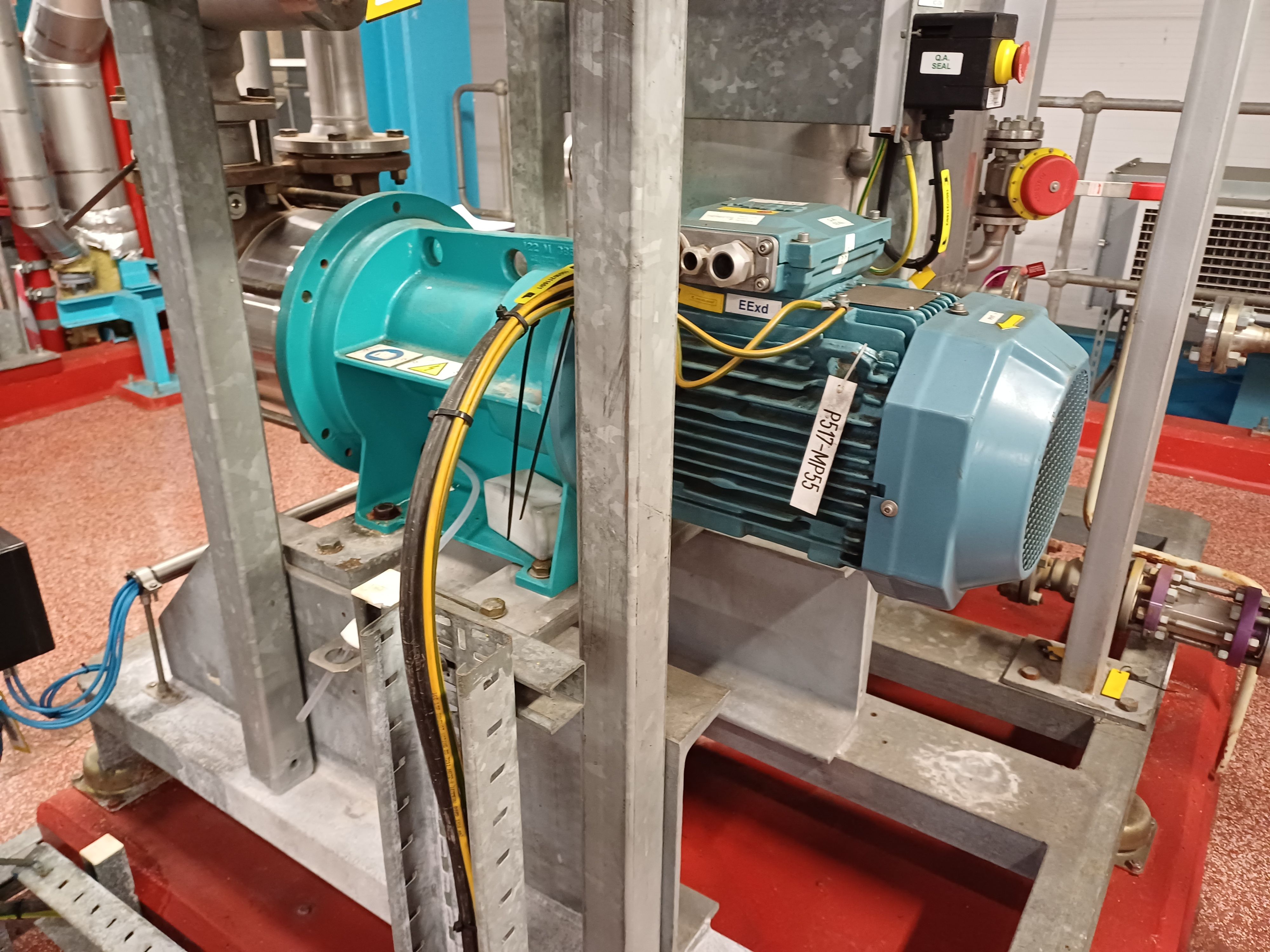

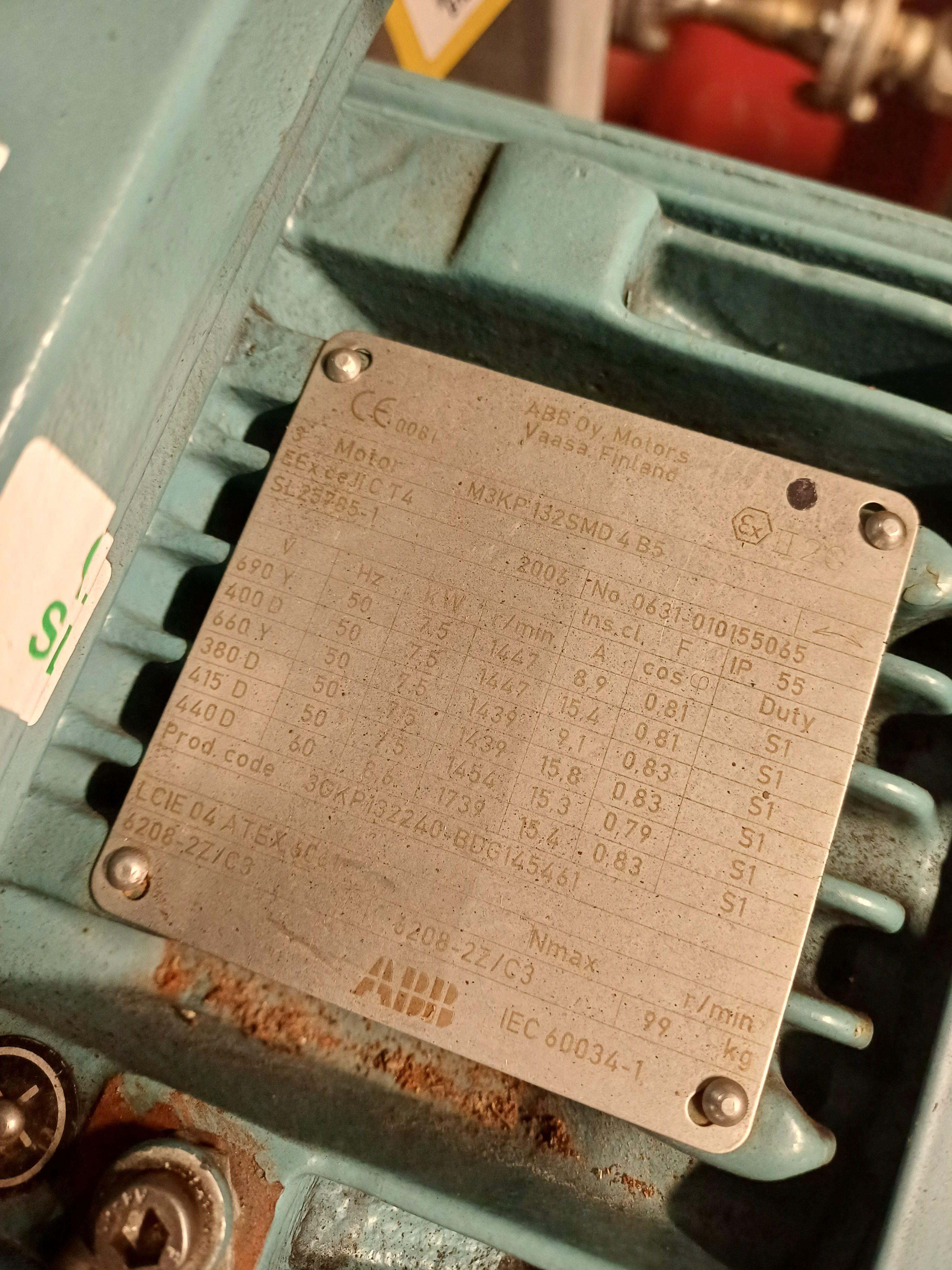

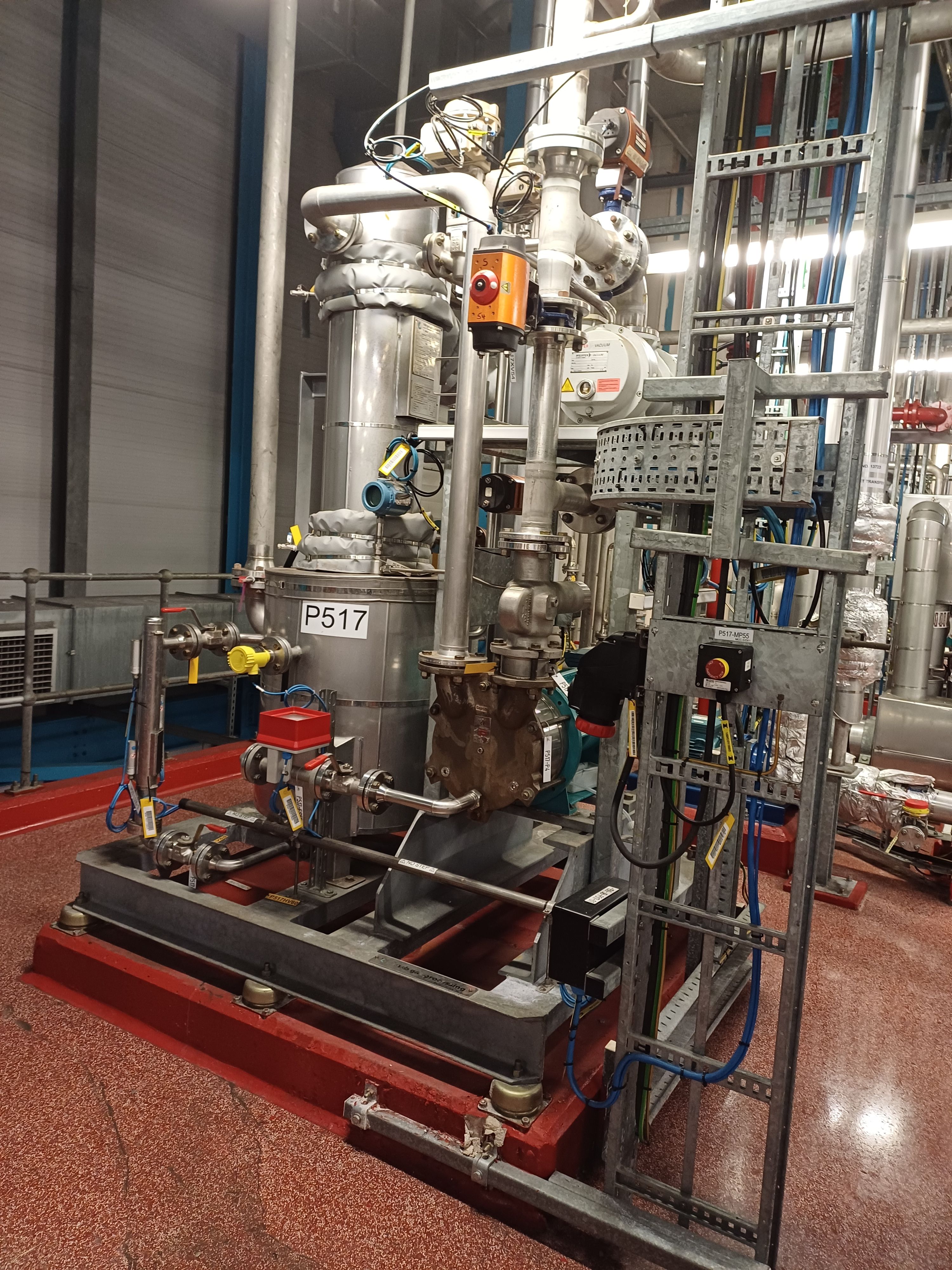

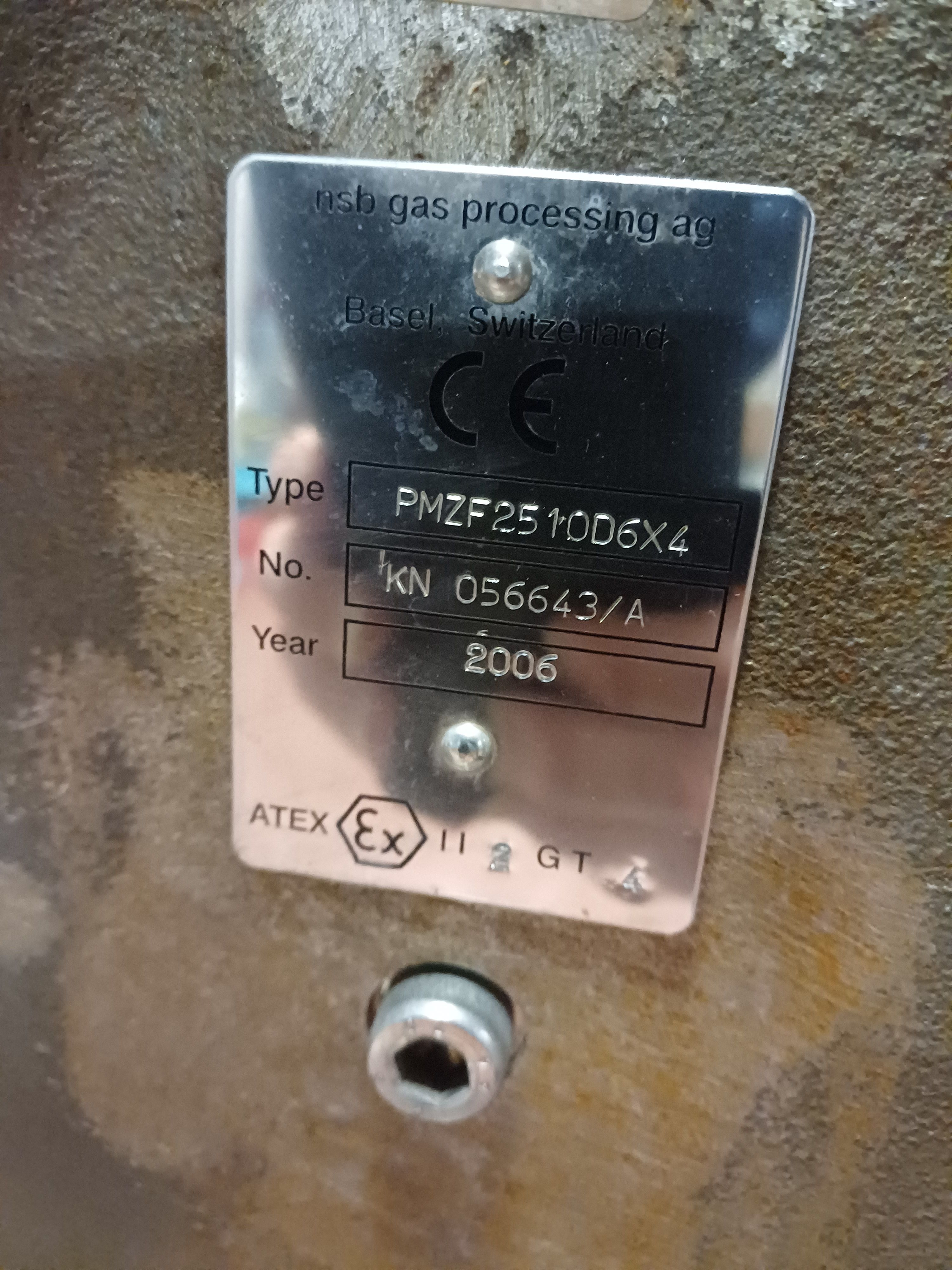

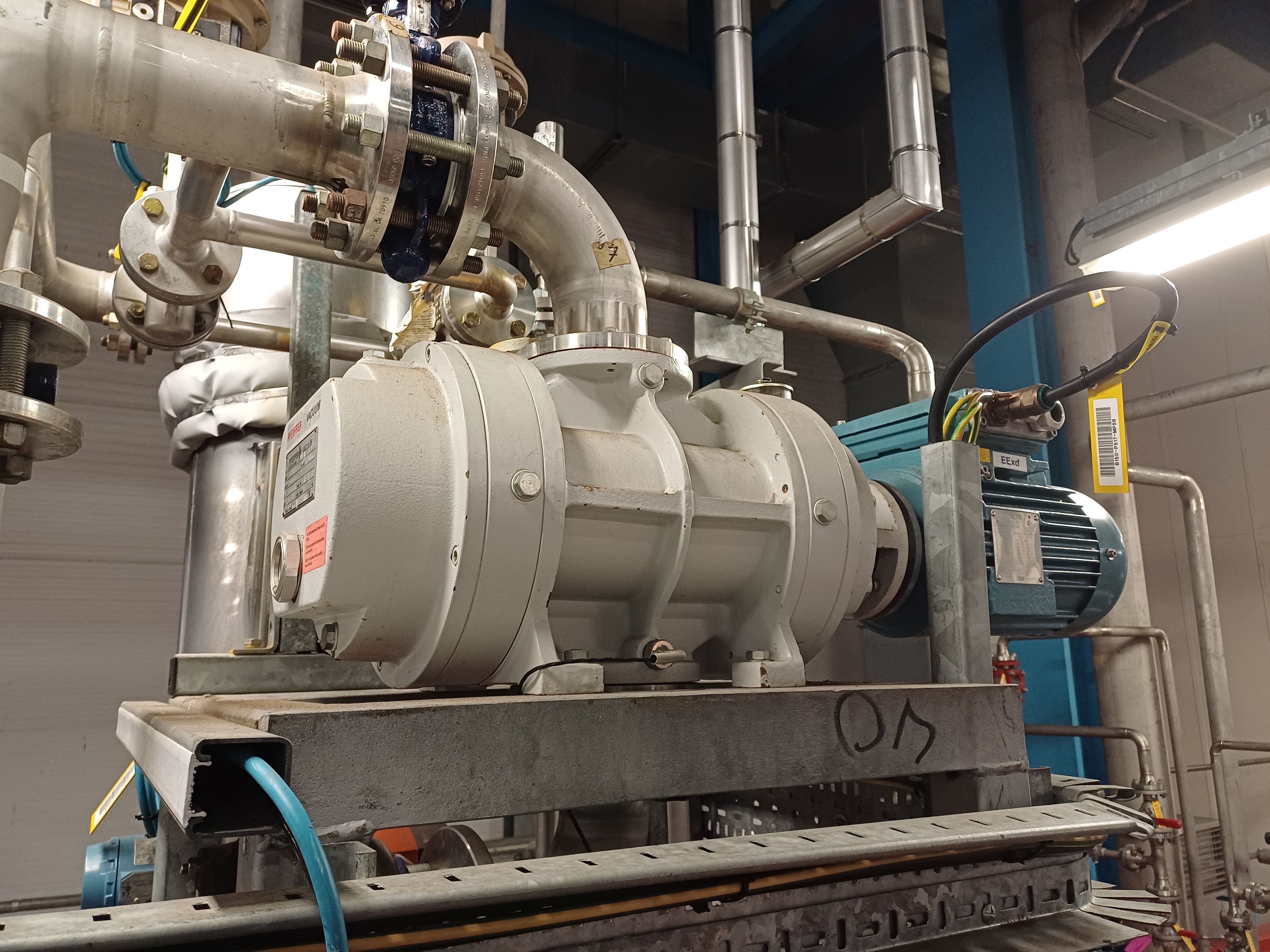

liquid ring vacuum pump skid with booster pump suction pressure -1 bar max allowable pressure 4 bar Protection CE ATEX Ex II 2 G T4 skid includes: (1) 260 m3/hour 316L stainless steel liquid ring vacuum pump type PMZF 2510 D6X4, serial #KN056643/A, driven by 7.5/8.6kW, 3/50-60/690-400/660-380/415-440 volt, 1447/1439/1454/1739 rpm ATEX EEx de II CT4 IP55 motor (1) 3.2 square meter stainless steel tube and shell vertical liquid ring cooler mounted on a 80 liter stainless steel ring liquid tank, pressure product side 4 bar @ 120 degrees C, service side 10 bar @ 120 degrees C, all mounted on a carbon steel skid (1) 735m3/hr Pfeiffer stainless steel vacuum booster pump, type WKP 500 A, serial #21188053, driven by 4/4.6kW, 3/50-60/690-400/660-380/415-440 volt, 2901/2877/2906/3478 rpm ATEX EEx de IIB T4 IP55 motor
Type: Pump-Vacuum
Manufacturer: SIHI
Model: PIW 14000/2
Condition: Used
Material: Stainless Steel 316
Air Flow: 11,000 m3/h (6,474 CFM)
Discharge Pressure: 0.001 bar (0.015 psi)
1 mbar System includes: 350 m3/Hr @ 33 to 0 mbar SIHI type LPHA 55320, Serial Number BN BFK42.4, Pump Number D005187903 Mounted above the SIHI vacuum pump is a SIHI Sterling CS Vacuum booster, rated 4000 m3/Hr, 11KW, type WNMY4000, Pump Number D72951 0106, driven by a 11 Kw Loher E-motor, type DNGW-160LB-04A, 500 volt, 50 cycle, 2930 U/min This booster discharges directly into the suction inlet of a second SIHI Rotary lobe booster rated 14000 m3/Hr direct coupled to a 30 KW motor Skid mounted system includes a 1.730mm diameter x 2.940 mm long separator tank, a plate heat exchanger used as a cooler, and a 110 liter Stainless steel separator tank rated 0,5 bar @ 100 degrees C. Total package dimensions are 2.940 mm long x 1.730 mm wide with separator and plate heat exchanger x 3.315 height over all, total weight including the carbon steel frame 5.200 Kg.
Orientation: Horizontal. Inlet Diameter: 250 mm (9.8 in). Outlet Diameter: 150 mm (5.9 in). Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: PIW 14000/2
Condition: Used
Material: Stainless Steel 316
Air Flow: 11,000 m3/h (6,474 CFM)
Discharge Pressure: 0.001 bar (0.015 psi)
Orientation: Horizontal. Inlet Diameter: 250 mm (9.8 in). Outlet Diameter: 150 mm (5.9 in). Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: LPHA 55320
Condition: Used
Material: Stainless Steel 316
Air Flow: 350 m3/h (206 CFM)
Discharge Pressure: 2 bar (29 psi)
vacuum pump system 2 stage liquid ring vacuum pump, 33 mbar@2 bar, type LPHA 55320 serial # BN BFK 42 4, pump#D-005187901, openings: 4 x DN 50 PN16 e-motor type DNGW-160LB-04A, motor#3306781, 500V/50Hz/22,8A/15kW/1450 U/min, ex proof (CT4); (1) 14.000 m³/h SIHI c/steel roots vacuum pump with water cooling, type WNMY 14000, serial#A2 XOA OBO, pump# D-72-945-0106, CE confirm, (1)down openig connecting tube: approx: 300 mm diameter,(1) top opening: DN 400 PN10, no motor (1) 4.000 m³ SIHI c/steel roots vacuum pump with water cooling, type WNMY4000 A2 XOA OBO, pump#62 125 0006, CE confirm,,(1)down opening: DN 250 PN16 (1)top opening: DN 250x273 PN10, driven by LOHER e-motor type DNGW-160MB-02C, motor#3272776, 500V/50Hz/16,4A/11kW/2920 U/min, ex proof (CT4); (1) 110 liter s/steel separator @ 0,5 bar@100° C, s/steel (316), mfd by STERLING SAT,
Inlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: YLQH-6616KKBe
Condition: Used
Material: Stainless Steel 316
Orientation: Horizontal
Seal Type: Liquid Ring
vacuum pump system (1) 316 stainless steel double stage liquid ring vacuum pump ex proof (G3), (1) 4.0 square meter 316 stainless steel (1.4571) shell and tube heat exchanger, serail # 322 manufactured by JULIUS MONTZ GmbH, Germany, rated shell side -1/6.2 bar @ 250 degrees C, volume 46 liter, rated tube side -1/6.2 bar @ 250 degrees C, volume 30 liter. (1) 316 stainless steel reciever.
