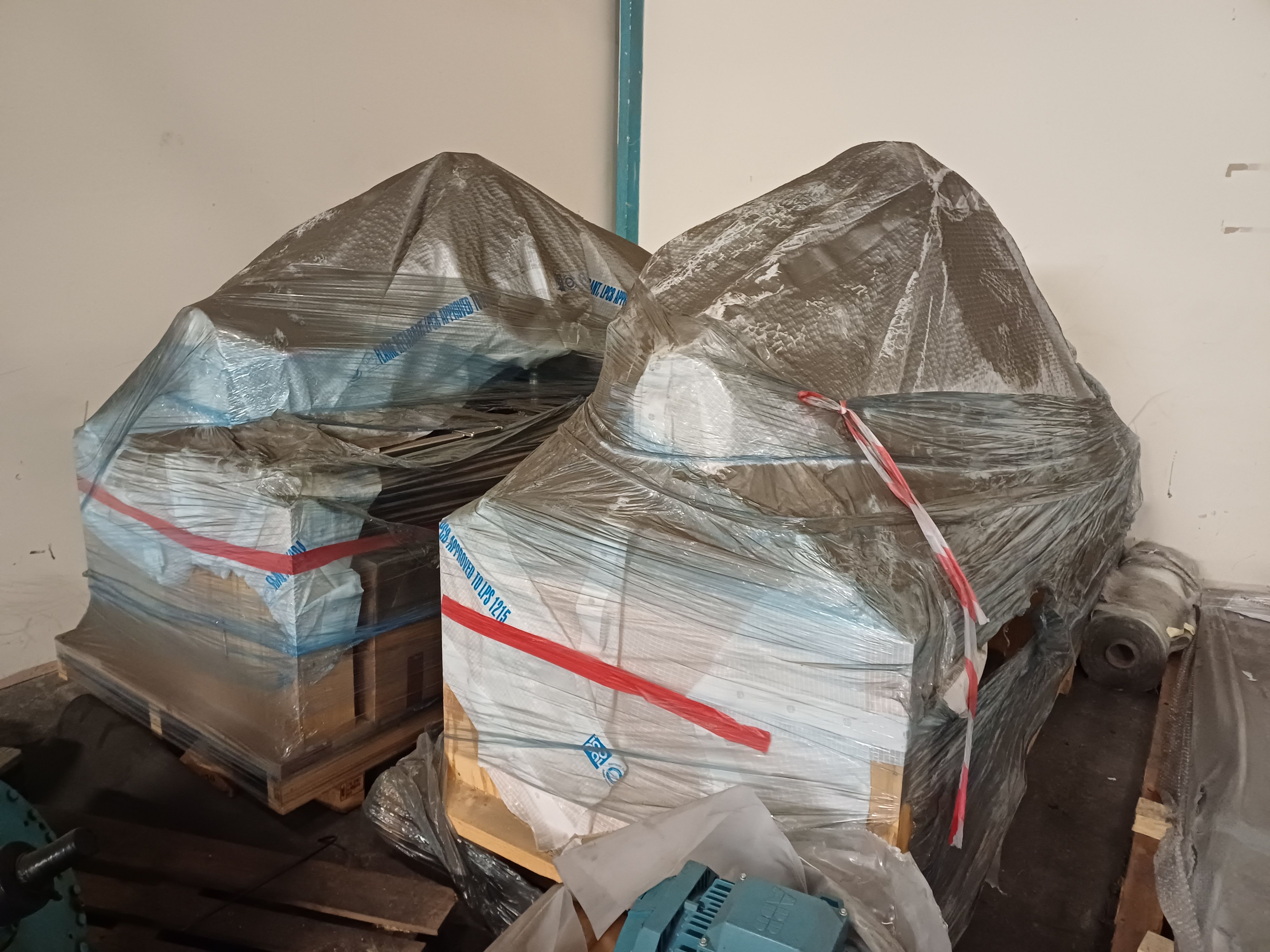

Unused Stainless Steel 316 Rotary Screener For Sale - IPP# 243372

DA 360 MC highly polished type DA 360 MC (modular containment) with extraction device for screen basket/rotor and dosing screw, CE Ex II ID 135 degrees C 3G IIB T4 (internal/external) ATEX, design temperature 40 degrees C (max) 1.2 square meter product contacting area 0.7653 square meter product contacting inspection chamber surface area design vacuum -0.2 bar (max), CIP design temperature 80 degrees C (max) screen approx 484mm long, 900-1000 rpm operating speed screen end 228 rpm operating speed dosing (CIP) end screen rotor driven by 0.75kw, 30-60 Hz released frequency, dosing (CIP) screw driven by 0.55kw, compressed air vibrator screen rotor is located at one end of the unit and dosing/CIP rotor at the other end of the unit, screen chamber is in the middle of the unit 200mm diameter product inlet, 150mm diameter fine product outlet, 100mm diameter coarse product outlet, mounted on a frame, screener is used for eliminating foreign matter, breaking lumps and for lifting loosening product,"
