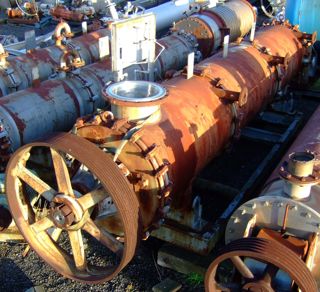

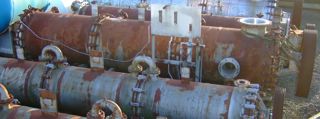

thin film continuous contact dryer, dryer has 3 segments: each segments: internal pressure rated -1/0,5 bar @ 200 degrees C, total volume 1570 liter, jacket pressure rated 10 bar @ 200 degrees C, total volume 150 liter. Shell 1000mm (40") diameter x 6008mm long, Rotor speed 80/160 rpm. system included a feeder driven by a 0,8kW motor, manufactured by VEB Elektromotorenwerke, 3~/50Hz/660V/100rpm, ExeT3.
Type: Dryer-Thin Film

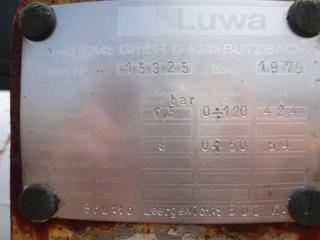

Manufacturer: Luwa SMS
Model: DK600/4500/10
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 7.5 m² (80.7 ft²)
Internal Pressure Rating: 0.5 bar (7.3 psi)

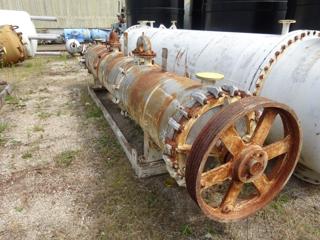

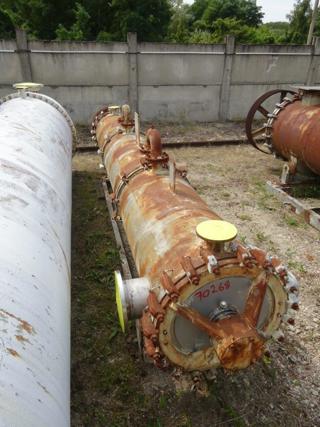

thin film continuous contact dryer (cooler). Jkt rated 8 bar @ 50 deg C, Shell 600mm dia (24") x 4.492m (177") long.
Internal Temperature Rating: 120 °C (248 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 50 °C (122 °F). Orientation: Horizontal. Shell Diameter: 600 mm (23.6 in). Shell Length: 4,492 mm (176.9 in).
Type: Dryer-Thin Film
Manufacturer: Luwa SMS
Model: DK600/4500/10.
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 7.5 m² (80.7 ft²)
Internal Pressure Rating: 0.5 bar (7.3 psi)

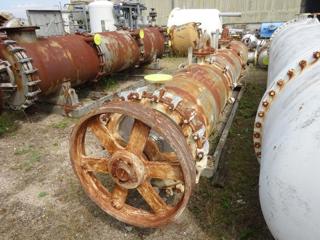

thin film continuous contact dryer (cooler) Jkt rated 8 bar @ 50 deg C Shell 600mm dia (24") x 4.492m (177") long
Internal Temperature Rating: 120 °C (248 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 50 °C (122 °F). Orientation: Horizontal. Shell Diameter: 600 mm (23.6 in). Shell Length: 4,492 mm (176.9 in).
Type: Dryer-Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 11 m² (118.4 ft²)
Internal Pressure Rating: 0.5 bar (7.3 psi)

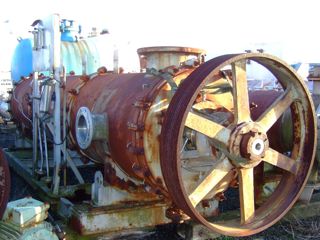

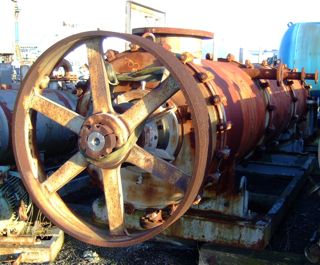

thin film continuous contact dryer. pressure internal 0.5 bar and full vacuum @ 220 degrees C. Jacket rated 13 bar @ 220 degrees C, Shell 850mm diameter x 4800mm long, Rotor was driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Internal Temperature Rating: 220 °C (428 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 220 °C (428 °F). Orientation: Horizontal. Vacuum Rated: Yes. Shell Diameter: 850 mm (33.5 in). Shell Length: 4,800 mm (189 in).
Type: Dryer-Thin Film
Manufacturer: Luwa SMS
Model: 850/4700/10
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 11 m² (118.4 ft²)
Internal Pressure Rating: 0.5 bar (7.3 psi)

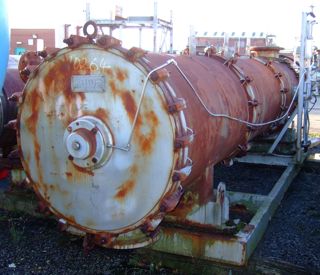

thin film continuous contact dryer. Jkt rated 13 bar @ 220 deg C, Shell 850mm (34") dia x 4800mm (15.8') long,
Internal Temperature Rating: 220 °C (428 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 220 °C (428 °F). Orientation: Horizontal. Vacuum Rated: Yes. Shell Diameter: 850 mm (33.5 in). Shell Length: 4,800 mm (189 in).
