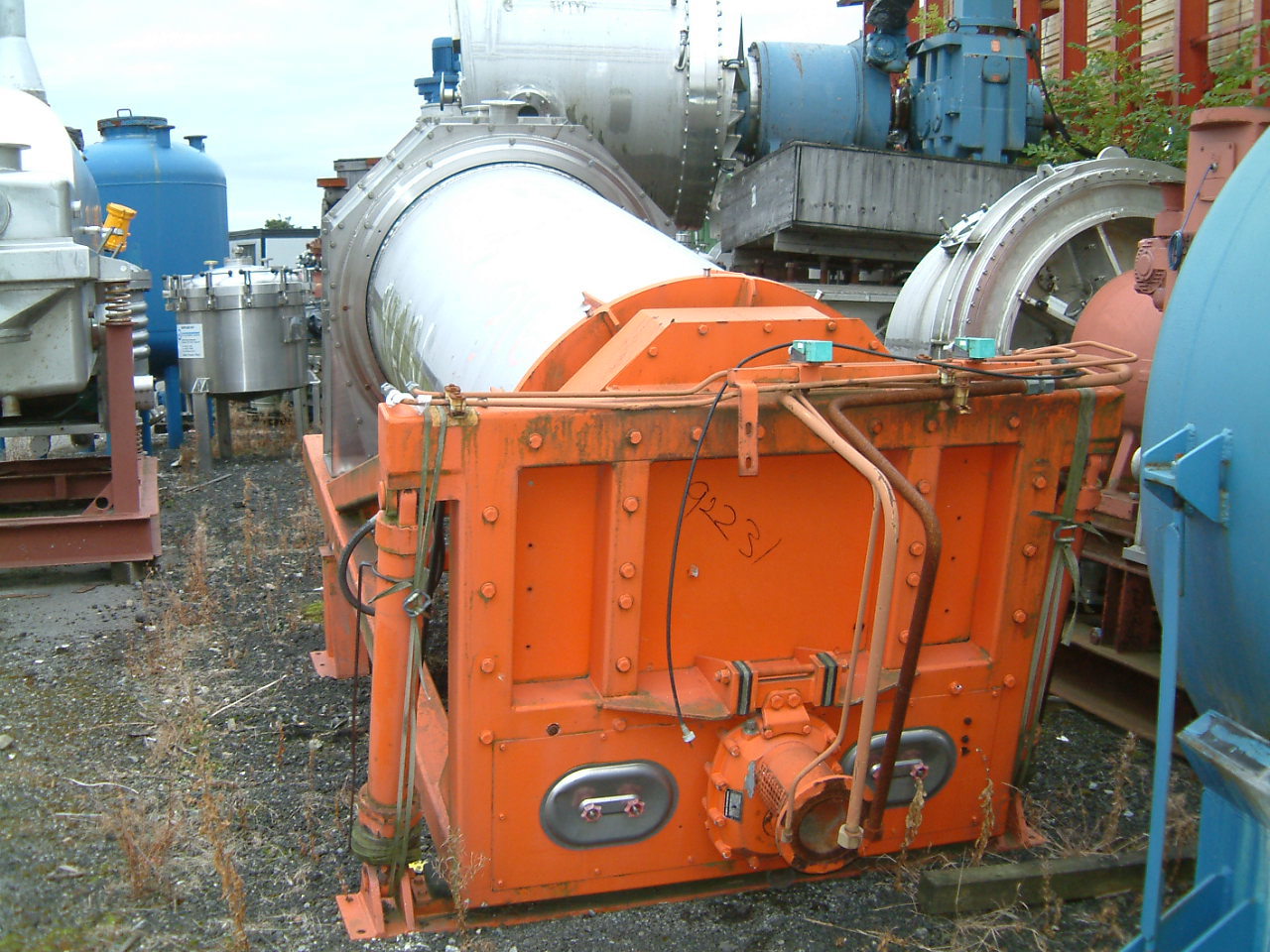

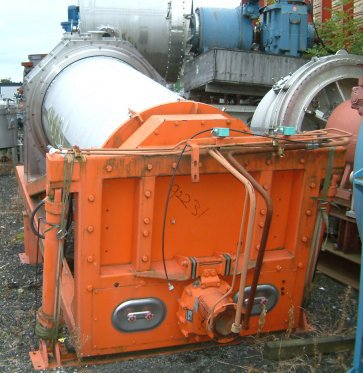

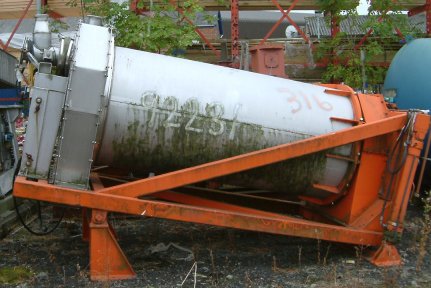

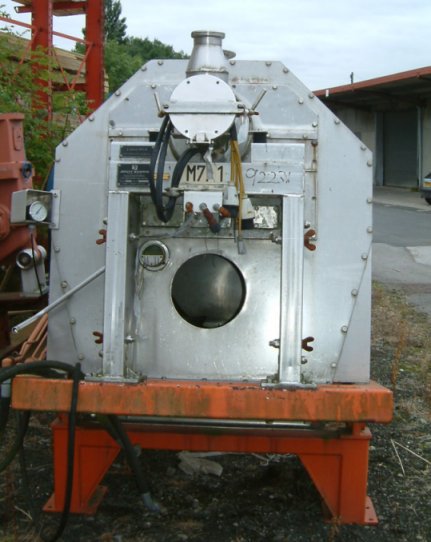

1m diameter x 2200mm long stainless steel rotating granulation drum mixer Della (HFH Russig) Drum is hydraulically lifted for designed angles of -2/+10 degrees. Pellets are transported upwards thus presenting the following advantages: uniformally sized granulates, increased throughput, lower energy. Spray nozzles for material granulation With removable 316 stainless steel vibratory feeder system operating on rails.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Apex
Model: 185 E
Condition: Used
Material: Stainless Steel 316
Capacity Design: 0.2 m3 (7.1 ft3)
Capacity Operating: 0.1 m3 (3.5 ft3)
V blender openings: (2) diameter 455mm and (1) diameter 165mm driven by electrical motor Motor type HD7A Motor: 380/420 volt
Type: Mixer-Twin Shell & Double Cone
Manufacturer: APV Mitchell
Condition: Used
Material: Stainless Steel 316
Capacity Design: 3.3 m3 (116.5 ft3)
Capacity Operating: 2.2 m3 (76.6 ft3)
Type: Double cone mixer Cone dimensions: 2130mm diameter x 600mm straight side, with (2) 1020mm long cone sections Openings: cones 2-300mm, 1-36mm, 1-36mm, 1-12mm; straight side 1-36mm.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: K & S
Model: I 462
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.8 m3 (100 ft3)
Capacity Operating: 2.4 m3 (85 ft3)
Job # I 46278" diameter with a 19" band, 45" to the cone. Top 15" man ways with mechanical seals. Bottom 15" butterfly valve.(6) 1" nozzles Separate lubrication system available for bearings. Motor in place for intensifier bar, but the bar has been removed.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Stalwart International
Condition: New
Material: Stainless Steel 316
Capacity Design: 0.2 m3 (7.1 ft3)
Capacity Operating: 0.1 m3 (3.5 ft3)
Octagonal blender/mixer, with a Mirror Polish internal finish. Designed with GMP and sanitary construction, 625" shell diameter 615" shell length 2.5" shell thickness 250" Cone length, 2.5" cone thickness 6" bottom butterfly valve.
Internal Finish: Mirror Polish.
