Type: Mixer-Disperser
Manufacturer: Abbe
Model: VP
Condition: Used
Material: Stainless Steel 304
Motor Power: 18.6 kW (25 HP)
Bowl Capacity: 566.3 L (20 ft3)

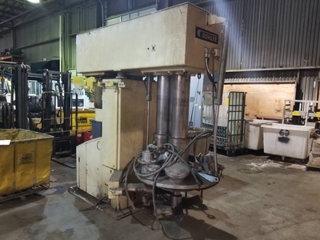

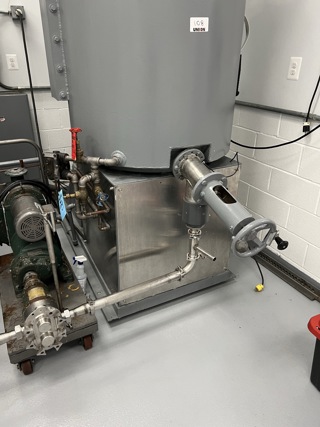

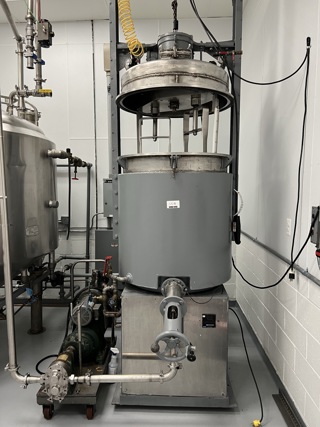

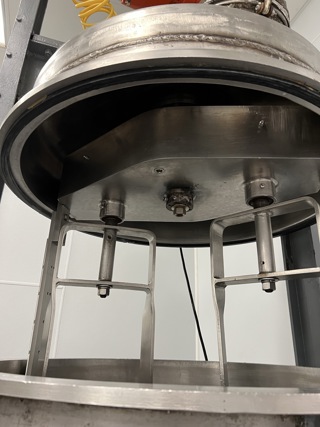

150 Gallon,, vertical dispersion mixing machine with jacketed vessel. Dispersall Mixer Type VP, vessel rated for Full vacuum at 4 psi. Vessel size is 33.5" diameter x 41" deep, with removable top and welded bottom. Mounted on a stand. Two top mounted planetary mixers with Teflon scrapers. One under driven high shear mixer. With Waukesha model 25 SS positive displacement pump, with mechanical variable speed drive. Pump serial # D0261137SS. Overhead gantry for top removal.
Bowl Diameter: 850.9 mm (33.5 in). Bowl Depth: 1,041 mm (41 in). Pressure: 0.28 bar (4 psi). Jacketed: Yes. Jacket Pressure: 1.01 bar (14.7 psi). Shaft Seal: Mechanical. Vacuum: Yes.
Type: Mixer-Disperser
Manufacturer: Joshua Greaves & Son Co. LTD.
Condition: Used
Material: Stainless Steel 316
Motor Power: 75 kW (100.6 HP)
Bowl Capacity: 11,000 L (388.5 ft3)

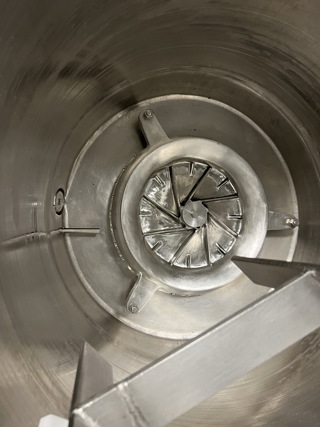

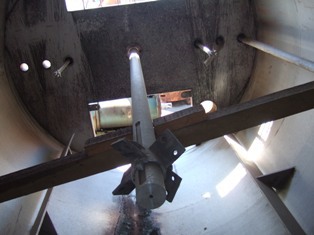

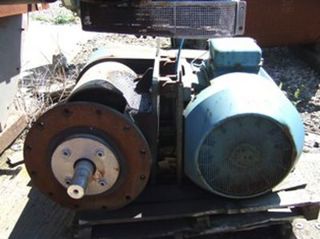

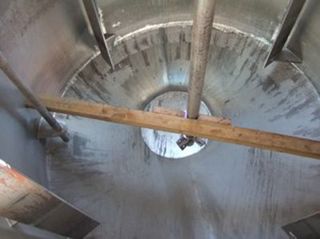

agitated jacketed disperser system Working pressure: atmospheric Temperature range: 30 - 60 degrees C (processing), 80 degrees C (washing) Tank dimensions: approx 2400mm diameter x 2450mm straight side Internal baffles on sidewall shaft 101mm diameter x 2650mm long with (4) blade 45 degree pitched paddles, bottom mounted 316L stainless steel disperser APV drive, model IDD, serial # 900877-B, belt driven by 2-speed motor 75/15 kw, 3/50/415 volt, 1475/735 rpm, mechanical seal, 600mm 316L stainless steel disperser blade, mounted on lugs, (1) stainless steel Mono Merlin rotary screw feed pump, type SAE22HIR5/H0141, serial # G306880/01, belt driven by 7.5 kw, 3/50/415 volt, 1450 rpm motor via 3.35:1 ratio gearbox, (1) stainless steel Wigbat inline high speed shearer, belt driven by 22 kw, 3/50/415 volt, 1465 rpm motor, (1) 2 cu.m/hr s/steel Grundfos centrifugal pump, type CR2-130, model C590013-9338, 2900 rpm, 93.8m head, 21 bar @ 120 degrees C (max), (1) plastic seal water tank, (1) 2.5 m3/hr stainless steel Grundfos centrifugal pump, type CR2-110-AAA, model D4255711-9625, 2900 rpm, 68m head, 16 bar @ 120 degrees C
Bowl Diameter: 2,400 mm (94.5 in). Bowl Depth: 2,450 mm (96.5 in). Shaft RPM: 65. Pressure: 1.01 bar (14.7 psi). Temperature: 60 °C (140 °F). Jacketed: Yes. Jacket Material: Carbon Steel.

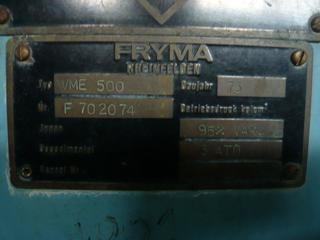

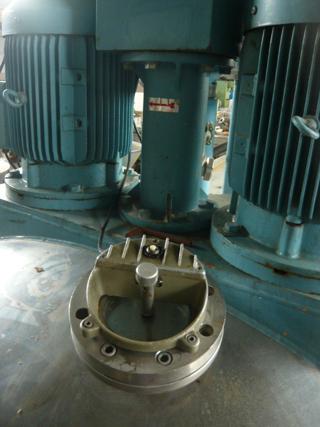

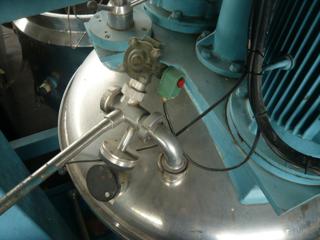

Type: Mixer-Disperser
Manufacturer: Fryma
Model: VME-500
Condition: Used
Material: Stainless Steel 316
Motor Power: 14.7 kW (19.7 HP)
Bowl Capacity: 500 L (17.7 ft3)

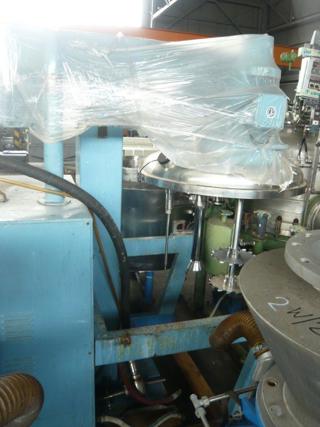

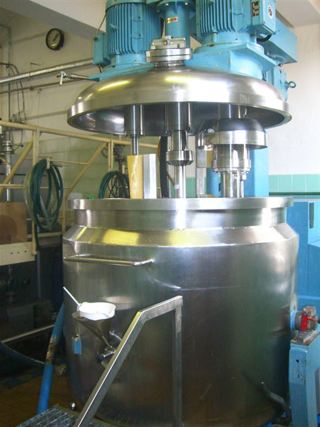

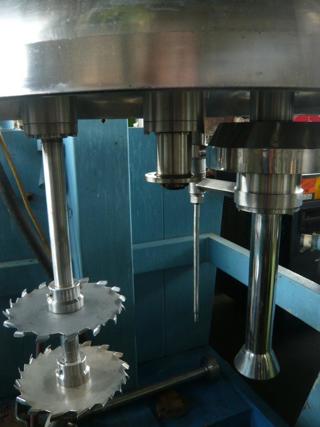

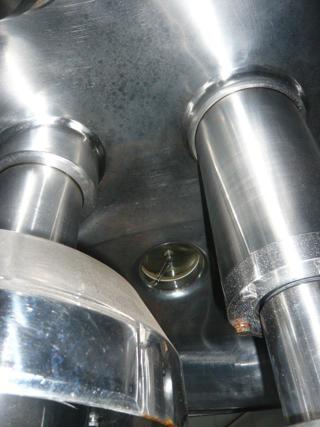

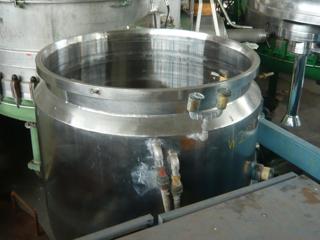

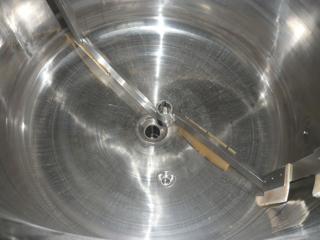

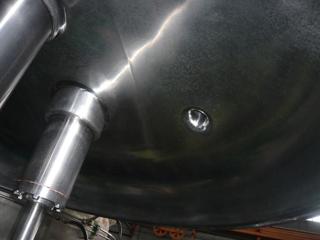

vacuum processing vessel with Homogeniser internal pressure 95% vacuum 500 liter batch 316 stainless steel jacketed vessel top cover with a duplicated slow speed agitator with (2) saw tooth blade impellors (1) homegeniser, clamp dished top, weld dished bottom, top cover with hydraulic raise and lower mechanism, built on controls
Jacketed: Yes. Jacket Pressure: 3 bar (43.5 psi). Hydraulics: Yes. Vacuum: Yes. Controls: Yes.

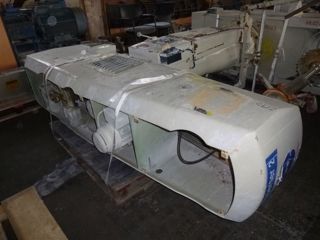

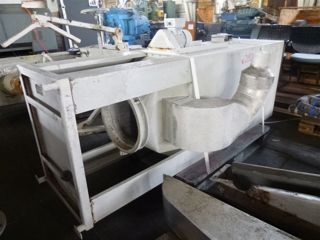

Type: Mixer-Disperser

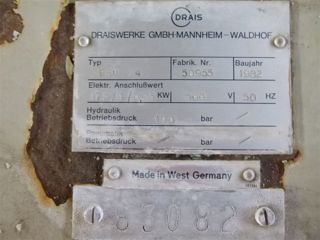

Manufacturer: Drais
Model: RSV-24ex
Condition: Used
Material: Stainless Steel Austenitic

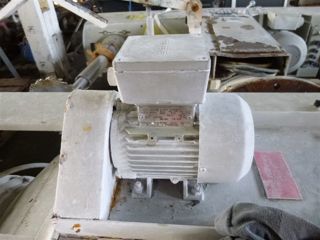

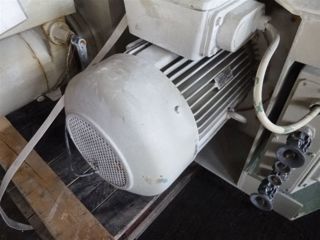

Motor Power: 17.5 kW (23.5 HP)
Bowl Capacity: 450 L (15.9 ft3)

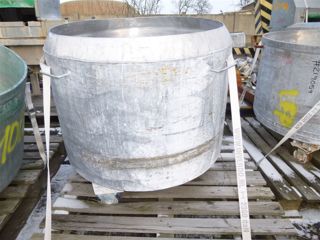

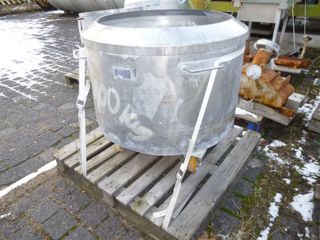

disperser/disolver 50mm diameter x 800mm long shaft with 350mm diameter double saw tooth blade 470-1700 rpm shaft speed built on controls, with bowl holding/clamping mechanism, can use 250 ltr upt to 600 ltr bowls/tanks
Bowl Diameter: 1,000 mm (39.4 in). Bowl Depth: 600 mm (23.6 in). Shaft RPM: 1,700. Hydraulics: Yes. Controls: Yes.
Used dispersers are high-speed mixers designed to rapidly incorporate powders, pigments or immiscible liquids into a base fluid. These mixers are ideal for creating uniform dispersions, stable emulsions and consistent viscosities across a range of products. With more than 47 years of experience in process equipment, IPP supplies used, secondhand and surplus disperser mixers from 20 global process plant sites and maintains a massive inventory of 15,000+ systems ready to ship.
IPP carries disperser mixers from top brands like Hockmeyer, Myers, Schold, IKA, Charles Ross & Son, and Morehouse Cowles.
Dispersers must withstand mechanical stress, abrasion and chemical exposure:
Learn more about high-shear dispersion and pigment mixing techniques from PCI Magazine.
Search the IMS inventory or contact IPP’s mixing equipment team to find the right used, surplus or secondhand disperser for your facility. IPP helps you improve efficiency and cut costs without sacrificing performance.
