Blower can be used with this system IPP # 246771 Diameter: 1,753 mm (69 in). Flow Direction: Down Flow. Pressure: 8.6 bar (125 psi). Air Flow Rate: 254.9 m3/h (150 CFM).
w/2' cone btm Diameter: 914.4 mm (36 in). Filtration Area: 7 m2 (75 ft2).
Dust collector Filtration area Dimensions: 25" wide x 52" high x 65" wide Pressure: 4.1 bar (60 psi). Air Flow Rate: 1,359 m3/h (800 CFM). Filtration Area: 17.7 m2 (190 ft2).
Four round cartridge filters Mounted on legs Air Flow Rate: 16,990 m3/h (10,000 CFM). Cartridge: Yes. Filtration Area: 94.4 m2 (1,016 ft2).
Six filter cartridges Top mounted fan, 15 HP, 208/230/460 v, 3500 rpm. Mounted on legs Diameter: 1,118 mm (44 in). Flow Direction: Down Flow. Air Flow Rate: 8,019 m3/h (4,720 CFM). Cartridge: Yes. Filtration Area: 105.9 m2 (1,140 ft2).
reverse jet filters 600 liter capacity chamber weld dished top unit has 10 x filter elements max operating pressure 6.2 bar @ 60 degrees C, min operating temperature -30 degrees C, filter with carbon steel fan design pressure 6.9 bar filter with carbon steel fan, manufactured by Turbovent, type VR25L-1343000, serial #22442, driven by a 2-speed motor, 7.5 kw, 3/50/400-690 volt, 2915 rpm or 9 kw, 3/60/440/480 volt, 3510 rpm, openings side 1-450mm inspection port, 1-75mm, bottom 1-500mm discharge, unit mounted on carbon steel skid, Diameter: 1,300 mm (51.2 in). Pressure: 6.9 bar (100.1 psi). Filtration Area: 10 m2 (107.6 ft2).
With 52-V-103 discharge rotary valve, and Cincinnati Fan Blower. Discharge valve chain driven by a 0.75 HP motor, 1750 rpm, 230/460 V, 3 ph., 60 Hz. Cat # E108. Valve is Model MD40 serial # 847414-002-1--Cincinnati blower driven by a Baldor 10 HP AC motor at 3500 rpm. 215T frame 230/460 3 ph., 60 Hz. Flow Direction: Down Flow. Air Flow Rate: 5,097 m3/h (3,000 CFM). Cartridge: Yes. Filtration Area: 7.4 m2 (80 ft2).
Downflow dust collector 500 to 3,150 CFM air flow With 4 filter cartriges Housing has a hopper bottom with a manual valve designed to discharge into a pail 3600 rpm blower 3/60/230/460 motor Includes Torit digital controls Flow Direction: Down Flow. Pressure: 6.9 bar (100 psi). Air Flow Rate: 5,352 m3/h (3,150 CFM). Cartridge: Yes. Filtration Area: 70.6 m2 (760 ft2).

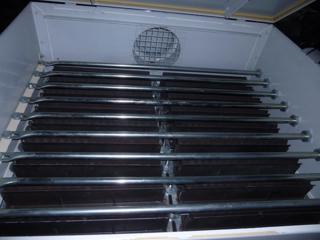

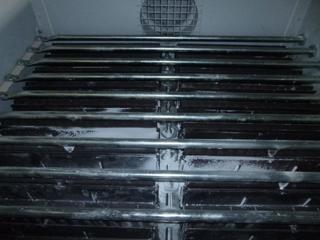

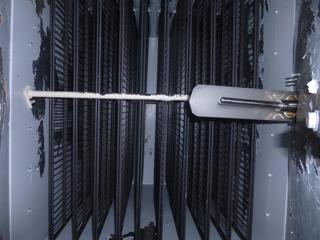

(27) 63" long bags Rated +17"/-17" Hg Horiz filter bags Flow Direction: Pulse jet. Pressure: 0.58 bar (8.3 psi). Filtration Area: 17.2 m2 (185 ft2).
fume scrubber Unit has (2) 15 HP blowers.
Down flow design (6) bags with quick change filter elements and compressed air dischage valves With a New York pressure blower, driven by a 40HP 3/60/230/460 volt. Diameter: 1,422 mm (56 in). Flow Direction: Down Flow. Pressure: 6.9 bar (100 psi). Air Flow Rate: 16,056 m3/h (9,450 CFM). Filtration Area: 252 m2 (2,712 ft2).

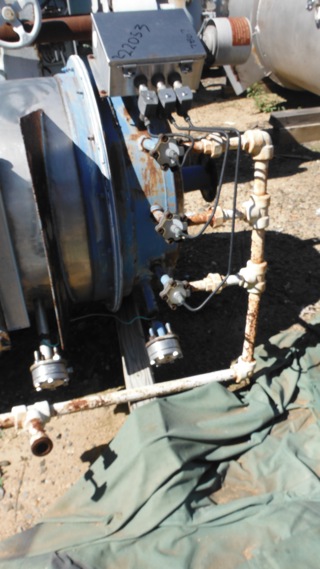

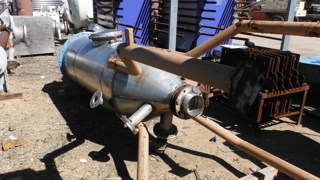

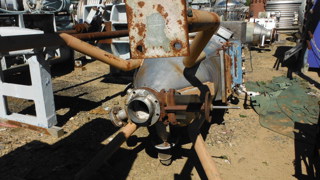

Rated -150/50 MBar. Filter area is 8 m2 with cone bottom. Bolted top manifold that is 16" straight side. with 1.5" diameter manifold feed line, (2) pulse jet feed lines. With CS fan. Rotary Airlock valve on bottom. Diameter: 609.6 mm (24 in). Flow Direction: Pulse jet. Pressure: 0.05 bar (0.73 psi). Filtration Area: 8 m2 (86.1 ft2).
bolt dished top, weld coned bottom internal pressure 0.6 bar @ 250 deg C, total volume 13581 ltr, 2 sets of jets 6 bar @ 250 deg C, volume 26 ltr and 22 ltr (`77) 125mm diameter x 2.6m long filter cages, openings: side: 2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mm, mounted on c/steel lugs, total weight 2226 kg. Diameter: 2,000 mm (78.7 in). Flow Direction: Pulse jet. Pressure: 0.6 bar (8.7 psi). Filtration Area: 88 m2 (947.2 ft2).

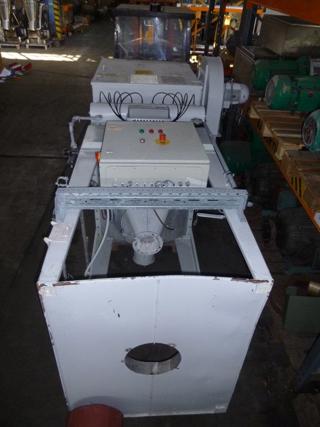

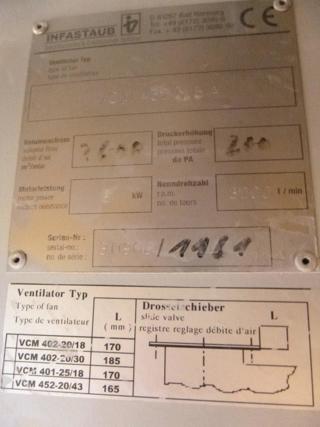

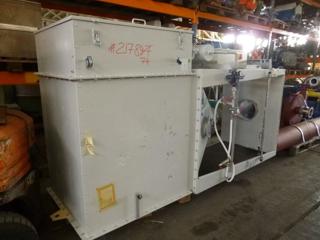

with blower and controls

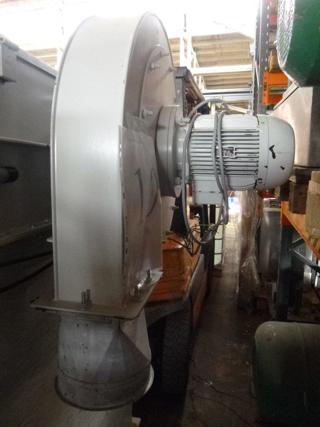

With Blower mounted on the side of the filter housing rated.
@ -40 to +30°C, single effect, filter resistance 8 mbar
with cone bottom for discharge
EEX rated

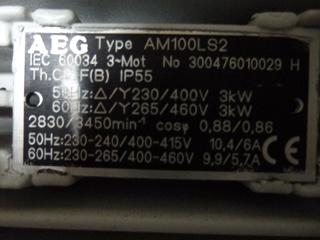

Operating Voltage 230/400
Control panel mounted on side.
Mounted on 4 legs.
CE-certified. Flow Direction: Pulse jet. Pressure: 6 bar (87 psi). Air Flow Rate: 1,800 m3/h (1,059 CFM). Filtration Area: 20 m2 (215.3 ft2).
reverse jet pulse dust filter bolt dished top, weld coned bottom total volume 13581 ltr 250 deg C 2 sets of jets 6 bar @ 250 deg C, volume 26 ltr and 22 ltr (`77) 125mm diameter x 2.6m long filter cages, 2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mm mounted on carbon steel lugs Diameter: 2,000 mm (78.7 in). Flow Direction: Pulse jet. Pressure: 0.6 bar (8.7 psi). Filtration Area: 88 m2 (947.2 ft2).
bolt dished top, weld coned bottom @ 250 deg C, 12703 ltr, 2 sets of jets 6 bar @ 250 deg C, (`77) 125mm diameter x 2.6m long filter cages, openings: side: 2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mm, mounted on carbon steel lugs Diameter: 2,000 mm (78.7 in). Flow Direction: Pulse jet. Pressure: 0.9 bar (13.1 psi). Filtration Area: 75.5 m2 (812.4 ft2).
vertical dust collector mounted on legs with a 30" cone bottom Contains socks approximately 6" diameter x 70" long Side access door 40" long x 21" wide. with a 15" diameter Fike rupture disk Pulsater top is 12" long Bottom outlet on cone is 6.5" and has a manual slide gate valve Cone bottom has a 4", 3", and a 2.5" flanged nozzles Top has a 3" nozzle. Legs elevate collector 36" off grade. Diameter: 812.8 mm (32 in). Filtration Area: 7 m2 (75 ft2).
Discharge Cone and Parts Material: 321 SS Dirty Air Chamber Dimensions: 36” diameter x 45” long Vertical Removable top cover, 321 SS cyclone discharge cone Discharge Cone: 48” diameter x 12” with a 5” inlet, and a 36” tapered cone to a 5” outlet on bottom Top cover is removable for access to filters, and is counter weighted and secured by Stay Con clamps Bottom cyclone has two 10” wide x 24” long access doors,(orientated 180 degrees). Two 12” diameter x 26” long cartridge filters Each filter has 175 pleats, 2" wide x 25" long Each cartridge has 121 sq. ft. of surface area Four 6” x 9” lugs for mounting, attached at top of bottom cone weld seam One 5” clean air discharge One 5” clean air discharge, one 24” inspection door for man way or pressure relief disk.(not available) Diameter: 914.4 mm (36 in). Cartridge: Yes. Filtration Area: 22.5 m2 (242 ft2).
Portable cartridge Sound level: 74 dBA Drawer capacity: 0.631 cubic feet Weight: 402 lbs 1.5/3HP easy to remove single cartridge cabinet mounted controls low-profile cabinet for easy maneuvering 5" caster wheels access handle for portability. Air Flow Rate: 1,274 m3/h (750 CFM). Cartridge: Yes. Filtration Area: 13.1 m2 (141 ft2).
reverse jet filter Jets: approx (6), manufactured by Anton Piller KG, type 4076-MX-80-315, fabrik #669757 Max working pressure: 0.04 bar @ 40 degrees C (34) 140mm diameter x 2530mm long 316 stainless steel cage/filter elements Flow Direction: Reverse air. Pressure: 0.04 bar (0.58 psi). Filtration Area: 40.8 m2 (439.2 ft2).
approx (6) jets, blower manufactured by Anton Piller KG type 4076-MX-80-315, fabrik #669748 max working pressure 0.04 bar @ 40 degrees C 34) 140mm diameter x 2530mm long 316 stainless steel cage/filter elements Pressure: 0.04 bar (0.58 psi). Filtration Area: 40.8 m2 (439.2 ft2).

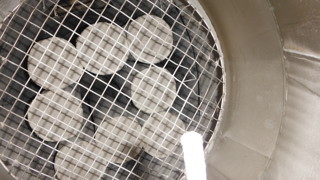

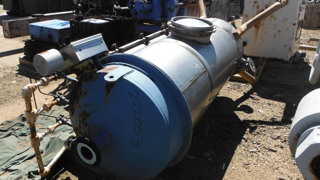

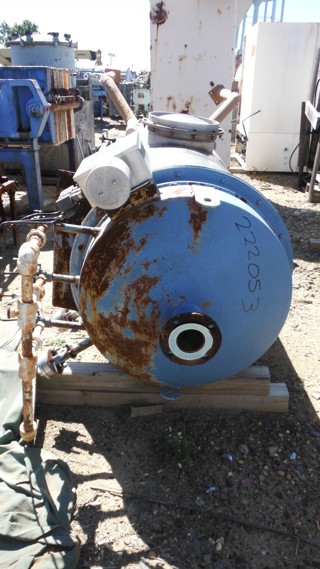

vertical reverse jet filter
455 liter,
pressure -1/6 bar @ 200 degrees C,
bolt dished top with davit,
(12) internal filter elements,
1953 liter 316L stainless steel vessel,
manufactured by Englesmann AG,
fabrik #57468,
internal pressure -1/6 bar @ 200 degrees C
weld coned bottom, mounted pn lugs, TUV certified Diameter: 1,200 mm (47.2 in). Pressure: 6 bar (87 psi). Filtration Area: 7 m2 (75.3 ft2).

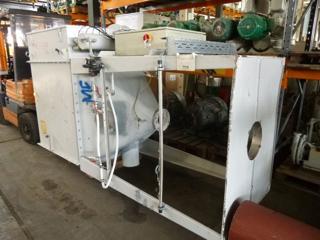

(1) cylindrical cartridge filter, fan manufactured by Nedermann, serial # 663, driven by 1.5 kw, 3/50/220/240/380/420 volt, 2800 rpm motor, shaker manufactured by Nedermann, serial # 529, driven by 0.25 kw, 3/50/220/240/380/415 volt, 2800 rpm motor, unit with built on timer, openings: top: 1-150mm, side: 1-150mm (fan connection), bottom: 1-250mm, unit mounted on carbon steel frame Cartridge: Yes.
reverse jet filters 600 liter chamber capacity weld dished top, unit has 10 x filter elements, max operating pressure 6.2 bar @ 60 degrees C, min operating temperature -30 degrees C filter with carbon steel fan, manufactured by Turbovent, type VR25L-1343000, serial #23511, driven by a 2-speed motor, 7.5 kw, 3/50/400-690 volt, 2915 rpm or 9 kw, 3/60/440/480 volt, 3510 rpm, openings side 1-450mm inspection port, 1-75mm, bottom 1-500mm discharge, unit mounted on carbon steel skid, Diameter: 1,300 mm (51.2 in). Pressure: 6.9 bar (100.1 psi). Filtration Area: 10 m2 (107.6 ft2).
Dust Collectors control the dust in a variety of processes. Dust collectors can also be called bag houses.
Dust Collectors can be use to remove dust particles from a process or collect dust that is the finished product.
Dust collectors are large chambers that are either square or round with internal filters that are typically made of woven fabric bags stretched over a cage as a filter medium.
Some of the newer dust collectors use cartridge filters instead of filter bags. In operation, the dust laden gas is collected in the chamber and passes through the filter bags into a manifold where the cleaned gas exits the chamber. The dust is collected on the outside of the filter bag and remains inside the chamber.
There are several methods to clean the dust off of the outside of the filter bags or cartridges.
A shaker type cleaner shakes the bags periodically to remove the dust.
The reverse air cleaner periodically blows air back though the inside of the filter bag blowing the dust off the outside of the filters.
The pulse jet cleaner uses high pressure compressed air that periodically blast through the inside of the filters to blow the dust off the outside of the bags.
The dust that is shaken, blown, or pulsed off the bags falls to the chamber bottom where it is removed through a rotary valve.
All Dust Collectors are measured by the square foot of the bag area, the CFM air flow through the collector, the material of construction, and type of dust discharge.
Another type of dust collector is a cyclone which uses air blown tangentially into a cylindrical chamber and inertia to separate the heavy dust particles out of the air stream.
