1.75" x 36" 1 1/2" inlet water cooled 2-zone steam heated Drive 20 HP, DC volt, 500 volt arm. 300 volt field motor, max 1750 rpm thru Lufkin gear reducer, 9.91:1 ratio, 175 rpm output speed. Mtd in frame 5' wide x 6' high x 3' deep. Diameter: 44.5 mm (1.75 in). Number of Heating Zones: 2. Screw Length: 914.4 mm (36 in). Heating type: Steam.

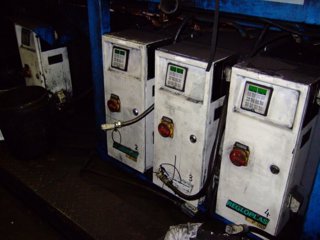

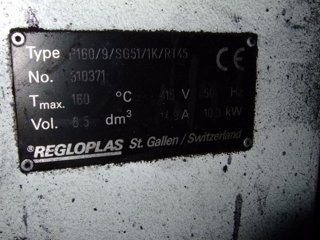

single screw Ko-Kneader system, proceesing length 16 L/D, carbon steel heated screw, screw oscillation stroke 10.5mm, screw root diameter 45mm, Theoretical pitch in kneading zone (2-spirals) 42mm, pitch in infeed zone (1-spiral) 38mm, free zone (5-barrel section) 2.04 dm3, screw driven by a 2-speed motor, 45kw, 3/50/380/400/415/660/690 volt, 1480/1475 rpm or 55kw, 3/60/440 volt, 1775 rpm, cast chrome steel barrel, barrel with special high nickel content carbon steel liner and kneading pins, barrels steam/water heated, (4) Regloplas type P160/9/SG5/IK/R145 water/steam heater temperature controllers, 6.5 ltr volume, rated 6 bar @ 160 deg C, (1) 600mm wide x 3m long chilled rubber belt conveyor with Netzsch Condux Granulator, (2) Tricool chillers, 2) 21.6 cubic foot (0.6 cubic meter) carbon steel ribbon mixer, 550mm wide x 1680mm long x 700mm deep, interupted ribbon, driven by 7.5 hp, 3/60/415 volt, 1405 rpm motor, end bottom discharge with pneumatic operated slide valve, 2-650mm x 650mm inspection ports with hinged covers, Diameter: 70 mm (2.8 in). Number of Heating Zones: 5. Screw Length: 1,300 mm (51.2 in). Feeder: Yes. Number of Cooling Zones: 1.
twin screw extruder Two 3,27 mm screws Electric heated barrel with water cooled jacket 68” long, 3” diameter discharge Unit is base mounted cooling water circulating skid Diameter: 83 mm (3.3 in). Number of Heating Zones: 8. Heating type: Electric. L/D Ratio: 20:1. Number of Cooling Zones: 7.
Axon Polystyrene Single screw extruder system throughput of approximately 5 ton/hour screw driven by 30kw, 3/50/380/660 volt, system includes (1) 15 Kw 321 stainless steel type 20-48T plastic 'Utiliser' dry granulator, manufactured by Cumberland, model 20-strand, 321 stainless steel rotor with cutting blades, driven by 15 kw, 3 phase, 50/60 Hz, 380/400/415/460/660/690 volt, 970/975/1180 rpm IE2 CE motor, aluminium chamber with hinged top inspection cover, mounted on a carbon steel frame with wheels, local panel mounted on the frame, (1) 900mm x 1750mm long 321 stainless steel 2 deck vibratory screen, manufactured by Vihab Vibrerande Hantering AB (Sweden), type L2S, serial #1319-584-11, (2) vibratory motors, approximately 1.1 kw (in), 3/50/230/400 volt, 1500 rpm, (1) motorised rotary lock valve, mounted on a carbon steel frame, frequency converter, control panel, Diameter: 60 mm (2.4 in). Number of Heating Zones: 5. Screw Length: 1,800 mm (70.9 in). Feeder: Yes. Heating type: Electric. L/D Ratio: 30:1.
single screw Ko-Kneader system, processing length 16 L/D, carbon steel heated screw, 15mm screw oscillating stroke, screw root diameter 65mm, Theo. pitch in kneading zone (2-spirals) 60mm, pitch in infeed zone (1-spiral) 55mm, free volume (5 barrel section) 5.35 dm3, screw driven by a 2-speed motor, 90kw, 3/50/380/400/415/660/690 volt, 1481/1483/1485 rpm or 105kw, 3/60/440 volt, 1780 rpm, cast chrome steel barrel, barrel with special high nickel content carbon steel liner and kneading pins, barrels steam/water heated, (4) Regloplas type P160 water/steam heater temperature controllers for barrel heating, 6.5 liter volume, rated 6 bar @ 160 deg C, (1) 1m wide x 4m cooling length carbon steel chilled conveyor, manufactured by Bergerbachmann, belt driven by approx 1.1kw motor, 200mm diameter squeezing roll, 400mm diameter cooling roll, conveyor with Netzsch Condux carbon steel Granulator, type CS-300-800-11, serial # 6889, rotor speed 600 rpm, (2) Mixaco SM-600-D stainless steel high intensity mixers, 600ltr capacity, driven by 45kw, 3/50/400/690 volt 740 rpm motor, air pressure 6 bar, total volume 750 liter, 1180mm diameter x 690mm deep, 350mm feed, 300mm discharge with valve, each mixer with it own bag charging station Diameter: 99.8 mm (3.9 in). Number of Heating Zones: 5. Screw Length: 1,900 mm (74.8 in). Barrel MOC: Stainless Steel Other. Heating type: Steam. L/D Ratio: 16:1. Number of Cooling Zones: 1.
Laboratory Simplex Production rate: 70 Kg/hour maximum (soap). Speed 4.3-25.8 rpm screws rotate in opposite directions, (side by side), double jacket for cooling. (1) electric heater. Extruder driven by 1.1 KW, 3/50/220/380 volt, 2800 rpm motor Unit with spare barrel and screws. Base mounted. Diameter: 70 mm (2.8 in). Heating type: Electric.

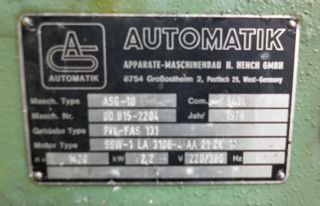

single screw extruder line General purpose screw and feed hopper. Production rate: 75 Kg/hr maximum polypropylene. Barrel has (8) heaters with (3) electric fans Extruder driven by a 60 HP (46 KW) DC motor. Line is complete with a15' long x 12" wide x 8" deep stainless steel cooling bath with air knife and (1) automatic 100mm granulator, Type ASG-10, serial #00-015-2204. Driven by 2.2 KW motor. Extruder is complete with control panels. Diameter: 69.9 mm (2.8 in). Feeder: Yes. Heating type: Electric. L/D Ratio: 30:1.
extrusion/film line (4) 12 KW for barrel w/screw speed indicator and ammeter Electrical supply 3 phase, 50 cycle, 380/440 volt Screw and barrel made of high grade corrosion resistant steel alloy (1) Betol Mdl 0250 film tower Production capacity max 450mm lay flat Electrical supply 3 phase, 50 cycle, 380 volt, 2.3 KW (2) Nip rolls: (1) chrome plated and (1) rubber. Nip rolls driven by .75 KW DC motor, 180 volt arm, 200 volt field, 1500 rpm, w/geabox, output 0-50 rpm Coiler Reel - core is 76mm inside dia cardboard core, reel size from core to max of 480mm dia. Coiler Reel driven by .37 KW DC motor, 180 volt arm, 200 volt field, 1500 rpm. Air supply 4.2 - 5.6 Kg/sq cm. Diameter: 40 mm (1.57 in). Number of Heating Zones: 6. Screw Length: 960 mm (37.8 in). L/D Ratio: 24:1.
Sterling Having 3-zone electrically heated water cooled non-vented Xaloy 306 lined barrel. Barrel water cooling system utilizes cast aluminum heaters in a closed loop system including reservoir pump and heat exchanger Extruder barrel has (3) int pressure readout devices installed and discharge end terminates w/split clamp assembly Extruder feed section is jkt w/round on center feed opening and has int flow surfaces nickel plated DC motor connected to reducer via belts and pulleys for an approx max screw speed of 100 rpm Extruder presently caster mtd for mobility at a56" centerline height. Temp control panel is free standing and has Eurotherm EM-1 control system for (3) barrel, (1) gate and (3) accessory zones. Extruder supplied w/total of (2) Duranickel fabricated screws. Electricals: 3/60/230 volt. Diameter: 38.1 mm (1.5 in). Number of Heating Zones: 3. Screw Length: 800 mm (31.5 in). Barrel MOC: Aluminum. Heating type: Electric. L/D Ratio: 21:1.
twin screw extruder Electric heated barrel with water cooled jacket 84” long (Consisting of 9 blocks each 9.45"), 2.2” diameter discharge Rated for 96 Kpm torque per shaft or 960Nm Outer screw diameter is 57.8 mm Flight depth is 10,3mm. Maximum torque on nscrew shafts is 1920Nm Unit is base mounted cooling water circulating skid Diameter: 58 mm (2.3 in). Heating type: Electric. L/D Ratio: 36.9:1.
Axon carbon steel Single screw extruder system, throughput of approximately 5 ton/hour, screw driven by 30kw, 3/50/380/660 volt, system includes (1) 15 Kw 321 stainless steel type 20-48T plastic 'Utiliser' dry granulator, manufactured by Cumberland, model 20-strand, 321 stainless steel rotor with cutting blades, driven by 15 kw, 3 phase, 50/60 Hz, 400/380/415 volt, 981/982/1184 rpm IE2 CE motor, aluminium chamber with hinged top inspection cover, mounted on a carbon steel frame with wheels, local panel mounted on the frame, (1) 900mm x 1.9m long 321 stainless steel 2 deck vibratory screen, manufactured by Vihab Vibrerande Hantering AB (Sweden), type L2S, size 0.9 x 2.25, serial #130107117-12, (2) vibratory motors, type VV40B/4, 1.1 kw (in), 3/50/230/400 volt, 1500 rpm, (1) motorised rotary lock valve, mounted on a carbon steel frame, frequency converter, control panel, Diameter: 60 mm (2.4 in). Number of Heating Zones: 5. Screw Length: 1,800 mm (70.9 in). Feeder: Yes. Heating type: Electric. L/D Ratio: 30:1.
Axon carbon steel Single screw extruders system throughput of approximately 5 ton/hour screw driven by 30kw, 3/50/380/660 volt system includes (1) 15 Kw 321 stainless steel type 20-48T plastic 'Utiliser' dry granulator, manufactured by Cumberland, model 20-strand, 321 stainless steel rotor with cutting blades, driven by 15 kw, 3 phase, 50/60 Hz, 400/380/415 volt, 981/982/1184 rpm IE2 CE motor, aluminium chamber with hinged top inspection cover, mounted on a carbon steel frame with wheels, local panel mounted on the frame, (1) 900mm x 1750mm long 321 stainless steel 2 deck vibratory screen, manufactured by Vihab Vibrerande Hantering AB (Sweden), type L2S, serial #1319-584-12, (2) vibratory motors, approximately 1.1 kw (in), 3/50/230/400 volt, 1500 rpm, (1) motorised rotary lock valve, mounted on a carbon steel frame, frequency converter, control panel, Diameter: 60 mm (2.4 in). Number of Heating Zones: 5. Screw Length: 1,800 mm (70.9 in). Feeder: Yes. Heating type: Electric. L/D Ratio: 30:1.
Axon carbon steel Single screw extruders system throughput of approximately 5 ton/hour, screw driven by 30kw, 3/50/380/660 volt, system includes (1)15 Kw 321 stainless steel type 20-48T plastic 'Utiliser' dry granulator, manufactured by Cumberland, model 20-strand, 321 stainless steel rotor with cutting blades, driven by 15 kw, 3 phase, 50/60 Hz, 400/380/415 volt, 981/982/1184 rpm IE2 CE motor, aluminium chamber with hinged top inspection cover, mounted on a carbon steel frame with wheels, local panel mounted on the frame, (1) 900mm x 1.9m long 321 stainless steel 2 deck vibratory screen, manufactured by Vihab Vibrerande Hantering AB (Sweden), type L2S, size 0.9 x 2.25, serial #130107117-11, (2) vibratory motors, type VV40B/4, 1.1 kw (in), 3/50/230/400 volt, 1500 rpm, (1) motorised rotary lock valve, mounted on a carbon steel frame, frequency converter, control panel, Diameter: 60 mm (2.4 in). Number of Heating Zones: 5. Screw Length: 1,800 mm (70.9 in). Feeder: Yes. Heating type: Electric. L/D Ratio: 30:1.
Plodders Line speed 220 bars/minute
Plodders Line speed 220 bars/minute
Plodder Rated 2,000 kg/Hr.
Plodder Rated 2,000 kg/Hr.
Plodder Rated 2,000 kg/Hr.
Plodder Rated 2,000 kg/Hr.
Plodder Rated 2,000 kg/Hr.
Plodders single worm two stage. Rated for 2,000 kg./Hr. Diameter: 300 mm (11.8 in). Number of Heating Zones: 2.
Plodders Rated for 220 bars per minute Pressure: .
Plodders Rated for 220 bars per minute Pressure: .
Plodders Rated for 220 bars per minute Pressure: .
Bone Brothers lab size single screw extruder. Unit has (4) electrically heated zones. Unit is complete with 7" diameter x 5" high stainless steel feed hopper cooling bath and control panel. Diameter: 20 mm (0.79 in). Number of Heating Zones: 4. Screw Length: 420 mm (16.5 in). Feeder: Yes. Heating type: Electric.
single screw plodder/extruder. Production rate: 500 Kg/hr maximum (soap) Worm speed ? rpm Cast iron barrel and removable nose cone, both with aluminum lining, aluminum worm screw. Barrel with cooling/heating jacket, nose cone with electric heater. Unit with feed hopper. Hopper with roll feeder, 1.1 KW, 3/50/220/380 volt, 1390-42 rpm geared motor (1) carbon steel screw. Control panel. Unit base mounted. Diameter: 242 mm (9.5 in). Temperature: 90 °C (194 °F). Feeder: Yes. Heating type: Electric.
with chrome screw and chrome lined barrel. Jacketed barrel for cooling, hinged longitudinally for cleaning and maintenance.
63mm, single screw extrusion line, approx 60 kg/hr of 800mm wide plastic sheet), line consists of: (1) Bone Brother 63mm x 2m long c/steel single screw extruder, motor with cooling fan, barrel with (5) fans driven by 0.33 kw, 3/50/415 volt, 2800 rpm motors, 126mm x 38mm feed opening with s/steel feed hopper, (1) 3-roll calender, rolls 300mm diameter x 800mm long, rolls with mirror finish, each roll is oil heated with its own oil heater, each roll gap adjuster has a hydraulic ram driven by 4 kw, 3/50/380-420 volt, 1435 rpm motor vai a Eurodrive gearbox, the calender is mounted on a moveable skid , skid has a hydraulic raise/lower mechanism, (1) end of line Gillard & Co sheet cutter, mounted on wheels, totally enclosed in a cabinet, system with control panels. Diameter: 63 mm (2.5 in). Feeder: Yes.

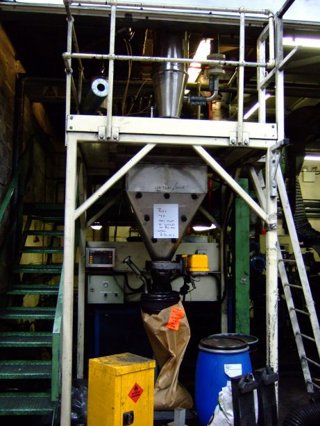

twin screw Ko-Kneader system, (1) Baker Perkins 800mm diameter chilled drum roll cooler, series 2000, serial #65712, drum with pre-breaker and Kibbler granulator, granulator driven by 10HP, 1500 rpm motor, pre-breaker driven by 1HP, 150 rpm motor, chill roll motor driven by 5 HP, 25 rpm motor, (2) 350 liter high intensive mixers, driven by 37kw, 3/50/415 volt, 1475 rpm motor, (1) chiller, (1) buffer hopper with bag filler Diameter: 65 mm (2.6 in). Number of Heating Zones: 5. Screw Length: 1,600 mm (63 in). Feeder: Yes. Heating type: Electric.
1m long carbon steel Extruder electric heated barrel Diameter: 35 mm (1.38 in). Barrel MOC: Carbon Steel. Heating type: Electric.
Plodder Rated 2,000 kg/Hr.
