nternal surfaces have a #4 finish. Bottom head has 11.1 turns 4" half pipe, straight side have three zones 6" half pipe, at 20 turns (top), 26 turns (middle) and 24 turns (bottom) . Four internal baffles side wall mounted 14" wide x 38'6" long bolted 2.25" off the wall mounted at 90 degrees apart.
Agitator drive is 600 Hp variable speed Chemineer right angle mixer drive, with three sets of 4 blade impellers, with a Chesterton 222 style mechanical seal. Agitator shaft runs in a steady bearing at bottom of the tank. Capacity: 151,400 L (40,000 gal). Agitation: Yes. Diameter: 4,039 mm (159 in). Length: 14,630 mm (576 in). Jacket: Half Pipe/Limpet. Orientation: Vertical. Pressure: 3.4 bar (50 psi). Temperature: 215 °C (419 °F). Vaccum: Yes. CIP: Yes. Jacket MOC: Stainless Steel 304. Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 215 °C (419 °F).
Capacity: 65,236 L (17,235 gal). Jacket: Standard. Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 148 °C (298.4 °F). Vaccum: Yes. CIP: Yes. Jacket MOC: Stainless Steel 316. Number of Jacket Zones: 3. Jacket Pressure: 3.5 bar (50.8 psi). Jacket Temperature: 95 °C (203 °F). Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..

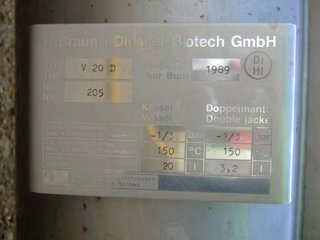

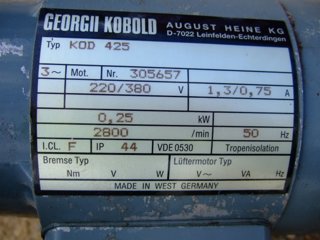

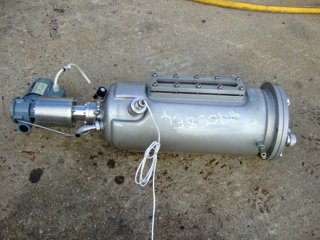

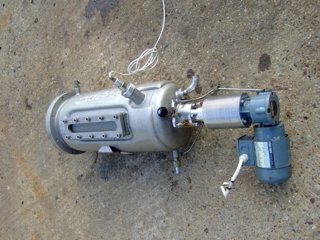

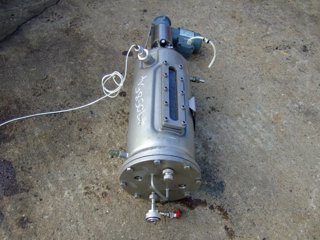

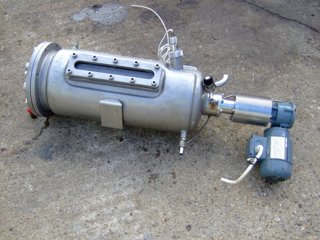

Stainless steel jacket on straight side only, 4-blade marine agitator, underdriven by 0.25 kw, 3/50/220/380 volt, 2800 rpm motor via gearbox, level glass on straight side, Capacity: 20 L (5.3 gal). Agitation: Yes. Diameter: 200 mm (7.9 in). Length: 520 mm (20.5 in). Pressure: 3 bar (43.5 psi). Temperature: 150 °C (302 °F). Vaccum: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F).
under driven vessel on carbon steel frame with a 4kw/3/50/300-380V/1200rpm motor and controls Motor: 4kw/3/50/300-380V/1200rpm Capacity: 300 L (79.3 gal). Agitation: Yes. Diameter: 630 mm (24.8 in). Pressure: 2.5 bar (36.3 psi). Temperature: 150 °C (302 °F). Jacket Pressure: 2.5 bar (36.3 psi). Jacket Temperature: 150 °C (302 °F).
Has top mtd Funda foam separator driven by 2 KW, 3/60/220/380 volt motor. Separator rated 3 bar. Bottom entering agitator belt driven by 5 KW, 220 volt, 1440 rpm varidrive. Capacity: 150 L (39.6 gal). Agitation: Yes. Diameter: 400 mm (15.7 in). Length: 875 mm (34.4 in). Jacket: Standard. Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 130 °C (266 °F). Jacket Pressure: 3 bar (43.5 psi).
Capacity: 65,236 L (17,235 gal). Jacket: Standard. Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 148 °C (298.4 °F). Vaccum: Yes. CIP: Yes. Jacket MOC: Stainless Steel 316. Number of Jacket Zones: 3. Jacket Pressure: 3.5 bar (50.8 psi). Jacket Temperature: 95 °C (203 °F). Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..
Capacity: 65,236 L (17,235 gal). Jacket: Standard. Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 148 °C (298.4 °F). Vaccum: Yes. CIP: Yes. Jacket MOC: Stainless Steel 316. Number of Jacket Zones: 3. Jacket Pressure: 3.5 bar (50.8 psi). Jacket Temperature: 95 °C (203 °F). Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..
321 stainless steel jacket on straight side only, 4-blade turbine impellor, under belt driven by 7.5 kw, 3 phase, 50Hz, 380/660 volt, 1450/118/472 rpm SEW-Usocome geared motor, Burgmann mechanical seal, includes pipework, valves, filter, pump. Capacity: 430 L (113.6 gal). Agitation: Yes. Diameter: 650 mm (25.6 in). Length: 1,080 mm (42.5 in). Pressure: 3 bar (43.5 psi). Jacket MOC: Stainless Steel 321.
fermenter Tankki OY agitator drive, serial # 8420, driven by Sew-Eurodrive, type FAF80-DV160-M4, 11kw, 3/50/400/690 volt, 1440-105 rpm geared motor, (3) 6-blade turbine type agitators, dry running mechanical seal, Capacity: 12,500 L (3,303 gal). Agitation: Yes. Diameter: 2,200 mm (86.6 in). Length: 2,500 mm (98.4 in). Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 160 °C (320 °F). Vaccum: Yes. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 160 °C (320 °F).
Capacity: 13,000 L (3,435 gal). Body Only: Yes. Diameter: 2,200 mm (86.6 in). Length: 5,976 mm (235.3 in). Jacket: Dimple. Orientation: Vertical. Pressure: 3 bar (43.5 psi). CIP: Yes. Jacket MOC: Stainless Steel 304. Number of Jacket Zones: 3.
Model ESRV agitator drive, 2.55:1 ratio. bottom driven by 4 HP, 1440 rpm motor. Capacity: 340 L (89.8 gal). Agitation: Yes. Diameter: 457.2 mm (18 in). Length: 2,057 mm (81 in). Orientation: Vertical.
Commercial fermentations are usually performed aseptically in vessels held under pressure that are sterile to resist entry of contamination microorganisms. Creating positive pressure in the vessel also accelerates mass transfer or fermentation process. Fermentors are actually biological reactors versus a chemical reactor.
The workhorse of the fermentation industry is the conventional batch fermenter. A conventional batch fermenter is an agitated jacketed pressure vessel with cooling coils, baffles and a sparger ring to introduce vapor into the fermentation process.
In the fermentation plan, there is a series of small fermentors, or “seed” tanks which actually start the fermentation process. The organisms start to grow in the seed tanks, and then they are fed into the larger production Fermenters.
Physically a fermenter has the same characteristics as a reactor with a few additions like cooling coils and sparger rings. The body of the fermentation vessel is typically narrow in diameter with a long straight side.
