Process Filtration involves the separation of solids from fluids (liquids or gases) or the removal of contaminants within a fluid. This technology is crucial in industries like chemical, pharmaceutical, and oil and gas, ensuring product purity, compliance with environmental regulations, and protection of downstream processing equipment. International Process Plants (IPP) offers a variety of different types of used and new surplus process filters. Here's a detailed explanation of how each type of filter works along with some major original equipment manufacturers:
Air Filters:
Basket Filters:
Cartridge and Candle Filters:
Horizontal Belt Filters:
Nutsche Filters and Nutsche Filter Dryers:
Pan Filters:
Plate and Frame Filters:
Pressure Leaf Filters:
RO and Ultra RO Filtration Systems:
Rosenmund and Cogiem Filters:
Rotary Vacuum Filters:
Tower Filters:
These manufacturers are recognized for their robust technologies and are widely used across various industries due to their reliability and innovative designs.
Let IPP know what you're looking to accomplish and we will be happy to help you determine which filter is right for your application.
Used Filters Filtration is the separation of a fluid-solids solution involving the passing of this mixture through a porous barrier which retains most of the solid particulates contained in the mixture. The various terms used in filtration processes include: Media – the filtration cloth or barrier to collect the solids, Liquor – the solution containing the liquid and solids, Filtrate – the liquid that has been filtered clear, Cake – the solids filtered out of the liquid, Polishing – the removal of the last bit of solids for a finished liquid product, Washing – pumping water or a wash liquid over the cake, Pre-coat – coating the filter cloth with a material like diatomaceous earth to aid in the filtering. The liquor is either pushed through the filter under pressure or pulled through the filter under vacuum. The types and configurations of filters vary widely; each has its own method of filtering, its own method of discharging the filtrate and discharging the cake. Depending on the product, sometimes the filtrate is the desired product and other time the cake is the desired product. Filters are measured by the square foot surface area available for filtering, and the cubic foot cake capacity. Type of Filters: • Plate and Frame Filter Press – this is an assembly of plates covered with a filter cloth and frames designed to collect the cake, held together in a press with that has a head plate and tail plate – the press is closed by a hydraulic pump, or manually in small presses. The plates and frame can be made of many types of materials, polypropylene is popular. Many times the press has “recessed plates” where two plates form a cavity for collecting cake eliminating the frame. Filter presses must be opened and the plates separated to remove the cake. • Pressure Filters – These are batch filters that push the liquor through the filter under pressure. Once the cake capacity is reached the cake must be removed before you continue the process. All pressure filters consist of a vessel with internal filter plates or cloths. o Basket, Candle, & Cartridge filters - This type of filter has a tank with an internal basket with a cloth bag, or filter cartridges, mounted inside the tank. o Vertical Tank with Horizontal plate filters - Once the plates are full of cake the cake must be removed. In smaller filters like a Sparkler filter, the plate bundle is remove manually, in larger filters like a Shenk or Funda filter the plate bundle is rotated at a high rpm to use centrifugal force to throw the cake off the plates and remove cake from the bottom of the tank. o Horizontal Tank Vertical plate filters – the cake can be removed by shaking the plates, spraying the plates with high pressure water, or scraping the cake off as the plate bundle rotates. • Vacuum filters – These include rotary drum filters and horizontal belt filters. Both are continuous operations. o Rotary Drum filters – these are horizontal drums with perforated exteriors covered with a filter cloth and internal vacuum pipes that are designed to be partially submerged in a trough of liquor. The internal vacuum pipes create suction on the outside of the drum. As the drum rotates the liquor is pulled through the filtrate cloth and the cake is form on the outside of the drum. Before the cake dips back into the trough it is removed from the drum by a scraper or belt discharge. o Horizontal Belt filters – The liquor is spread onto one end of a horizontal perforated belt covered with a filter cloth. A vacuum is pulled under the belt creating suction on top. As the product is conveyed along the moving belt the filtrate is pulled through the belt perforations, leaving the cake on top. When the cake reached the end of the belt it basically drop off or is scrapped off the filter cloth. o Pan filters – Like a belt filter with a moving filter cloth and suction underneath, this filter replaces the belt with a series of vacuum pans that extract the filtrate while the cake is conveyed along the filter cloth. • Rosenmund Type – The major manufacturers of this type of filter are Cogiem and Rosenmund. Also known as Filter/Dryers and Nutche filters. This type of filter is typically pressure and vacuum rated internally, heated with a jacket, and has an agitation system that double as a cake discharge screw, and for added drying, the shaft of the agitator can be cored for heating and cooling. Depending on the process this type of filter can take the place of a reactor, a filter, and a dryer, all in one machine. The basic design is a large diameter tank, with a screen in the bottom head, top mounted agitator drive that can raise and lower the internal blades during different cycles. When the process is finished the agitator is lowered to scrape along the filter screen, a cake discharge valve is opened, the agitator scrapes the cake out of the filter/dryer. The newer machines have a removable bottom head so the filter screens can be removed and the bottom head cleaned without any type of tank entry. Filter/dryers are measured by the Square Meter of filter screen area. • Tower Filters – Similar to a filter press in filtration techniques. The tower press has horizontal plates with a continuous cloth woven in and out of the plates. During filtration the plate stack is closed and during discharge the plate stack is opened and the cake is conveyed out of the pres by the filter cloth. Eliminates the manual labor use to clean filter presses. IPP carries an extensive inventory of used, unused and reconditioned filters in stock including filters manufactured by: 3-L, 3V COGEIM, Acme, ACME INDUSTRIAL, Alar, Alar Auto, Alar Engineering, Allegheny Bradford, Alsop, AMERICAN FILTER, AMETEK, AMF, Amicon, Andritz, Apache, APV, Ashbrook, Aurora, AURORA FILTERS, Avery, BAEUERLE & MORRIS, BAEUERLE & MORRIS INC, Baeurle & Morris, BALSTON FILTER, BIRD, BIRD YOUNG, Cambridge, CARLSON, Carter Day, Chemap AG Funda, Chemap Ltd, CHICAGO BOILER, Chicago Boiler Co., Choquenet, Clow, Cogeim, COGEIM SPA, Comber, COMER, Commercial, Commercial Filter Corporation, COMMERCIAL FILTERS, COMMERCIAL FILTERS CORPORATION, CP 1200 F, CULTER, CUNO, CUNO/MARTIN PETERSON, CUTLER METAL PRODUCT, DELAVAL, Dorr Oliver, Durco, DURCO ENZINGER, Durco/Enzinger, Durion, Duriron, Edward & Jones, Eimco, ENVIRONMENTAL TECH, Enviroquip, Ertel, ERTEL/ALSOP, EUROFILTEC, Extract Technology, Filler Specialties, Filter Specialists, Filterdyne, Filterite, FILTRATEC, Filtration & Separat, Filtration & Separation, Filtration Eng., Filtration Engineers, Filtration Systems, Filtroba AG, Filtrox-Werk, Flexline, Flow Trend, FRANTZ FERRO, FSI, Fulflo, GAF, GELMAN SCIENCES, GENERAL FILTRATION, Guedu, Harmsco, Haward, Hercules, HERCULES FILTER, Hoechst, HOESCHT, Hovex-Holland, Ideal Welders Ltd, Idrex, IMECA, Industrial, Industrial Filter, International, Jaygo, JWI, Ketema, KETEMA NIAGARA, KLAMPRESS 8/90, Klein, Komline Sanderson, Lanco, Larox, Larox-Pannevis, Lee Ind, LEE INDUSTRIES, LS10-BO-6, MECHANICAL FILTRATION, MEMTEC, Met-Chem, Millipore, Netzsch, Niagara, NIAGRA, Nivoba, Northland, NORTHLAND STAINLESS, NUTSCHE, Oberlin, OPF 4, OPF-12, OPF-4, Padovan, Padovan Taylo, Pall Corp, PALL TRINITY, Pannevis, Parker, PARKER HANNIFIN, PARKER/FULFLO FILTER, Parkson, Passavant, Perrin, Powder Systems, POWDER SYSTEMS LTD, Pressofiltro, Quantum Technologies, Romicon, Ronningen, RONNINGEN PETTER, RONNINGEN-PETTER, RONNING-PETTER, Rosedale, ROSEDALE PRODUCTS, ROSENMUND, RP Products, RT 0575, RUSSELL FINES, Russell Finex, Saltec, Sartorius, SARTORIUS STEDIM, Schenk, Seitz, SEITZ ENZINGER, Seitz Orion, Seitz Wega, Sernagiotto, Shriver, Sietz, Sietz Enzinger Noll, SLF Inc, SPARKLER, Sparkler Filter, SPARKLER FILTERS, Sperry, Standard, Star, Star Systems, Steri Technologies, Stossier, STRAINRITE, Strainrite Inc, STRAINRITE INC., Strassburger, Sweco, T. SHRIVER & CO. INC, Technical Fabricator, Thompson, Trent, TRI-CLOVER, Triton, US Filter, USF Filtration, Valex, Velo, Vernay, Vevey, Von, Von Roll, Waterlink Lanco, Westech, WESTECH ENGINEERING, William Sprinkman, WWE, Yabuta, Zurn, ZURN INDUSTRIES, Zwag .
Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Fil-Trek
Model: S6SB24-712-4F-C-150JK
Condition: Unused
Material: Stainless Steel 316
Filtration Area: 3.3 m² (35 ft²)
Diameter: 660.4 mm (26 in)
With Hydraulic head lift, counterbore support plate, 7 baskets
Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 232.2 °C (450 °F). Vacuum: Yes. Cake Volume: 0.37 m3 (13 ft3). Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 316. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 204.4 °C (400 °F).

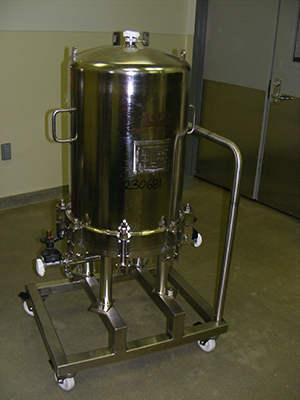

Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Breidenbach-Masch
Model: 22V-4/160-5F-S
Condition: Used
Material: Carbon Steel
Filtration Area: 1.6 m² (17.2 ft²)
Diameter: 600 mm (23.6 in)
(4) stainless steel (1.4571) 175mm diameter x 700mm long filter elements
Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 350 °C (662 °F). Cake Volume: 385 m3 (13,596 ft3).

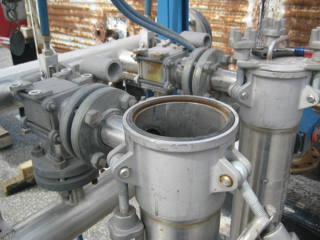

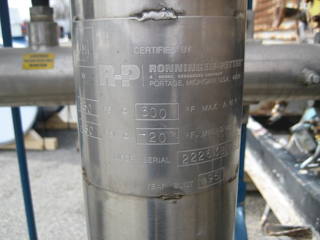

Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Ronningen- Petter
Model: SS-A-102-CD-BW-MX-AUTO
Condition: Used
Material: Stainless Steel 304
Filtration Area: 0.65 m² (7 ft²)
Pressure: 10.3 bar (150 psi)

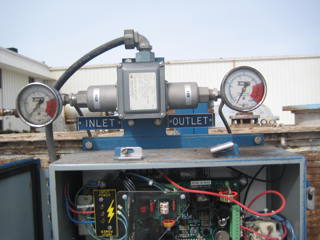

Back washing tubular filter system -20 degrees F at 150 psi. Filter cannisters Filter cannisters serial # 222638 E1-1 & E1-2. Each filter contains ontains one 2" x 18" wire mesh housing, with a 316 SS woven screen capable of particle containment from 1-1,650 microns. Service lines 3" headers with reducers down to 1.5". Automatic backwash based on preset pressure differential, with a micro processor control system. Manual back wash provisions included. Operators control panel with pilot loights indicating : On Stream, Backwash, Excess Backwash frequency. Manual start/ run/ off switch.
Temperature: 148.9 °C (300 °F).
Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Mott Hypulse
Model: 8420002
Condition: Used
Material: Stainless Steel 316
Filtration Area: 5.6 m² (60 ft²)
Diameter: 406.4 mm (16 in)
With approximately (19) pourous metal filter elements Tank is Manufactured by Americal Boiler Tank & Welding Company NB# 130, Serial # J337, rated 150/FV @200 degrees F Flat bolted top mounted on a davit This type of filter is designed for back wash filter cleaning enabling cleaning with the tank closed
Pressure: 10.3 bar (150 psi). Temperature: 93.3 °C (200 °F).
Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Dr. Mueller
Model: R 6-14-1650/T140Z
Condition: Used
Material: Rubberlined
Filtration Area: 6 m² (64.6 ft²)
Diameter: 711 mm (28 in)

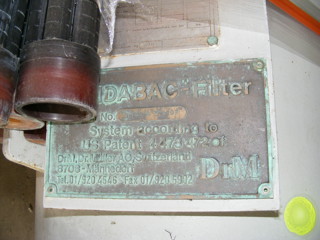

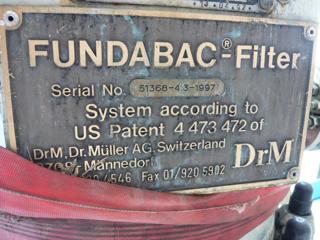

rubber lined Fundabac filter filter volume: 860 liter Filter shell 5mm thick Maximum cake thickness: 25mm Conical bottom side: 1-80mm, 1-50/32mm With 14 filter elements made of polypropylene
Pressure: 5 bar (72.5 psi). Temperature: 80 °C (176 °F). Cake Volume: 192 m3 (6,780 ft3).
Type: Filter
Subtype: Cartridge And Candle
Manufacturer: Dr. Mueller
Model: R6-14-1650/T 140Z
Condition: Used
Material: Rubberlined
Filtration Area: 6 m² (64.6 ft²)
Diameter: 711 mm (28 in)
Fundabac filter Filter shell 5 mm thick 369mm conical bottom 14 filter elements 82mm diameter x 1650 mm long made of polypropylene
Pressure: 5 bar (72.5 psi). Temperature: 80 °C (176 °F). Cake Volume: 860 m3 (30,370 ft3).
