Mounted with Alfa Laval, 90 Sq.Ft., 316 SS NB # 13330 35 psi at 300 degrees F., serial # 17322 spiral heat exchanger. Total condensing surface area is 360 Sq. Ft. Note ** 90 sq. ft. price is $13,500.00 can be sold separate . 270 sq. ft price is $ 40,500.00 can be sold separate . Heat Transfer Surface Area: 25.1 m² (270 ft²). Shell Pressure: 3.8 bar (55 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 685.8 mm (27 in). Head Material: Carbon Steel. Length: 2,235 mm (88 in). Nozzle Schedule: One 20", Two 4",Two 2", One 1" . Cold-side Pressure: 3.8 bar (55 psi). Cold-side Temperature: 148.9 °C (300 °F). Hot-side Pressure: 3.8 bar (55 psi). Hot-side Temperature: 148.9 °C (300 °F). Spiral Material: Stainless Steel 316.

QVF glass spiral tube heat exchanger DIN150 Length: 300 mm (11.8 in). Spiral Material: Glasslined.

glass spiral tube heat exchanger DIN150 Length: 300 mm (11.8 in). Spiral Material: Glasslined.

QVF BORO 3.3 M702-464595 Heat Transfer Surface Area: 0.5 m² (5.4 ft²). Length: 550 mm (21.7 in). Nozzle Schedule: openings (2) 25 mm tube side, (2) 25 mm shell side.

QVF-Corning S-48 type: HE-4, 1000 mm total lengtht Heat Transfer Surface Area: 0.4 m² (4.3 ft²). Length: 600 mm (23.6 in). Nozzle Schedule: openings (2) 15 mm tube side, (2) 30 mm shell side.

1060 mm total lengtht Heat Transfer Surface Area: 0.7 m² (7.5 ft²). Length: 600 mm (23.6 in). Nozzle Schedule: openings (2) 15 mm tube side, (2) 50 mm shell side.

Heat Transfer Surface Area: 33.9 m² (365 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Nozzle Schedule: Openings: Head 1-36", head 1- 3". Shell 2-3".

pressure side 1= -1/6 bar @ 95 deg C; 420ltr, side 2= 6 bar @ 95 deg C. 220 ltr side 1= 175,000 kg/hr, side 2= 38450 kg/hr, 2-c/steel flat heads with 321 s/steel lining, Heat Transfer Surface Area: 33 m² (355.2 ft²). Vacuum: Yes. Shell Diameter: 1,000 mm (39.4 in). Head Material: Carbon Steel. Length: 1,230 mm (48.4 in). Nozzle Schedule: openings top: 1-100mm, straight side: 1-150mm, 1-100mm, bottom: 1-150mm, . Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 95 °C (203 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 95 °C (203 °F).

2-stage (2) 450 Sq Ft condensers bolted together, end to end, with same configuration and material in both stages, Upper stage and lower stage each have a 316LSS shell, CS heads. Shell is 0.135" thick, Heads are 1.12" thick CS. Heat Transfer Surface Area: 83.6 m² (900 ft²). Shell Pressure: 2.6 bar (37 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316L. Shell Diameter: 1,194 mm (47 in). Head Material: Carbon Steel. Length: 1,270 mm (50 in). Nozzle Schedule: Openings include: (2) 4" shell side in each stage; (2) 4" service side.. Cold-side Pressure: 2.6 bar (37 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 2.6 bar (37 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Stainless Steel 316.

Division of Alfa Laval MFGR. #17712 Rated for 110 psi @ -20 degrees to 190 dgrees F Type 1H, Head Material: SA 516 70 ,Thickness: 1.85", Shell Material SA 516 70 Thickness: .3125". 70" long x 48" diameter X 60" high. 12" wide x 15" long. Weight:21,000 lbs Heat Transfer Surface Area: 96.2 m² (1,035 ft²). Shell Pressure: 7.6 bar (110 psi). Shell Temperature: 87.8 °C (190 °F). Shell Material: Carbon Steel. Shell Diameter: 1,219 mm (48 in). Head Material: Carbon Steel. Length: 1,778 mm (70 in). Nozzle Schedule: (2x) 4" flanges on each head, (4x) 6" flanges, two on each side, and (2x) 3" flanges, one on each side.

Heat Transfer Surface Area: 24 m² (258 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Other. Head Material: Stainless Steel Other. Nozzle Schedule: Openings; (2) 2.5" process side; (2) 2.5" shell side.. Spiral Material: Stainless Steel Other.

Heads are CS faced with 316 L SS Heat Transfer Surface Area: 134.7 m² (1,450 ft²). Shell Pressure: 4.5 bar (65 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Stainless Steel 316. Shell Diameter: 1,270 mm (50 in). Head Material: Carbon Steel. Length: 1,829 mm (72 in). Nozzle Schedule: Inlet 24", vent 10", Two 6", one 3", drain 1". Cold-side Pressure: 4.5 bar (65 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 4.5 bar (65 psi). Hot-side Temperature: 93.3 °C (200 °F). Spiral Material: Stainless Steel 316L.

type SHE spacing channel A = 8, B = 9, volume: channel A = 450 ltr, B= 500 ltr Heat Transfer Surface Area: 99 m² (1,066 ft²). Shell Material: Carbon Steel. Shell Diameter: 1,380 mm (54.3 in). Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-80mm, side: 2-80mm, bottom: 1-80mm,. Cold-side Pressure: 5.2 bar (75 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5.2 bar (75 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Stainless Steel 316.

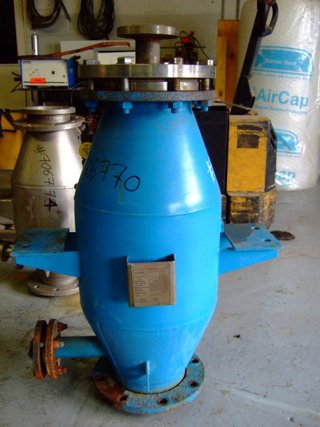

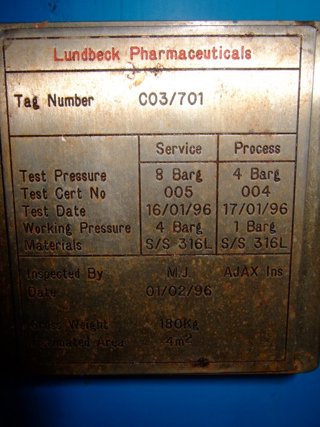

(2) 300mm high cone sections, Heat Transfer Surface Area: 4 m² (43.1 ft²). Shell Pressure: 4 bar (58 psi). Shell Material: Stainless Steel 316L. Head Material: Stainless Steel 316L. Length: 300 mm (11.8 in). Nozzle Schedule: openings: 2-200mm, 3-50mm, 1-15mm,. Cold-side Pressure: 1 bar (14.5 psi). Spiral Material: Stainless Steel 316L.

Annular groove condenser Heat Transfer Surface Area: 5.7 m² (61 ft²). Shell Pressure: 0.21 bar (3 psi). Shell Temperature: 50 °C (122 °F). Length: 960 mm (37.8 in). Nozzle Schedule: Openings: product side 2-50mm, 1-150mm; service side 2-50mm.

pressure channel A = 6 barg @ -10/200 degrees C 9100 liter), channel B = 6 barg @ -10/200 degrees C (25 liter) CE0060 Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 200 °C (392 °F).

1.4435 s/steel spiral heat exchanger 7.5 bar @ 200 dgress Cin the internal spiral Internal coil: 10 Sqm, 40mm diameter x 2 banks Internal spiral: 7.5 bar @ 200 degrees C Heat Transfer Surface Area: 10 m² (107.6 ft²). Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 700 mm (27.6 in). Length: 1,212 mm (47.7 in). Nozzle Schedule: Openings: Shell side (2) 80mm, (2) 100 mm; Coil side (2) 40mm.. Cold-side Pressure: 2 bar (29 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (108.8 psi). Hot-side Temperature: 200 °C (392 °F).

condensor shell is approximately 1.3m3 with welded dished top and bottom Heat Transfer Surface Area: 16 m² (172.2 ft²). Spiral Material: Stainless Steel Other.

1.4435 s/steel rated -1/6 bar @ -3 to 200 degrees C, 160 liter internal 7.5 bar @ -30 to 200 degrees C, 25 liter in the internal spiral coil. one bolted dished head & one welded dished head with 4 SqM internal coil 25mm diameter. Heat Transfer Surface Area: 4 m² (43.1 ft²). Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Length: 545 mm (21.5 in). Nozzle Schedule: Openings: Shell side (2) 50mm, (2) 100 mm; Coil side (2) 25mm.. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (108.8 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel Other.

Coil rating: 3 bar @ 200 degrees C Coil diameter: 25mm OD Shell top: bolted dished Shell bottom: dished Heat Transfer Surface Area: 2.5 m² (26.9 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Length: 1,200 mm (47.2 in). Nozzle Schedule: Shell openings: (2) 40mm, (2) 100mm - Coil openings: (2) 25mm. Cold-side Pressure: 3 bar (43.5 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel Other.

• Service side rating: -1/6 bar @ -10/+80 degrees C
• Product side rating: -1/3 bar @ -10/+165 degrees C Heat Transfer Surface Area: 4.2 m² (45.2 ft²). Vacuum: Yes. Nozzle Schedule: Openings: Product side (1) 80mm, (1) 65mm, (1) 40 mm condensate outlet; Service side (2) 40 mm.. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 80 °C (176 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 165 °C (329 °F). Spiral Material: Graphite.

• Service side rating: 6 bar @ -10 to 80 degrees C
• Product side rating: 4 bar @ -10 to 165 degrees C Heat Transfer Surface Area: 2 m² (21.5 ft²). Vacuum: Yes. Nozzle Schedule: Unit is Openings: Product side (3) 50mm; Service side (2) 50 mm.. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 80 °C (176 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 165 °C (329 °F). Spiral Material: Graphite.

• Service side rating: 6 bar @ -10 to 80 degrees C
• Product side rating: -1/3 bar @-10 to 165 degrees C Total weight 370 kg Heat Transfer Surface Area: 4.2 m² (45.2 ft²). Vacuum: Yes. Nozzle Schedule: Unit is Openings: Product side (1) 80mm, (1) 65mm, (1) 40 mm condensate outlet; Service side (2) 40 mm. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 80 °C (176 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 165 °C (329 °F). Spiral Material: Graphite.

Spiral -1/13 bar @ -30/200 degs C (24 ltr), Material of pressure shell: 1.4571 Material of spiral: 1.4435 Heat Transfer Surface Area: 4 m² (43.1 ft²). Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austentic. Vacuum: Yes. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 13 bar (188.5 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel 316.

pressure process side: -1/3 bar @ -10/165 degress C (6 ltr). Service side: -1/3 bar @ -10/165 degress C (6 ltr). Heat Transfer Surface Area: 1 m² (10.8 ft²). Vacuum: Yes. Cold-side Pressure: 3 bar (43.5 psi). Cold-side Temperature: 165 °C (329 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 165 °C (329 °F).

spacing channel A = 10, B = 9, volume: channel A = 730 ltr, B= 670 ltr, carbon steel heads with Duplex lining Heat Transfer Surface Area: 143.5 m² (1,545 ft²). Shell Material: Duplex. Shell Diameter: 1,715 mm (67.5 in). Head Material: Carbon Steel. Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-100mm (channel A), side: 2-100mm (channel A + B), bottom: 1-100mm (channel B),. Cold-side Pressure: 5 bar (72.5 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5 bar (72.5 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Duplex.

side 1 pressure -1/6 bar@ 95 deg C, 8 ltr, side 2 pressure 6 bar@ 95 deg C,12 ltr 2-c/steel flat heads with 321 s/steel lining Heat Transfer Surface Area: 2 m² (21.5 ft²). Vacuum: Yes. Shell Diameter: 740 mm (29.1 in). Head Material: Carbon Steel. Length: 520 mm (20.5 in). Nozzle Schedule: openings top: 1-32mm, straight side: 2-32mm, bottom: 1-32mm. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 95 °C (203 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 95 °C (203 °F).

vertical spiral heat exchanger side A with pressure rating 6.5 kg/cm2, side B 5 kg/cm2 Heat Transfer Surface Area: 8 m² (86.1 ft²). Head Material: Carbon Steel. Length: 100 mm (3.9 in). Nozzle Schedule: openings: 3-50mm, 1-25mm, . Cold-side Pressure: 4.9 bar (71.1 psi). Hot-side Pressure: 0.44 bar (6.4 psi).

with 304 SS heads faced with Hastelloy C-276(0.105" thick) Inner channel spacing-Hot side 3/8", outer channel spacing cold side 1/4" 45" wide x 28" deep x 46" high. Heat Transfer Surface Area: 9.3 m² (100 ft²). Shell Pressure: 20.7 bar (300 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 1,143 mm (45 in). Head Material: Stainless Steel 304. Length: 711.2 mm (28 in). Nozzle Schedule: (2x) 3" nozzles, (2x) 2" nozzles.. Cold-side Pressure: 20.7 bar (300 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 20.7 bar (300 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Hastelloy - C276.

Spiral vertical heat exchanger pressure tube side -1/6 bar @ 60 degrees C (20 liter) shell -1/6 bar @ 60 degrees C (800 liter) Heat Transfer Surface Area: 4 m² (43.1 ft²). Shell Pressure: 6 bar (87 psi). Shell Temperature: 60 °C (140 °F). Vacuum: Yes. Cold-side Temperature: 60 °C (140 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 60 °C (140 °F).

AL6XN product contact (cover faced with ALX6N) vertical spiral heat exchanger Heads =0.86" thick shell =0.135" thick. with welded bottom cone and clamped top Heat Transfer Surface Area: 9.3 m² (100 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Alloy 20. Vacuum: Yes. Shell Diameter: 431.8 mm (17 in). Head Material: Carbon Steel. Length: 1,753 mm (69 in). Nozzle Schedule: Nozzle schedule as follows: one 10" inlet, Two 2" outlets, one 2" inlet, one 1" drain.. Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Alloy 20.

Heat Transfer Surface Area: 4.6 m² (50 ft²). Shell Material: Carbon Steel. Shell Diameter: 304.8 mm (12 in). Nozzle Schedule: Inlet 1". Outlet 1".

QVF glass Shell & spiral tube heat exchanger Heat Transfer Surface Area: 0.4 m² (4.3 ft²). Shell Material: Glasslined. Vacuum: Yes. Spiral Material: Glasslined.

side A = 550 ltr, side B = 570ltr Heat Transfer Surface Area: 138.5 m² (1,491 ft²). Shell Pressure: 6 bar (87 psi). Shell Temperature: 180 °C (356 °F). Spiral Material: Stainless Steel 904.

rated FV/150 psig at 15 to 300 degrees f both sides Heat Transfer Surface Area: 205.8 m² (2,215 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Vacuum: Yes. Length: 1,829 mm (72 in). Nozzle Schedule: Opening include (2) 4" inlets and (2) 4" outlets..

duty 0.37MW Heat Transfer Surface Area: 60 m² (645.8 ft²). Shell Pressure: 7.5 bar (108.8 psi). Shell Temperature: 100 °C (212 °F).

Heat Transfer Surface Area: 97.5 m² (1,050 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 93.3 °C (200 °F). Length: 1,829 mm (72 in). Nozzle Schedule: Openings: process side (1) 6", (1) 4", service side (1) 6", (1) 4"..

horizonal spiral heat exchanger. 316SS tubes. 316SS shell. Shell Material: Stainless Steel 316. Shell Diameter: 406.4 mm (16 in). Length: 609.6 mm (24 in). Nozzle Schedule: Hot side inlet 2", hot side outlet 1", cold side inlet 1", non-condensibles outlet 1", vapor outlet 2".

Heat Transfer Surface Area: 97.5 m² (1,050 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 93.3 °C (200 °F). Length: 1,524 mm (60 in). Nozzle Schedule: Openings: process side (2) 3", service side (2) 3".

ring groove graphite heat exchanger rated both side -1/3bar @ -10/165 degrees C, volume both side 6 liters, weight 300 kg Heat Transfer Surface Area: 1.4 m² (15.1 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 165 °C (329 °F). Vacuum: Yes.

304SS/CS spiral Heat Transfer Surface Area: 1.77 m² (19 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Head Material: Carbon Steel. Nozzle Schedule: - Head openings: 2-2" - Shell openings: 1-4", 1-1".

inner pass is .25" x 6", 14'5" long; cold side outer pass is .25" x 6", 15'4" long. Heat Transfer Surface Area: 1.39 m² (15 ft²). Shell Material: Stainless Steel 316. Head Material: Stainless Steel 316. Nozzle Schedule: 1" inlets and outlets.. Spiral Material: Stainless Steel 316.

pipes 25x2 mm seamlessly rated -1/6 bar @ 200 degrees C,volume 9 liters process side; -6/13 bar @ 200 degrees C, volume 192 liters service side. weight 92 kg -6/13 bar @ 200 degrees C, volume 192 liters service side volume 192 liters weight 92 kg Heat Transfer Surface Area: 2 m² (21.5 ft²). Shell Pressure: 13 bar (188.5 psi). Shell Temperature: 200 °C (392 °F). Vacuum: Yes.

Heat Transfer Surface Area: 1.39 m² (15 ft²). Nozzle Schedule: 1" inlets and outlets.

Heat Transfer Surface Area: 1.4 m² (15.1 ft²). Shell Material: Stainless Steel Other. Length: 400 mm (15.7 in). Nozzle Schedule: - Openings: - Service side: 2 openings of 75mm each - Process side: 2 openings of 75mm each.
