Wet Grinding Media Mill water cooled grinding chamber Batch size 200 to 1000 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media Motor: 50 HP motor, 3/60/230/460 volt Class1 Groupd D Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in).

Dual Mounted jacketed, Mecha Gaper grain mills The design is two seperated complete mill mounted on a common stand. with UL label Closed design suitable for solvent based coatings Each chamber has a SS cooling jacket and a SS internal liner designed for easy replacement/maintenance Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings. Capacity (Design): 0.22 m3 (7.8 ft3). Diameter: 444.5 mm (17.5 in).

Intermittent type Attritor. Szegvari Size 1, Bench top size. Electronic variable speed control. Capacity (Design): 0.004 m3 (0.13 ft3). Drive Power: 0.19 kW (0.25 HP). Powered By: Electric.

Intermittent type Attritor Szegvari Attritor System Size 1S Bench top size, with a Reeves Vari -drive rated for 276 through 2000 rpm Mixing shaft belt driven chrome plated mixing pot for 0.8 gallons working capacity with jacket for cooling or heating This mixer is designed for media size of 1/8” through 3/8” Hardened 304 SS tool steel mixing shaft Standard mixing arm pinned to shaft which means this machine is designed for ease of shaft or arm change Multiple options for mixing shafts, types of mixing chambers, lids, etc Capacity (Design): 0.006 m3 (0.2 ft3). Drive Power: 1.49 kW (2 HP). Drive RPM: 2,000. Powered By: Electric.

lower vari drive assembly Fits 100 system only. Capacity (Design): 0.02 m3 (0.71 ft3).

Rebuilt 70MM mechanical seal Part #630597U, Ref. assembly #638208, Ref. dwg #C-2121191X.
Rebuilt by Netzsch May 2008. Diameter: 70 mm (2.8 in).

barrel internal chrome plated horizontal jacketed pearl mill mechanical seal (10) 260mm diameter blades on shaft hinged front cover, built on controls, chamber on rollers for cleaning/maintenance, Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in). Powered By: Electric.

coBall mill This production size stirrer-bead mill is designed for the finest grinding of suspensions and high viscous products down to Nano- Range. This mill has the following specifications: Throughput; 0.7-2.2 gpm, Pressure resistance; 58 psi, Grinding chamber volume; 2 Gallons, Rotor driving capacity; 49-73 hp, weight 3850 lbs.
Controls are 110 volt, Machine 460 volt. Air humidity from 0-80%, Ambient air; As dust free as possible. Mechanical seal on grinding chamber Drive Power: 54.4 kW (73 HP). Pressure: 4 bar (58 psi). Temperature: 90 °C (194 °F).

This lab size stirrer-bead mill is designed for the finest grinding of suspensions and high viscous products down to Nano- Range This mill has the following specifications: Throughput; 0.044-0.132 gpm, Pressure resistance;29 psi, Grinding chamber volume; 0.13 Gallons,
Rotor driving capacity; 4 hp, weight 353 lbs.
Controls are 110volt, Machine 460 volt.
Operating conditions: Temperature; from 0-90 degrees C. Air humidity from 0-80%, Ambient air; As dust free as possible. Mechanical seal on grinding chamber Drive Power: 3 kW (4 HP). Pressure: 2 bar (29 psi). Temperature: 90 °C (194 °F).

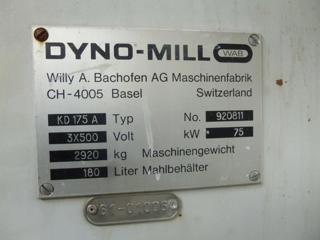

Dyno-bead mill 3x500 volt Capacity (Design): 0.18 m3 (6.4 ft3). Drive Power: 75 kW (100.6 HP).

Wet Grinding Media Mill water cooled grinding chamber Batch size 200 to 1000 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media 50 HP motor, 3/60/230/460 volt Class1 Groupd D Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in).

Wet Grinding Media Mill 57 liter total volume. Batch size 200 to 1000 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media motor : Class1 Groupd D Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in).

Wet Grinding Media Mill water cooled grinding chamber, 57 liter total volume. Batch size 200 to 1000 liter capacity. closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media. Unit driven by a motor, Class1 Groupd D Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in).

Wet Grinding Media Mill water cooled grinding chamber, 60 liter total volume Batch size 200 to 1000 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media. motor : Class1 Groupd D Capacity (Design): 0.06 m3 (2.1 ft3). Diameter: 300 mm (11.8 in).

Wet Grinding media mill water cooled grinding chamber 20 liter ginding chamber volume. Batch size 50 to 250 liter capacity. closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media Capacity (Design): 0.02 m3 (0.71 ft3). Diameter: 220 mm (8.7 in).

water cooled grinding chamber, Batch size 50 to 250 liter capacity. closed design grinding chamber, axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media. Capacity (Design): 0.02 m3 (0.71 ft3). Diameter: 220 mm (8.7 in).

Wet Grinding media mill water cooled grinding chamber Batch size 50 to 250 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media Capacity (Design): 0.02 m3 (0.71 ft3). Diameter: 220 mm (8.7 in).

Wet Grinding media water cooled grinding chamber Batch size 50 to 250 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media Capacity (Design): 0.02 m3 (0.71 ft3). Diameter: 220 mm (8.7 in).

Wet Grinding media mill water cooled grinding chamber Batch size 50 to 250 liter capacity closed design grinding chamber,axial flow. Mechanical Seal on shaft, with Teflon grinding discs for agitating the grinding media Capacity (Design): 0.02 m3 (0.71 ft3). Diameter: 220 mm (8.7 in).

bead mill mechanical seal on shaft cooling water pressure max 3 bar, milling vessel pressure max 3 bar, max temp. 70°C, vessel rubber lined Capacity (Design): 0.007 m3 (0.25 ft3). Pressure: 1 bar (14.5 psi). Temperature: 98 °C (208.4 °F).

jacketed horizontal disc mill, designed for wet ginding With a jacketed grinding chamber V-belt through a Voith fluid coupling. Diameter: 408 mm (16.1 in).

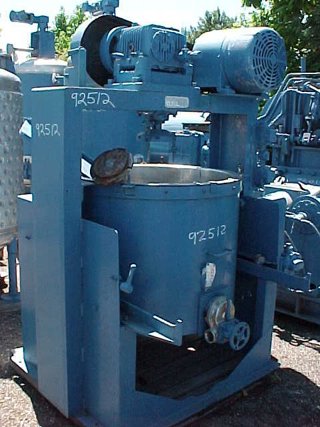

attritor Size 100S 30" deep tank, with 2 1/2" dia shaft, (6) cross bars. Canter lever tilt mechanism 7 1/2 HP Class I, Div II drive. Diameter: 914.4 mm (36 in). Drive Power: 5.6 kW (7.5 HP).

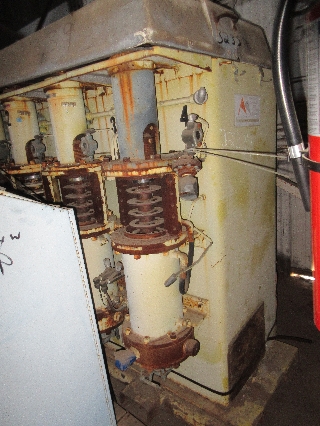

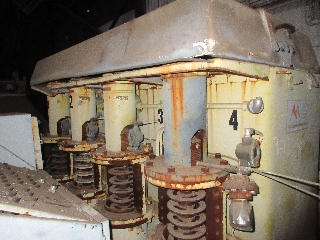

4-station small media sandmill system, that provides continuous wet milling for aqueous and solvent slurries of all viscosities The system consists of (4) closed head, 7" dia x 17" long sandmills mounted on common base. (2) mills have CS bodies w/304SS discs, (1) mill has 304SS body and 304SS discs, (1) mill has 304SS body w/teflon discs. Each mill chamber has a water jacket designed to carry heat away so product doesn't over heat. Specs include: gross volume (gal) 5.5, 35-75 gallons per hour. Media load based on: 1.5 mm glass=40 lbs., 1.0 mm steel=80 lbs. Diameter: 177.8 mm (7 in). Drive Power: 11.2 kW (15 HP).

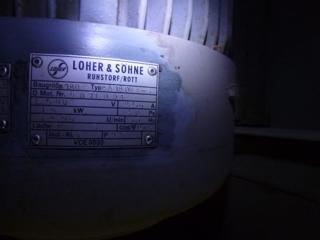

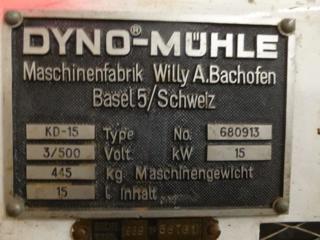

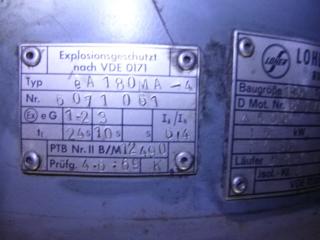

15 liter horiz jkt (disintegrator) mill system Rotor deviding plate 1.4435. (8) agitation discs are polyurethane clad (Bayer Vulkolan). Double jkt 304SS. Shaft seal: double lip (teflon), mfd by Garlock. Milling cylinder 15 liter volume Suspension inlet 25mm, suspension outlet 25mm. Cooling medium inlet 12mm, cooling medium outlet 12mm. Max operating pressure in milling chamber 4 bar. Max operating pressure in double jkt 2 bar Mill motor: 15 KW Loher Type eA180MA-4, 3/50/500 volt, 1455 rpm Ex-e-G3 motor Capacity (Design): 0.01 m3 (0.35 ft3). Diameter: 290 mm (11.4 in). Pressure: 4 bar (58 psi).

4-station Premier type small-media sandmill system. Consists of (4) 6 1/2" ID x 12" 304SS closed head horiz chambers mtd on common unit. Each chamber has rotary gear pump mtd underneath. W/controls and gauges. Diameter: 165.1 mm (6.5 in). Drive Power: 14.9 kW (20 HP).

220 liter (60 gallon) jacketed, Mecha Gaper grain mill.
with UL label.
Closed design suitable for solvent based coatings. Chamber has a SS cooling jacket Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings. Capacity (Design): 0.22 m3 (7.8 ft3). Diameter: 444.5 mm (17.5 in).

jacketed, Mecha Gaper grain mill motor with UL label.
Closed design suitable for solvent based coatings. Chamber is has a SS cooling jacket Disks are UHMW (non metalic high wear material).
Bottom inlet, top discharge, with top sample port, all with sanitary style fittings. Capacity (Design): 0.22 m3 (7.8 ft3). Diameter: 444.5 mm (17.5 in).

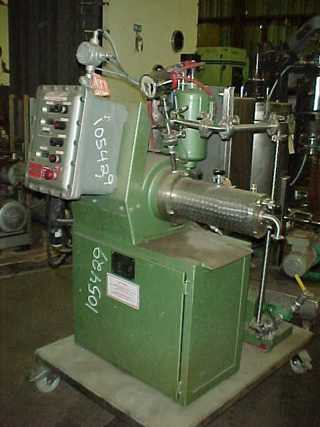

bead mill Type 574-04-21, Order #201869. Full load 14.7 amp. Currently set up as a disk agitator, but can also be used with a peg agitator.
Nylon coated concentric disc arrangement; nylon coated SS shaft. Has water cooled chamber w/1 HP Viking CS rotary pump Polished grinding chamber 6" dia x 18" long. On board explosion proof controls Diameter: 152.4 mm (6 in). Drive Power: 3.7 kW (5 HP).

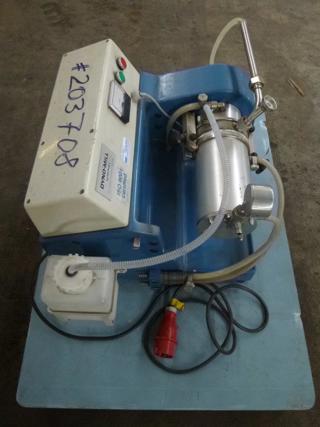

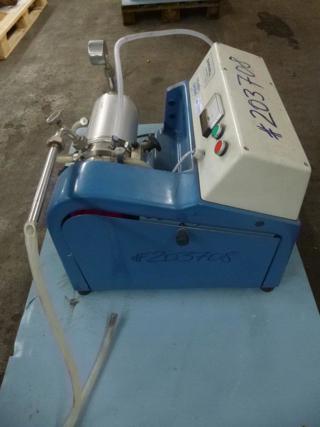

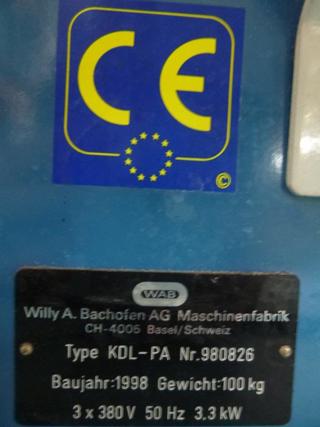

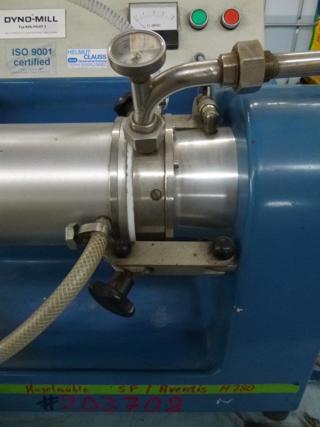

Dyno Mill bead mill 1.4 ltr grinding chamber 8-40 kg production rate weight 90 kg. 2 x clamps to remove chamber Diameter: 140 mm (5.5 in). Drive Power: 3.3 kW (4.4 HP).

Rebuilt 80MM mechanical seal Part #630598U, Ref. assembly #639183, Ref. dwg. # C-2115381X. Rebuilt by Netzsch June 2008. Diameter: 80 mm (3.1 in).

Rebuilt 70MM mechanical seal Part #630597U Ref. assembly #638208, Ref. dwg #C-2121191X. Rebuilt by Netzsch May 2008. Diameter: 70 mm (2.8 in).

Rebuilt 80MM mechanical seal Part #630598U, Ref. assembly #630971, Ref. dwg. #C-2115381X. Rebuilt by Netzsch July 2008. Diameter: 80 mm (3.1 in).

Rebuilt 70MM mechanical seal Part #630597U, Ref. assembly #638208, Ref. dwg. # C-2121191X. Rebuilt by Netzsch May 2007. Diameter: 70 mm (2.8 in).
