International Process Plants (IPP) offers a wide selection of high-quality used Centrifuges - Not Classified Else ware - Misc and Hydraulic , including Stainless Steel, Hastelloy, Sanitary and other designs. Our new and refurbished Centrifuges - Not Classified Else ware - Misc and Hydraulic are ideal for chemical and process industries, ensuring efficiency and reliability in solid-liquid, liquid-liquid & multi-phase operations. Explore our inventory and find the perfect solution for your business needs.
Solid-Liquid Separation:
Wastewater Treatment: Removing suspended solids from municipal and industrial wastewater.
Chemical Processing: Separating solids from liquids in various chemical processes, such as crystallization, precipitation, and filtration.
Food and Beverage: Clarifying juices, separating solids from oils, and dewatering food products.
Pharmaceutical: Separating active ingredients from impurities in drug production.
Mining: Concentrating minerals and dewatering slurries.
Oil and Gas: Removing solids from drilling fluids and produced water.
Liquid-Liquid Separation:
Oil-Water Separation: Removing oil from water in various industrial applications.
Emulsion Breaking: Separating emulsions of two immiscible liquids.
Materials of Construction:
The choice of materials depends heavily on the specific application and the properties of the fluids and solids being processed. Common materials include:
Stainless Steel: Widely used due to its corrosion resistance, strength, and ease of cleaning. Common grades include 304, 316, and 316L.
Cast Iron: Cost-effective option for less corrosive applications.
Ductile Iron: Offers improved strength and ductility compared to cast iron.
Rubber-lined Steel: Provides excellent corrosion resistance and abrasion resistance.
Polymers: Such as polypropylene, PVC, and PTFE, offer good chemical resistance and are suitable for corrosive environments.
Ceramics: Highly resistant to abrasion and corrosion, but can be more expensive.
Corrosion Resistance: The ability of the material to withstand the corrosive effects of the process fluids.
Abrasion Resistance: The ability of the material to resist wear and tear from contact with solids.
Temperature Resistance: The ability of the material to withstand the operating temperatures of the process.
Chemical Compatibility: The material must be compatible with all the chemicals involved in the process. Cost: The cost of the material and its fabrication.
Maintenance Requirements: The ease of cleaning, inspection, and repair of the equipment.
By carefully selecting the appropriate materials, it is possible to ensure the long-term performance and reliability of non-classified hydraulic centrifuges in a wide range of industrial applications.
Have questions about Centrifuges - Not Classified Else ware - Misc and Hydraulic or our services? Learn more about our products and why customers choose IPP.

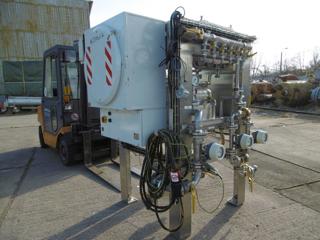

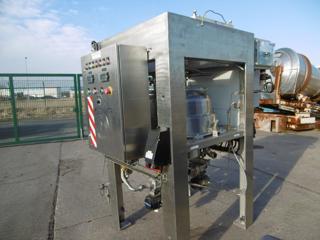

Type: Centrifuge-Misc. & Hydraulic

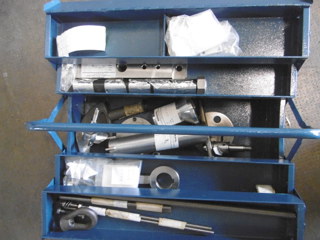

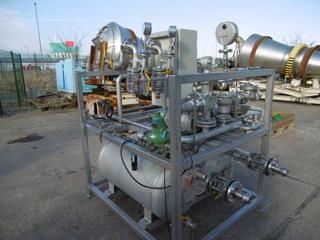

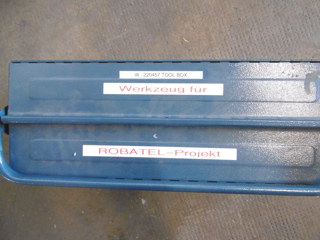

Manufacturer: Robatel

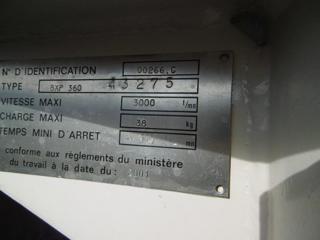

Model: BXP 360
Condition: Used
Material: Stainless Steel Other
Motor Power: 5.5 kW (7.4 HP)
Description: 200 - 1500 L/hr, 29L volume, 10-50° C, 360mm internal dia, with CIP & 2x 200L receivers

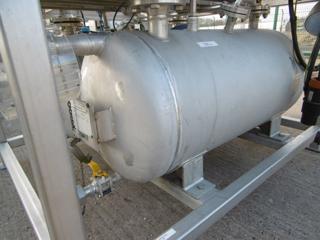

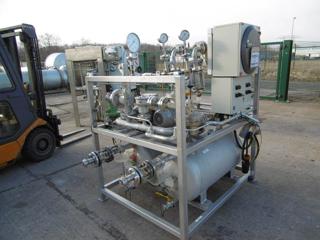

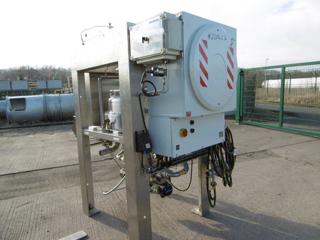

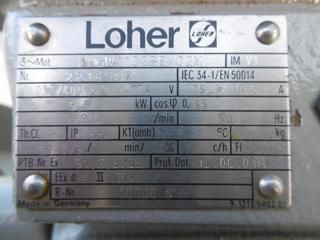

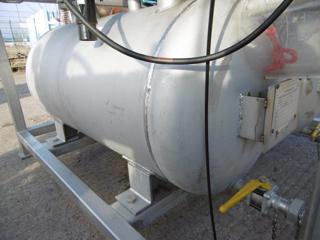

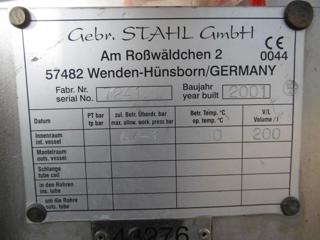

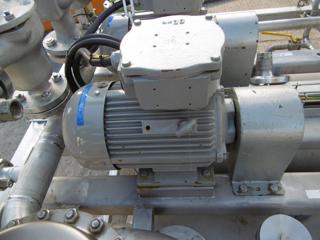

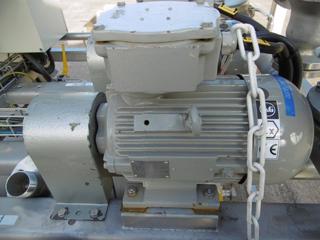

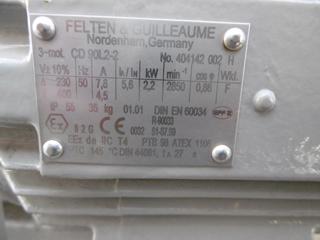

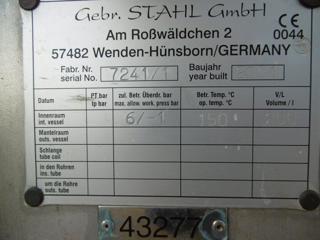

200 - 1500 l/h with one single effect battery 1.4404 Stainless Steel Robatel load 38kg operating volume 29 dm³ temperature 10-50° C internal diameter of the drum 360 mm, EExde II BT4 - IP 55 Flender Motor, CIP cleaning, with two (2) 200 l 1.4571 Stainless Steel Receivers, -1/6 bar, 150° C, SN 7241/1 and 7241/2 manuf. by Geb. Stahl, built in 2000, System Needs 2 centrifugal pumps 10 m³/h and one static mixer to be completed available with Instrumentation and exp controls EExdeIICT4.
Overall Length: 790 mm (31.1 in). Overall Width: 850 mm (33.5 in). Overall Height: 4,350 mm (171.3 in). Is Vertical Tubular: Yes.

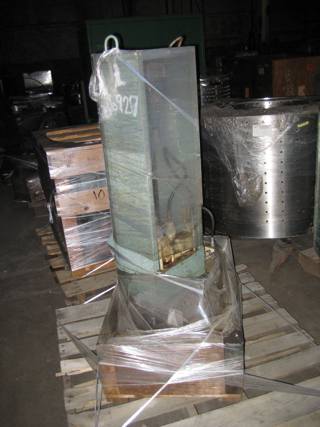

Type: Centrifuge-Misc. & Hydraulic
Manufacturer: Carl Padberg
Model: Z101GD
Condition: Used
Material: Stainless Steel Austenitic

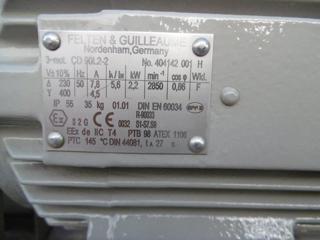

Motor Power: 2.2 kW (3 HP)

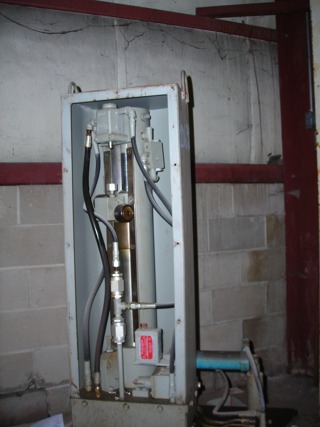

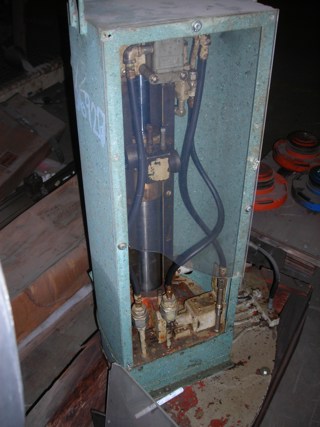

Description: CEPA liquid/liquid centrifuge, 150-3,000 L/hr flow, 143mm dia X 700mm L bowl, 15,760 G force, Vapor tight with sanitary fittings
150 to 3.000 liter/hr (CEPA) high speed Liquid/Liquid separation Motor: IP 44 with sanitary fittings
Is Vertical Tubular: Yes.
Type: Centrifuge-Misc. & Hydraulic
Condition: Used
Description: Assorted hydraulic motors for centrifuge basket, 5 quantity
Basket hydraulic motors: (1) Volvo hydraulic motor type V3AA/66RS/01/APLO, S/N 10397A, Hubvolumen 66 cm3. (1) Hydraulic motor with 8 V-belt pulley on mount. (1) VAAC Hydraulics motor, parts #379140, S/N 199908008, type F12-110-MS-SN-S-000, 13 tooth gear shaft 1/2" dia. (1) Volvo Hydraulic motor S/N 189681, type E11-78-MF-SN. (1) Hydraulic motor- no nameplate
Type: Centrifuge-Misc. & Hydraulic
Manufacturer: Baker Perkins
Model: D18
Condition: Used
Material: Stainless Steel 316
Motor Power: 11.2 kW (15 HP)
Description: 39" OAL x 36" OD Bowl, 250psi @ 250° F, with 1800rpm dual rotation fluid drive
Liquid/Liquid contactor Contract # M-92582 Seal rated 250 PSI @ 250 degrees F Bowl is 39" OAL x 36" OD 304SS top cover, and CS bottom housing with a coating Motor: 230/460 volt with an American Davison Fluid drive is by, model # ID05786092 Fluid drive is by, model # ID05786092, rated for 1800 rpm, dual rotation
Overall Length: 2,438 mm (96 in). Overall Width: 2,438 mm (96 in). Overall Height: 1,626 mm (64 in). Is Podbielniak: Yes.
