Type: Dryer-Rotary Steam Tube
Manufacturer: Davenport
Model: 12x65
Condition: Used
Material: Stainless Steel 304L
Diameter: 3,658 mm (144 in)
Length: 19,812 mm (780 in)
12' diameter X 65' long
And 304LSS/316LSS
Indirect contact heating, counter flow air design
Total indirect product heat transfer area is 4,275 Sq. Ft. With 304SS shell and 316SS tubes

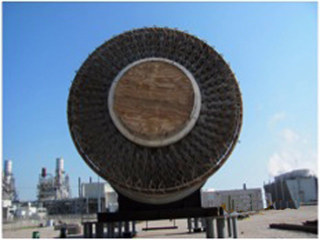

rated 175 PSI @ 400 degrees F., 14,275 Sq. Ft. total Heat Transfer area with (216) 316LSS tubes, 64' long, rated 175 psig, arranged in rows; 2 outer rows - (96) 4" schedule 10 tubes; 3 inner rows (72) 3" schedule 10 tubes; (48) 3" schedule 10 tubes.
Shell is 304LSS, 5/8" main thickness, 1" thick at intake, 1 1/2" thick in sections.
with 304LSS internal lifting flights, 24 rows, 1/4" thick x 3" high.

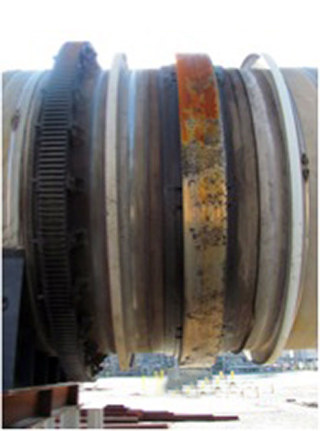

Shell is mounted on a 3/16" pitch /foot, and is designed to rotate at approximately 2.85 RPM. Gear and pinion drive, main gear is 174" OD, 9" wide face, with 259 teeth. Pinion gear is 14" OD x 10" wide face, with 19 teeth. Requires a parallel shaft reducer, 37 rpm
Temperature: 204.4 °C (400 °F). Heat Transfer Surface Area: 397.2 m² (4,275 ft²). Tube Surface Area: 1,326 m² (14,275 ft²). Tube Pressure: 12.1 bar (175 psi). Tube Temperature: 204.4 °C (400 °F). Number of Tubes: 216. Tube sheet Material: Stainless Steel 316L.
Rotary steam tube dryers use indirect heat transfer through steam-filled tubes, making them ideal for drying materials that are heat-sensitive, combustible or require controlled atmospheres. With over 47 years of equipment expertise, IPP offers a wide selection of used, secondhand and surplus rotary steam tube dryers from 20 complete process plant sites, all backed by an inventory of 15,000+ ready-to-ship systems. These units provide gentle, efficient drying for high-value materials.
Unlike direct-fired rotary dryers, steam tube dryers transfer heat through conduction via rotating tubes filled with steam. This approach protects sensitive materials while allowing continuous, high-capacity operation.
Steam tube dryers are built with precise heat transfer and corrosion resistance in mind:
Learn more about rotary steam tube dryer design and benefits from Process Heating.
Search the IPP inventory or contact IPP’s equipment specialists to find the right used, secondhand or surplus rotary steam tube dryer for your plant. With global reach and ready-to-ship inventory, IPP helps you save time and money on every order.
