Tanks from IPP. Over 1393 pieces for sale. Chemical Equipment and Process Equipment buy unused, surplus, second hand or used here.

Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,473 mm (58 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Lugs.

Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,930 mm (76 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes.

Capacity (Design): 5,678 L (1,500 gallons). Diameter: 1,930 mm (76 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Support: Legs.

Capacity (Design): 5,678 L (1,500 gallons). Diameter: 1,930 mm (76 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 2,921 mm (115 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

Capacity (Design): 43,782 L (11,566 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 0.97 bar (14 psi). Support: Saddle.

This is a nice looking tank with a somewhat unusual nozzle schedule. Capacity (Design): 43,532 L (11,500 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 0.97 bar (14 psi). Internal Temperature: 60 °C (140 °F). Support: Saddle.

Capacity (Design): 43,532 L (11,500 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 0.97 bar (14 psi). Support: Saddle.

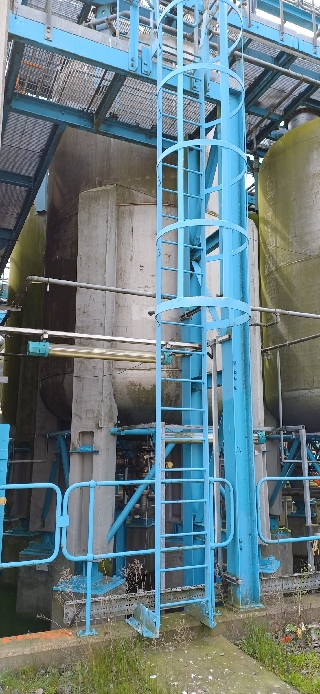

OSHA cage ladder and top hand rails Capacity (Design): 44,289 L (11,700 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 0.97 bar (14 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

With OSHA cage ladder and top hand rails. Capacity (Design): 44,289 L (11,700 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 0.97 bar (14 psi). Internal Temperature: 93.3 °C (200 °F). Support: Pads.

Deaeration tank Capacity (Design): 9,842 L (2,600 gallons). Orientation: Horizontal. Diameter: 1,829 mm (72 in). Straight-side Length: 3,658 mm (144 in). Jacket Material: Carbon Steel. Support: Saddle.

Capacity (Design): 1,703 L (450 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 11.4 bar (165 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Type: Standard. Support: Skid. Air Receiver: Yes.

Capacity (Design): 94,635 L (25,000 gallons). Orientation: Horizontal. Diameter: 3,200 mm (126 in). Straight-side Length: 11,836 mm (466 in). Internal Pressure: 0.97 bar (14 psi). Support: Saddle.

Capacity (Design): 3,785 L (1,000 gallons). Orientation: Horizontal. Diameter: 1,041 mm (41 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 17.2 bar (250 psi). Internal Temperature: 204.4 °C (400 °F). Support: Saddle.

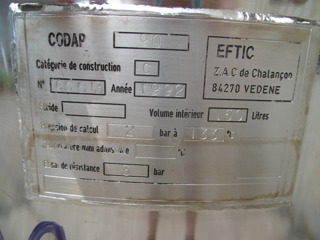

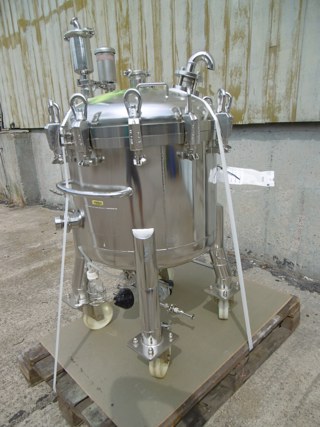

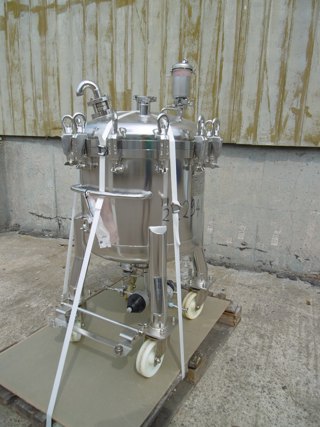

polished pressure tank CODAP 90 with (2) stainless steel handles on side wall to moving the tank. Capacity (Design): 90.8 L (24 gallons). Diameter: 558.8 mm (22 in). Straight-side Length: 317.5 mm (12.5 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 133 °C (271.4 °F). Support: Legs.

Capacity (Design): 500 L (132.1 gallons). Orientation: Vertical. Diameter: 650 mm (25.6 in). Straight-side Length: 1,100 mm (43.3 in). Support: Lugs.

pressure -1/6 bar @ -25/200 degrees C insulated and clad on straight side and bottom dish Capacity (Design): 2,350 L (620.8 gallons). Diameter: 1,500 mm (59.1 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.

pressure -1/6 bar @ -25/200 degrees C insulated and clad on straight side and bottom dish Capacity (Design): 2,350 L (620.8 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 1,116 mm (43.9 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.

91.5662 X8Ni9) 9% nickel alloy double walled vertical Cryogenic nitrogen storage tank inner tank is 59043 liter 1.5662 (X8Ni9) 9% nickel alloy steel (specially designed for cryogenic operations), the space between the inner/outer tank is 26370 liter outertank is carbon steel 2.9m diameter x 13.7m high, pressure rated for full vacuum, 12mm wall thickness, bottom dish has a thermosyphon, tank has a stainless steel 18.5 liter air heater mounted under the bottom dish, manufactured by Messer Grisheim Gmbh, fabrik #V14166, pressure rated 20 bar @ -196 degrees C, 9-tubes with blades, Capacity (Design): 59,043 L (15,598 gallons). Orientation: Vertical. Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 1.24 bar (18 psi). Internal Temperature: 91.1 °C (196 °F). Vacuum: Yes. Support: Legs.

1.5662 (X8Ni9) 9% nickel alloy double walled vertical Cryogenic nitrogen storage tank fabrik #575-0009 nickel alloy steel (specially designed for cryogenic operations) the space between the inner/outer tank is 26370 liter outertank is carbon steel 2.9m diameter x 13.7m high, pressure rated for full vacuum, 12mm wall thickness, bottom dish has a thermosyphon manufactured by Messer Grisheim Gmbh, fabrik #V14167, pressure rated 20 bar @ -196 degrees C, 9-tubes with blades, Capacity (Design): 59,043 L (15,598 gallons). Orientation: Vertical. Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Support: Legs.

1.5662 (X8Ni9) 9% nickel alloy double walled vertical Cryogenic nitrogen storage tank fabrik #575-0010 inner tank is 59043 liter 1.5662 (X8Ni9) 9% nickel alloy steel (specially designed for cryogenic operations), the space between the inner/outer tank is 26370 liter, outertank is carbon steel 2.9m diameter x 13.7m high, pressure rated for full vacuum 12mm wall thickness, both weld dished top and bottom bottom dish has a thermosyphon, tank has a stainless steel 18.5 liter air heater mounted under the bottom dish, manufactured by Messer Grisheim Gmbh, fabrik #V14168, 9-tubes with blades, Capacity (Design): 59,043 L (15,598 gallons). Orientation: Vertical. Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Jacket Type: Standard. Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 196 °C (384.8 °F). Support: Legs.

Pressure Tank Capacity (Design): 265 L (70 gallons). Orientation: Vertical. Diameter: 355.6 mm (14 in). Straight-side Length: 2,286 mm (90 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 101.7 °C (215 °F).

W/heat exchanger inside of vessel and steam drum on top, CS shell, SS heads, w/flange in middle. Capacity (Design): 757.1 L (200 gallons). Orientation: Horizontal. Diameter: 762 mm (30 in). Straight-side Length: 4,572 mm (180 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 593.3 °C (1,100 °F).

Capacity (Design): 832.8 L (220 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,575 mm (62 in). Support: Legs.

Capacity (Design): 567.8 L (150 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 260 °C (500 °F).

cone shaped quick open top Hopper Capacity (Design): 355.8 L (94 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 1.38 bar (20 psi). Internal Temperature: 162.8 °C (325 °F).

internal pressure -1/6 bar @ 200 degrees C Capacity (Design): 3,600 L (951 gallons). Orientation: Vertical. Internal Pressure: 0.41 bar (6 psi). Internal Temperature: 93.3 °C (200 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

Mirror polished tank with jacket and mixer Jacket volume is 25 liter a 100 mm sight glass assembly Vessel with a 2" x 2" Procell sanitary pump drive by an ABB ac motor1.1 kw, 50 Hz, 2870 rpm. Type 3GAAD81613-HSTAL1 Capacity (Design): 1,847 L (488 gallons). Orientation: Vertical. Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,860 mm (73.2 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 100 °C (212 °F). Does it have Agitation ?: Yes. Jacket Pressure: 1.01 bar (14.7 psi). Jacket Temperature: 100 °C (212 °F). Sanitary Contruction: Yes. Support: Legs.

mirror polish pressure tank with mixer Rated for -1 to 3 bar at 230 degrees C 120 mm sight glass(s) one with light. With spray ball(S) for CIP Capacity (Design): 1,798 L (475 gallons). Orientation: Vertical. Diameter: 1,220 mm (48 in). Straight-side Length: 1,280 mm (50.4 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 230 °C (446 °F). Does it have Agitation ?: Yes. Vacuum: Yes. CIP: Yes. Sanitary Contruction: Yes. Support: Legs.

mirror polish pressure tank with mixer Rated for -1 to 3 bar at 230 degrees C Two 120 mm sight glass(s) one with light. With spray ball(S) for CIP. With a 1.5" x 1.5" Colly flowtech 316L SS polished sanitary pump. (CE Certified) Capacity (Design): 1,798 L (475 gallons). Orientation: Vertical. Diameter: 1,220 mm (48 in). Straight-side Length: 1,280 mm (50.4 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 230 °C (446 °F). Does it have Agitation ?: Yes. Vacuum: Yes. CIP: Yes. Sanitary Contruction: Yes. Support: Legs.

Pump: 1.5 HP gear pump flat open top w/cover, flat btm No gland or seal Direct coupled to TEFC motor : 1/2 HP, 3/60/230/460 volt, 1725 rpm w/1.5 HP gear pump Capacity (Design): 946.4 L (250 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,219 mm (48 in). Does it have Agitation ?: Yes. Support: Skid.

Tank Type: Pressure Tank Double dia: 3' dia x 4'7" str side, 5' dia x 5'4" str side, total 121" str side Capacity (Design): 5,110 L (1,350 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,626 mm (64 in). Internal Pressure: 4.3 bar (62 psi). Internal Temperature: 176.7 °C (350 °F). Support: Skirt.

with sanitary insulation jacket. Capacity (Design): 3,028 L (800 gallons). Orientation: Horizontal. Diameter: 1,372 mm (54 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 148.9 °C (300 °F). Jacket Type: Standard. Jacket Material: Stainless Steel 321. Vacuum: Yes. Sanitary Contruction: Yes. Support: Lugs.

• Jacket coverage: Full straight side and bottom head Jacket connections are 1.5” NPT Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,372 mm (54 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 315.6 °C (600 °F). Jacket Type: Dimple. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 315.6 °C (600 °F). Vacuum: Yes. Support: Lugs.

jacketed tank With 1/2 pipe coil jacket on straight side only Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 104.4 °C (220 °F). Jacket Type: Half Pipe/Limpet. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 193.3 °C (380 °F). Vacuum: Yes. Support: Legs.

Head thickness: 1/4" Jacket is 14 guage Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Lugs.

(2) welded dished heads Rated FV & 40 psi @ 450 deg. F to -20 deg Glass type: 9114 Glass Mounting: 4 couplings Capacity (Design): 66,245 L (17,500 gallons). Orientation: Horizontal. Diameter: 3,353 mm (132 in). Straight-side Length: 6,858 mm (270 in). Internal Pressure: 2.8 bar (40 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes.

Glass Type: 3008 Glass Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,194 mm (47 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 3.8 bar (55 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Lugs.

Capacity (Design): 42,775 L (11,300 gallons). Orientation: Vertical. Diameter: 3,200 mm (126 in). Straight-side Length: 5,029 mm (198 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 41,640 L (11,000 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Bottom vessel for scrubber IPP # 246703 Price for 246703 includes this piece also. Capacity (Design): 700.3 L (185 gallons). Orientation: Vertical. Diameter: 812.8 mm (32 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 148.9 °C (300 °F). Support: Skirt.

Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,321 mm (52 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

With CS stiffening rings Capacity (Design): 51,103 L (13,500 gallons). Orientation: Vertical. Diameter: 3,658 mm (144 in). Straight-side Length: 4,877 mm (192 in). Jacket Pressure: 0.97 bar (14 psi). Support: Pads.

With Carbon Steel stiffening Rings Capacity (Design): 51,103 L (13,500 gallons). Orientation: Vertical. Diameter: 3,658 mm (144 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 0.97 bar (14 psi). Support: Pads.

Capacity (Design): 41,640 L (11,000 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 41,640 L (11,000 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 30,030 L (7,933 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 30,030 L (7,933 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Top Bridge, but no drive. Capacity (Design): 22,712 L (6,000 gallons). Orientation: Vertical. Diameter: 3,150 mm (124 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Pads.

With top bridge but no drive installed. Capacity (Design): 22,712 L (6,000 gallons). Orientation: Vertical. Diameter: 3,150 mm (124 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Pads.

19 turns 1.5" coils. Capacity (Design): 26,498 L (7,000 gallons). Orientation: Vertical. Diameter: 3,200 mm (126 in). Straight-side Length: 3,404 mm (134 in). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Support: Lugs.

19 turns 1.5 " coils Capacity (Design): 26,498 L (7,000 gallons). Orientation: Vertical. Diameter: 3,200 mm (126 in). Straight-side Length: 3,404 mm (134 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Support: Lugs.

tank with side entering heating coil internal pressure 0.01/0.05 bar @ 100 degrees C (20,000 liter) 25 square meter 316 stainless steel 'U' tube heating coil manufactured by Freidrich Ambs working pressure 01/3.5 bar @ 150 degrees C (145 liter) carbon steel head Capacity (Design): 20,000 L (5,283 gallons). Orientation: Vertical. Diameter: 2,600 mm (102.4 in). Straight-side Length: 4,510 mm (177.6 in). Internal Pressure: 0.05 bar (0.73 psi). Internal Temperature: 100 °C (212 °F). Does it have an Internal Coil?: Yes.

3.5 " schedule 10 coil, 12 turns for 267 Sq. Ft. of surface area. Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,286 mm (90 in). Straight-side Length: 3,658 mm (144 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Jacket Type: Internal Pipe Coil. Jacket Material: Stainless Steel 316. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 93.3 °C (200 °F). Baffle Type: Sidewall Mounted Straight Baffle. Support: Pads.

agitated tank Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,718 mm (107 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 71.1 °C (160 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

Agitated mixing tank Bridge mounted on mixer, Manufacturers of mixer: Lightnin Driving three pitch turbine blades mounted at the bottom of the vessel. Two side wall baffles Capacity (Design): 17,034 L (4,500 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 13,249 L (3,500 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Support: Lugs.

Capacity (Design): 11,356 L (3,000 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 1,676 mm (66 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 93.3 °C (200 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

Column Feed Tank With a small 3 blade pitch turbine. Capacity (Design): 12,113 L (3,200 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Cone Length: 609.6 mm (24 in). Support: Lugs.

Capacity (Design): 12,113 L (3,200 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Cone Length: 609.6 mm (24 in). Support: Lugs.

Mixing by Lightning. 3 ph 4.6/2.3 amps. Capacity (Design): 14,385 L (3,800 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,896 mm (114 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 176.7 °C (350 °F). Does it have Agitation ?: Yes.

3000 Gallon nominal Vessel legs have been removed, Jacket is no good selling as a tank only. Drive system by Chemineer, Model # 5HTN-25 Rated for 84 rpm out Vessel has no agitation shaft or paddles. Capacity (Design): 13,627 L (3,600 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 185.6 °C (366 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

Capacity (Design): 1,514 L (400 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes. Support: Lugs.

304 SS sanitary insulation jacket MDMT is -20 degrees F at 75/FV Head thickness is 0.312" Vessel has an internal overflow weir at one third of the tank. Capacity (Design): 1,514 L (400 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes.

vertical air receiver (2) 4" inlet/outlets. Capacity (Design): 1,514 L (400 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 8.6 bar (125 psi). Internal Temperature: 343.3 °C (650 °F). Support: Skirt. Air Receiver: Yes.

PTFE Lined Capacity (Design): 1,893 L (500 gallons). Diameter: 914.4 mm (36 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 2,158 L (570 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,143 mm (45 in). Internal Pressure: 13.8 bar (200 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

32.000 liter (blue 3009) tank 3 bar @ -10/110 degrees C Capacity (Design): 32,575 L (8,605 gallons). Orientation: Horizontal. Diameter: 2,800 mm (110.2 in). Straight-side Length: 5,000 mm (196.9 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 110 °C (230 °F). Support: Saddle.

MFR # 31285 Shell thickness =0.472 heads thickness =0.472 Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 2.4 bar (35 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Type: Standard. Jacket Material: Glasslined. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Int rated 150 psi @ 650 deg F Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 457.2 mm (18 in). Straight-side Length: 1,118 mm (44 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 343.3 °C (650 °F). Vacuum: Yes. Support: Lugs.

with 3 internal trays Capacity (Design): 61,702 L (16,300 gallons). Orientation: Vertical. Diameter: 3,353 mm (132 in). Straight-side Length: 6,858 mm (270 in). Support: Skirt.

Capacity (Design): 72,494 L (19,151 gallons). Orientation: Vertical. Diameter: 3,962 mm (156 in). Straight-side Length: 5,486 mm (216 in). Internal Pressure: 1.01 bar (14.7 psi).

Capacity (Design): 72,494 L (19,151 gallons). Orientation: Vertical. Diameter: 3,962 mm (156 in). Straight-side Length: 5,486 mm (216 in). Internal Pressure: 1.01 bar (14.7 psi).

Interior Finish: #4 Finish with welds ground and polished Lifting eyes on top of the tank 3” Tri- Clamp connections Insulation - 1” cork with mild steel insulation Capacity (Design): 94,635 L (25,000 gallons). Orientation: Vertical. Diameter: 3,454 mm (136 in). Sanitary Contruction: Yes.

Capacity (Design): 35,583 L (9,400 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 4,877 mm (192 in).

105" diameter x 15' Capacity (Design): 37,854 L (10,000 gallons). Orientation: Vertical. Diameter: 2,667 mm (105 in). Internal Pressure: 1.01 bar (14.7 psi). Vacuum: Yes. Support: Pads.

316L s/steel (1.4571) pressure tank internal pressure -1/+2.5 bar @ 100 Degrees C Capacity (Design): 1,500 L (396.3 gallons). Orientation: Vertical. Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,880 mm (74 in). Internal Pressure: 2.5 bar (36.3 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.

1000 liter pressure -0.3/2 bar @ 100 degrees C (1190 liter) Capacity (Design): 1,190 L (314.4 gallons). Orientation: Vertical. Internal Pressure: 2 bar (29 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.

pressure tank Capacity (Design): 2,000 L (528.3 gallons). Orientation: Horizontal. Diameter: 1,100 mm (43.3 in). Straight-side Length: 2,310 mm (90.9 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 50 °C (122 °F). Vacuum: Yes. Support: Saddle.

Capacity (Design): 1,700 L (449.1 gallons). Orientation: Vertical. Diameter: 880 mm (34.6 in). Straight-side Length: 2,900 mm (114.2 in). Support: Skirt.

Jacketed Internal rated atmospheric Capacity (Design): 1,500 L (396.3 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,500 mm (59.1 in). Internal Pressure: 1.01 bar (14.7 psi). Jacket Pressure: 1 bar (14.5 psi). Jacket Temperature: 120 °C (248 °F).

1705 liter internal pressure -1/2 bar @ 5/134 degrees C Capacity (Design): 1,785 L (471.5 gallons). Orientation: Vertical. Diameter: 990,000 mm (38,976 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 134 °C (273.2 °F). Vacuum: Yes. Support: Lugs.

Lined with glass # 3008 top head thickness 35/64" bottom head thickness 35/64" Capacity (Design): 15,142 L (4,000 gallons). Orientation: Vertical. Diameter: 2,591 mm (102 in). Straight-side Length: 2,388 mm (94 in). Internal Pressure: 2.8 bar (40 psi). Vacuum: Yes. Support: Legs.

2500 ltr Agitated jacketed pressure tank Jacket volume 45 liters 1 bar @ -20/+146.2 degrees C jacket 3.3 bar @ -20/+146.2 degress C 3/50/380/660 volt, 950 rpm motor Capacity (Design): 3,660 L (966.9 gallons). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 146.2 °C (295.2 °F). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 3.3 bar (47.9 psi). Jacket Temperature: 146.2 °C (295.2 °F). Vacuum: Yes. Support: Lugs.

internal pressure -1/6 bar @ 200 degrees C (3620 liter) 1.1 kw, 3/50/380-420/218-242 volt Capacity (Design): 3,620 L (956.3 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,060 mm (81.1 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Does it have Agitation ?: Yes. Vacuum: Yes.

1200 liter Capacity (Design): 1,390 L (367.2 gallons). Orientation: Vertical. Internal Pressure: 2 bar (29 psi). Internal Temperature: 50 °C (122 °F). Vacuum: Yes. Support: Legs.

"Unjacketed Reactor" plug free Rated for lethal service tangent to tangent ASME 2: 1 heads. with welded heads Can include Agitation system options:

1. Stripped Body without agitators and baffles.
2. AS-IS configuration with dual tier 3V Press Lock Agitator w/ 47” span upper Turbine blades and 51” span lower 4 blade RCI blades. And 2 baffles; (1) with temperature sensor installed.
3. Complete drive assembly with NEW 3V Tech 50 HP drive and double mechanical seal. Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,591 mm (102 in). Straight-side Length: 3,353 mm (132 in). Internal Pressure: 6.2 bar (90 psi). Internal Temperature: 232.2 °C (450 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Baffle Type: Flat Vertical. Support: Lugs.

seperator tank estimated weight is 2,000 lbs Capacity (Design): 6,057 L (1,600 gallons). Orientation: Vertical. Diameter: 1,372 mm (54 in). Straight-side Length: 3,658 mm (144 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 121.1 °C (250 °F). Vacuum: Yes. Support: Legs.

Mounted in a ring on a sqaure frame Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in).

-20 degrees F @ 15 PSI Full Vacuum Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,321 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 37.8 °C (100 °F). Vacuum: Yes. Support: Legs.

Dimple jacket on side and bottom head Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,524 mm (60 in). Jacket Type: Dimple. Support: Legs.

Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

With 3HP top angle entering clamp mounted Lightning Agitator. (1) 2' center bottom discharge. Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 2,083 mm (82 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Support: Legs.

Rated atmospheric @ ambient Agit flange mtd, driven by 3 HP, 3/50/220/380 volt, 1380 rpm TEFC motor no bottom outlet Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 711.2 mm (28 in). Straight-side Length: 1,118 mm (44 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Support: Legs.

Manufactured by Bloom Welding Co. DBA Capacity (Design): 461.8 L (122 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,016 mm (40 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 37.8 °C (100 °F). Vacuum: Yes. Support: Legs.

reciever Capacity (Design): 567.8 L (150 gallons). Orientation: Vertical. Diameter: 812.8 mm (32 in). Straight-side Length: 1,118 mm (44 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 121.1 °C (250 °F). Support: Skid.

Type: Pressure tank (Flash Still) Packing Manufacturer: Koch-Glitsch Top Head: Accepts flash condenser Internal Packing: Koch Flexichevron in 316L SS Shipping Weight: 19,800lbs. Inspection Manway: 24" Capacity (Design): 28,769 L (7,600 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 273.9 °C (525 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

polished CODAP 90 with (2) stainless steel handles on side wall to moving the tank. Capacity (Design): 147.6 L (39 gallons). Diameter: 660.4 mm (26 in). Straight-side Length: 368.3 mm (14.5 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 133 °C (271.4 °F). Support: Legs.

polished Standards: CODAP 90 with (2) stainless steel handles on side wall to moving the tank. Capacity (Design): 121.1 L (32 gallons). Orientation: Vertical. Diameter: 584.2 mm (23 in). Straight-side Length: 393.7 mm (15.5 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 133 °C (271.4 °F). Support: Legs.

Receiver Capacity (Design): 75.7 L (20 gallons). Diameter: 508 mm (20 in). Straight-side Length: 609.6 mm (24 in). Support: Legs.

Nitrogen accumulator Capacity (Design): 151.4 L (40 gallons). Orientation: Vertical. Diameter: 261.9 mm (10.3 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 93.3 °C (200 °F).

nitrogen accumulator Capacity (Design): 151.4 L (40 gallons). Orientation: Vertical. Diameter: 261.9 mm (10.3 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 93.3 °C (200 °F).

Capacity (Design): 2,498 L (660 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 2,032 mm (80 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

No Top man way, side bottom man way-16" diameter 8" CTO with gussets for mixer Capacity (Design): 4,656 L (1,230 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,600 mm (63 in). Internal Pressure: 1.65 bar (24 psi). Support: Lugs.

Looks good for pressure but no tag Capacity (Design): 2,271 L (600 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 3,607 mm (142 in). Support: Legs.

Manufactured by International Process Specialists. Capacity (Design): 3,028 L (800 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

Heads - .1875" thick Capacity (Design): 946.4 L (250 gallons). Orientation: Horizontal. Diameter: 1,016 mm (40 in). Straight-side Length: 1,016 mm (40 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 232.2 °C (450 °F). Support: Legs.

Capacity (Design): 2,839 L (750 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,524 mm (60 in). Support: Legs.

polished CODAP 90 with (2) stainless steel handles on side wall to moving the tank. Capacity (Design): 174.1 L (46 gallons). Orientation: Vertical. Diameter: 711.2 mm (28 in). Straight-side Length: 368.3 mm (14.5 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 133 °C (271.4 °F). Support: Legs.

jacketed pressure tank/separator internal pressure 3.2 bar + vacuum @ 200 degrees C (5000 liter), jacket 6 bar + vacuum at 200 degrees C (35 liter) removable half pipe coil jacket on straight side and dished ends Capacity (Design): 5,000 L (1,321 gallons). Orientation: Horizontal. Diameter: 1,600 mm (63 in). Straight-side Length: 2,500 mm (98.4 in). Internal Pressure: 3.2 bar (46.4 psi). Internal Temperature: 200 °C (392 °F). Does it have an Internal Coil?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Austentic. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

20000 liter TUV pressure -1/6 bar @ 180 degrees C (25025 liter) CE0408 Capacity (Design): 25,025 L (6,611 gallons). Orientation: Vertical. Diameter: 3,000 mm (118.1 in). Straight-side Length: 2,730 mm (107.5 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 180 °C (356 °F). Vacuum: Yes. Support: Lugs.

With pump Capacity (Design): 2,839 L (750 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,422 mm (56 in). Support: Legs.

tank with mixer Angle mounted mounted Lightnin mixer straight through design 3/4HP 3/60/230/460 volt motor Packing gland on shaft 3 blade pitched paddle turbine Capacity (Design): 2,461 L (650 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,981 mm (78 in). Support: Legs.

• Jacket: Coil jacket wrapped in sanitary shroud Vessel rated for atmospheric at 250 degrees F, (no pressure)
• Heating Zones: Two Capacity (Design): 2,271 L (600 gallons). Orientation: Vertical. Diameter: 1,270 mm (50 in). Straight-side Length: 1,372 mm (54 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 121.1 °C (250 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 121.1 °C (250 °F). Sanitary Contruction: Yes. Support: Legs.

(No code stamp) Off Grade Height: 26" with legs Manway: 24" side Outlet: 2" center bottom Capacity (Design): 2,461 L (650 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 0.76 bar (11 psi). Internal Temperature: 121.1 °C (250 °F). Support: Legs.

mixing tank, with internal coil Rated atmospheric 4 turns 316 SS 2" coil internal at bottom of vessel driven by a 10 HP 3/60/230/460 no seal on shaft with (2) 3 blade propellers on shaft Capacity (Design): 3,028 L (800 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,575 mm (62 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Support: Lugs.

mixing tank, with internal coil. Rated atmospheric (8) turns of 316SS 3" coil in vessel. Driven by a 2 HP 3/60/230/460 volt motor 1735 rpm no seal on shaft. with a high shear saw tooth blade on shaft Capacity (Design): 3,028 L (800 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,575 mm (62 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Support: Lugs.

with 3' cone Welded flat top & cone bottom. Capacity (Design): 3,028 L (800 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 100 °C (212 °F). Cone Length: 914.4 mm (36 in). Support: Legs.

Capacity (Design): 5,678 L (1,500 gallons). Orientation: Horizontal. Diameter: 1,778 mm (70 in). Straight-side Length: 1,981 mm (78 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,416 mm (55.8 in). Internal Pressure: 3.8 bar (55 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Lugs.

Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 176.7 °C (350 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Vacuum: Yes.

Capacity (Design): 473.2 L (125 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 914.4 mm (36 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 176.7 °C (350 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 176.7 °C (350 °F). Vacuum: Yes.

PFN3 knock out pot for Cogiem Filter Capacity (Design): 302.8 L (80 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 1,016 mm (40 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 162.8 °C (325 °F). Vacuum: Yes. Support: Legs.

Liquid level sight glass on side. Capacity (Design): 1,060 L (280 gallons). Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight-side Length: 1,219 mm (48 in). Support: Legs.

West Magma Tank 14 turns 1" coil internal Capacity (Design): 6,814 L (1,800 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,930 mm (76 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Cone Length: 508 mm (20 in). Support: Lugs.

South Crystallizer 23 turns 1" coil internal Capacity (Design): 5,300 L (1,400 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Cone Length: 914.4 mm (36 in). Support: Lugs.

North Crystallizer 23 turns 1" coil internal Capacity (Design): 5,300 L (1,400 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Cone Length: 914.4 mm (36 in). Support: Lugs.

12 turns 1.5" coil internal Capacity (Design): 4,542 L (1,200 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have an Internal Coil?: Yes. Support: Lugs.

6 wraps internal coil 1.5" diameter Capacity (Design): 6,057 L (1,600 gallons). Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have an Internal Coil?: Yes. Support: Lugs.

With bag dumping station on top and vent with dust hood. 30 turns 1" coil. Capacity (Design): 6,814 L (1,800 gallons). Orientation: Vertical. Diameter: 2,083 mm (82 in). Straight-side Length: 1,930 mm (76 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Cone Length: 254 mm (10 in). Support: Lugs.

Soft water system- with additional Piping and controls Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 1,905 mm (75 in). Straight-side Length: 2,667 mm (105 in). Support: Legs.

West Blend Tank Capacity (Design): 13,249 L (3,500 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Support: Ring.

Capacity (Design): 113.6 L (30 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 609.6 mm (24 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 343.3 °C (650 °F). Support: Lugs.

Ceramic Coating Open top Glass type: HT2000 Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 812.8 mm (32 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,067 mm (42 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 343.3 °C (650 °F). Vacuum: Yes. Support: Lugs.

FRP (Fiberglass Reinforced Plastic) Type: Vertical Barometric Condenser Cooling Water Capacity: 1170 GPM Additional Features: Carbon steel steam ejector and silencer, Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 5,613 mm (221 in). Support: Lugs.

storage tank with two pumps Capacity (Design): 13,249 L (3,500 gallons). Orientation: Vertical. Diameter: 203.2 mm (8 in). Straight-side Length: 254 mm (10 in). Support: Pads.

storage tank with agitator FRP (Furan) open top Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 3,048 mm (120 in). Does it have Agitation ?: Yes.

RESERVED FOR seed tank

Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,473 mm (58 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 232.2 °C (450 °F). Jacket Material: Carbon Steel. Vacuum: Yes. Support: Legs.

Bufflovak North Feed Tank Capacity (Design): 23,470 L (6,200 gallons). Orientation: Vertical. Diameter: 3,505 mm (138 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 0.97 bar (14 psi). Support: Pads.

Capacity (Design): 23,201 L (6,129 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 4,572 mm (180 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Bufflovak Feed tank South Capacity (Design): 23,470 L (6,200 gallons). Orientation: Vertical. Diameter: 3,505 mm (138 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 0.97 bar (14 psi).

With CS stiffening rings Capacity (Design): 6,435 L (1,700 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 0.97 bar (14 psi). Cone Length: 304.8 mm (12 in). Support: Legs.

Capacity (Design): 7,949 L (2,100 gallons). Orientation: Vertical. Diameter: 2,134 mm (84 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Cone Length: 304.8 mm (12 in). Support: Legs.

14 turns 1" coil internal. East Magma Tank Capacity (Design): 6,814 L (1,800 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 0.97 bar (14 psi). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Cone Length: 508 mm (20 in). Support: Lugs.

Capacity (Design): 6,435 L (1,700 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 0.97 bar (14 psi). Cone Length: 152.4 mm (6 in). Support: Legs.

Capacity (Design): 5,300 L (1,400 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Cone Length: 914.4 mm (36 in). Support: Legs.

Capacity (Design): 4,921 L (1,300 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Support: Ring.

East S off Capacity (Design): 4,921 L (1,300 gallons). Diameter: 1,067 mm (42 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 0.97 bar (14 psi). Support: Ring.

Capacity (Design): 4,732 L (1,250 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Support: Legs.

• Centered Topside Mixing Motor
• View ports: (Qty 2) 3" in.
• Access ports: (Qty 4) assorted
• Single Centered Bottom side nozzle
• Test pressure: inner 45 lbs. Capacity (Design): 300 L (79.3 gallons). Orientation: Vertical. Internal Pressure: 2.1 bar (30 psi).

Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,134 mm (84 in). Straight-side Length: 4,978 mm (196 in).

Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,134 mm (84 in). Straight-side Length: 4,572 mm (180 in). Support: Frame Mounted with Feet.

no motor Capacity Design: 3,785 L (1,000 gallons). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F). Orientation: Vertical. Agitation: Yes. Support Type: Lugs.

Mixing tank UL label Packing gland on shaft Capacity (Design): 946.4 L (250 gallons). Diameter: 1,067 mm (42 in). Straight-side Length: 1,067 mm (42 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: -34.4 °C (-30 °F). Does it have Agitation ?: Yes.

100000 liter working volume, 316L stainless steel internal coil on flat bottom, 6-turns, fully insulated and clad, handrail around top head, Capacity (Design): 100,531 L (26,557 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 8,000 mm (315 in). Internal Temperature: 21.1 °C (70 °F). Does it have an Internal Coil?: Yes. Jacket Type: Internal Pipe Coil. Support: Base Mounted.

NB stamped. 5/64" thick cladding Capacity (Design): 10,221 L (2,700 gallons). Orientation: Vertical. Diameter: 2,057 mm (81 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 28.3 bar (410 psi). Internal Temperature: 148.9 °C (300 °F). Support: Skirt.

no motor Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,016 mm (40 in). Does it have Agitation ?: Yes.

Mtd from top weld down is 6" thick wire mesh 304SS separator. Capacity (Design): 7,003 L (1,850 gallons). Orientation: Vertical. Diameter: 1,676 mm (66 in). Straight-side Length: 2,591 mm (102 in). Internal Pressure: 41.9 bar (607 psi). Internal Temperature: 183.3 °C (362 °F). Support: Skirt.

clamp top reciever Capacity (Design): 113.6 L (30 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 508 mm (20 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

open top Capacity (Design): 113.6 L (30 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 635 mm (25 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 232.2 °C (450 °F). Support: Lugs.

Scrubber Decanter- Tank construction: 2-bolt together sections Capacity (Design): 189.3 L (50 gallons). Diameter: 457.2 mm (18 in). Straight-side Length: 1,245 mm (49 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 148.9 °C (300 °F). Vacuum: Yes. Support: Saddle.

Capacity (Design): 36,908 L (9,750 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 7,315 mm (288 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 44,270 L (11,695 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Manufactured by International Process Specialists. Capacity (Design): 4,164 L (1,100 gallons). Orientation: Vertical. Diameter: 1,930 mm (76 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

With CS stiffening rings Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,676 mm (66 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 0.97 bar (14 psi). Cone Length: 609.6 mm (24 in). Support: Legs.

Manufactured by International Process Specialists. Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,372 mm (54 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

Capacity (Design): 984.2 L (260 gallons). Orientation: Vertical. Diameter: 965.2 mm (38 in). Straight-side Length: 1,346 mm (53 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 30,030 L (7,933 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Scale Mounted Capacity (Design): 30,030 L (7,933 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

With Flame Arrestors Capacity (Design): 83,128 L (21,960 gallons). Orientation: Horizontal. Diameter: 3,200 mm (126 in). Straight-side Length: 10,973 mm (432 in). Internal Pressure: 1.86 bar (27 psi). Internal Temperature: 93.3 °C (200 °F). Support: Saddle.

Capacity (Design): 56,925 L (15,038 gallons). Orientation: Horizontal. Diameter: 2,743 mm (108 in). Straight-side Length: 9,601 mm (378 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 56,925 L (15,038 gallons). Orientation: Horizontal. Diameter: 2,743 mm (108 in). Straight-side Length: 9,601 mm (378 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 44,270 L (11,695 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Support: Saddle.

Capacity (Design): 44,270 L (11,695 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

With Flame Arrestors Capacity (Design): 44,270 L (11,695 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

With Flame Arrestors Capacity (Design): 44,270 L (11,695 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Capacity (Design): 43,782 L (11,566 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 9,144 mm (360 in). Internal Pressure: 0.97 bar (14 psi).

Capacity (Design): 40,882 L (10,800 gallons). Orientation: Horizontal. Diameter: 3,048 mm (120 in). Straight-side Length: 5,486 mm (216 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

#4 inside with welds ground and polished Lifting eyes on top of the tank 3” Tri- Clamp connections Insulation - 1” cork with mild steel insulation Capacity (Design): 94,635 L (25,000 gallons). Orientation: Vertical. Diameter: 3,454 mm (136 in). Sanitary Contruction: Yes.

#4 Finish inside with welds ground and polished Lifting eyes on top of the tank 3” Tri- Clamp connections Insulation - 1” cork with mild steel insulation Capacity (Design): 94,635 L (25,000 gallons). Orientation: Vertical. Diameter: 3,454 mm (136 in). Sanitary Contruction: Yes.

4'4" welded cone Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 93.3 °C (200 °F). Vacuum: Yes. Cone Length: 1,321 mm (52 in). Support: Legs.

No bottom outlet-Non Code Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 736.6 mm (29 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F).

Plinke MDMT is -20 F at 435/FV psi Glass type 3009 Capacity (Design): 2,536 L (670 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Glass type: #3315 Capacity (Design): 113.6 L (30 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 628.7 mm (24.8 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Lugs.

open top Glass #3315 Has leg sockets but no legs. Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,168 mm (46 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

8" top opening with cover, 2" top flame arrestor. Capacity (Design): 4,921 L (1,300 gallons). Orientation: Horizontal. Diameter: 1,499 mm (59 in). Straight-side Length: 2,921 mm (115 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Saddle.

Tank has a exterior CS insulating jacket. Capacity (Design): 3,028 L (800 gallons). Orientation: Vertical. Diameter: 1,422 mm (56 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 4 bar (58 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Material: Carbon Steel. Support: Lugs.

Mtd 18" from top weld down is 6" thick wire mesh 304SS separator Capacity (Design): 5,110 L (1,350 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 2,286 mm (90 in). Internal Pressure: 43.5 bar (631 psi). Internal Temperature: 157.2 °C (315 °F). Support: Skirt.

Capacity (Design): 2,271 L (600 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 177.8 mm (7 in). Internal Pressure: 1.01 bar (14.7 psi). Vacuum: Yes. Support: Legs.

BioSafe cryogenic jacketed tank for ampules Tank volume: 420 liters (415 liters internal, 100 liters external) External pressure rating: -1 bar @ +20 degrees C Fluid: IIN UN number: 1977 Supports for ampules: Yes Capacity (Design): 420 L (111 gallons). Diameter: 900 mm (35.4 in). Straight-side Length: 1,370 mm (53.9 in). Internal Temperature: -195 °C (-319 °F). Jacket Pressure: -1 bar (-14.5 psi). Jacket Temperature: 20 °C (68 °F). Vacuum: Yes.

2000 liter internal pressure -1/6 bar @ 200 degrees C (2200 liter) glass type 3009 Capacity (Design): 2,200 L (581.2 gallons). Orientation: Vertical. Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes.

pressure tank pressure -1/3 bar @ -10/150 degrees C open topped (no cover) Capacity (Design): 50 L (13.2 gallons). Orientation: Vertical. Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes.

design code BS.1500.1958 Capacity (Design): 125,000 L (33,022 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 15,697 mm (618 in). Internal Pressure: 2.8 bar (40.6 psi). Internal Temperature: 35 °C (95 °F). Support: Skirt.

Shape: cylindrical Capacity (Design): 125,000 L (33,022 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 15,697 mm (618 in). Internal Pressure: 38.5 bar (558.4 psi). Internal Temperature: 50 °C (122 °F). Support: Skirt.

Shape: Cylindrical Capacity (Design): 125,000 L (33,022 gallons). Orientation: Vertical. Diameter: 3,048 mm (120 in). Straight-side Length: 15,697 mm (618 in). Internal Pressure: 38.5 bar (558.4 psi). Internal Temperature: 50 °C (122 °F). Support: Skirt.

design pressure 75 psig + vac @ 50 deg C tank with handrail Capacity (Design): 60,000 L (15,850 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 11,735 mm (462 in). Internal Pressure: 4 bar (58 psi). Internal Temperature: 36 °C (96.8 °F). Support: Skirt.

design pressure 75 psig + vac @ 50 deg C tank with handrail Capacity (Design): 60,000 L (15,850 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 11,735 mm (462 in). Internal Pressure: 4 bar (58 psi). Internal Temperature: 36 °C (96.8 °F). Support: Skirt.

• Additional features: Handrail on tank Capacity (Design): 60,000 L (15,850 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 11,735 mm (462 in). Internal Pressure: 4.9 bar (71 psi). Internal Temperature: 35 °C (95 °F). Support: Skirt.

tank with handrail Capacity (Design): 60,000 L (15,850 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 11,735 mm (462 in). Internal Pressure: 4.4 bar (64 psi). Internal Temperature: 1.67 °C (35 °F). Support: Skirt.

Capacity (Design): 34,069 L (9,000 gallons). Orientation: Vertical. Diameter: 3,962 mm (156 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 27.9 bar (405 psi). Internal Temperature: 468.3 °C (875 °F). Support: Lugs.

Capacity (Design): 15,142 L (4,000 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 3,353 mm (132 in). Support: Legs.

Tank has a hemi style head and a dish bottom MDMT is -20 degrees F @ 15 psi Capacity (Design): 5,678 L (1,500 gallons). Diameter: 1,829 mm (72 in). Straight-side Length: 1,905 mm (75 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 100 °C (212 °F). Support: Legs.

tank with handrail Capacity (Design): 113,000 L (29,851 gallons). Orientation: Vertical. Diameter: 76,200 mm (3,000 in). Straight-side Length: 381,000 mm (15,000 in). Internal Pressure: 4.9 bar (71.1 psi). Internal Temperature: 160 °C (320 °F). Support: Skirt.

job # 1580/3, design code BS.5500 Internal design pressure -1/+2.84 barg @ 100/141 deg C, tank with ladder job # 1580/3 Capacity (Design): 113,000 L (29,851 gallons). Orientation: Vertical. Diameter: 76,200 mm (3,000 in). Straight-side Length: 38,100 mm (1,500 in). Internal Pressure: 2.8 bar (41.2 psi). Internal Temperature: 141 °C (285.8 °F). Vacuum: Yes. Support: Skirt.

Capacity (Design): 21,577 L (5,700 gallons). Orientation: Vertical. Diameter: 3,200 mm (126 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 29.6 bar (430 psi). Internal Temperature: 426.7 °C (800 °F). Support: Lugs.

agitated tank with cooling jacket Asada Iron Works, (Osaka, Japan) Motor: 3 phase packing gland on shaft CS shaft 20" diameter SS saw tooth disperser blade 1200/900 rpm Capacity (Design): 6,624 L (1,750 gallons). Orientation: Vertical. Diameter: 1,900 mm (74.8 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Jacket Pressure: 1.1 bar (16 psi). Vacuum: Yes. Support: Lugs.

repaired by Wolfe # 964. Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

Equipped with gate agitator 40/25 RPM output speed Motor: 3 phase Capacity (Design): 5,300 L (1,400 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 93.3 °C (200 °F). Does it have Agitation ?: Yes. Support: Legs.

Rated FV/50 psi @ -20 to 350 degree F heads are 0.209" minimum thickness. Print weight 4,000 lbs Capacity (Design): 5,243 L (1,385 gallons). Orientation: Vertical. Diameter: 1,676 mm (66 in). Straight-side Length: 2,210 mm (87 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 3,734 mm (147 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 93.3 °C (200 °F). Does it have Agitation ?: Yes. Support: Lugs.

Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 3,734 mm (147 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 104.4 °C (220 °F). Does it have Agitation ?: Yes. Support: Lugs.

Head thickness: 0.2675" With insulation covered by a SS shround around straight side and bottom of the tank Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 3,581 mm (141 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 148.9 °C (300 °F). Support: Legs.

Capacity (Design): 15,142 L (4,000 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 3,353 mm (132 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

• Internal coil: Located on bottom cone
• Insulation: Insulated and clad Capacity (Design): 28,387 L (7,499 gallons). Orientation: Vertical. Diameter: 2,800 mm (110.2 in). Straight-side Length: 4,600 mm (181.1 in). Does it have an Internal Coil?: Yes. Support: Skirt.

• Coils: Internal 316 stainless steel coils
• Coil pressure: 15 bar @ 200 degrees C
• Number of coils: 8 internal vertical 316 stainless steel coils
• Coil height: 2354mm
• Paddles: 3 sets of 4-blade pitched paddles Capacity (Design): 27,600 L (7,291 gallons). Orientation: Vertical. Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,300 mm (248 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Does it have Agitation ?: Yes. Jacket Material: Stainless Steel 316. Jacket Pressure: 15 bar (217.6 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Skirt.

4-blade pitched paddle agitator shaft speed 41 rpm Capacity (Design): 25,000 L (6,604 gallons). Orientation: Vertical. Diameter: 2,900 mm (114.2 in). Straight-side Length: 3,750 mm (147.6 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 15.6 °C (60 °F). Does it have Agitation ?: Yes. Support: Lugs.

Capacity (Design): 22,712 L (6,000 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Pads.

storage tank with external coil TUV internal design pressure -0.005/+0.05 bar @ 200 degrees C, coil 6 bar + vacuum @ 200 degrees C (115 liter) 25mm diameter external removeable coil on straight side only approx. 13 square meter (140 square feet) (20) turns @ 500mm pitch (spacing) Capacity (Design): 70,000 L (18,492 gallons). Orientation: Vertical. Diameter: 2,600 mm (102.4 in). Straight-side Length: 13,405 mm (527.8 in). Internal Pressure: 0.05 bar (0.73 psi). Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.

Design pressure 700 internal with100 external. psi, 650 internal with 60 external psi @ 300 degress F Dry weight is 118,000 lbs Capacity (Design): 63,595 L (16,800 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 10,058 mm (396 in). Internal Pressure: 48.3 bar (700 psi). Internal Temperature: 93.3 °C (200 °F). Support: Skirt.

Thickness: 10mm side wall and heads built to TUV standards Capacity (Design): 59,000 L (15,586 gallons). Diameter: 2,900 mm (114.2 in). Straight-side Length: 203,225 mm (8,001 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes. Support: Skirt.

fabrik #11891/1 25mm diameter external removeable coil on straight side only, coil surface area approx. 6.4 square meter (69 square feet), (8) turns @ 300mm pitch (spacing) Capacity (Design): 189,271 L (50,000 gallons). Orientation: Vertical. Diameter: 3,200 mm (126 in). Straight-side Length: 6,170 mm (242.9 in). Internal Pressure: 0.05 bar (0.73 psi). Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.

Capacity (Design): 4,542 L (1,200 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 5,678 L (1,500 gallons). Orientation: Horizontal. Diameter: 1,778 mm (70 in). Straight-side Length: 1,981 mm (78 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Legs.

insulated and clad Capacity (Design): 15,897 L (4,200 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 3,600 mm (141.7 in). Support: Skirt.

Motor: 3 kw, 3/50/420 volt, 720 rpm Gearbox: Yes Sealing: Packed gland Impeller: 3-blade marine Capacity (Design): 11,355 L (3,000 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,400 mm (94.5 in). Does it have Agitation ?: Yes. Support: Skirt.

316 s/steel coil with 7-turns up the bottom of straight side Insulated and clad Capacity (Design): 37,000 L (9,774 gallons). Orientation: Vertical. Diameter: 2,800 mm (110.2 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have an Internal Coil?: Yes. Jacket Material: Stainless Steel 316.

Internal coil on bottom cone bottom: 1-00mm, 1-80mm, 1-50mm Capacity (Design): 39,700 L (10,488 gallons). Orientation: Vertical. Diameter: 3,600 mm (141.7 in). Straight-side Length: 104,140 mm (4,100 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have an Internal Coil?: Yes. Support: Skirt.

(5) reinforcing rings around outside of tank Capacity (Design): 28,391 L (7,500 gallons). Orientation: Horizontal. Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Cone Length: 304.8 mm (12 in). Support: Saddle.

Capacity (Design): 1,136 L (300 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 914.4 mm (36 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

• Head thickness: 1/4" -National Board Stamped: yes Capacity (Design): 1,893 L (500 gallons). Orientation: Horizontal. Diameter: 1,067 mm (42 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 121.1 °C (250 °F). Jacket Type: Standard. Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 121.1 °C (250 °F). Vacuum: Yes. Support: Legs.

304 stainless steel Welded dish bottom and welded flat top foot mounted motor coupled drive Capacity (Design): 1,893 L (500 gallons). Diameter: 1,473 mm (58 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

angle mounted Philadelphia" Silver Streak" mixer Head thickness: 3/16" Top has 18" manway with quick release clamp on cover Capacity (Design): 1,806 L (477 gallons). Diameter: 1,219 mm (48 in). Straight-side Length: 1,372 mm (54 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 204.4 °C (400 °F). Does it have Agitation ?: Yes. Support: Lugs.

straight short side 4'6 Capacity (Design): 1,703 L (450 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Lugs.

Capacity (Design): 1,893 L (500 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 1,676 mm (66 in). Support: Legs.

Repaired by Alfonso Serial Number 9138-86 (3) reinforcing rings around straight side of tank Capacity (Design): 11,356 L (3,000 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 4,267 mm (168 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 148.9 °C (300 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 11,356 L (3,000 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 1,676 mm (66 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 93.3 °C (200 °F). Vacuum: Yes. Support: Legs.

Vertical pressure tank Capacity (Design): 11,356 L (3,000 gallons). Orientation: Vertical. Diameter: 2,286 mm (90 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 185 °C (365 °F). Support: Legs.

Capacity (Design): 10,599 L (2,800 gallons). Orientation: Vertical. Diameter: 2,286 mm (90 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 5.2 bar (75 psi). Vacuum: Yes. Support: Legs.

heads thickness: 5/16" (2) reinforcing rings around the outside of the shell 6 Thick sandwich type Demister directly above top Vacuum ring. Yorkmesh 421 or equivalent. Mesh and grids removable through man way. Capacity (Design): 13,627 L (3,600 gallons). Orientation: Vertical. Diameter: 2,134 mm (84 in). Straight-side Length: 3,454 mm (136 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 131.1 °C (268 °F). Vacuum: Yes. Support: Lugs.

Vessel rated atmospheric, Capacity (Design): 13,627 L (3,600 gallons). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight-side Length: 2,743 mm (108 in). Internal Pressure: 1.01 bar (14.7 psi). Support: Legs.

3'cone bottom Capacity (Design): 9,464 L (2,500 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 3,658 mm (144 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 37.8 °C (100 °F). Cone Length: 914.4 mm (36 in). Support: Legs.

Looks good for pressure but no tag Capacity (Design): 1,760 L (465 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 2,591 mm (102 in). Support: Legs.

Manufactured by Tankinetics Specific Gravity 1.05 Capacity (Design): 44,479 L (11,750 gallons). Orientation: Vertical. Diameter: 3,302 mm (130 in). Straight-side Length: 7,315 mm (288 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 37.8 °C (100 °F). Support: Pads.

Capacity (Design): 51,103 L (13,500 gallons). Orientation: Vertical. Diameter: 3,658 mm (144 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 1.01 bar (14.7 psi).

internal pressure -0.5/+1 bar @ 100 degrees C straight side and dished ends 6mm thick, design code BS5500:1997:CAT3 Capacity (Design): 6,900 L (1,823 gallons). Orientation: Horizontal. Diameter: 1,600 mm (63 in). Straight-side Length: 3,060 mm (120.5 in). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes.

Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,194 mm (47 in). Straight-side Length: 1,245 mm (49 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 3,353 mm (132 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Lugs.

mirror polish TUV stamped Included is a 316 L SS sanitary pump manufactured by APV. serial # 3024465, type W+70/40. 2.5" x 1" CE Certified, SS washdown. With ABB controls and heat exchanger, wall mounted. Heat exchanger is all 316L SS sanitary construction, approximately 80 Sq.Ft. Manufactured by Zetterstrohms, RostFria AB, Molkom. serial # 031862. Both sides rated for 16 bar at 180 degrees C. Chamber # 1 3.1 liter, chamber # 2 5.4 liters. Capacity (Design): 1,499 L (396 gallons). Orientation: Vertical. Diameter: 1,150 mm (45.3 in). Straight-side Length: 1,460 mm (57.5 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 150 °C (302 °F). Sanitary Contruction: Yes. Support: Legs.

Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 2,134 mm (84 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 232.2 °C (450 °F). Support: Legs.

with two top lifting lugs Head thickness: 1/4" nominal Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 3,962 mm (156 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

With full dimple Jacket straight side and bottom head. Capacity (Design): 7,571 L (2,000 gallons). Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight-side Length: 1,981 mm (78 in). Internal Pressure: 3.7 bar (53 psi). Internal Temperature: 182.2 °C (360 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 9.3 bar (135 psi). Jacket Temperature: 182.2 °C (360 °F). Support: Legs.

Capacity (Design): 10,000 L (2,642 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 3,700 mm (145.7 in). Internal Temperature: 80 °C (176 °F). Jacket Material: Stainless Steel 316. Support: Legs.

316 s/steel coil on bottom dish approx 75mm diameter x 1-turn, Capacity (Design): 8,000 L (2,113 gallons). Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,500 mm (98.4 in). Does it have Agitation ?: Yes. Does it have an Internal Coil?: Yes. Support: Legs.

storage tank with internal coil Working pressure internal: 10" W.G + vacuum @ 60 deg C Coil pressure: 75 psig Internal coil: 316 s/steel (steam / hot water) on bottom Base mounted Insulated with 50mm foam glass Cladded with aluminium. Capacity (Design): 35,000 L (9,246 gallons). Orientation: Vertical. Diameter: 2,900 mm (114.2 in). Straight-side Length: 5,500 mm (216.5 in). Internal Pressure: 0.02 bar (0.36 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Jacket Pressure: 5.2 bar (75 psi). Vacuum: Yes.

• Coil pressure: 75 psig
• Coil material: 316 s/steel (steam / hot water)
• Insulation: 50mm foam glass
• Cladding: Aluminium
• Mounting: Base mounted Capacity (Design): 35,000 L (9,246 gallons). Orientation: Vertical. Diameter: 2,900 mm (114.2 in). Straight-side Length: 5,500 mm (216.5 in). Internal Pressure: 0.02 bar (0.36 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Vacuum: Yes.

vessel with Schott glass heads Capacity (Design): 37.9 L (10 gallons). Diameter: 304.8 mm (12 in). Straight-side Length: 609.6 mm (24 in). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 260 °C (500 °F).

agitated tank total volume 600 liter IP55 Capacity (Design): 500 L (132.1 gallons). Orientation: Vertical. Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 60 °C (140 °F). Does it have Agitation ?: Yes. Support: Legs.

• Pacesetter gearmotor
• top centered agitation mixing motor with mechanical seal
• Motor: 3 phase
• Driving 4 sets of propeller type agitators Mounted On an Approximately 20" in. Latchable Topside Access Port
• Latchable Topside Access Port Capacity (Design): 683.1 L (180.4 gallons). Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight-side Length: 812.8 mm (32 in). Internal Pressure: 2.1 bar (30 psi). Does it have Agitation ?: Yes.

mirror polish mixing tank Top flange mount mixer driving a small 3 blade propeller mixer Two 120 mm sight glass(s) one with light With spray ball(S) for CIP With a 1.5" x 1.5" Colly flowtech 316L SS polished sanitary pump. (CE Certified) Capacity (Design): 700.3 L (185 gallons). Orientation: Vertical. Diameter: 900 mm (35.4 in). Straight-side Length: 1,100 mm (43.3 in). Does it have Agitation ?: Yes. CIP: Yes. Sanitary Contruction: Yes. Support: Legs.

• Mobility: Designed to be mobile on dollies
• topside agitation gearmotor with mechanical seal
• manufactured by Bodine Electric company Pace setter
• Motor: 3 phase
• 10: 1 ratio
• Mixing configuration: 4 sets of propeller mixers on a single shaft 21" in. diameter Latchable Topside Access Port
• Handling bars: Front & Backside Handling Bars. Capacity (Design): 750.1 L (198.2 gallons). Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight-side Length: 914.4 mm (36 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 148.9 °C (300 °F). Does it have Agitation ?: Yes. Support: Legs.

3/50/500 volt, 1420 rpm Ex IP65 motor, 3-blade marine type impellor, packed gland, Capacity (Design): 1,000 L (264.2 gallons). Orientation: Vertical. Diameter: 1,100 mm (43.3 in). Straight-side Length: 530 mm (20.9 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 250 °C (482 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

with cork-screw type impellor Capacity (Design): 1,100 L (290.6 gallons). Orientation: Vertical. Diameter: 622.3 mm (24.5 in). Straight-side Length: 1,016 mm (40 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Support: Legs.

Capacity (Design): 567.8 L (150 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 609.6 mm (24 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 176.7 °C (350 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304L. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 185 °C (365 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 567.8 L (150 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,168 mm (46 in).

Jacketed Receiver Rated 150 PSI/FV @ -20 to 480 degrees F internal; 120 psi @ -20 to 480 degrees F in the jacket. thick; 0310" thick head, Jacket .375" thick straight side, 0.460" thick head Bottom (1) 2" center bottom outlet Capacity (Design): 567.8 L (150 gallons). Diameter: 1,016 mm (40 in). Straight-side Length: 838.2 mm (33 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 248.9 °C (480 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 248.9 °C (480 °F). Vacuum: Yes. Support: Legs.

pressure tank Connection: bolted in middle Capacity (Design): 567.8 L (150 gallons). Diameter: 762 mm (30 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 8.6 bar (125 psi). Internal Temperature: 162.8 °C (325 °F). Support: Lugs.

vortex with 1-1.5", 1-1.5" Capacity (Design): 567.8 L (150 gallons). Orientation: Horizontal. Diameter: 609.6 mm (24 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 148.9 °C (300 °F). Support: Saddle.

No NB Stamp. Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 736.6 mm (29 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Lugs.

Vertical tank Capacity (Design): 75.7 L (20 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 457.2 mm (18 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Lugs.

8000 liter jacketed high pressure Loop reactor internal pressure 51 bar @ 200 degrees C (10600 liter), jacket 12 bar @ 200 degrees C (850 liter) Capacity (Design): 10,600 L (2,800 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 5,000 mm (196.9 in). Internal Pressure: 51 bar (739.7 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 200 °C (392 °F).

8000 liter internal pressure 51 bar @ 200 degrees C (10600 liter) jacket 12 bar @ 200 degrees C (850 liter) jacketed high pressure Loop reactor Capacity (Design): 10,600 L (2,800 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 5,000 mm (196.9 in). Internal Pressure: 51 bar (739.7 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 200 °C (392 °F).

Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 508 mm (20 in).

jacketed pressure tank Rated 150/FV @ -20 to 350 degrees F internal; 120 psi @ -20 to 350 degrees F in the jacket.
0.220" thick bottom head, 15/16" thick top head Weight 500 lbs. Capacity (Design): 37.9 L (10 gallons). Diameter: 355.6 mm (14 in). Straight-side Length: 355.6 mm (14 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 176.7 °C (350 °F). Jacket Material: Carbon Steel. Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Vacuum: Yes.

25000 liter rated -1/6 bar @ 200 degrees C. Capacity (Design): 27,900 L (7,370 gallons). Orientation: Vertical. Diameter: 2,800 mm (110.2 in). Straight-side Length: 5,770 mm (227.2 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes.

No provision for agitator. Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 787.4 mm (31 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Inconel. Jacket Pressure: 12.4 bar (180 psi). Jacket Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

• with (2) tantalum covered heat exchanger bundles
• The tank has (2) horizontal tube bundles, one in each head
• Tube bundles designed for steam heat with condensate return
• Tube bundle design: Steam heat with condensate return
• Tube bundle material: 304SS 1/2" tubes with carbon steel channel head
• All contact parts that are inside the GL tank (OD of tubes and tubesheet) have a tantalum covering
• Tube bundle manufacturer: Fansteel Inc.
• National board number 100 , Serial number 426 , rated for200 PSI @ 400 degrees F.
• Second tube bundle manufactured by Fansteel Inc., National board number 99, Serial number 425 , rated for 200 PSI @ 400 degrees F.
• Tube bundle National Board numbers: 100 and 99
• Tube bundle serial numbers: 426 and 425
• Tube bundle pressure rating: 200 PSI @ 400 degrees F Capacity (Design): 7,117 L (1,880 gallons). Orientation: Horizontal. Diameter: 1,829 mm (72 in). Straight-side Length: 2,362 mm (93 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

• Heat exchanger bundle: (1) tantalum covered
• Tube bundle: 304LSS channel type head and 304SS 1/2" tubes, with all contact parts (OD of tubes and tubesheets) inside the vessel covered with Tantalum
• Tube bundle manufacturer: Astro Cosmos
• Tube bundle National Board number: 611
• Tube bundle serial number: 192510
• Tube bundle rated pressure: 250FV
• Tube bundle temperature range: -20 to 400 degrees F.
• Tube bundle manufacturer: Astro Cosmos
• Tube bundle National Board number: 611
• Tube bundle serial number: 192510
• Tube bundle rated pressure: 250FV
• Tube bundle temperature range: -20 to 400 degrees F Capacity (Design): 7,117 L (1,880 gallons). Orientation: Horizontal. Diameter: 1,829 mm (72 in). Straight-side Length: 2,362 mm (93 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

Plug Free tank (with agitation options) Rated for Lethal service tangent to tangent 2: 1 heads Agitation system options:

1. Stripped Body without agitators and baffles.
2. AS-IS configuration with dual tier 3V Press Lock Agitator w/ 47” span upper Turbine blades and 51” span lower 4 blade RCI blades. And 2 baffles; (1) with temperature sensor installed.
3. Complete drive assembly with new 3V Tech 50 HP drive and double mechanical seal. Capacity (Design): 18,927 L (5,000 gallons). Orientation: Vertical. Diameter: 2,591 mm (102 in). Straight-side Length: 3,353 mm (132 in). Internal Pressure: 6.2 bar (90 psi). Internal Temperature: 232.2 °C (450 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Lugs.

open top Capacity (Design): 378.5 L (100 gallons). Diameter: 762 mm (30 in). Straight-side Length: 914.4 mm (36 in). Support: Legs.

Capacity (Design): 378.5 L (100 gallons).

Level gauge. Capacity (Design): 1,514 L (400 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,524 mm (60 in). Support: Legs.

Capacity (Design): 851.7 L (225 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,219 mm (48 in). Support: Lugs.

Capacity (Design): 567.8 L (150 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 609.6 mm (24 in).

holding tank Capacity (Design): 1,136 L (300 gallons).

1/2 hinged No gland or seal. 2-blade pitch paddle impellor. Capacity (Design): 265 L (70 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 914.4 mm (36 in).

Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,372 mm (54 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

• Cover type: Flat loose cover Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 863.6 mm (34 in).

Capacity (Design): 6,814 L (1,800 gallons). Orientation: Vertical. Diameter: 2,286 mm (90 in). Straight-side Length: 1,524 mm (60 in). Support: Legs.

Capacity (Design): 530 L (140 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,067 mm (42 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Number of tanks: 5 Each shaft has (2) 10" dia propellors. Capacity (Design): 1,893 L (500 gallons). Diameter: 609.6 mm (24 in). Straight-side Length: 1,067 mm (42 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes.

Capacity (Design): 1,136 L (300 gallons). Orientation: Horizontal.

receiver Glasteel 3315 Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 457.2 mm (18 in). Straight-side Length: 457.2 mm (18 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 343.3 °C (650 °F). Support: Lugs.

200/ 300 gallon tank with top head. Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 232.2 °C (450 °F).

Capacity (Design): 567.8 L (150 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 609.6 mm (24 in).

Capacity (Design): 3,785 L (1,000 gallons).

Capacity (Design): 757.1 L (200 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,168 mm (46 in).

open top Capacity (Design): 189.3 L (50 gallons). Diameter: 609.6 mm (24 in). Straight-side Length: 609.6 mm (24 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Legs.

Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight-side Length: 1,321 mm (52 in). Support: Legs.

Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,219 mm (48 in). Support: Legs.

open top Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 838.2 mm (33 in). Straight-side Length: 711.2 mm (28 in).

Glass number: 53 Capacity (Design): 757.1 L (200 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,372 mm (54 in). Support: Legs.

Glass type: #3315/nucerite Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 730.3 mm (28.8 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 343.3 °C (650 °F). Support: Legs.

hinged flat top, dish bottom clamp-on propellor agit Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,372 mm (54 in). Jacket Material: Stainless Steel Other.

Jacketed without cover Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight-side Length: 914.4 mm (36 in). Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 204.4 °C (400 °F).

open top Lined w/#61 glass Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 609.6 mm (24 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Legs.

Level gauge on the side Capacity (Design): 2,271 L (600 gallons). Orientation: Vertical. Diameter: 1,372 mm (54 in). Straight-side Length: 1,422 mm (56 in). Support: Legs.

U-stamp Capacity (Design): 757.1 L (200 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,143 mm (45 in). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 1,067 mm (42 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 1.03 bar (14.9 psi). Vacuum: Yes. Support: Legs.

polished tank Capacity (Design): 473.2 L (125 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 1,168 mm (46 in). Support: Legs.

Capacity (Design): 851.7 L (225 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 65.6 °C (150 °F).

Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight-side Length: 711.2 mm (28 in). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 76.7 °C (170 °F). Vacuum: Yes. Support: Lugs.

Capacity (Design): 378.5 L (100 gallons). Orientation: Vertical. Diameter: 762 mm (30 in). Straight-side Length: 914.4 mm (36 in). Internal Temperature: 40 °C (104 °F). Vacuum: Yes. Support: Legs.

Level gauge: Included Capacity (Design): 757.1 L (200 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,118 mm (44 in). Support: Legs.

Mtd on (4) angle iron legs w/24" clearance Capacity (Design): 1,136 L (300 gallons). Orientation: Vertical. Diameter: 914.4 mm (36 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 21.1 °C (70 °F). Support: Legs.

pressure tank that can be used as an oxidation reactor Agitator can be added at an additional cost Capacity (Design): 32,176 L (8,500 gallons). Orientation: Vertical. Diameter: 2,743 mm (108 in). Straight-side Length: 4,877 mm (192 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 343.3 °C (650 °F). Support: Lugs.

Type #3008 glass Capacity (Design): 1,893 L (500 gallons). Orientation: Horizontal. Diameter: 1,219 mm (48 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 3.8 bar (55 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes.

• Glass lining type: 3008 Capacity (Design): 5,678 L (1,500 gallons). Orientation: Vertical. Diameter: 1,778 mm (70 in). Straight-side Length: 1,676 mm (66 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 7,571 L (2,000 gallons). Orientation: Horizontal. Diameter: 609.6 mm (24 in). Straight-side Length: 1,219 mm (48 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 148.9 °C (300 °F). Vacuum: Yes. Support: Saddle.

Capacity (Design): 4,164 L (1,100 gallons). Orientation: Vertical. Diameter: 1,676 mm (66 in). Straight-side Length: 1,067 mm (42 in). Internal Pressure: 2.8 bar (40 psi). Internal Temperature: 260 °C (500 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 4,921 L (1,300 gallons). Orientation: Horizontal. Diameter: 1,829 mm (72 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 232.2 °C (450 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 13.8 bar (200 psi). Jacket Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

PTFE lined pressure tank Capacity (Design): 200.6 L (53 gallons). Diameter: 762 mm (30 in). Straight-side Length: 406.4 mm (16 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 235 °C (455 °F). Vacuum: Yes. Support: Legs.

Jacketed tank rated FV/100 PSI @ -20 to 450 degrees F internal; 95 PSI @ -20to 450 degrees F in the jacket Capacity (Design): 4,921 L (1,300 gallons). Diameter: 1,524 mm (60 in). Straight-side Length: 2,337 mm (92 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.6 bar (95 psi). Jacket Temperature: 232.2 °C (450 °F). Vacuum: Yes.

Sanitary tank Capacity (Design): 4,164 L (1,100 gallons). Orientation: Horizontal. Diameter: 48 mm (1.89 in). Straight-side Length: 141 mm (5.6 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 132.2 °C (270 °F). Support: Saddle.

304LSS jacket on bottom half of shell Unit has a bottom entering agitator, 2.4 HP with low profile turbine agitator Capacity (Design): 3,028 L (800 gallons). Orientation: Horizontal. Diameter: 1,067 mm (42 in). Straight-side Length: 3,404 mm (134 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 132.2 °C (270 °F). Does it have Agitation ?: Yes. Jacket Material: Stainless Steel 304. Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 154.4 °C (310 °F). Support: Saddle.

Capacity (Design): 9,464 L (2,500 gallons). Orientation: Horizontal. Diameter: 1,829 mm (72 in). Straight-side Length: 3,480 mm (137 in). Internal Pressure: 9.3 bar (135 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Two top lifting trunnions. Capacity (Design): 999.3 L (264 gallons). Orientation: Vertical. Diameter: 1,092 mm (43 in). Straight-side Length: 914.4 mm (36 in). Internal Pressure: 2.2 bar (32 psi). Internal Temperature: 160 °C (320 °F). Support: Legs.

Two top lifting trunnions. Capacity (Design): 5,273 L (1,393 gallons). Orientation: Vertical. Diameter: 1,346 mm (53 in). Straight-side Length: 3,658 mm (144 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 110 °C (230 °F). Vacuum: Yes. Support: Lugs.

Head thickness: Nominal 0.157" Lifting trunnions: Four top nominal 0.157" thick heads. Four top lifting trunnions. Capacity (Design): 9,301 L (2,457 gallons). Orientation: Horizontal. Diameter: 1,803 mm (71 in). Straight-side Length: 3,048 mm (120 in). Internal Pressure: 0.69 bar (10 psi). Internal Temperature: 130 °C (266 °F). Support: Saddle.

with nominal 0.157" thick heads. Two top lifting trunnions and one side tailing lug. Capacity (Design): 2,343 L (619 gallons). Orientation: Vertical. Diameter: 1,422 mm (56 in). Straight-side Length: 1,422 mm (56 in). Internal Pressure: 0.69 bar (10 psi). Internal Temperature: 60 °C (140 °F). Support: Legs.

with a 8'2" skirt Type: Pressure Tank Capacity (Design): 15,899 L (4,200 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 457.2 mm (18 in). Internal Pressure: 2.4 bar (35 psi). Internal Temperature: 204.4 °C (400 °F). Support: Skirt.

With internal baffles and center line flange for agitator mount Capacity (Design): 6,435 L (1,700 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 2,438 mm (96 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 204.4 °C (400 °F). Support: Lugs.

Capacity (Design): 113.6 L (30 gallons). Orientation: Vertical. Diameter: 508 mm (20 in). Straight-side Length: 381 mm (15 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 37.8 °C (100 °F). Support: Legs.

vertical pressure tank with jacket Capacity (Design): 189.3 L (50 gallons). Orientation: Vertical. Diameter: 457.2 mm (18 in). Straight-side Length: 558.8 mm (22 in). Internal Pressure: 3.1 bar (45 psi). Jacket Pressure: 6.6 bar (95 psi).

with 15% cladding Capacity (Design): 12,492 L (3,300 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 6,401 mm (252 in). Internal Pressure: 21.4 bar (310 psi). Internal Temperature: 343.3 °C (650 °F). Support: Skirt.

with 15% cladding Capacity (Design): 16,277 L (4,300 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 8,534 mm (336 in). Internal Pressure: 24.1 bar (350 psi). Internal Temperature: 343.3 °C (650 °F). Support: Skirt.

Capacity (Design): 4,921 L (1,300 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,321 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Capacity (Design): 4,921 L (1,300 gallons). Orientation: Vertical. Diameter: 1,829 mm (72 in). Straight-side Length: 1,321 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Internal screen: Yes, running the length of the tank Spray bar: Yes, mounted under the screen Originally used as a carbon adsorber vessel. Capacity (Design): 42,234 L (11,157 gallons). Orientation: Horizontal. Diameter: 3,048 mm (120 in). Straight-side Length: 5,486 mm (216 in). Support: Saddle.

(1) reinforcing rings around straight side of tank. Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 2,413 mm (95 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes.

design code BS.1500.1958 Internal design pressure 40 psig at the top Capacity (Design): 300,000 L (79,252 gallons). Orientation: Vertical. Diameter: 4,877 mm (192 in). Straight-side Length: 16,662 mm (656 in). Internal Pressure: 70 bar (1,015 psi). Internal Temperature: 35 °C (95 °F). Support: Skirt.

design code BS.1500.1958 Internal design pressure 40 psig Capacity (Design): 300,000 L (79,252 gallons). Orientation: Vertical. Diameter: 4,877 mm (192 in). Straight-side Length: 16,662 mm (656 in). Internal Pressure: 70 bar (1,015 psi). Internal Temperature: 35 °C (95 °F). Support: Skirt.

Top: Welded dish top with 1 opening of 500mm covered with 4 nozzles of 100mm each Bottom: Dish bottom with 1 opening of 150mm Capacity (Design): 3,200 L (845.4 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 1,250 mm (49.2 in).

Capacity (Design): 27,500 L (7,265 gallons). Orientation: Horizontal. Diameter: 2,800 mm (110.2 in). Straight-side Length: 5,000 mm (196.9 in). Internal Pressure: 0.2 bar (2.9 psi). Internal Temperature: 40 °C (104 °F). Support: Saddle.

reciever Rated FV/35 PSI @ -20 to 450 degrees F internal. Lining material: Glass 9114 Capacity (Design): 15,142 L (4,000 gallons). Orientation: Horizontal. Internal Pressure: 2.4 bar (35 psi). Internal Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Legs.

-1- to 200 degrees C internal Reglassed by Estrella Reglassing serial number: 26890 Designed to sit in saddles (not included) Capacity (Design): 1,000 L (264.2 gallons). Orientation: Horizontal. Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,200 mm (47.2 in). Internal Pressure: 3.2 bar (46.4 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

jkt tank. CS str jkt on str side and btm dish. Capacity (Design): 272.5 L (72 gallons). Orientation: Vertical. Diameter: 780 mm (30.7 in). Straight-side Length: 580 mm (22.8 in). Jacket Material: Carbon Steel. Support: Legs.

Horizontal or vertical tank (1) clamped dished head, (1) welded dished head. Capacity (Design): 1,000 L (264.2 gallons). Orientation: Horizontal. Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,200 mm (47.2 in). Support: Saddle.

• Insulation: Fully insulated and clad
• Working pressure: 3mm Hg absolute (0.05 psig) @ 80/100 deg C bottom: 1-50mm, 2-25mm (coil) Capacity (Design): 4,190 L (1,107 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,879 mm (74 in). Internal Pressure: 0.006 bar (0.09 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Support: Lugs.

• Insulation: Fully insulated and clad
• Pipe coil: 25mm diameter carbon steel, removable, located on bottom dish bottom: 1-60mm, 2-25mm (coil) Capacity (Design): 2,600 L (686.8 gallons). Orientation: Vertical. Diameter: 1,371 mm (54 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 0.006 bar (0.09 psi). Internal Temperature: 250 °C (482 °F). Does it have an Internal Coil?: Yes. Jacket Type: Standard. Support: Lugs.

• Mechanical seal: Yes
• Insulation: Fully insulated and clad Capacity (Design): 3,770 L (995.9 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 2,883 mm (113.5 in). Internal Pressure: 1 bar (14.5 psi). Internal Temperature: 95 °C (203 °F). Does it have Agitation ?: Yes. Support: Legs.

design pressure rated int: 11.4 barg @ -10/+50 degrees c working pressure 10.4 barg design code: BS5469 Capacity (Design): 2,389 L (631 gallons). Orientation: Vertical. Diameter: 1,194 mm (47 in). Straight-side Length: 2,134 mm (84 in). Internal Pressure: 11.4 bar (165.3 psi). Internal Temperature: 50 °C (122 °F). Support: Legs.

internal pressure -1/6 bar @ 200 degrees C (5400 liter) Capacity (Design): 5,400 L (1,427 gallons). Orientation: Vertical. Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

6300 ltr Capacity (Design): 7,200 L (1,902 gallons). Diameter: 50,800 mm (2,000 in). Straight-side Length: 41,859 mm (1,648 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.

CE identification number: #1381 Material: White glass design pressure -1/3 bar @ -20/200 degrees C 1-100mm with sightglass Capacity (Design): 1,330 L (351.3 gallons). Orientation: Vertical. Diameter: 1,100 mm (43.3 in). Straight-side Length: 850 mm (33.5 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Legs.

CE identification number: 0851 internal pressure (max) -1/3 bar @ -25/+140 degrees C jacket (max) -1/16 bar @ -25/+140 degrees C (3.64 liter) Capacity (Design): 92 L (24.3 gallons). Orientation: Vertical. Diameter: 450 mm (17.7 in). Straight-side Length: 500 mm (19.7 in). Internal Pressure: 3 bar (43.5 psi). Internal Temperature: 140 °C (284 °F). Jacket Material: Stainless Steel 316. Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 140 °C (284 °F). Vacuum: Yes. Support: Lugs.

Pressure rated FV/150 psi @ 350 degree F. - 40 degrees F @ 150 psi Capacity (Design): 3,785 L (1,000 gallons). Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight-side Length: 1,829 mm (72 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Legs.

Capacity (Design): 3,407 L (900 gallons). Orientation: Vertical. Diameter: 1,676 mm (66 in). Straight-side Length: 1,372 mm (54 in). Internal Pressure: 7.6 bar (110 psi). Internal Temperature: 37.8 °C (100 °F). Vacuum: Yes. Support: Lugs.

at top, 4.998 barg @ 50 deg C at bottom Capacity (Design): 565,000 L (149,257 gallons). Orientation: Vertical. Diameter: 152,400 mm (6,000 in). Straight-side Length: 406,400 mm (16,000 in). Internal Pressure: 2.8 bar (41.2 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Skirt.

40,000 liter working capacity, base mounted Capacity (Design): 41,351 L (10,924 gallons). Orientation: Vertical. Diameter: 4,500 mm (177.2 in). Straight-side Length: 2,550 mm (100.4 in). Does it have an Internal Coil?: Yes.

28,000 liter working capacity, base mounted, Capacity (Design): 30,400 L (8,031 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 6,270 mm (246.9 in).

3400 liter working volume, Capacity (Design): 4,256 L (1,124 gallons). Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight-side Length: 1,100 mm (43.3 in). Support: Legs.

Capacity (Design): 2,000 L (528.3 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 42 bar (609.2 psi). Internal Temperature: 70 °C (158 °F). Vacuum: Yes. Support: Legs. Air Receiver: Yes.

Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 1,800 mm (70.9 in). Jacket Type: Half Pipe/Limpet. Jacket Material: Carbon Steel. Support: Legs.

Capacity (Design): 5,000 L (1,321 gallons). Orientation: Vertical. Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 12 bar (174 psi). Support: Legs. Air Receiver: Yes.

15,000 liter working volume, stainless steel coil on full length of tank bottom, Capacity (Design): 15,313 L (4,045 gallons). Orientation: Horizontal. Diameter: 2,200 mm (86.6 in). Straight-side Length: 3,220 mm (126.8 in). Does it have an Internal Coil?: Yes. Support: Saddle.

15,000 liter working volume, Capacity (Design): 15,313 L (4,045 gallons). Orientation: Horizontal. Diameter: 2,200 mm (86.6 in). Straight-side Length: 3,220 mm (126.8 in). Support: Saddle.

Capacity (Design): 16,000 L (4,227 gallons). Orientation: Horizontal. Diameter: 2,300 mm (90.6 in). Straight-side Length: 4,350 mm (171.3 in). Support: Saddle.

Capacity (Design): 16,000 L (4,227 gallons). Orientation: Horizontal. Diameter: 2,300 mm (90.6 in). Straight-side Length: 4,350 mm (171.3 in). Support: Saddle.

18,000 liter working capacity, with ladder and gantry, Capacity (Design): 18,470 L (4,879 gallons). Orientation: Horizontal. Diameter: 2,300 mm (90.6 in). Straight-side Length: 3,785 mm (149 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,149 L (5,323 gallons). Orientation: Horizontal. Diameter: 2,300 mm (90.6 in). Straight-side Length: 4,350 mm (171.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

20,000 liter working capacity, Capacity (Design): 20,510 L (5,418 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 3,260 mm (128.3 in). Support: Saddle.

22000 liter working volume, with ladder and gantry Capacity (Design): 22,767 L (6,014 gallons). Orientation: Horizontal. Diameter: 2,800 mm (110.2 in). Straight-side Length: 3,600 mm (141.7 in). Support: Saddle.

pressure atmospheric @ ambient temperature, 1,0kg/dm3 specific density, with ladder metal skid Capacity (Design): 25,000 L (6,604 gallons). Orientation: Horizontal. Diameter: 2,200 mm (86.6 in). Straight-side Length: 5,800 mm (228.3 in). Support: Saddle.

40000 liter working volume, Capacity (Design): 40,616 L (10,730 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 7,350 mm (289.4 in). Support: Saddle.

40000 liter working volume, Capacity (Design): 40,616 L (10,730 gallons). Orientation: Horizontal. Diameter: 2,500 mm (98.4 in). Straight-side Length: 7,350 mm (289.4 in). Support: Saddle.

pressure atmospheric @ ambient temperature, 60000 Liter working volume,1.40kg/dm3 specific density, Capacity (Design): 62,204 L (16,433 gallons). Orientation: Vertical. Diameter: 3,000 mm (118.1 in). Straight-side Length: 8,800 mm (346.5 in).

90000 liter working capacity, stainless steel coil on flat bottom, 50mm diameter x 8 turns, Capacity (Design): 100,577 L (26,570 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,340 mm (289 in). Does it have an Internal Coil?: Yes.

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

90000 liter working capacity, bottom of straight side with a stainless steel tube and shell condenser, base mounted Capacity (Design): 99,828 L (26,372 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 7,200 mm (283.5 in).

100000 liter working capacity, with handrail around top, Capacity (Design): 100,000 L (26,417 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 8,080 mm (318.1 in).

192000 liter working capacity, design pressure internal +20/-10 mbar @ 60 degrees C, working pressure atmospheric @ ambient temperature, stainless steel internal coil on flat bottom, 50mm diameter x 6 turns, base mounted, Capacity (Design): 200,292 L (52,912 gallons). Orientation: Vertical. Diameter: 4,000 mm (157.5 in). Straight-side Length: 15,310 mm (602.8 in). Internal Pressure: 0.02 bar (0.29 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Vacuum: Yes.

base mounted Capacity (Design): 200,000 L (52,834 gallons). Orientation: Vertical. Diameter: 4,200 mm (165.4 in). Straight-side Length: 16,000 mm (629.9 in).

high vari-speed agitator, 1.5kW, 50 Hz, 380 volt, 200-1000 rpm, Ex d IIB motor, 170mm diameter impellor, agitator with manual raise and lower mechanism, 3-blade marine type impellor, all mounted on a carbon steel frame with wheels, built on controls, carbon steel cage with feed chute, Capacity (Design): 70 L (18.5 gallons). Orientation: Vertical. Diameter: 340 mm (13.4 in). Straight-side Length: 800 mm (31.5 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted fork liftable, Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

l700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in).

700 liter working capacity, base mounted, fork liftable Capacity (Design): 752 L (198.7 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 955 mm (37.6 in). Does it have Agitation ?: Yes.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, atmospheric pressure, 1/3rd of top is hinged opening, bottom of sidewall with low level float, electric heat tracing on straight side, Capacity (Design): 1,150 L (303.8 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,000 mm (39.4 in). Does it have Agitation ?: Yes. Support: Legs.

1000 liter working capacity, straight side with electric heat tracing, Capacity (Design): 1,394 L (368.3 gallons). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight-side Length: 1,750 mm (68.9 in). Support: Legs.

internal pressure atmospheric @ 80 degrees C, Capacity (Design): 1,200 L (317 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,500 mm (59.1 in). Internal Temperature: 80 °C (176 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Capacity (Design): 1,700 L (449.1 gallons). Orientation: Vertical. Diameter: 880 mm (34.6 in). Straight-side Length: 2,900 mm (114.2 in). Support: Skirt.

2000 liter working volume, internal pressure atmospheric, top opening with stainless steel feed chute, built on weigh terminal, model DFWATEX-IO Capacity (Design): 2,636 L (696.4 gallons). Orientation: Vertical. Diameter: 1,240 mm (48.8 in). Straight-side Length: 2,050 mm (80.7 in). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

driven by 2.2kW, 3/50/230/400 volt, 1440 rpm Ex dII BT4 IP55 motor, (1) stainless steel centrifugal pump, (1) built on weigh terminal, model DFWATEX2GDF, Capacity (Design): 2,000 L (528.3 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,800 mm (70.9 in). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with stainless steel ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

2000 liter working capacity, internal spray ball, dip tube, low level sensor, base mounted, with ladder Capacity (Design): 2,438 L (644.1 gallons). Orientation: Vertical. Diameter: 1,250 mm (49.2 in). Straight-side Length: 1,973 mm (77.7 in).

5000 liter working volume, pressure rated atmospheric, base mounted, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

3000 liter working volume, with stainless steel handrail, Capacity (Design): 3,200 L (845.4 gallons). Orientation: Vertical. Diameter: 1,400 mm (55.1 in). Straight-side Length: 2,100 mm (82.7 in). Support: Legs.

3000 liter working volume, with stainless steel steps & handrail, Capacity (Design): 3,200 L (845.4 gallons). Orientation: Vertical. Diameter: 1,450 mm (57.1 in). Straight-side Length: 1,740 mm (68.5 in).

3000 liter working volume, with stainless steel steps & handrail, Capacity (Design): 3,300 L (871.8 gallons). Orientation: Vertical. Diameter: 1,450 mm (57.1 in). Straight-side Length: 2,000 mm (78.7 in). Support: Legs.

Capacity (Design): 3,000 L (792.5 gallons). Orientation: Vertical. Diameter: 1,200 mm (47.2 in). Straight-side Length: 2,900 mm (114.2 in). Support: Skirt.

3500 liter working volume, with platform and ladder Capacity (Design): 3,880 L (1,025 gallons). Orientation: Vertical. Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,200 mm (86.6 in). Support: Legs.

3500 liter working capacity, jacket on straight side only, Capacity (Design): 4,230 L (1,117 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 1,800 mm (70.9 in). Jacket Type: Half Pipe/Limpet. Jacket Material: Carbon Steel. Support: Legs.

3500 liter working capacity, jacket on straight side and bottom dish, , Capacity (Design): 3,823 L (1,010 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 1,800 mm (70.9 in). Jacket Type: Half Pipe/Limpet. Jacket Material: Carbon Steel. Support: Lugs.

3500 liter working volume, Capacity (Design): 3,952 L (1,044 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 1,800 mm (70.9 in). Support: Lugs.

3500 liter working volume, with 2 internal heating elements, Capacity (Design): 3,987 L (1,053 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 1,500 mm (59.1 in). Support: Legs.

with stainless steel ladder & platform, Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,587 mm (62.5 in). Straight-side Length: 1,961 mm (77.2 in). Support: Skirt.

with internal spray ball, low level sensor, Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,587 mm (62.5 in). Straight-side Length: 1,961 mm (77.2 in). Support: Skirt.

with internal spray ball, low level sensor, Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,587 mm (62.5 in). Straight-side Length: 1,961 mm (77.2 in). Support: Skirt.

with internal spray ball, Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,587 mm (62.5 in). Straight-side Length: 1,961 mm (77.2 in). Support: Skirt.

with internal spray ball, Capacity (Design): 3,500 L (924.6 gallons). Orientation: Vertical. Diameter: 1,587 mm (62.5 in). Straight-side Length: 1,961 mm (77.2 in). Support: Skirt.

4000 liter working volume, Capacity (Design): 4,595 L (1,214 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,600 mm (102.4 in).

4000 liter working volume, Capacity (Design): 4,595 L (1,214 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,600 mm (102.4 in).

4000 liter working volume, heating element mounted in the bottom side of straight side, Capacity (Design): 4,155 L (1,098 gallons). Diameter: 1,600 mm (63 in). Straight-side Length: 2,000 mm (78.7 in). Support: Legs.

4000 liter working volume, Capacity (Design): 4,215 L (1,113 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,340 mm (92.1 in).

4000 liter working volume, Capacity (Design): 4,215 L (1,113 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,340 mm (92.1 in).

4000 liter working volume, Capacity (Design): 4,215 L (1,113 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,340 mm (92.1 in).

4000 liter working volume, Capacity (Design): 4,215 L (1,113 gallons). Diameter: 1,500 mm (59.1 in). Straight-side Length: 2,340 mm (92.1 in).

4500 liter working volume, heating element mounted in top of straight side, Capacity (Design): 4,725 L (1,248 gallons). Diameter: 1,600 mm (63 in). Straight-side Length: 2,300 mm (90.6 in).

4500 liter working volume, Capacity (Design): 5,057 L (1,336 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,480 mm (97.6 in).

4500 liter working volume, Capacity (Design): 4,725 L (1,248 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,300 mm (90.6 in).

4500 liter working volume, heating element mounted in top of straight side, Capacity (Design): 4,725 L (1,248 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,300 mm (90.6 in).

4500 liter working volume, Capacity (Design): 5,057 L (1,336 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,480 mm (97.6 in).

4500 liter working volume, Capacity (Design): 5,057 L (1,336 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,480 mm (97.6 in).

4500 liter working volume, Capacity (Design): 5,057 L (1,336 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,480 mm (97.6 in).

4500 liter working volume, Capacity (Design): 4,825 L (1,275 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,350 mm (92.5 in).

bridge mounted Lighnin agitator drive, series 10, model 150-4, 14.06:1 ratio, 100 rpm, driven by 4kW, 3/50-60/380-660/400-690/415/460 volt, 1445/1450/1755 rpm IP55 motor, Capacity (Design): 5,000 L (1,321 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,500 mm (98.4 in). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Legs.

5000 liter working volume, with carbon steel ladder, Capacity (Design): 5,157 L (1,362 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,000 mm (78.7 in). Support: Legs.

5000 liter working volume, with carbon steel ladder, Capacity (Design): 5,157 L (1,362 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,000 mm (78.7 in). Support: Legs.

5000 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, Capacity (Design): 5,100 L (1,347 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5000 liter working volume, Capacity (Design): 5,127 L (1,354 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5000 liter working volume, Capacity (Design): 5,127 L (1,354 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5000 liter working volume, Capacity (Design): 5,127 L (1,354 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5000 liter working volume, Capacity (Design): 5,100 L (1,347 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5000 liter working volume, bottom side with a level sensor, Capacity (Design): 5,250 L (1,387 gallons). Orientation: Vertical. Diameter: 1,700 mm (66.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, Capacity (Design): 5,243 L (1,385 gallons). Orientation: Vertical. Diameter: 1,700 mm (66.9 in). Straight-side Length: 2,290 mm (90.2 in).

5000 liter working volume, top bridge mounted vari-speed agitator drive, driven by approx 5kw motor via a reduction gearbox, Capacity (Design): 5,089 L (1,344 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,000 mm (78.7 in). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle.

5000 liter working volume, Capacity (Design): 5,127 L (1,354 gallons). Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight-side Length: 2,550 mm (100.4 in).

5500 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

5500 liter working volume, Capacity (Design): 5,878 L (1,553 gallons). Orientation: Vertical. Diameter: 1,800 mm (70.9 in). Straight-side Length: 2,290 mm (90.2 in).

6000 liter working capacity, top bridge mounted vari-speed agitator drive, driven by approx 5kw motor via a reduction gearbox, Capacity (Design): 6,440 L (1,701 gallons). Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Legs.

6000 liter working capacity, Capacity (Design): 6,900 L (1,823 gallons). Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Support: Legs.

9000 liter working capacity, 304 stainless steel internal pipe coil on lower half of straight side, (14) turns high and (3) turns on bottom cone, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,300 mm (90.6 in). Straight-side Length: 2,300 mm (90.6 in). Does it have an Internal Coil?: Yes. Support: Legs.

9000 liter working capacity, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,300 mm (90.6 in). Straight-side Length: 2,300 mm (90.6 in). Support: Legs.

9000 liter working capacity, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,300 mm (90.6 in). Straight-side Length: 2,300 mm (90.6 in). Support: Legs.

9000 liter working capacity, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,300 mm (90.6 in). Straight-side Length: 2,300 mm (90.6 in). Support: Legs.

9000 liter working capacity, insulated and clad, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,400 mm (94.5 in).

9000 liter working capacity, insulated and clad, Capacity (Design): 9,971 L (2,634 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,400 mm (94.5 in).

9000 liter working capacity, Capacity (Design): 9,256 L (2,445 gallons). Orientation: Vertical. Diameter: 2,200 mm (86.6 in). Straight-side Length: 2,410 mm (94.9 in).

10000 liter working volume, Capacity (Design): 11,686 L (3,087 gallons). Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,500 mm (98.4 in). Support: Legs.

12000 liter working volume, bridge mounted agitator drive, carbon steel ladder, Capacity (Design): 13,273 L (3,506 gallons). Orientation: Vertical. Diameter: 2,600 mm (102.4 in). Straight-side Length: 2,400 mm (94.5 in). Does it have Agitation ?: Yes.

12000 liter working volume, internal coil with 5-turns up the bottom of the straight side, carbon steel ladder, Capacity (Design): 13,273 L (3,506 gallons). Orientation: Vertical. Diameter: 2,600 mm (102.4 in). Straight-side Length: 2,400 mm (94.5 in). Does it have an Internal Coil?: Yes.

12000 liter working volume, top mounted agitator driven by 15kW, 3/50/380/660 volt, 1470 rpm IP56 motor via a reduction gearbox, stainless steel half pipe coil jacket on straight side and bottom dish, unit with: (1) approx 1000 liter stainless steel feed tank, bolt flat top, weld coned bottom, 1.2m diameter x 1m straight side, (1) approx 250 liter stainless steel feed tank, bolt flat top, weld coned bottom, 800mm diameter x 500mm straight side, Capacity (Design): 12,000 L (3,170 gallons). Orientation: Vertical. Diameter: 2,200 mm (86.6 in). Straight-side Length: 3,000 mm (118.1 in). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 304. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.
