Water Softner Water Treatment Type: Water Softener/Water Conditioning. Pressure: 8.6 bar (125 psi). Controls: Yes. System: Yes.

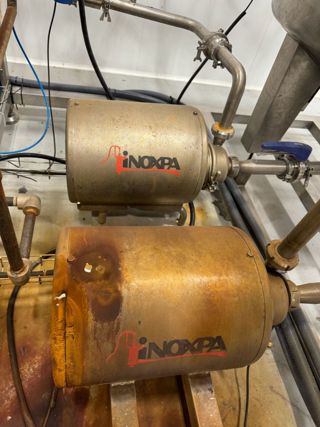

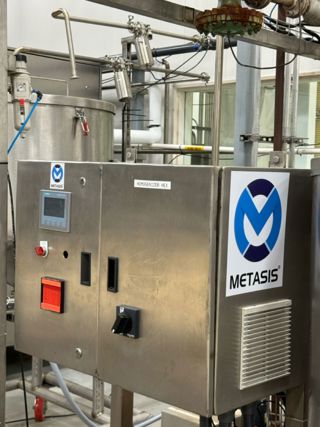

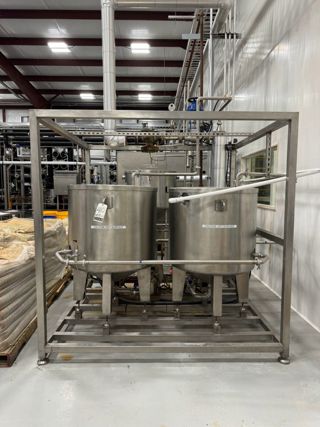

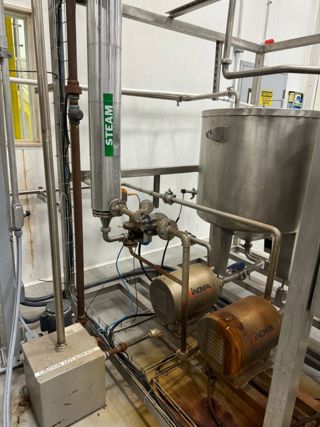

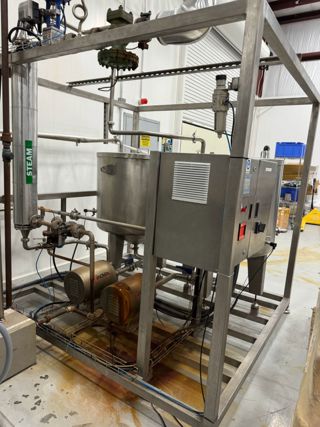

4000 Liter/Hr.(17 GPM) clean in place skid Skid contains the following major pieces, one condenser, two tanks, two pumps, and a on board control panel. Two 400 Liter tanks with open tops and welded slight cone bottoms.(Solution supply & return tanks) two sanitary centrifugal pumps by Inoxpa, and controls with a Siemens HMI. Heating capacity 4000 Liters/hr., Heat transfer area 0.9 m2, Temp rise 50 -60 degrees C, steam consumption per hour 80 kg/hr Water Treatment Type: Clean in PLace. Flow Rate: 4,000 L/h (17.6 GPM). Temperature: 60 °C (140 °F). Controls: Yes.
continuous electro deionization system for removing dissolved solids from the water system. (2) medium flow IonPure Technologies modules that use DC current to drive the exchange. Operation is by mixed bed Ion exchange resins sandwiched between an anion and cation exchange module. Feed water needs to be between 30-100 psi at 50-113 degrees F. With a US Filters control panel. Water Treatment Type: Continuous Electro-deionization. Flow Rate: 5,905 L/h (26 GPM). Temperature: 45 °C (113 °F). Pressure: 6.9 bar (100 psi). Controls: Yes. Control Details: US Filters control panel. System: Yes.
Booster Pump skid designed to increase water flow , temperature, and pressure for RO system, and CID system in the following steps of the process. With one approx. 10 sq ft, ITT Industrial plate heat exchanger model P7A, with 316 SS SS plates rated for 150 psi at 302 degrees F on both the process or service side One, 5 HP, 316 SS centrifugal pump rated for 60 psi one 5 micron filter in a 316 SS electropolished housing manufactured by Stainless Fluid systems 0.8" OD x 41" high, with 1.5" inlets and outlets The filter vessel is rated for 150 psi at 300 degrees F. UV lamp, rated for 254 NM, in a 316 SS polished housing With digital flow controls, and a US filter power control panel. Water Treatment Type: Reverse Osmosis. Flow Rate: 4,770 L/h (21 GPM). Temperature: 148.9 °C (300 °F). Pressure: 10.3 bar (150 psi). Controls: Yes. Control Details: Digital flow controls, US filter power control panel. System: Yes.
Electro polished and passivated
Part MP-2-SL. UL UL Listed
compact design gives economical UV treatment for low flow applications.
With two UV lamps, rated for a total current of 0.80 (at 120vac) and Total power of 96 (at 120 vac).
his system gives a UV Dosage of >30,000 Microwatt seconds per cm2. Inlet and outlet sizes are 1.5" stainless steel flanged.

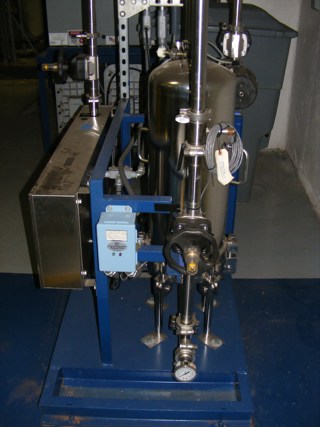

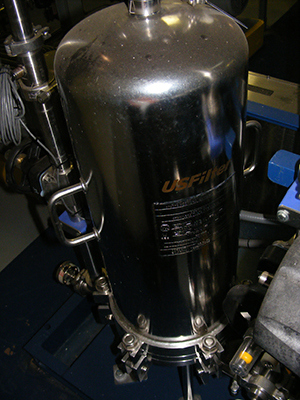

six 0.2 um cartridges, 20" long, in a 316L SS electropolished housing rate for 100 psi and ASME code stamped. Water Treatment Type: Ultraviolet Light. Flow Rate: 4,543 L/h (20 GPM). Pressure: 10.3 bar (150 psi). System: Yes.
US Filter Reverse Osmosis DI water system includes a US Filter system control panel with digital monitors, and a US fiter power control panel with RO pump hour meter. RO pump is a Grundfos "2" inlet and out pump, (3) CodeLine Membrane Housings, model 80A30, rated 300 psi maximum operating pressure, 20 to 120 degrees F. Water Treatment Type: US Filter Reverse Osmosis DI water system. Flow Rate: 11,356 L/h (50 GPM). Temperature: 48.9 °C (120 °F). Pressure: 20.7 bar (300 psi). Controls: Yes. System: Yes.
Electro polished and passivated Part MP-2-SL. UL Listed, A compact design gives economical UV treatment for low flow applications. With two UV lamps, rated for a total current of 0.80 (at 120vac) and Total power of 96 (at 120 vac). This system gives a UV Dosage of >30,000 Microwatt seconds per cm2. Inlet and outlet sizes are 1.5" stainless steel flanged. manufactured by Sartorius, 1.9 cu. ft capacity, manufactured from 316 L SS, electropolished. Rated for 150 psi at 250 degrees F. Water Treatment Type: Ultraviolet Light. Flow Rate: 4,543 L/h (20 GPM). Temperature: 121.1 °C (250 °F). Pressure: 10.3 bar (150 psi). System: Yes.
Sanitary, Reverse Osmosis system This is a Pharmaceutical and biotech grade machine single pass The system recovery rate is 75% with a membrane salt rejection rate of 99% nominal. Nine membranes are Filmtec RO390FFseries TFC, spiral wound loose wrap, full fit. and the unit has a efficiency pump. The frame is structural CS, polyurethane coated. Water Treatment Type: Reverse Osmosis. Flow Rate: 7,949 L/h (35 GPM). Temperature: 15.6 °C (60 °F). Pressure: 4.1 bar (60 psi). Controls: Yes. System: Yes. Multi Stage: Yes. Membrane Type: (9x) Filmtec RO390FFseries TFC, spiral wound loose wrap, full fit.
continuous electro deionization system for removing dissolved solids from the water system. (2) medium flow IonPure Technologies modules that use DC current to drive the exchange. Operation is by mixed bed Ion exchange resins sandwiched between an anion and cation exchange module. Feed water needs to be between 30-100 psi at 50-113 degrees F. With a US Filters control panel. Water Treatment Type: Continuous Electro-deionization. Flow Rate: 5,905 L/h (26 GPM). Temperature: 45 °C (113 °F). Pressure: 6.9 bar (100 psi). Controls: Yes. Control Details: U.S. Filters control panel.
water booster and RO feed skid Contains the following equipment, one 7.5 HP 316 SS booster pump, close coupled, and base mounted, designed to increase the water pressure to 67 GPM for the RO system. One 5 micron rated pre filter contained in a 8" diameter x 24" high filter housing One Trantor Super Changer heat exchanger, 316 SS plates, 6 sq.ft., to increase water temperature to temper at 77 degrees F. One Aquafine UV Light, to reduce bacteria loading on the RO filter With digital controls and local control panel in a NEMA cabinet. Water Treatment Type: Water booster & Reverse osmosis. Flow Rate: 4,543 L/h (20 GPM). Controls: Yes. Control Details: Digital controls & NEMA cabinet local control panel. System: Yes.

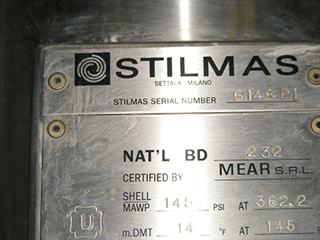

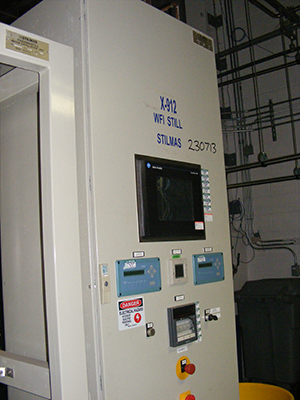

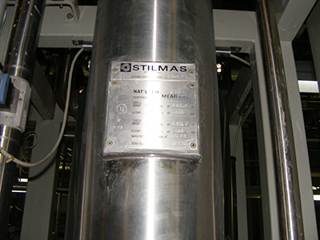

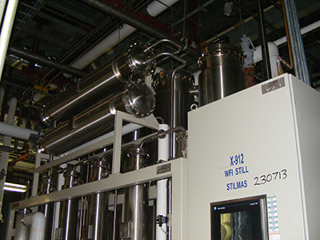

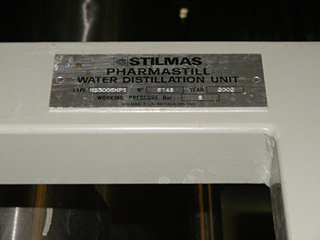

multi-effect WFI water distillation unit. All sanitary construction Unit has 5 distillation columns, all national board rated, 145 psi @ 14 to 362 degrees f in the shell; 145 psi @ 14 to 362 degrees f in the tubes. circulation pumps Water Treatment Type: Multiple effect distillation, Water for Injection. Flow Rate: 6,587 L/h (29 GPM). Temperature: 183.4 °C (362.2 °F). Pressure: 10 bar (145 psi). Controls: Yes. Multi Stage: Yes.
50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet. 316L SS Treatment chamber. 2" Flanged inlets and outlets. Overall dimensions 40" long x 10" wide x 23" high. Water Treatment Type: Ultraviolet. Flow Rate: 11,356 L/h (50 GPM). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
99% UVT for Ozone destruct, Rated for 120 volts, 60 Hz. Quartz # QTZ0023, Lamp # LMP12006-V. Water Treatment Type: Ultraviolet. Flow Rate: 60,642 L/h (267 GPM). Temperature: 37.8 °C (100 °F). Pressure: 10.3 bar (150 psi). System: Yes.
In Line Sand Media Filter Water Treatment Type: In-Line Sand Media Filter/Water Management System. Flow Rate: 48,378 L/h (213 GPM). Pressure: 6.9 bar (100 psi). Controls: Yes. System: Yes.
Concentration Factor 1.9, Module area 22.3, Membrane Area 289 m2. 4 modules per housing, 4 housing. Skid mounted with pumps and 2000 liter Feed Tank. No plc or controls. ( Footprint 5,5m l x 3,5 m w x 3 m h) Water Treatment Type: Reverse Osmosis. Flow Rate: 1,833 L/h (8.1 GPM). Temperature: 10 °C (50 °F). Pressure: 4.1 bar (60 psi). System: Yes. Multi Stage: Yes. Number of Chambers: 13. Membrane Type: Alfa Laval- RO. Permeate Flow: 3.8. Reject Rate: 4.2.
50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber, 304 SS control cabinet 2" Flanged inlets and outlets. Optional explosion proof control cabinet Overall dimensions 40" long x 10" wide x 23" high.(doesn't include optional cabinet) Water Treatment Type: Ultraviolet. Flow Rate: 11,356 L/h (50 GPM). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber, 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high Water Treatment Type: Ultraviolet. Flow Rate: 11,356 L/h (50 GPM). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high Water Treatment Type: Ultraviolet. Flow Rate: 11,356 L/h (50 GPM). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high Water Treatment Type: Ultraviolet. Flow Rate: 11,356 L/h (50 GPM). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
material: composite w/P.E. inner shell raw water hardness = 60 ppm system consists of: (2) 170ltr vertical tanks, 15" dia x 58" straight side, dished heads composite with P.E. inner shell, (1) composite salt tank, 24" dia x 24" straight side, open top with removable lid, flat bottom Water Treatment Type: Water Softener. Temperature: 5 °C (41 °F). Pressure: 10 bar (145 psi). System: Yes.

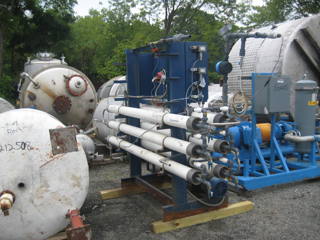

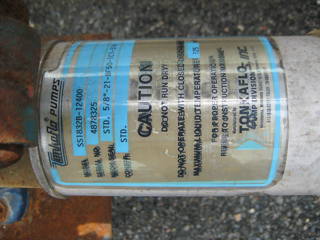

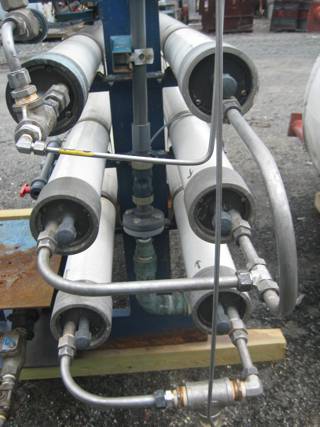

with (6) 4" diameter x 92" long filtration tubes Model SS1832B-12400, Serial number 4878325 mechanical seal on shaft Water Treatment Type: Reverse Osmosis. Flow Rate: 2,953 L/h (13 GPM). System: Yes.
130 (@ 94% UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet. 304SS control cabinet Rated 130 GPM @ 94% disinfection or 156 GPM @ 99% disinfection. 120 psi max. operating pressure. 50°F - 100°F operating temperature. 3" inlets/outlets with optional sanitary fittings. drain and sample port. (Lamps not included). Water Treatment Type: Ultraviolet. Flow Rate: 35,432 L/h (156 GPM). Temperature: 37.8 °C (100 °F). Pressure: 8.3 bar (120 psi). Controls: Yes. Control Details: NEMA 1.
1180 Sq ft RomiPure reverse osmosis water filtration sytem with accessories 5" diameter Unit has a combination of Stainless steel and PVC piping for corrosion resistance and ease of cleaning Designed for 2" feed, complete with automatic control valves for fast flush. On board control panel features Flo rates and controls for flush cycles. Water Treatment Type: Reverse Osmosis. Flow Rate: 15,899 L/h (70 GPM). Controls: Yes. Membrane Type: (12x) membrane tubes, rated 132 sqft, 3.7-7.8 GPM.
ultraviolet disinfectant unit
Water Treatment Type: Reverse Osmosis with UV . Flow Rate: 1,703 L/h (7.5 GPM). Temperature: 25 °C (77 °F). Pressure: 17.2 bar (250 psi). Controls: Yes. System: Yes.
