with blower and controls With Blower mounted on the side of the filter housing rated. @ -40 to +30°C, single effect, filter resistance 8 mbar with cone bottom for discharge EEX rated Operating Voltage 230/400 Control panel mounted on side. Mounted on 4 legs.
CE-certified.

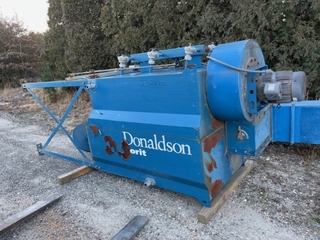

Downflow dust collector 500 to 3,150 CFM air flow With 4 filter cartriges Housing has a hopper bottom with a manual valve designed to discharge into a pail 3600 rpm blower 3/60/230/460 motor Includes Torit digital controls

reverse jet filters 600 liter capacity chamber weld dished top unit has 10 x filter elements max operating pressure 6.2 bar @ 60 degrees C, min operating temperature -30 degrees C, filter with carbon steel fan design pressure 6.9 bar filter with carbon steel fan, manufactured by Turbovent, type VR25L-1343000, serial #22442, driven by a 2-speed motor, 7.5 kw, 3/50/400-690 volt, 2915 rpm or 9 kw, 3/60/440/480 volt, 3510 rpm, openings side 1-450mm inspection port, 1-75mm, bottom 1-500mm discharge, unit mounted on carbon steel skid,

vertical dust collector mounted on legs with a 30" cone bottom Contains socks approximately 6" diameter x 70" long Side access door 40" long x 21" wide. with a 15" diameter Fike rupture disk Pulsater top is 12" long Bottom outlet on cone is 6.5" and has a manual slide gate valve Cone bottom has a 4", 3", and a 2.5" flanged nozzles Top has a 3" nozzle. Legs elevate collector 36" off grade.

Six filter cartridges Top mounted fan, 15 HP, 208/230/460 v, 3500 rpm. Mounted on legs

• Reverse jet pulse dust filter bolt dished top, weld coned bottom total volume 13581 ltr250 deg C2 sets of jets 6 bar @ 250 deg C, volume 26 ltr and 22 ltr (`77) 125mm diameter x 2.6m long filter cages,2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mmmounted on carbon steel lugs

bolt dished top, weld coned bottom internal pressure 0.6 bar @ 250 deg C, total volume 13581 ltr, 2 sets of jets 6 bar @ 250 deg C, volume 26 ltr and 22 ltr (`77) 125mm diameter x 2.6m long filter cages, openings: side: 2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mm, mounted on c/steel lugs, total weight 2226 kg.

Four round cartridge filters Mounted on legs

Down flow design (6) bags with quick change filter elements and compressed air dischage valves With a New York pressure blower, driven by a 40HP 3/60/230/460 volt.

vertical cyclone, weld slight coned top, weld coned bottom, openings top: 1-900mm, straight side: 1-800mm, bottom: 1-250mm, mounted on 4-lugs

vertical cyclone, weld slight coned top, weld coned bottom openings top: 1-900mm, straight side: 1-800mm, bottom: 1-250mm, mounted on 4-lugs

Discharge Cone and Parts Material: 321 SS Dirty Air Chamber Dimensions: 36” diameter x 45” long Vertical Removable top cover, 321 SS cyclone discharge cone Discharge Cone: 48” diameter x 12” with a 5” inlet, and a 36” tapered cone to a 5” outlet on bottom Top cover is removable for access to filters, and is counter weighted and secured by Stay Con clamps Bottom cyclone has two 10” wide x 24” long access doors,(orientated 180 degrees). Two 12” diameter x 26” long cartridge filters Each filter has 175 pleats, 2" wide x 25" long Each cartridge has 121 sq. ft. of surface area Four 6” x 9” lugs for mounting, attached at top of bottom cone weld seam One 5” clean air discharge One 5” clean air discharge, one 24” inspection door for man way or pressure relief disk.(not available)

vertical cyclone separator bolted coned bottom section weld slight coned top

vertical cyclone weld slight coned top, weld coned bottom openings top: 1-900mm, straight side: 1-800mm, bottom: 1-250mm, mounted on 4-lugs

vertical reverse jet filter 455 liter, pressure -1/6 bar @ 200 degrees C, bolt dished top with davit, (12) internal filter elements, 1953 liter 316L stainless steel vessel, manufactured by Englesmann AG, fabrik #57468,
internal pressure -1/6 bar @ 200 degrees C weld coned bottom, mounted pn lugs, TUV certified

bolt dished top, weld coned bottom @ 250 deg C, 12703 ltr, 2 sets of jets 6 bar @ 250 deg C, (`77) 125mm diameter x 2.6m long filter cages, openings: side: 2-400mm, 1-150mm, 2-50mm, 2-25mm, bottom: 1-200mm, mounted on carbon steel lugs

HEPA cyclone Mounted on a free standing leg kit.

vertical cyclone bolted coned bottom section weld slight coned top

vertical cyclone separator bolted coned bottom section, weld slight coned top

Rated -150/50 MBar. Filter area is 8 m2 with cone bottom. Bolted top manifold that is 16" straight side. with 1.5" diameter manifold feed line, (2) pulse jet feed lines. With CS fan. Rotary Airlock valve on bottom.

reverse jet filters 600 liter chamber capacity weld dished top, unit has 10 x filter elements, max operating pressure 6.2 bar @ 60 degrees C, min operating temperature -30 degrees C filter with carbon steel fan, manufactured by Turbovent, type VR25L-1343000, serial #23511, driven by a 2-speed motor, 7.5 kw, 3/50/400-690 volt, 2915 rpm or 9 kw, 3/60/440/480 volt, 3510 rpm, openings side 1-450mm inspection port, 1-75mm, bottom 1-500mm discharge, unit mounted on carbon steel skid,

w/2' cone btm

Portable cartridge Sound level: 74 dBA Drawer capacity: 0.631 cubic feet Weight: 402 lbs 1.5/3HP easy to remove single cartridge cabinet mounted controls low-profile cabinet for easy maneuvering 5" caster wheels access handle for portability.

With 52-V-103 discharge rotary valve, and Cincinnati Fan Blower. Discharge valve chain driven by a 0.75 HP motor, 1750 rpm, 230/460 V, 3 ph., 60 Hz. Cat # E108. Valve is Model MD40 serial # 847414-002-1--Cincinnati blower driven by a Baldor 10 HP AC motor at 3500 rpm. 215T frame 230/460 3 ph., 60 Hz.

reverse jet filter Jets: approx (6), manufactured by Anton Piller KG, type 4076-MX-80-315, fabrik #669757 Max working pressure: 0.04 bar @ 40 degrees C (34) 140mm diameter x 2530mm long 316 stainless steel cage/filter elements
