Stock Number:
#85676
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
30 in
Length:
216 in
Number of Shafts:
1
Porcupine Surface Area:
223 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
650 °F
Total Heat Transfer Surface Area:
277 ft²
Additional Information:
- Single agitator design. Trough is not jacketed Agitator is hardfaced and rated 150 psig @ 650 degree F vessel rated atmospheric @ 650 degree F Trough contains approximately 62 cu. ft. of processing space Completely fabricated and assembled except for the following: Johnson rotary joint, panel coils, drive motor, gear reduction, chain and sprocket
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#239456
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
12 in
Length:
96 in
Number of Shafts:
1
Has Jacket:
Yes
Porcupine Surface Area:
35 ft²
Porcupine Operating Pressure:
3 psi
Porcupine Operating Temperature:
300 °F
Jacket Operating Pressure:
50 psi
Jacket Operating Temperature:
300 °F
Total Heat Transfer Surface Area:
90 ft²
Additional Information:
- 12" diameter-ASME stamp for Jacket Only Link Belt HP rated 10’
- Vessel rated for 3psi +/- (vacuum)
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Porcupine Agitator Pressure: 50 psi. Porcupine Agitator Temperature: 300 °F. Size: 1208.
Stock Number:
#207268
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
9.4 ft²
Porcupine Surface Area:
15 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
600 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
600 °F
Additional Information:
- REBUILT 2.1 cu. ft. operating capacity Jacketed Porcupine Processor designed for batch operation manufactured by Bethlehem Foundry and Machine Company
- Shell is rated for MAWP 50 PSI
- Porcupine surface area is 15 sq. ft. jacket is 9.4 sq. ft. Head flats are 3/4" and 3 & 7/8"shell is 1/4" and jacket is 5/16"
- 230/460 volt motor with a Reynolds reduction gear
- with a 207:1 ratio Steam or hot oil inlets and outlets are all 1" NPT Process inlets an are two 3" and outlets are 3.5"
- Rebuilding included the following: Unit is stripped, cleaned, and shaft and jacket pressure tested Gearbox drained, cleaned, checked and refilled. Motor replaced, unit test run. Stuffing box gaskets replaced and new rotary joint installed. New top head cover gasket replaced, Test run and painted, new coupling guard installed.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 24.4 ft². Porcupine Agitator Pressure: 150 psi. Porcupine Agitator Temperature: 600 °F. Size: 1203.
Stock Number:
#206785
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
7.3 ft²
Porcupine Surface Area:
12.4 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
650 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
650 °F
Additional Information:
- Agitator 12" diameter, 3' long. (18% Cr, 11% nickel)
- hot oil or steam and full vacuum
- Working volume 1.89 cubic feet
- Agitator 12.4 square feet of heating area and jacket 7.3 square feet
- (requires motor and gear drive)
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 20 ft². Total Working Volume: 1.9 ft3. Size: 12" diameter x 36" long.
Stock Number:
#46254
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
30 in
Length:
216 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
102 ft²
Porcupine Surface Area:
223 ft²
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
650 °F
Total Heat Transfer Surface Area:
548 ft²
Additional Information:
- This one probably requires a lot of work
- 223 sq. ft. of heat area on the agitator 102 square feet on the jacket
- Original design speed 10 rpm Pitch angle of agitator is 1 degree
- Trough width is 30"length is 218"with 62.1 cu ft of operating capacity
- product discharge is drive side bottom
- 30" high x 14" wide Plate coil jacket on exterior of trough manufactured by Dairy Equipment CS construction rated for 150 psi at 650 degrees F(SN # 15914-3 built 1991)Agitator is sealed by packing, has a rotary joint type SNH One lid is available, unit requires 4
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

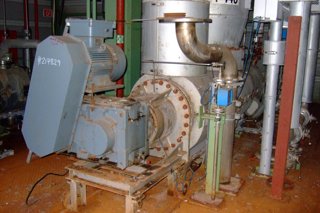

Stock Number:
#217829
Operational Mode:
Continuous
Diameter:
19.7 in
Length:
118.1 in
Number of Shafts:
1
Has Jacket:
Yes
Porcupine Operating Pressure:
174 psi
Porcupine Operating Temperature:
392 °F
Jacket Operating Pressure:
174 psi
Jacket Operating Temperature:
392 °F
Total Heat Transfer Surface Area:
109.8 ft²
Additional Information:
rotating segmented disc dryer 316 stainless steel (1.4571) single rotor with segmented discs and rotary coupling via reduction gearbox mechanical seals on shaft bolted ends drive end top inlet with stainless steel filter fabrik TRF005/043 TUV certified
Stock Number:
#217828
Operational Mode:
Continuous
Diameter:
13.8 in
Length:
70.9 in
Number of Shafts:
1
Porcupine Operating Pressure:
290.1 psi
Porcupine Operating Temperature:
572 °F
Jacket Operating Pressure:
290.1 psi
Jacket Operating Temperature:
572 °F
Total Heat Transfer Surface Area:
42 ft²
Additional Information:
Buss-SMS continuous rotating segmented disc dryer 3.9 square meter rotor -1/20 bar @ 300 degrees C (22 liter) total useable heating surface 10.7 square meter heated by steam single rotor with segmented discs and rotary coupling via reduction gearbox mechanical seals on shaft bolted ends top inlet with s/steel lump breaker
Stock Number:
#78892
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
7.3 ft²
Porcupine Surface Area:
12.4 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
650 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
650 °F
Additional Information:
- Agitator 12" diameter, 3' long
- Heating medium is hot oil or steam
- Working volume 1.89 cubic feet
- Vesssel rated 15 psig and full vacuum @ 650 degree F, jacket and agitator rated 150 psig @ 650 degree F
- Agitator 12.4 square feet of heating area, jacket 7.3 square feet
- via a gearbox
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 19.7 ft².
Stock Number:
#40685
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
9 ft²
Porcupine Surface Area:
15 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
600 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
600 °F
Additional Information:
- Heating medium is hot oil or steam
- Working volume 2.10 cubic feet
- Agitator 15 square feet of heating area and 9 square feet on the jacket
- Full vaccum
- Vessel rated 50 psig and full vacuum, jacket and agitator rated 150 psig 600 degree F
- Working volume 2.10 cubic feet
- Agitator 15 square feet of heating area and 9 square feet on the jacket
- 3/60/220/440 volt varidrive with UL label
- 5.4 to 54 rpm output
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 24 ft².
Stock Number:
#76672
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
9 ft²
Porcupine Surface Area:
15 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
1,000 °F
Jacket Operating Pressure:
15 psi
Jacket Operating Temperature:
1,000 °F
Additional Information:
- Single agitator design
- Heating medium is molten salt (electric)
- Vessel rated 15 psig @ 1000 degree F, agitator rated 150 psig @ 1000 degree F
- Working volume 2.10 cubic feet
- Agitator 15 square feet of heating area and 9 square feet on the jacket
- Motor: 3 phase
- Reducer 87:1 ratio
- On CS frame
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 24 ft².
Stock Number:
#78893
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
7.3 ft²
Porcupine Surface Area:
12.4 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
650 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
650 °F
Additional Information:
- Material of construction 316SS (18% CR, 11% nickel)
- Working volume 1.89 cubic feet
- Heating medium is hot oil or steam.
- Full vaccum
- Agitator 12.4 square feet of heating area
- jacket 7.3 square feet
- Outboard bearings
- Packing gland on shaft
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 19.7 ft².
Stock Number:
#12783
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Jacket Surface Area:
9 ft²
Porcupine Surface Area:
15 ft²
Jacket Operating Pressure:
50 psi
Jacket Operating Temperature:
650 °F
Total Heat Transfer Surface Area:
24 ft²
Additional Information:
- Heating medium is hot oil or steam
- Vessel rated 20 psig and full vacuum
- Working volume 2.10 cubic feet
- Agitator 15 square feet of heating area and 9 square feet on the jacket
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#78891
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
84 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
15 ft²
Porcupine Surface Area:
29 ft²
Porcupine Operating Pressure:
75 psi
Porcupine Operating Temperature:
320 °F
Jacket Operating Pressure:
75 psi
Jacket Operating Temperature:
320 °F
Additional Information:
- Processor Single agitator design Agitator 12" diameter, 7' long.
- Heating medium hot oil or steam Vessel rated 15 psig and full vacuum @ 320 degree F, jacket rated 75 psig @ 320 degree F, agitator rated 75 psig @ 320 degree F.
- Working volume is 4.4 cubic feet Agitator has 29 square feet of heating area and jacket 15 square feet.
- With direct coupled gear reducer and motor.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 44 ft².
Stock Number:
#70959
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
18 in
Length:
120 in
Number of Shafts:
1
Has Jacket:
Yes
Porcupine Surface Area:
72.9 ft²
Total Heat Transfer Surface Area:
109.5 ft²
Size:
3018
Additional Information:
- Trough only
- Porcupine Processer Agitator 72.9 sq. ft. heating area Panel coils jacket to be applied and will add 36.6 sq. ft. of heater area
- Trough working volume is 14.9 cu. ft. per batch
- Agitator has pusher/scraper clips center discharge
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#12784
Shell Configuration:
Trough
Diameter:
12 in
Length:
36 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
9 ft²
Porcupine Surface Area:
15 ft²
Jacket Operating Pressure:
50 psi
Jacket Operating Temperature:
650 °F
Total Heat Transfer Surface Area:
24 ft²
Additional Information:
- porcupine processor Unit has 2.10 cu ft operating volume
- 15 sq ft porcupine surface 9 sq ft jacket surface
- Should be a candidate for scrap
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

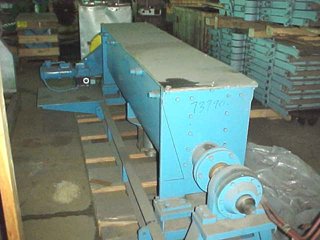

Stock Number:
#73790
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
12 in
Length:
84 in
Number of Shafts:
1
Porcupine Surface Area:
30 ft²
Jacket Operating Pressure:
15 psi
Jacket Operating Temperature:
320 °F
Total Heat Transfer Surface Area:
45 ft²
Additional Information:
- Single agitator
- Agitator 12" diameter and 7' long
- Heating medium hot oil or steam
- Vessel rated 15 psig @ 320 degree F
- Agitator has 30 square feet of heating area and with jacket added 15 square feet additional.
- Working volume 4.4 cubic feet.
- Outboard bearings.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#85675
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
30 in
Length:
192 in
Has Jacket:
Yes
Jacket Surface Area:
288 ft²
Porcupine Surface Area:
186 ft²
Jacket Operating Temperature:
394 °F
Additional Information:
- TROUGH ONLY
- endplates are CS
- Total heat transfer area is 286 sq.ft. on the trough.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#85892
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
12 in
Length:
96 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
55 ft²
Porcupine Surface Area:
35 ft²
Total Heat Transfer Surface Area:
90 ft²
Size:
1208
Additional Information:
- UNUSED One agitator.
- Jacketed trough
- Completely fabricated and assembled except for the following: Johnson rotary joint, drive motor, drive gear and coupling
- No cover, agitator 35 sq.ft. trough 55 sq.ft.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#246885
Shell Configuration:
Trough
Operational Mode:
Batch
Diameter:
42 in
Length:
120 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
181 ft²
Porcupine Surface Area:
293 ft²
Porcupine Operating Pressure:
14 psi
Porcupine Operating Temperature:
200 °F
Jacket Operating Pressure:
75 psi
Jacket Operating Temperature:
200 °F
Additional Information:
- Rated for Full Vacuum internal
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 474 ft². Total Working Volume: 90.8 ft3.
Stock Number:
#238421
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
30 in
Length:
180 in
Number of Shafts:
1
Has Jacket:
Yes
Jacket Surface Area:
266 ft²
Porcupine Surface Area:
177 ft²
Porcupine Operating Pressure:
150 psi
Porcupine Operating Temperature:
250 °F
Jacket Operating Pressure:
15 psi
Jacket Operating Temperature:
300 °F
Additional Information:
- Good candidate for refurbishment
- 30" diameter--Last operated at 80 lbs/ft3 bulk density, previously processing 420 ft3 per day. (except the last 5’ of agitator is Inconel 625 )Continuous feed with bottom discharge recycle screw. 177 sq. ft. of heat transfer surface area on the agitator, and 266 sq. ft. of heat transfer surface area on jacket. Packed stuffing box assemblies seal the shaft, hardened removable wear sleeves on the shaft seal areas to extend the shaft life Hot oil Johnson joints on the agitators non drive end. Agitator chain driven by 20 hp explosion proof motor at 5 rpm through a reducer. Bottom discharge with a fixed weir. Last operated at 80 lbs/ft3 bulk density, previously processing 420 ft3 per day.
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Total Heat Transfer Surface Area: 443 ft².
Stock Number:
#46596
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
30 in
Length:
192 in
Number of Shafts:
2
Porcupine Surface Area:
392 ft²
Porcupine Operating Pressure:
75 psi
Porcupine Operating Temperature:
220 °F
Additional Information:
- 30" dia x 16' long twin shaft porcupine processor
- Vaportight trough
- Both Rotors have a combined 392 sq ft of heating surface
- Approximately 140 cubic foot trough capacity
- Trough not jacketed
- Shaft speed 14 rpm
- UL label
- 30" vapor outlet on top cover, 12" x 12" feed port, 13" x 19" quick opening inspection door, 8" bottom clean outside discharge
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#212620
Shell Configuration:
Trough
Diameter:
30 in
Length:
144 in
Number of Shafts:
1
Porcupine Surface Area:
142 ft²
Total Heat Transfer Surface Area:
350 ft²
Additional Information:
- With drive and panel coils utilizing steam as the heat transfer medium agitator is ;142 sq. ft Trough is; 208 sq. ft
- The working volume is, 39.3 cu.ft It has a single shaft design supported by pillow block bearings with packing glands on shaft output rpms, 37 Ratio:48:11 service rating HP= 35.1
- Motor:80/40 amps3 phase AC electric motor Trough heating by four separate Tranter plate coils designed for 150 psi at 375 degrees F All have 1" inlets and outlets with weld neck flanges Serial and NB numbers are a follows: NB # 22173-SN PC13125; NB # 22174 SN # PC13126, NB # 22176 SN # PC 13128, NB # 22175 SN # PC 13127
- Bottom opening *' valve with Jamsbury automatic actuator Steam lines to rotary joint are 1.5" inlet & outlet
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#214815
Shell Configuration:
Trough
Diameter:
54 in
Length:
192 in
Number of Shafts:
2
Porcupine Operating Pressure:
75 psi
Porcupine Operating Temperature:
325 °F
Jacket Operating Pressure:
75 psi
Jacket Operating Temperature:
325 °F
Total Heat Transfer Surface Area:
690 ft²
Additional Information:
- Spare trough Size 54-16
- Shell rated for 5 psi at 325 degrees F Capacity of trough is 213 cu.ft
- Twin rotor chamber 36" deep x 191" long
- Designed to use two screws
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)
Stock Number:
#85891
Shell Configuration:
Trough
Operational Mode:
Continuous
Diameter:
12 in
Length:
96 in
Number of Shafts:
1
Has Jacket:
Yes
Porcupine Surface Area:
35 ft²
Porcupine Operating Pressure:
75 psi
Porcupine Operating Temperature:
550 °F
Jacket Operating Pressure:
150 psi
Jacket Operating Temperature:
550 °F
Total Heat Transfer Surface Area:
90 ft²
Additional Information:
- Heating medium hot oil or steam
- Vessel rated atmospheric @ 550 degree F,
- jacket rated 150 psig @ 550 degree F,agitator rated 75 psig @ 550 degree F
- Working volume is 5.2 cubic feet
- Agitator has 35 square feet of heating area and jacket has 20 square feet
- Clipps need to be cut off and re welded in the correct position
- Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Size: 1208.
Page
of 1
1 - 24 of 24 items
