Sublimation and de-sublimation system, this is a process of a product transitioning from a solid to a gas (sublimation) without passing through the liquid state then transitioning from a gas to a solid (de-sublimation)

Feed rate to sublimator (D464) 700kg/batch of Carbowax liquid>40 degrees C & 130 kg/hr of ROW IS powder, vapor component is pure IS @ 130 kg/hr, End product 700kg/batch of Carbowax liquid, operating time 24 hours/day, working pressure 0.001-0.003 bar abs, 230 degrees C heating, 80 degrees C cooling.

System consists of:

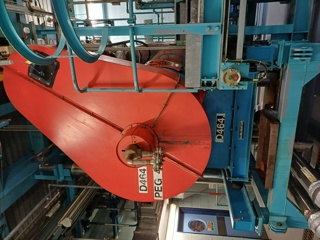

(1) 1600 liter 316L stainless steel jacketed sublimator/paddle dryer (D464), manufactured by LIST high viscosity Processing Technology, type DTB 1600 Batch, serial #2985.01.01.01.2985, working pressure internal -1/3.2 bar @ 230 degrees C (1930 liter), jacket -1/3.2 bar @ 230 degrees C (127 liter), shaft -1/12 bar @ 230 degrees C (250 liter), 316L stainless steel jacket, shaft cored for heating, driven by 30kW, 3/50/415 volt 1470 rpm IP55 motor via 1480 : 36 rpm gearbox, mechanical seal, 1.4m diameter x 1.5m straight side, mounted on 2-fixed saddles, (1) 630 liter 316L stainless steel jacketed pre-Sublimator/paddle dryer (D464-H1), manufactured by LIST high viscosity Processing Technology, serial #293501.02.01.2395, working pressure internal -1/3.2 barg @ 250 degrees C 735 liter), jacket 12 bar @ 250 degrees C (26/26/3/3 liter), shaft 12 bar @ 250 degrees C (144 liter), 316L stainless steel jacket, shaft cored for heating, shaft hydraulic driven by a powerpack, 650mm diameter x 3101mm straight side, mounted on 2-fixed saddles, (1) 4 square meter 316L stainless steel vertical jacketed filter (D464-L1), manufactured by LIST High Viscosity Processing Technology, serial # 2985.01.09.01.2985, working pressure internal -1/3.2 bar @ 200 degrees C (902 liter), jacket -1/3.2 bar @ 200 degrees C (96.3 liter), (8) 125mm diameter x 1.3m long filter bags, 304L stainless steel jacket, 610mm diameter x 2m straight side, hinged clamped flat top, weld coned bottom, (1) 170 liter 316L stainless steel vertical jacketed pressure tank (D464-V2), manufactured by Khuni AG, serial #931424, asset #9210, MAWP -1/3.2 barg @ -30/200 degrees C (178 liter), jacket 12 barg @ -30/200 degrees C (22 liter), (1) 850 liter 316L stainless steel vertical agitated feed hopper (M588), manufactured by LIST High Viscosity Processing Technology, serial # 2985.06, working pressure -1/3.2 bar @ 20 degrees C (1230 liter), bolt dished top, weld coned bottom, 1380mm diameter x 400mm straight side x 1m bottom cone section, Spiess type R-K-200-200-050 agitator drive, driven by 3kW, 3/50/415 volt 1450 rpm EExde IIB T4 motor via a reduction gearbox, 20.6 rpm shaft speed, 316L stainless steel helical screw agitator, double mechanical seal, mounted on lugs, (1) 125mm diameter 316L stainless steel jacketed single screw conveyor (M588-C1), manufactured by LIST High Viscosity Processing Technology, serial #2985.01.05.01.2985, working pressure -1/3.2 barg @ 200 degrees C (35 liter), jacket -1/12 bar @ 200 degrees C (5.5 liter), 304L stainless steel jacket, 125mm diameter screw, screw driven by 3kW, 3/50/415 volt 1450 rpm EExd IIB T4 motor via a 11.85:1 ratio reduction gearbox, double mechanical seal, (1) 1000 liter 316L stainless steel jacketed horizontal paddle dryer (V238 lock vessel), manufactured by LIST High Viscosity Processing Technology, type SB 1600 Batch, serial #2985.01.03.01.2085, working pressure internal -1/3.2 barg @ 40/190 degrees C (1600 liter), jacket -1/12 barg @ 40/190 degrees C (83.5 liter), 304L stainless steel jacket, driven by 7.5kW, 3/50/415 volt 1450 rpm IP55 EEx de IIB T4 motor via a reduction gearbox, mechanical seal with lubricator, 1.2m diameter x 1415mm straight side, mounted on 2-fixed saddles, (1) 1600 liter 316L stainless steel jacketed horizontal tank (V238-V2), pressure internal -1/12 barg @ 250 degrees C, jacket -1/12 barg @ 250 degrees C, (3) stainless steel centrifugal pumps, (1) big bag discharge unit (V238-C2)

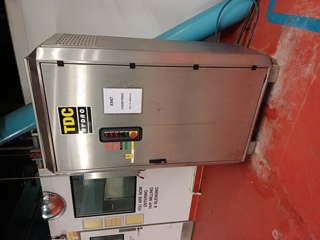

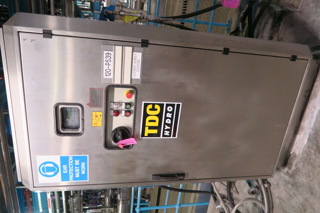

High pressure cleaner,

type EEx de IIB T4,

rating CE Ex II 2 G c IIB T4,

max pressure 210 bar,

operating pressure 180 bar,

discharge capacity 60 l/minute,

hot water until: 65 degrees C max,

voltage 3AC/400-415V/50Hz,

mounted in a stainless steel cabinet

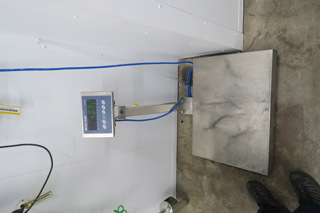

• Ex II3 GD EEx nR IIC IP65 T6 ATEX
• CE1131

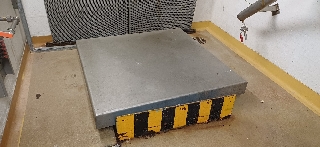

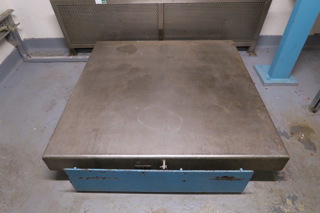

• 1.3m wide x 1.3m long 316 stainless steel weigh platform
• digital display unit

• high pressure washer,
• mounted in a stainless steel cabinet

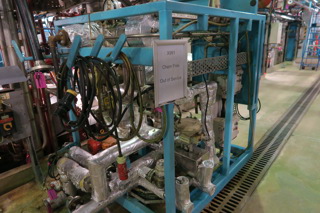

Pfaudler Thermal fluid (oil) loop system, all mounted inside a cabinet with pressure gauges, system consists of (1) HMD Magnetic drive centrifugal pump, manufactured by HMD Sealless Pumps Ltd, driven by 5.5 kw, 3/50/415 volt, 2900 rpm motor, (1) 60 liter electric heated tank, manufactured by Pfaudler Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, electric heater manufactured by Heatex Ltd, serial #991433, 50kw, 3 phase, 415 volt, EEx d 11C T3, (2) stainless steel plate and shell heat exchangers, manufactured by Vahterus Oy, type PSHE-3HH80/1/1-HE-101 & PSHE-3HH60/1/1-HE-100, serial #6532 & #6531, design pressure on both sides 25 bar @ 200 degrees C, (1) 325 liter horizontal header tank, manufactured by Pfaudler-Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, (1) 20 liter vertical tank, manufactured by Pfaudler-Balfour, serial #500019, design pressure 10 barg @ 20/200 degrees C, all items insulated

Part of Hydrogenation System IPP # 222960. instruments (valves and part for measurements in various design and sizes) for hydrogenagion system

450mm diameter Liquid/Liquid separator system, designed for separating oil and solvents manufactured by Ott AG, with a stainless steel cyclone separator, openings: on the top (1) 35mm, (1), 45mm, (1) 65mm, (1) DN 100, on the side (1) DN50, (1) DN150 with sight glass, with (2) horizontal stainless steel stripper tanks built 1978 manufactured by EDAK, first tank, serial number 2040/1 rated @ 2 bar by 200 degrees C, volume 200 liter, openings: (1) 35mm, (1) 65mm, (2) 100mm, (1) DN 150 with sight glass, second tank, serial number 2040/2 rated @ 2 bar by 200 degrees C, volume 250 liter, openings: (1) 35mm, (1) 65mm, (2) 100mm, (1) DN 200 with sight glass, with (3) Plate heat exchangers manufactured by Ott, first heat exchanger with 18 plates, second heat exchanger with 19 plates, third heat exchanger with 27 plates, with a centrifugal pump manufactured by Fristan, type FP732/155L, serial number 32121533 driven by a 4,6kW electrical motor manufactured by Loher, type EA132S1A-2, serial number 8475071, 3~/50Hz/380V @ 2915rpm. Originally used to seperate Heptane and Oil. All Stainless Steel construction.

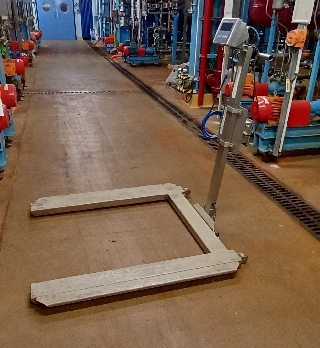

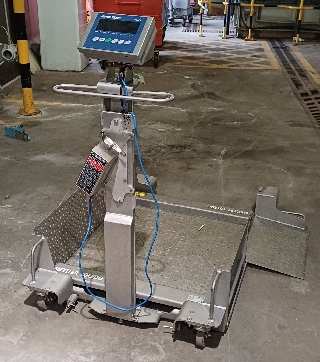

• Capacity 1000lbs/600kg
• e min 0.2lb/0.1kg
• Accuracy Class III
• n max 5000/3000
• P/N 61807003
• 760mm x 760mm Platform
• platform with foldable side rams so that an item can be wheeled onto it
• handle for pulling around
• mounted on 4 wheels
• Battery operated, manufactured by Mettler Toledo, NiMH battery pack, 10V/8AH
• Mettler Toledo weigh terminal, model IND226x, serial #B722174114, Ex II2G

• 1250mm wide x 1220mm long platform
• Battery operated
• Mettler Toledo model IND226x weigh terminal
• serial #B619463536
• Ex II 2G/D Ex ib IIC/111C T4 Gb ATEX CE 0344
• with 2 wheels and handle for moving around

Atago High-Precision Abbe refractometer with digital thermometer Brix scale range (Minimum) 0 Brix scale range (Maximum) 95 Refractive Index (Minimum) 1.3 Refractive Index (Maximum) 1.7 Resolution 0.1% Brix 0.0002 RI Temp accuracy ±0.2 degrees C Sample volume 0.2 mL Accuracy ±0.05%, ±0.0001, Display 3-digit LCD Power 100-240 VAC, 50/60 Hz

Temperature control module, manufactured by Budzar and others. Designed by Smith-Kline. Used to regulate the temperature in the jackets of the vessels. Each unit is a modular skid mounted system containing the following: Expansion vessel-90 Gallon 304 SS, manufactured by John Woods or others. Rated for FV/150 psi at 450 degrees F.NB & serial # 92547. Heat exchangers- Alfa Laval, copper brazed, with 100 sq.ft surface area. Jaggi Bern-70 Sq.Ft. 304/CS shell and tube heat exchanger. Sundyne Kontro, 100 GPM at 125 ft.hd.,316 SS, mag-drive, seal less horizontal centrifugal pump 1.5 x 3, driven by a 10 HP AC motor.

• portable 316 stainless steel thermal fluid jacket heater system,
• manufactured by Thermal Fluid Systems Ltd,
• design pressure 10 bar @ 120 degrees C,
• condensers & centrifugal pump
• built on controls with electric power cable/plug
• mounted on a skid with wheels

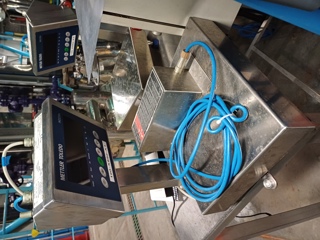

• Mettler Toledo 316L stainless steel small platform scales,
• battery operated,
• Mettler Toledo digital terminal,

Unused Hydraulic unit for a 3V Cogiem filter dryer.3.7kw, 200 bar max pressure. 150 liter tank. Complete except Motor.

Akron Electric Heated spray washer Catalog Number AXJ12186

• Ex II3 GD EEx nR IIC IP65 T6 ATEX
• CE1131
• 1.3m wide x 1.3m long 316 stainless steel weigh platform
• digital display unit

• hot water unit
• (1) 1.2m3/hr @ 6.16m head 316 stainless steel centrifugal pump, manufactured by HMD Sealless Pumps Ltd, model GTA 1x1x6, serial #821933, 85 degrees C, 0.55kW, 140mm diameter impellor, 1450 rpm,
• (1) 316 stainless steel tank
• (1) 316 stainless steel condenser
• all mounted on a carbon steel frame

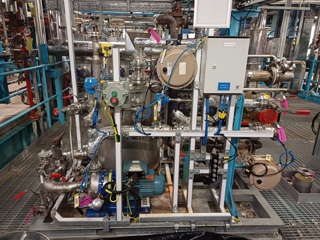

direct injection thermal control unit for controlling the temperature of thermal fluid circulation around a specified vessel jacket,

• area classification Zone 1, gas group IIB T4,
• design pressure water/steam/air 10 bar + full vacuum, design temperature water/steam 0/200 degrees C, air 0/50 degrees C,
• unit includes:
• (1) 15 m3/hr @ 25m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen, serial #06-00971/51729, type MKP 50-32-60, design pressure 10 barg @ -30/200 degrees C, magnetic drive, driven by 5.5kw, 3/50/400 volt 2900 rpm IP55 ATEX Eex de IIB T4 motor, 50mm suction, 40mm discharge, mounted on a baseplate,
• (1) 1.99 square meter 316L stainless steel welded plate heat exchanger, 175kW, manufactured by Caloperm, model: CP30-28/1/1H, design pressure 10 barg @ 0/200 degrees C, (28) 316L stainless steel welded plates, size 30, 400mm long x 708mm high, 4mm thick plates, flow rate hot side 291.5 kg/hr (2 barg steam), cold side 15 m3/hr, 40mm inlet, 40mm outlet, design code PED 97/23/EC CAT II,
• other ancillaries include ball valves, check valves, relief valves, steam traps, strainers, temperature control valves/transmitters/switches
• all mounted on a carbon steel skid

direct injection thermal control unit for controlling the temperature of thermal fluid circulation around a specified vessel jacket,

• area classification Zone 1, gas group IIB T4,
• design pressure water/steam/air 10 bar + full vacuum, design temperature water/steam 0/200 degrees C, air 0/50 degrees C,
• unit includes:
• (1) 15 m3/hr @ 25m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen, serial #06-00971/51730, type MKP 50-32-60, design pressure 10 barg @ -30/200 degrees C, magnetic drive, driven by 5.5kw, 3/50/400 volt 2900 rpm IP55 ATEX Eex de IIB T4 motor, 50mm suction, 40mm discharge, mounted on a baseplate,
• (1) 1.99 square meter 316L stainless steel welded plate heat exchanger, 175kW, manufactured by Caloperm, model: CP30-28/1/1H, design pressure 10 barg @ 0/200 degrees C, (28) 316L stainless steel welded plates, size 30, 400mm long x 708mm high, 4mm thick plates, flow rate hot side 291.5 kg/hr (2 barg steam), cold side 15 m3/hr, 40mm inlet, 40mm outlet, design code PED 97/23/EC CAT II,
• other ancillaries include ball valves, check valves, relief valves, steam traps, strainer's, temperature control valves/transmitters/switches
• all mounted on a carbon steel skid

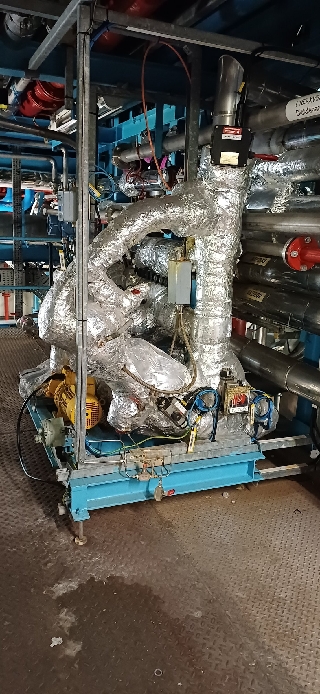

• jacket heating skid,

  includes:

(1) 200 liter 316L stainless steel vertical tank, manufactured by Protek Engineering, design pressure -100/100 mbarg @ -10/100 degrees C,

(1) 10m3/hr @ 25m head 316L stainless steel centrifugal pump, manufactured by CP Pumpen AG, type MKP 40-25-160, serial #12-01308/90340, 152mm diameter impellor, 2930 rpm, 25/100 degrees C, approx 5kW motor,

(1) 316L stainless steel 'U' tube, shell and head horizontal heat exchanger, manufactured by ITT Bell & Gossett, design pressure tube side 10.3 barg @ 160 degrees C, shell 10.3 barg @ 200 degrees C,

all mounted on a carbon steel skid

• direct injection thermal control unit for controlling the temperature of thermal fluid circulation around a specified vessel jacket,
• design pressure 10 barg @ 120 degrees C,
• built on controls,
• (1) centrifugal pump, manufactured by Girdlestone, type 090S2G, serial #55101, size 40-25-145, driven by 1.1kW, 3/50/415 volt, 2890 rpm Ex IP55 motor,
• all parts built in a carbon steel frame and is mounted on a pallet for moving around,
• design code piping ASME B313-1990,

• 316 stainless steel platform scales with Mettler-Toledo IND22x terminal,

125 psi, two stage ejector and intercondesnser, designed and built by Graham for Swenson Evaporator. Includes the following equipment, 1-6" shell ejector 316 SS, 125 psi motive force x 54" long; 1-2" shell ejector 316 SS, 125 psi motive force, 24" long,: 1- 100 Sq. ft. all 316 SS, horizontal shell and tube heat exchanger, manufactured by Graham, serial # 753723, NB # 17680. Shell rated for FV/20 psi at 300 degrees F, tubes rated for 75 psi at 200 degrees F. 10" diameter x 115" overall length with 3" cooling water nozzles.

30" Industrial dishwasher, 304 SS, with dual baskets Washing chamber is 30" x 30" x 36". Pump driven by a 2 HP motor. Inlet is 3/4", discharge is 1.5"

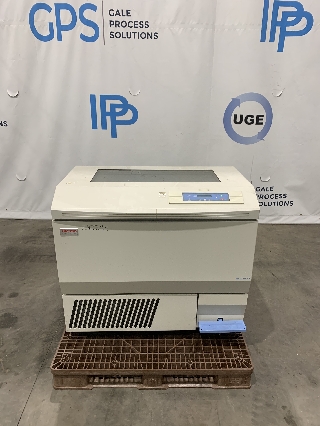

• Floor Console Incubator/Orbital Shaker.
• Takes a 6 liter or a 4 liter flask
• 25 up to 525 RPM
• 41 degrees F., to 140 degrees F.
