• Contour screen bowl centrifuge.
• Reliance 444T frame TEFC motor
• Oil system driven by a Reliance143T TECF, 1 hp 3/60/460 volt motor

single lead conveyor w/hardfacing Used on Dorr Oliver 16L and Flottweg Z3L

solid bowl decanter centrifuge With one cylindrical section. with a max. centrifugal acceleration of 4700 (XG)Scroll differential is 12 (normal) with a maximum of 27.Rated for 1,200 liters/hr. With Back drive. 4.3: 1 ratio sludge scraper motor is 0.18 kW.

decanter centrifuge, 354/220mm diameter bowl 1/6 m3/hour throughput, 4/80 degrees C, 3kg/dm3 solids, (1) 6 m3/hr @ 44m head 316 stainless steel centrifugal pump, manufactured by Dickow Pumpen, type SC h 4072, fabrik #18210442, 2.8kw, 1450 rpm, 10 bar @ 120 degrees C, EX 11 2 G Ex h IIC T6...T3 Gb ATEX CE, driven by 4kw, 2/50/690/400/415 volt, 1458/1461 rpm CE Ex de II C T4 Gb ATEX motor, on baseplate,

decanter centrifuge system, 354/220mm diameter bowl 1/6 m3/hour throughput 4/80 degrees C 3kg/dm3 solids (1) 400 liter 316Ti stainless steel vertical tank, manufactured by BinderBerger, Fabrik #777, bolt dished top, weld dished bottom, mounted on legs, (1) 6 m3/hr @ 30m head 316 stainless steel centrifugal pump, manufactured by Dickow Pumpen, type NMB h 26/170, 2900 rpm, 1.8kw, driven by 7.5/5/5kw, 3/50/400/690 volt, 2925 rpm EEx e II IP54 motor, mounted on a baseplate,

solid bowl centrifuge CS bowl and scroll with ceramic flights

decanter Contour bowl design 3 phase seperation With ajustable weirs Average flow rate for feed is 35 gpm Originally built with a 110 mm pitch Main motor : CE rated 50 CYC, 400 volt, 60 cycle 460 volt Back drive: 4 KW 3/50/380 volt motor, 1440 rpm.

duplex stainless steel 80 mm slope sludge density max filling volume 33,4 kg Motor: IP 55 two-stage planetary drive Single thread screw construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks 1.4462/1.4571 stainless steel, casing 1.4571/ 1.4401 stainless steel, carbon steel frame,

Sharples Penwalt (Alfa Laval) P-2000 centrifuge 360 degree solids discharge,
No backdrive, torque arm control. Positive lock weir damns. Complete with main drive, gearbox, feed tubes, and base

With V belt drive to gear reducer.

4 1/4" pitch single lead with 1 3/8" welded hardsurfacing Solid flights Feed ports have welded hardsurfacing.

decanter centrifuge with 10/3 deg contour on bowl tapper. 4 1/2" pitch double lead non-hardsurfaced conveyor w/rinse. 40:1 gearbox

Designed for food grade and acceptable for use in Class 1 Div 2 group D areas and is fume tightSP. Rated for 10,600 lbs./hr. of feed, 9100 lbs./hr. of centrate and 1500 lbs./hr.cake. Rated for 80 degrees F.Bowl has special abrasion protection on the feed and conical section of the machine.Includes vibration sensor. Control panel includes PLC for automated dewatering. Only 30 hours of operation!

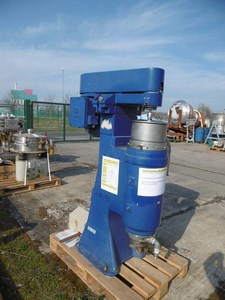

vertical, super centrifuge with classifier design bowl solids holding capacity 5.3 liter inner bowl 124mm

• Conical solid bowl centrifuge
• 4 1/4" pitch double lead conveyor w/hard surfacing.
• (4) eccentric plate dams.
• Vapor seal design.
• Less gearbox, torque control, feed tube, drive motor, subbase and guards.

solid bowl decanter Nominal speed 2750 rpm motor w/clutch Rated 5000 liters/hr @ 20% solids for rendering applications

conical solid bowl centrifuge 4 1/4" pitch double lead non-hard surfaced conveyor 1-piece, 3 setting, plate dam. Screw impellor discharge (no collector) Vaporseal design

duplex stainless, solid bowl decanter with back drive, 2-phase separation 360 degree solids outlet Manufacturer specified flow rate in GPM is 200 to 400 Designed for 81 lbs/Cubic foot specific gravity of material. Main rotating assembly components are centrifugally cast Duplex Stainless Steel type 4462 Main drive is a 125 HP 3/60/230/460 volt and hydraulic power pack Scroll is driven by a 40 HP 3/60/230/460 volt TEFC motor. (2) Liquid discharge flanges, 1060 mm wide x 309.45 mm each. Solids discharge flange is 1060mm wide x 460 mm. Overall Dimensions: 5700.68 mm Long X 1406.6 mm wide x 1561.20 mm high. Rotating Assembly 8,054 lbs; complete centrifuge with filling (1.0 S.G.) 18,100 lbs Manufactures states the flight pitch is 9-10 degrees.

Continuous feed type 10 degree cone on bowl Left hand rotation Back drive is 25 hp. at 3600 rpm, 460 volts

Decanter Centrifuge Gas Tight housing Worm lengh is 600 mm x 220/125mm diameter With spare rotating assembly, worm, and gear box

decanter centrifuge 12mm thick basket specific gravity 2 kg/dm3 volume 10 m3/hr

• 353/202mm diameter, 2-phase solid bowl decanter centrifuge.
• Working speed 3250 rpm minimum feed temperature 0 degrees C (32 degrees F),maximum feed temperature 100 degrees C (212 degrees F)stainless steel hinged top cover, screw plated with Wolfram-Carbide plates
• CE confirm, with tools for bowl and basket services.

decanting centrifuge Job Number 139431 Requires motor

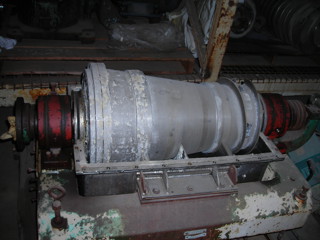

Rotating assembly Ens stamped CMW3-7-08/8626, End stamped CMW3-7-08, Bowl stamped P-2000V-ME-88-114854, Screw conveyor and one gearbox.

horizontal screen bowl centrifuge Rated for 3,400 lbs./hr.(dry basis).
24" diameter bowl x 36" long. 2" diameter feed tube. With self contained oil systen and cooler.
