2 cell galvanised cooling tower 38 degrees C inlet temperature, 23 degrees C outlet temperature, 18 degrees C wet bulb temperature 3 phase fan driven by 16/3.7 kw, 442/221 rpm motor, fan diameter is 84", 20 degree trial pitch angle, (1) electrical heater in the bottom, manufactured by Heatrae Industrial ltd, type 1H/10, 9 kw , 415 volt, handrail around the top, ladder, Air Flow Rate: 140 m3/h (82.4 CFM).
NC-8241 galvanised steel cooling tower 45 kw, 3/50/415 volt gear reducer model 22.3 gear ratio: 3.79:1 inlet temp 28 to 40 deg C, recool temp 23 to 30 deg C wet bulb temp 18 to 25 deg C (2) electric heaters manufactured by Heatrae Industrial ltd, handrail around top, 2 x ladders, 3050mm diameter fan, manufactured by Brook Hansen, type 120-6-24L/22MT, serial # GH036299, driven by 45 kw, 3/50/380 volt, 1470 rpm motor, tower with 3 x Durco 185 m3/hr @ 23 deg C centrifugal pumps, type Chemstar, size 150x125-400/400, 50m head, 1500 rpm, S.G 1.00, driven by 45 kw, 3/50/415 volt, 1470 rpm Exn 11 T3 motor, mechanical seal. Air Flow Rate: 725 m3/h (426.7 CFM).

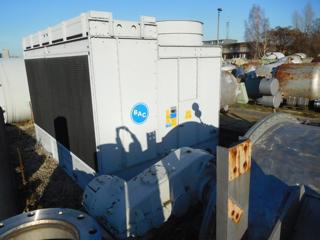

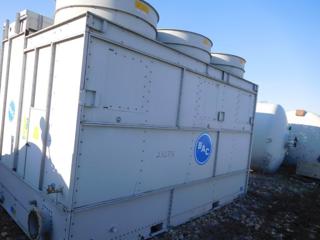

144.5 liter/second cooling tower 35 to 30 degrees C @ 21 degrees C entering wet bulb Fan Power: 3,024 kW (4,055 HP). Height: 3,500 mm (137.8 in). Length: 6,400 mm (252 in). Width: 3,500 mm (137.8 in). Number of Fans: 3.
International Process Plants has many used chillers for sale and other used processing equipment for use in industrial refrigeration.
Much like a Boiler is used to heat a process, a Chiller and other Refrigeration equipment is typically used to cool a process.
Chillers work by compressing a refrigeration gas (R132A, Freon, R22) into a liquid, and using a special refrigeration valve, releasing the compressed liquid back into a gas.
The conversion of the liquid back into a gas removes heat and creates cold. It is the same principal as when you use a can of compressed air to clean your computer keyboard. The longer you release the compressed air, the colder the can gets.
You use the cold that is created by using a heat exchanger for liquid cooling or air exchanger if you are cooling air.
Chillers are further grouped by the type of cooling used to dispense the heat generated:
Chillers are typically a packaged design with the compressor, condenser, evaporator, pumps, valves and controls all skid mounted.
Chillers are often distinguished by the Tons of Refrigeration they produce and at what temperature. A rule of thumb to use when looking for the capacity of a chiller is 1 ton of refrigeration @ 40 degrees F for each horsepower the compressor uses. The lower the discharge temperature, the more horsepower is required.
Cooling towers are designed to take water that is heated during the refrigeration process and cool it quickly by passing it through a cooling tower where large fans cool the water.
Manufacturers include: Advantage, AEC, BAC, Berg, Bry-Air, Budzar, Carrier, Cincinnati, Conair, Cooling Technologies, DUNHAM BUSCH, Dunham/Bush, Fasti, FES, Frick, FTS SYSTEMS, GES, Jensen, Kinectic Dispersion, McQuay Snyder, McSaw, Neslab, R, Sterlco, Teco, Thermalcare/Mayer, Trane, Trane Co, Transtore, York .
