T-30 Air Compressor belt driven by a Baldor Industrial motor T-30 compressors are designed for reliability and ease of maintenance. Compressor Type: Reciprocating. Discharge Pressure: 11 bar (159.5 psi). Flow Rate: 17 m3/h (10 CFM).
T-30 Air Compressor belt driven by a Baldor Industrial motor The T-30 compressors are designed for reliability and ease of maintenance. Compressor Type: Reciprocating. Discharge Pressure: 11 bar (159.5 psi). Flow Rate: 17 m3/h (10 CFM).

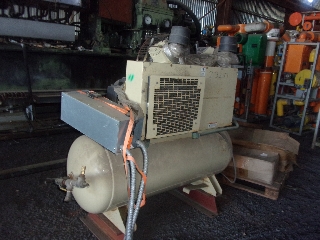

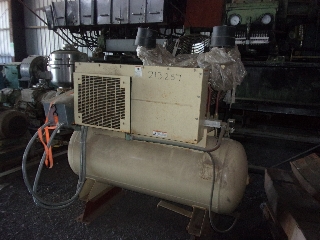

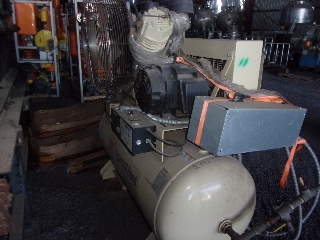

Air Compressor with 40 gallon tank Compressor Type: Reciprocating. Flow Rate: 42.5 m3/h (25 CFM).
Gas compressor. Rated suction pressure 0.30 amps.. Rotation Drive end CCW Compressor Type: Reciprocating. Discharge Pressure: 6.2 bar (90 psi). Flow Rate: 168.2 m3/h (99 CFM).
Aminco vert compressor 0 psi suction 250 psi discharge Discharge Pressure: 17.2 bar (250 psi). Flow Rate: 15.3 m3/h (9 CFM). Speed (RPM): 350.
Aminco vert compressor. 3/60/220/440 volt 438 rpm min Compressor Type: Reciprocating. Inlet Pressure: 2.4 bar (35 psi). Discharge Pressure: 29.3 bar (425 psi). Flow Rate: 42.5 m3/h (25 CFM).

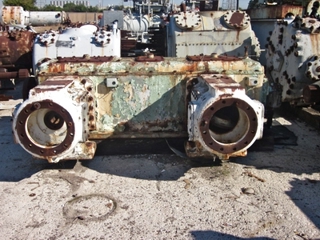

compressor cylinder. Compressor Type: Reciprocating.
177 lbs/day oxygen gas compressor Size 26x26x25x16.5x12 Flow Rate: 1,220 m3/h (718 CFM). Speed (RPM): 327.
Cast iron cylinder nitrogen compressor. Compressor Type: Reciprocating.
Cast iron cylinder for Clark nitrogen compressor 4" stroke, 12" bore. Max 800 psi.
reciprocating air compressor Compressor Type: Reciprocating. Discharge Pressure: 41.4 bar (600 psi). Flow Rate: 169.9 m3/h (100 CFM). Inlet Diameter: 76.2 mm (3 in). Speed (RPM): 450.
hydrogen reciprocating compressor Compressor Type: Reciprocating. Inlet Pressure: 8.8 bar (127.9 psi). Discharge Pressure: 34.7 bar (503.4 psi). Flow Rate: 4.8 m3/h (2.8 CFM). Speed (RPM): 220.
dry hydrogen reciprocating compressor. suction pressure 6.5 - 9 Kg/sq cm discharge pressure 23 - 35.4 Kg/sq cm Compressor Type: Reciprocating. Inlet Pressure: 8.8 bar (127.9 psi). Discharge Pressure: 34.7 bar (503.4 psi). Flow Rate: 4.8 m3/h (2.8 CFM). Speed (RPM): 220.
dry hydrogen reciprocating compressor suction pressure 17 kg/cm2, discharge pressure 35-66 kg/cm2 speed 257 rpm, 400 rpm, Compressor Type: Reciprocating. Inlet Pressure: 16.7 bar (241.8 psi). Discharge Pressure: 83.4 bar (1,209 psi). Flow Rate: 4.9 m3/h (2.9 CFM). Speed (RPM): 257.
dry hydrogen reciprocating compressor. discharge pressure 35-66 kg/cm2 speed 257 rpm, 400 rpm Compressor Type: Reciprocating. Inlet Pressure: 16.7 bar (241.8 psi). Discharge Pressure: 83.4 bar (1,209 psi). Flow Rate: 4.9 m3/h (2.9 CFM). Speed (RPM): 400.
low pressure hydrogen compressor, vertical,two stage. V-belts Hydrogen humidity 100% compressor, capacity 65 kW, suction pressure, 1 stage 1.05 bar,30 C; 2nd stage 3,0 bar/34 C; discharge pressure abs 1 st stage 3.2 bar/145 C; 2nd stage 7.1 bar/122 C. 1st stage cylinder dia 370mm; 2nd stage 220mm. Cylinder material Ni-resist. Safety valve on 1st stage react at 3.5 bar; on 2nd stage 7.5 bar. Cooling water 5 cbm inlet temp 24 C@3 bar. Compressor Type: Reciprocating. Inlet Pressure: 1.05 bar (15.2 psi). Discharge Pressure: 6.1 bar (88.5 psi). Flow Rate: 550 m3/h (323.7 CFM). Speed (RPM): 720.
high pressure hydrogen compressor vertical, two stage, type BV 35-145/65 Rated capacity 80 cbm/hr,300 rpm, stroke 85 mm, drive 11,8 kW. V belt driven by 15 kw, 50 hz, 1460 rpm. Hydrogen humidity 100%. Suction 1st stage 6 bar/30 C, suction 2nd stage 22.2 bar/34 C, discharge 1st stage 22.4 bar/148C, discharge 2nd stage 40 bar/75 C, 1st stage cylinder dia 145mm, 2nd stage 65mm, cylinder mat GGz 25,safety valve on 1st stage reacts at 21.5 bar,on 2nd at 43 bar,cooling water 0.3 cbm/hrinlet 10C,outlet 22c@3 bar Compressor Type: Reciprocating. Inlet Pressure: 6 bar (87 psi). Discharge Pressure: 40 bar (580.2 psi). Flow Rate: 80 m3/h (47.1 CFM). Inlet Diameter: 50 mm (1.97 in). Speed (RPM): 300.
@ 19/25 bar compressor Compressor Type: Reciprocating. Discharge Pressure: 25 bar (362.6 psi). Flow Rate: 95.3 m3/h (56.1 CFM).
pressure compressor cooling medium R717 Motor current: 144A Discharge Pressure: 18 bar (261.1 psi). Flow Rate: 414 m3/h (243.7 CFM). Speed (RPM): 1,450.
cooling medium R717 Compressor Type: Reciprocating. Discharge Pressure: 18 bar (261.1 psi). Flow Rate: 1,102 m3/h (648.6 CFM). Speed (RPM): 1,460.
no ex proof System included (2) separator tanks (1) separate 4 cm³/U oil pump, type KF1/4 D10K POA ODD1 with 0.56 kW, 220-380, 50 Hz, 1.380 rpm electrical motor (1) separate control panel Compressor Type: Reciprocating. Discharge Pressure: 18 bar (261.1 psi). Flow Rate: 660 m3/h (388.5 CFM). Speed (RPM): 1,460.
DK compressor Compressor Type: Reciprocating. Discharge Pressure: 18 bar (261.1 psi). Flow Rate: 671 m3/h (394.9 CFM). Speed (RPM): 1,485.
air compressor fully enclosed in soundproof cabinet Compressor Type: Reciprocating. Discharge Pressure: 8 bar (116 psi). Flow Rate: 659 m3/h (387.9 CFM). Speed (RPM): 1,500.
Reciprocating air compressor fully enclosed in soundproof cabinet Compressor Type: Reciprocating. Discharge Pressure: 7.5 bar (108.8 psi). Flow Rate: 738 m3/h (434.4 CFM). Speed (RPM): 3,000.
2-stage reciprocating gas compressor system stage 1 with 5.25” bore, 9” stroke, normal discharge pressure 562 psig, rated discharge pressure 1500 psig, max working pressure 1650 psig, max discharge gas temperature 350 deg F (177 deg C), max cooling water pressure 75 psig, stage 2 with 4” bore, 9” stroke, normal discharge pressure 887.5 psig, rated discharge pressure 3300psig, max working pressure 3650 psig, max discharge gas temperature350 deg F (177 deg C), max cooling water pressure 75 psig, (1)1st stage discharge dampner, 80ltr carbon steel horizontal pressure tank, manufactured by Dresser-Rand, job #84890, design pressure 45 barg @ 200 deg C, weld dished ends (1) 1st stage suction dampner, 80ltr carbon steel horizontal pressure tank, manufactured by Dresser-Rand, job #84890, design pressure 24 barg @ 200 deg C, weld dished ends (1) 1st stage intercooler, 4.4 sqm carbon steel horizontal ‘U’ tube heat exchanger, manufactured by Bronswerk Heat Transfer, job #30264, type 15-BEU-34, design pressure tubeside 120 barg @ 200 deg C, shell side 10 barg @ 60 deg C, (13) 15.8mm diameter x 2.32 x 3.4m long ‘U’ tubes, bolt flat head (1) 2nd stage discharge dampner, 50ltr carbon steel horizontal pressure tank, manufactured by Dresser-Rand, job #84890, design pressure 71 barg @ 200 deg C, weld dished ends (1) 2nd stage suction dampner, 80ltr carbon steel horizontal pressure tank, manufactured by Dresser-Rand, job #84890, design pressure 45 barg @ 200 deg C, weld dished ends (1) 2nd stage after cooler, 4.4 sqm carbon steel horizontal ‘U’ tube heat exchanger, manufactured by Bronswerk Heat Transfer, job #30267, type 15-BEU-34, design pressure tubeside 288 barg @ 200 deg C, shell side 10 barg @ 60 deg C, (13) 15.8mm diameter x 2.32 x 3.4m long ‘U’ tubes, bolt flat head (1) line separator, 37ltr carbon steel vertical pressure tank, manufactured by Peerless Europe ltd, job #93/1127/11, design pressure 45 barg @ 200 deg C, weld dished top and bottom (1)liquid collection pot, 13ltr carbon steel vertical pressure tank, manufactured by Dresser-Rand, job #84890, design pressure 71 barg @ 200 deg C, weld dished top and bottom (1) 2nd stage separator, (stand alone), 240ltr c/steel vertical pressure tank, manufactured by Paul & Loughran ltd, design pressure 300 barg @ 150 deg C Compressor Type: Reciprocating. Inlet Pressure: 22.4 bar (324.9 psi). Discharge Pressure: 61 bar (884.7 psi). Flow Rate: 1,633 m3/h (961.3 CFM).

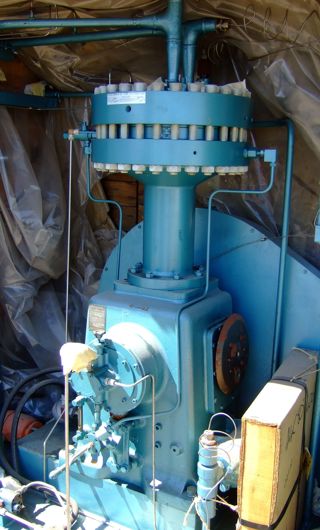

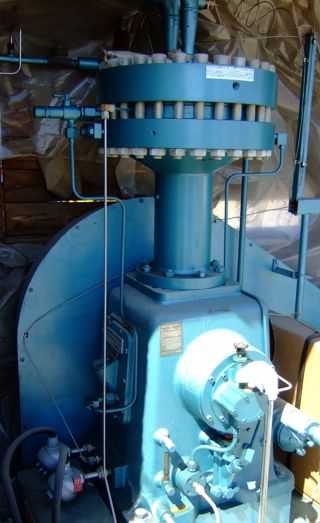

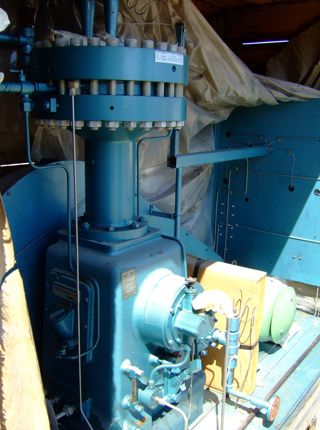

Single stage diaphragm hydrogen compressor 400mm diameter metal diaphragm size 3 manufactured by (SERA) Seybert & Rahier - Germany Belt driven Compressor Type: Reciprocating. Inlet Pressure: 15 bar (217.6 psi). Discharge Pressure: 23 bar (333.6 psi). Flow Rate: 53 m3/h (31.2 CFM). Speed (RPM): 375.
three stage liquid CO2 compressor No driver available Compressor Type: Reciprocating. Inlet Pressure: 0.97 bar (14 psi). Discharge Pressure: 46.9 bar (680 psi). Flow Rate: 1,779 m3/h (1,047 CFM). Speed (RPM): 325.
three stage liquid CO2 compressor No driver available Compressor Type: Reciprocating. Inlet Pressure: 0.97 bar (14 psi). Discharge Pressure: 46.9 bar (680 psi). Flow Rate: 4,417 m3/h (2,600 CFM). Speed (RPM): 420.
three stage liquid CO2 compressor No driver available. Compressor Type: Reciprocating. Inlet Pressure: 0.97 bar (14 psi). Discharge Pressure: 46.9 bar (680 psi). Flow Rate: 4,417 m3/h (2,600 CFM). Speed (RPM): 420.
two stage liquid CO2 compressor No driver available. Compressor Type: Reciprocating. Inlet Pressure: 1.03 bar (15 psi). Discharge Pressure: 39.2 bar (568 psi). Flow Rate: 115.5 m3/h (68 CFM). Speed (RPM): 480.
absorbed power 295kw used onthe following gases H2, CH4, C2H5, C3H8, C1H10, C5H12, H2O, Compressor Type: Reciprocating. Inlet Pressure: 13.6 bar (197.5 psi). Discharge Pressure: 37.1 bar (538.4 psi). Flow Rate: 5,843 m3/h (3,439 CFM). Speed (RPM): 370.
absorbed power 295kw the compressor can be used onthe following gases H2, CH4, C2H5, C3H8, C1H10, C5H12, H2O Compressor Type: Reciprocating. Inlet Pressure: 13.6 bar (197.5 psi). Discharge Pressure: 37.1 bar (538.4 psi). Flow Rate: 5,843 m3/h (3,439 CFM). Speed (RPM): 370.

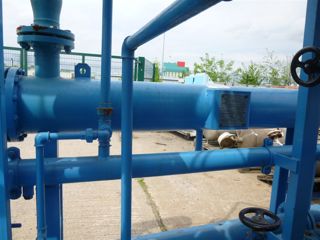

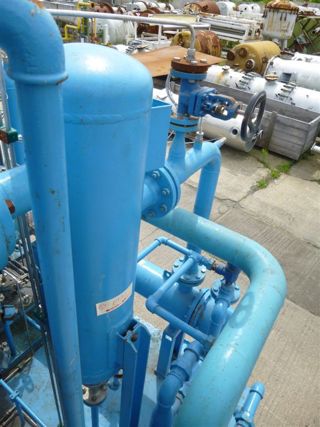

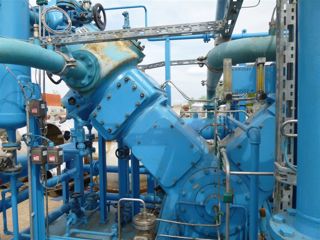

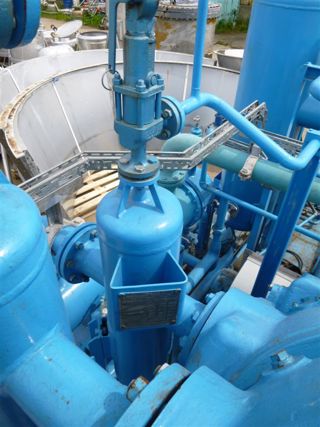

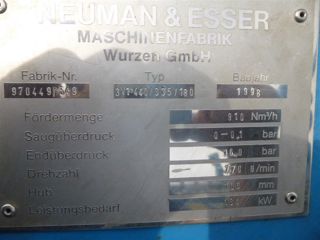

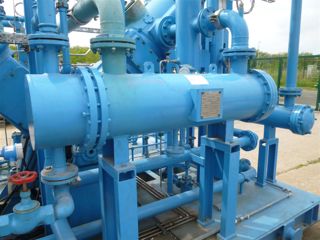

Flow rate: 910 Nm3/hr 100/165 deg C Hydrogen 3-stage V-type compressor system aspiration flow 1010 m3/hr suction pressure stage 1 = 1/1.1 bar @ 20-40 deg C, stage 2 = 3.6 bar @ 140 deg C, stage 3 = 10.76 bar @ 40 deg C, pressure side stage 1 = 3.8 bar @ 165 deg C, stage 2 = 10.8 bar @ 160 deg C, stage 3 = 17 bar @ 100 deg C, ambient temperature -20/+10 deg C, water cooled compressor, performance 134kw 1500 rpm motor (missing) system also includes heat exchanger (gas cooler), pulsation dampers, separators, pipework, pressure gauges etc Compressor Type: Reciprocating. Inlet Pressure: 1.1 bar (16 psi). Discharge Pressure: 17 bar (246.6 psi). Flow Rate: 910 m3/h (535.6 CFM). Speed (RPM): 770.
650 Nm3/hr Hydrogen single stage compressor system mass flow 62.2 kg/hr, suction pressure 16 bar @ 35 – 40 deg C, ambient temperature -20/+40 deg C, water cooled compressor performance 41kw, single stage, 85mm stroke, speed 780 rpm, average piston speed 2.21 m/sec, V-belt driven by 51kw, system also includes (1) horizontal heat exchanger (gas cooler), (2) pulsation dampers (1 for suction, 1 for discharge), pipework, pressure gauges etc Compressor Type: Reciprocating. Inlet Pressure: 16 bar (232.1 psi). Discharge Pressure: 50 bar (725.2 psi). Flow Rate: 650 m3/h (382.6 CFM). Inlet Diameter: 40 mm (1.57 in). Speed (RPM): 780.
C 3-stage reciprocating Boil-off-gas (BOG) compressor system maximum allowed rod. Load 100kN, rated discharge pressure of final stage 69 barg, suction pressure 1st stage 0.05 bar @ 30 degrees C, 2nd stage 4.6 bar @ 45 degrees C, 3rd stage 27.7 bar @ 45 degrees C, discharge pressure 1st stage 4.7 bar @ 176 degrees C, 2nd stage 27.9 bar @ 190 degrees C, 3rd stage 69 bar @ 160 degrees C, driven by a 250kw, 3/50/400 volt, 594 rpm ATEX 1022 EExd II B T4Loher motor, (1) 550 liter stainless steel vertical pulsation dampner vessel, manufactured by Nadoba Stabilini, serial #954, pressure 0.05 bar @ -118/+30 degrees C, 610mm diameter x 1740mm straight side, weld dished top and bottom, (1) 125 liter carbon steel horizontal pulsation dampner, manufactured by Tlakova Nadoba Stabilini, serial #955, pressure 10.7/69.6 bar @ 57/159 degrees C, weld dished ends, (1) carbon steel tube and shell horizontal 1st stage intercooler, manufactured by APL Apparatebau AG, serial #W8227/EC22601, tubeside pressure 10 barg @ -10/200 degrees C (27 liter), shell 10 barg @ -10/200 degrees C (53 liter), (1) carbon steel tube and shell horizontal 2nd stage intercooler, manufactured by APL Apparatebau AG, serial #W8228/EC22602, tubeside pressure 29 barg @ -10/200 degrees C (20 liter), shell 10 barg @ -10/200 degrees C (55 liter), (1) carbon steel tube and shell horizontal 3rd stage intercooler, manufactured by APL Apparatebau AG, serial #W8229/EC22603, tubeside pressure 78 barg @ -10/200 degrees C (9 liter), shell 10 barg @ -10/200 degrees C (42 liter), system also includes interconnecting pipework, valves, etc, ALL CE MARKED Compressor Type: Reciprocating. Inlet Pressure: 0.05 bar (0.73 psi). Discharge Pressure: 90 bar (1,305 psi). Flow Rate: 875 m3/h (515 CFM).
two stage compressor SO # 60.5-7315 Compressor Type: Reciprocating. Inlet Pressure: 1.69 bar (24.5 psi). Discharge Pressure: 17.6 bar (255 psi). Flow Rate: 1,631 m3/h (960 CFM). Speed (RPM): 600.
Metallic diaphragm reciprocating air compressor Belt driven actual discharge temperature 130 degres C, actual discharge pressure 0.32 to 139 bar. Openings: 4-1"; water 2-1" Compressor Type: Reciprocating. Discharge Pressure: 139 bar (2,016 psi). Flow Rate: 51 m3/h (30 CFM). Speed (RPM): 400.
driven by 220/253kW, 3/50-60/400-690/460 volt, 1480/1776 rpm motor, built on controls, (1) model DE235 HP refrigerant air dryer, manufactured by M.T.A. spa, serial #2200079613, 3/50/400 volt, IP22, R134a refrigerant, pressure 22.6 bar LP side, 26 bar HP side, Compressor Type: Reciprocating. Discharge Pressure: 42 bar (609.2 psi). Flow Rate: 1,224 m3/h (720.4 CFM). Speed (RPM): 758. Oil Free: Yes.
driven by 220/253kW, 3/50-60/400/440-460 volt, 1463/1750-1759 rpm motor, with model DE235 HP refrigerant air dryer, manufactured by M.T.A,spa, serial #2200077950, 3/50/400 volt, IP22, R134a refrigerant, pressure 22.6 bar LP side, 26 bar HP side, Compressor Type: Reciprocating. Discharge Pressure: 42 bar (609.2 psi). Flow Rate: 1,224 m3/h (720.4 CFM). Speed (RPM): 758. Oil Free: Yes.
Compressors are designed to compress (over 20 psi) and move air and other gases such as hydrogen, oxygen, nitrogen, etc. IPP's Compressors for sale are listed by the Cubic Feet per Minute or CFM rating and pressure.
Centrifugal compressors use centrifugal forces to pump air or gas to develop pressure. They typically operate at speeds of 3500 rpm or higher. Multiple stages are used to produce the required pressure rise. This type of compressor is driven by an electric motor, steam turbine, or gas turbine, with or without speed increasing gears.
Rotary compressors, blowers, and vacuum pumps are positive displacement type machines. This type of machine incorporates rotating internal lobes, screws or vanes that compress the gas or air. They are constant volume machines with variable discharge pressure. The volume can be varied only by changing the speed or bypassing or wasting some of the capacity of the machine. The types of rotary compressors are classified by the type of rotor they use. These include: straight-lobe, sliding vane, liquid piston, screw type.
Reciprocating compressors are furnished in either single-stage or multi-stage types. The principal parts of this type of machine are the cylinders and the pistons. The different types you will see include single acting air cooled or water cooled, single stage double acting water cooled, horizontal or vertical.
