IPP# 108249 1.3 m² (14 ft²) Carbon Steel Press Filter For Sale

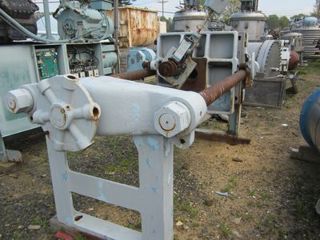

Polypropylene Shriver Press Filter

Type: Filter

Subtype: Press

Manufacturer: Shriver

Model: Size 12

Condition: Used

Material: Polypropylene

Filtration Area: 2.6 m² (28 ft²)

Pressure: 6.89 bar (100 psi)

Polypropylene filter press, Size 12 2 eye corner feed, With (13) 2 button frames 9.5"ID x 8" ID x 1" thick, and (14) plates - (8) are 1 button with nozzles, (7) are 3 button washing type.
Manual closure, Portable design.

Cake Volume: 0.017 m3 (0.6 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 13. Number of Plates: 14. Plate MOC: Polypropylene. Skeleton MOC: Carbon steel. Plate Diameter or Width: 305 mm (12 in). Plate Height: 305 mm (12 in). Plate Thickness: 25.4 mm (1 in). Plates Shifted By: Manual.

Press Filter

Type: Filter

Subtype: Press

Manufacturer: Shriver

Condition: Used

Material: Stainless Steel 316

Filtration Area: 19.3 m² (208 ft²)

Pressure: 6.89 bar (100 psi)

Overall Length: 2,438 mm (96 in). Overall Width: 914 mm (36 in). Overall Height: 1,702 mm (67 in). Cake Volume: 1.42 m3 (50 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 25. Number of Plates: 26. Plate MOC: Stainless Steel 316. Skeleton MOC: Carbon steel. Plate Diameter or Width: 610 mm (24 in). Plate Height: 610 mm (24 in). Plate Thickness: 6.35 mm (0.25 in). Plates Shifted By: Manual.

Polypropylene Edwards and Jones Filter Press

Type: Filter

Subtype: Press

Manufacturer: Edwards and Jones

Condition: Used

Material: Carbon Steel

Overall Length: 6,401 mm (252 in)

Overall Width: 2,591 mm (102 in)

skeleton only
4-corner closed discharge
Unit has an electric motor closure, driven by 4 KW,940 rpm

Overall Height: 1,524 mm (60 in). Skeleton MOC: Carbon Steel. Plate Diameter or Width: 860 mm (33.9 in). Plate Height: 1,160 mm (45.7 in). Plates Shifted By: Manual.
