liquid/solid twin shell blender. Maximum density 55 lbs/cubic feet. Shell 48" outer diameter Blender rotation 11 rpm, liquid/solids intensifier bar rotation 1174 rpm. Mixer gear driven by 7.5 HP, 3/60/460 volt TEFC motor, 1750 rpm output speed with belt and drive with protective guard. Intensifier bar driven by 20 HP, 3/60/230/460 volt, 100 rpm output speed TEFC gear motor. 3/4" type RSP rotary union. Mixer equipped with 3 7/16" Dodge type pillow block bearings. Mixer has (2) 18" diameter access ports with quick openings. 1-20" outer diameter discharge port with air operated valve.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.42 m3 (15 ft3)
Capacity Operating: 0.28 m3 (10 ft3)
twin shell blender 90 lbs. cu.ft. maximum density shell diameter is 24", manway diameter is 17 & 3/4" with a air operated butterfly valve Electrical requirement is 208/230/460 volts, 3 ph, 60 hz. With brake
Product Density: 1,442 kg/m3 (90 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.001 m3 (0.03 ft3)
Capacity Operating: 0 m3 (0.01 ft3)
motor with chain and sproket drive. Unit enclosed in a plastic housing
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.57 m3 (20 ft3)
Capacity Operating: 0.37 m3 (13 ft3)
Maximum density of charge-65lbs.cu./ft Driven through a Patterson Helix reducer
Product Density: 1,041 kg/m3 (65 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.03 m3 (1 ft3)
Capacity Operating: 0.019 m3 (0.66 ft3)

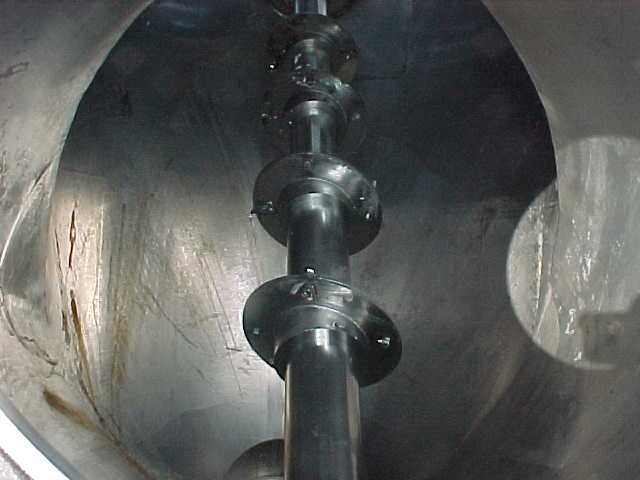

twin shell "V" blender with Intensifier Bar. rated 75 Lbs/CuFt. Designed for dry blending. With 1/4 HP gear head motor for blender drive, 1.5 HP motor for intesifier bar. (2) 10" charge ports with covers, oval discharge port with cover.
Intensifier Bar: Yes. Product Density: 1,201 kg/m3 (75 lb/ft3).
