Rotary Compressor 2,744 m3/h (1,615 CFM) For Sale

Type:

Compressor

Subtype:

Rotary

Manufacturer:

Aerzen Corp

Model:

VM 337

Condition:

Used

Compressor Type:

Rotary

Inlet Pressure:

1.01 bar (14.7 psi)

Discharge Pressure:

3.8 bar (55 psi)

Flow Rate:

2,744 m3/h (1,615 CFM)

Inlet Diameter:

203.2 mm (8 in)

Speed (RPM):

3,550

Controls:

Yes

Cooling Type:

Air

Discharge Temperature:

15.6 °C (60 °F)

Enclosure:

Yes

Motor Make:

General Electric

Motor Speed (RPM):

3,575

Motor Power:

223.7 kW (300 HP)

Motor Voltage:

460

Motor Hertz:

Motor Cycles:

Orientation:

Horizontal

Outlet Discharge Diameter:

152.4 mm (6 in)

Support Details:

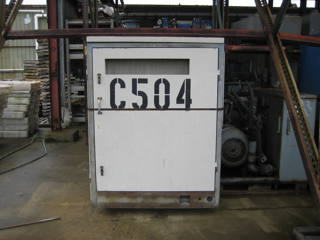

This unit is mounted in complete sound proof enclosure.

Oil Free:

Yes

Additional Info:

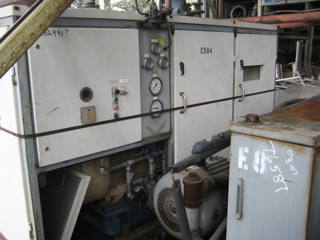

air cooled oil free rotary screw compressor This is a twin shaft screw compressor, positive displacement type 55 psia @ 60 degrees F outlet pressure The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute 321 amps General Electric Energy Saver AC motor The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.
