Rated 300/FV @ -20 to 425 degrees tube side; FV/50 psi @- 20 to 425 degrees F shell side. clamped heads
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler (Chemetics)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 7.9 m² (85 ft²)
Orientation: Horizontal
Rated FV/300 psi @ -20 to 425 degrees tube side; FV/50 psi @ -20 to 425 degrees F shell side.

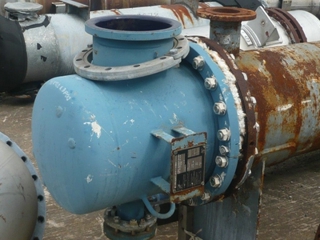

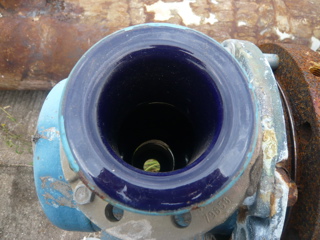

with glass lined clamped heads
Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 218.3 °C (425 °F). Shell Material: Glasslined. Tube Pressure: 20.7 bar (300 psi). Tube Temperature: 218.3 °C (425 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Glasslined. Tube Type: U-Tube. Tube Number: 18. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 5,486 mm (216 in).
Type: Heat Exchanger
Subtype: Shell and Tube

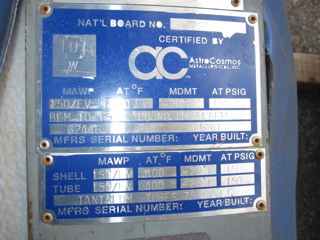

Manufacturer: Astro Cosmos
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 7 m² (75 ft²)
Orientation: Vertical

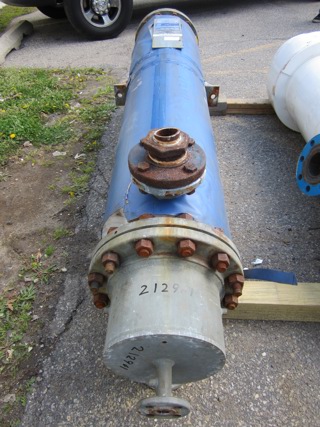

Bolted heads with Tantalum lining Top head is 9" long, bottom head is 13" long.
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Head Material: Tantalum. Length: 2,388 mm (94 in). Tube Length: 228.6 mm (9 in). Nozzle Schedule: Shell side openings are two 2", tube side in is 3" tube side out is 1"..

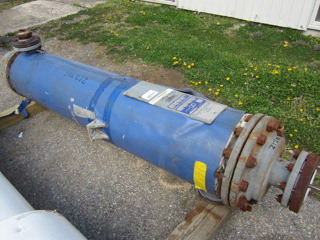

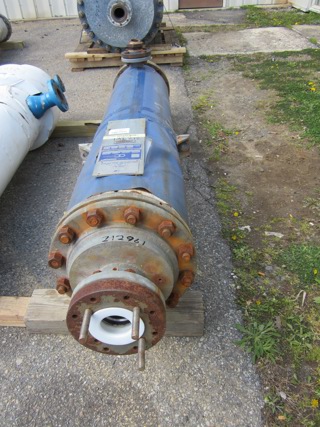

Type: Heat Exchanger
Subtype: Shell and Tube

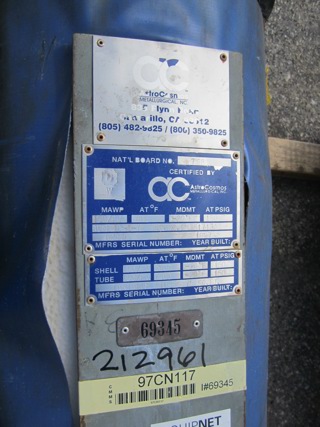

Manufacturer: Cosmos Metalurgical (Camarillo CA)
Model: BEM 12-1-72
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 9.3 m² (100 ft²)
Orientation: Horizontal
Rated 150/FV @ -20 to 400 degrees F tube side 150/FV @ -20 to 400 degrees F Shell Side Unit has (2) bolted flat heads (1) Tanalum, (1) CS with tantalum lining
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 304.8 mm (12 in). Head Material: Tantalum. Length: 2,400 mm (94.5 in). Tube Number: 84. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Nozzle Schedule: - Nozzles: Shell side has two 4" nozzles with 1" reducing flanges - Inlet/outlet: Tube side inlet is 4", tube side outlet is 3" with a 1" drain..

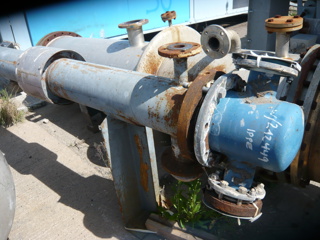

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Comtec
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 25.7 m² (276.6 ft²)
Orientation: Horizontal

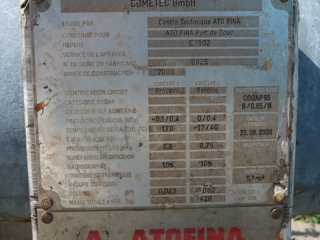

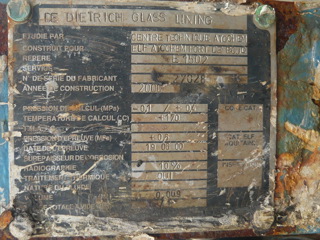

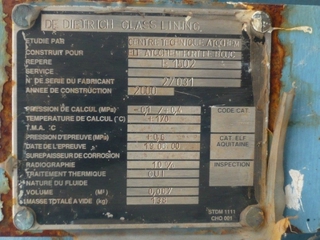

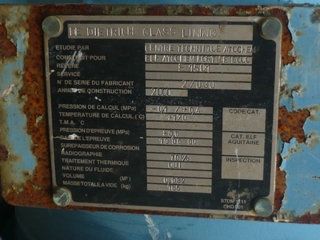

Tantalum lined carbon steel tube sheets TUV APPROVED Pressure tube side -1/4 bar @ 170 degrees C (volume 122 liter), pressure shell side 4 bar @ -17/40 degrees C (volume 225 liter) Expansion joint manufactured by DeDietrich, serial number 27031, internal pressure rated -1/4 bar @ 170 degrees C (volume 67 liter), openings (1) DN80 and (1) DN150, second head: manufactured by DeDietrich, serial number 27030, internal pressure rated -1/4 bar @ 170 degrees C (volume 82 liter), openings (1) DN80 and (1) DN250
Shell Pressure: 4 bar (58 psi). Shell Temperature: 40 °C (104 °F). Shell Material: Carbon Steel. Tube Pressure: 4 bar (58 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Tantalum. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Glasslined. Length: 3,704 mm (145.8 in). Tube Type: Straight Tube. Tube Number: 179. Tube Diameter: 19.5 mm (0.77 in). Tube Length: 2,600 mm (102.4 in). Nozzle Schedule: - Openings: (1) DN40, (2) DN100, (1) DN150.
