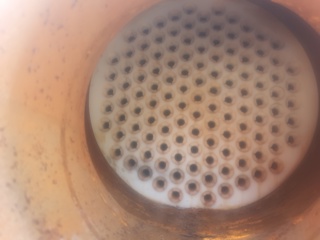

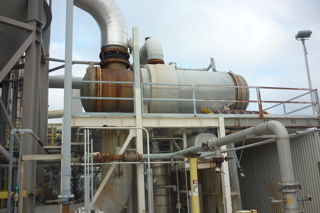

Job #: Y102099C1 shell MDMT is rated for -20 degrees F at 185/FV. tubes MDMT is rated for -20 degrees F at 152/FV psi. U bend tubes, 0.375" od X 0.049" thick. Heat Transfer Surface Area: 5.9 m² (63 ft²). Orientation: Horizontal. Shell Pressure: 12.8 bar (185 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.5 bar (152 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Tube Type: U-Tube. Tube Number: 72. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Nozzles: Shell has two 2" nozzles, Head has two 2" nozzles with two 1" drains..

Flash condenser

• Duty: 2,957,440 BTU/hr
• Shell wall thickness: 0.5"
• Spare Unused Chanel Head with Tube Bundle available for additional cost, See IPP 216127 for more info with on bolted channel head, and one welded dished head. Heat Transfer Surface Area: 68.3 m² (735 ft²). Orientation: Horizontal. Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 273.9 °C (525 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 273.9 °C (525 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,930 mm (76 in). Head Material: Stainless Steel 304. Length: 3,658 mm (144 in). Tube Type: U-Tube. Tube Number: 156. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule: One vapor in 66", One Vapor out 16", One condensate out 4", two vents 2", two water (inlet & Outlet) 4", Two 3/4 nozzles one vent & a drain.

condenser rated -1/2 bar bar @ 100 degrees C service side, volume 28 liter; rated 5 bar @ 25 degrees C process side, volume 10 liter Heat Transfer Surface Area: 10 m² (107.6 ft²). Orientation: Horizontal. Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 25 °C (77 °F). Tube Material: Graphite. Vacuum: Yes. Nozzle Schedule: openings: heads: 2-50mm, shell: 1-40mm, 1-30mm, 1-50mm.

Job number: 261880 Bolted dished top head, bolted cone bottom head Expansion joint in shell Heat Transfer Surface Area: 62.2 m² (670 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 24.1 bar (350 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 4,788 mm (188.5 in). Tube Type: Straight Tube. Tube Number: 218. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,788 mm (188.5 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Two 6" nozzles, two 4" nozzles.

• Job #: 160771 Heat Transfer Surface Area: 65.6 m² (706 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 3,327 mm (131 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 444. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell openings: one 12" and three 2" - Tube openings: two 8".

Rated 150 psi/ FV @ - 20 to 392 degrees F both sides 525,000 BTU/Hr. (68 holes in tube sheet) With (12) CS baffles, One 304LSS bolted head. Heat Transfer Surface Area: 5.4 m² (58 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 254 mm (10 in). Head Material: Stainless Steel 304. Length: 1,702 mm (67 in). Tube Type: U-Tube. Tube Number: 34. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 3,251 mm (128 in). Nozzle Schedule: Openings: Shell- (2) 3"; Head (2) 1.5".

Heat Transfer Surface Area: 5.4 m² (58 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Length: 1,778 mm (70 in). Shell-side Passes: 3. Tube-side Passes: 3. Tube Type: Straight Tube. Tube Number: 51. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,778 mm (70 in). Tube Thickness: 12.4 mm (0.49 in). Nozzle Schedule: (1) 1" inlet, (4) 2" inlet/outlet, (2) 3/4" vent drain. Capacity: 1,893 L (500 gallons).

Heat Transfer Surface Area: 4.8 m² (52 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 304.8 mm (12 in). Head Material: Stainless Steel 316L. Length: 1,067 mm (42 in). Tube Type: Straight Tube. Tube Number: 31. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 1,067 mm (42 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: (2) 3" . (2) 1 1/2" , (1) 3/4" vent .

DWG # B 7156 Heat Transfer Surface Area: 6 m² (65 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 218.4 mm (8.6 in). Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 66. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Nozzles are as follows: One 3", two 2", and one 1" nozzle..

MDMT is 40 psi @ 190 Degrees F for the shell and 40 @ 150 Degrees F. Heat Transfer Surface Area: 6.4 m² (69 ft²). Orientation: Horizontal. Shell Pressure: 13.1 bar (190 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Length: 2,591 mm (102 in). Tube Type: U-Tube. Nozzle Schedule: Shell Openings: One 4" and three 1" - Tube Openings: Two 2" sanitary pipe connections..

Job #: T102099 C-2 shell MDMT rated for -20 degrees at 180/FV. Tube MDMT rated for -20 degrees F at 150/FV. Heat Transfer Surface Area: 5.9 m² (64 ft²). Orientation: Horizontal. Shell Pressure: 12.4 bar (180 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,778 mm (70 in). Tube Type: U-Tube. Tube Number: 72. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Shell nozzles: Two, 2" - Head nozzles: Two, 2" and two 1" drains..

• Design: steam chest
• Code stamp: only on shell
• with expansion joint
• Shell nominal thickness is 0.365" Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Vertical. Shell Pressure: 4.8 bar (70 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 273.1 mm (10.8 in). Length: 4,267 mm (168 in). Tube Type: Straight Tube. Tube Number: 28. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,267 mm (168 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell side nozzles: steam inlet 8", condensate outlet 2".

Heat Transfer Surface Area: 8 m² (86 ft²). Orientation: Horizontal. Shell Pressure: 4.1 bar (60 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 304. Length: 3,658 mm (144 in). Tube Type: Straight Tube. Tube Number: 40. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,353 mm (132 in). Tube Thickness: 1.6 mm (0.06 in). Nozzle Schedule: - Tube side inlet/outlet size: 1.5" - Shell side inlet/outlet size: 2" - Drains: 3/4" NPT..

Heat Transfer Surface Area: 11 m² (118 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 203.2 mm (8 in). Head Material: Stainless Steel 316. Length: 2,362 mm (93 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 74. Tube Diameter: 15.9 mm (0.63 in). Tube Length: 2,362 mm (93 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 4" nozzle, three 2" nozzles, one 1.5" nozzle..

Heat Transfer Surface Area: 71.5 m² (770 ft²). Orientation: Horizontal. Shell Pressure: 18 bar (261.1 psi). Shell Temperature: 65 °C (149 °F). Shell Material: Carbon Steel. Tube Pressure: 12 bar (174 psi). Tube Temperature: 65 °C (149 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Head Material: Stainless Steel Other. Length: 6,050 mm (238.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 244. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Nozzle schedule: Cold water inlet/outlet are 6", Liquid outlet/Inlet are 4", two 2" drain/vents..

One Graphite head Floating head and shell coated with 40 mills Floroshield.

Shell side 50.5 mm OD x 38.1 mm

ID Carbone Serial # 200687. Empty weight 22,000 lbs. Flooded weight 32,500 lbs. Heat Transfer Surface Area: 244.1 m² (2,627 ft²). Orientation: Vertical. Shell Pressure: 3.1 bar (45 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 3.1 bar (45 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Graphite. Tubesheet Material: Graphite. Vacuum: Yes. Shell Diameter: 44 mm (1.73 in). Head Material: Carbon Steel. Length: 7,385 mm (290.8 in). Shell-side Passes: 9. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 283. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 5,514 mm (217.1 in). Nozzle Schedule: Nozzle schedule is One 24" x 20", One 20", One 6" x 3", Five 3", and one 2". .

Graphite with CS shell Impervite modular cross bore inserts with 99 service holes and 118 process holes per module Heat Transfer Surface Area: 4 m² (43 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 171.1 °C (340 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 171.1 °C (340 °F). Length: 1,397 mm (55 in). Nozzle Schedule: Shell side nozzles are 1/2", process side nozzles are 3" and 1.5".

Tema Type BEM size 48-240 Vacuum Condenser Heat Transfer Surface Area: 546.5 m² (5,882 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel 304. Length: 8,611 mm (339 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,137. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,020 mm (237 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Inlet 24", Inlet 18", outlet 12", Outlet 6", one 4", Two 2", One 1" one 1/4" vent nozzle. .

Expansion joint. Shell is 3/8" thick; Channels 7/16" thick. Heat Transfer Surface Area: 412.9 m² (4,444 ft²). Orientation: Horizontal. Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Carbon Steel. Length: 4,877 mm (192 in). Tube-side Passes: 4. Tube Number: 1,446. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,877 mm (192 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include: Shell - (4) 12", (2) 3"; One head - (2) 8".

Pitch: 1.25" Triangular Heat Transfer Surface Area: 299.1 m² (3,220 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 914.4 mm (36 in). Head Material: Carbon Steel. Length: 7,264 mm (286 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 625. Tube Diameter: 3,429 mm (135 in). Tube Length: 6,096 mm (240 in). Capacity: 56,781 L (15,000 gallons).

(1) 304SS bonnet Removable tube bundle rolled tubes Has 90 gal sump 30" dia x 30" str side 15/16" pitch. Heat Transfer Surface Area: 875.6 m² (9,425 ft²). Orientation: Horizontal. Shell Pressure: 5.9 bar (86 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 10.5 bar (153 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,422 mm (56 in). Head Material: Stainless Steel 304. Length: 7,315 mm (288 in). Shell-side Passes: 2. Tube-side Passes: 4. Tube Number: 2,451. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings: tube side 2-12"; shell side 1-24", 1-30"..

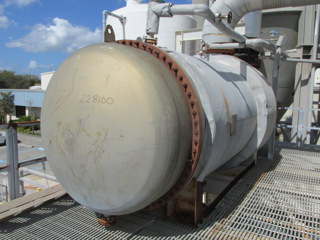

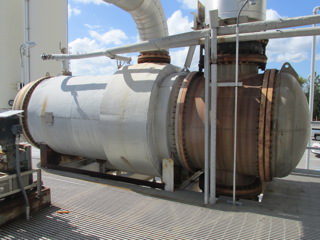

40" diameter x 12' horizontal. Heat Transfer Surface Area: 134 m² (1,442 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Tubesheet Material: Graphite. Vacuum: Yes. Shell Diameter: 40 mm (1.57 in). Head Material: Carbon Steel. Length: 3,658 mm (144 in). Tube Number: 376. Tube Diameter: 22.1 mm (0.87 in). Tube Thickness: 31.8 mm (1.25 in). Nozzle Schedule: Nozzle Schd:(3) 6" .

Graphite H=NS1 NS1-8C. Heat Transfer Surface Area: 72.7 m² (782 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 180 °C (356 °F). Vacuum: Yes.

• Number of SS tubes: 405
• SS tube material: SA268-TP405
• Channel head material: SA516-70 + TP410
• Floating head material: SA516-70 + TP410
• Shell material: SA516 + TP410
• CRN #: U5053.2 Shell rated for FV/365 psi @ -20 to 650 degrees F;
  tubes rated for FV/350 psi @ -20 to 680 degrees F.
• TEMA Type: AKT
• TEMA Size: 57/70 x 264
• Reboiler type: kettle 1.25" pitch 410 Clad SS tube sheet (SA765-2 + 410SS Clad), 63.13" diameter x 7.28" + 0.47" thick. With internal floating head Shell is CS, 57" diameter expanding to 70" diameter x 264 " long Heat Transfer Surface Area: 507.6 m² (5,464 ft²). Orientation: Horizontal. Shell Pressure: 25.2 bar (365 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 24.1 bar (350 psi). Tube Temperature: 360 °C (680 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,778 mm (70 in). Head Material: Stainless Steel Other. Length: 6,706 mm (264 in). Tube Type: Straight Tube. Tube Number: 1,008. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,706 mm (264 in). Tube Thickness: 16.5 mm (0.65 in). Nozzle Schedule: - Openings: Channel Head (2) 16"; Shell (1) 4", (2) 12".

• TP405 Stainless Steel tubes (SA268 - TP405)
• Carbon Steel Channel Head (SA516 70)
• CS floating Head, (SA266-2N)
• Carbon Steel shell (SA515-70N) Shell rated for FV/425 psi at -20 to 650 degrees F; tubes rated for FV/500 psi at -20 to 650 degrees F Canadian Registration Number: U2511.2
• TEMA Type: AES
• Size: 52 x 288 1.25" pitch, 410SS tube sheets (SA182 F6ACL1), 54.87" diameter, 6.87 thick
• Design heat exchanged: 114.1 mm/BTU/hr
• CS floating Head, (SA266-2N)
• Carbon Steel shell (SA515-70N) Heat Transfer Surface Area: 574 m² (6,179 ft²). Orientation: Horizontal. Shell Pressure: 29.3 bar (425 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 34.5 bar (500 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,473 mm (58 in). Head Material: Carbon Steel. Length: 7,315 mm (288 in). Shell-side Passes: 1. Tube-side Passes: 8. Tube Type: Straight Tube. Tube Number: 1,008. Tube Diameter: 25.4 mm (1 in). Tube Length: 7,315 mm (288 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Openings include: (2) Shell side nozzles are 16" NPS, (2) tube side nozzles are 10" NPS in the channel head..

• TP405 Stainless Steel tubes (SA268-TP405)
• Carbon Steel Channel Head (SA516 70)
• CS floating Head (SA266-2N)
• Carbon Steel shell (SA516 70) rated for FV/425 psi at -20 to 650 degrees F; tubes rated for FV/500 psi at -20 to 650 degrees F.
• Canadian Registration Number: U2511.2
• TEMA Type: AES
• Size: 52 x 288
• 1.25" pitch
• Design heat exchanged 114.1 mm/BTU/hr Heat Transfer Surface Area: 574 m² (6,179 ft²). Orientation: Horizontal. Shell Pressure: 29.3 bar (425 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 34.5 bar (500 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,473 mm (58 in). Head Material: Carbon Steel. Length: 7,315 mm (288 in). Shell-side Passes: 1. Tube-side Passes: 8. Tube Type: Straight Tube. Tube Number: 108. Tube Diameter: 25.4 mm (1 in). Tube Length: 7,315 mm (288 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include: (2) Shell side nozzles are 16" NPS, (2) tube side nozzles are 10" NPS in the channel head.

316LSS tubes (SA213 - 316L), 316L SS Clad Shell (SA516-70N + 316L Cladding), 316L SS Clad Channel head (SA516-70N + 316L Cladding), horizontal kettle type reboiler. NB "U" stamped. Canada Registration Number U5325.2. Shell rated for FV/106 psi @ -20 to 350 degrees F: Tubes rated for FV/195 psi @ -20 to 680 degrees F. TEMA Type AKU ASME Code Construction 316L SS clad tube sheet (SA516-70N + 316L Cladding) 42" diameter x 3.4375" Thick with (1124) tube holes.
Removable tube bundle has 316LSS skid bars for bundle removal. CS Channel Head 43" diameter with flat bolted cover 316L SS Clad Shell is 69.25" OD/68"ID diameter x 27' 3" long, 33" Overall Length 125" to .1875" thick cladding Heat Transfer Surface Area: 427.5 m² (4,602 ft²). Orientation: Horizontal. Shell Pressure: 7.3 bar (106 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 316. Tube Pressure: 13.4 bar (195 psi). Tube Temperature: 360 °C (680 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,727 mm (68 in). Head Material: Stainless Steel 316. Length: 8,306 mm (327 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 562. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings Include: Shell Side - (2) 24"" shell outlets, (1) 14" shell inlet (1) 12" liquid outlet; Channel Head - (1) 12" (1) 6".

Heat Transfer Surface Area: 19.8 m² (213 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Stainless Steel 316. Length: 2,438 mm (96 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 136. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,946 mm (116 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Two 3" and Two 4".

TEMA type BEM Heat Transfer Surface Area: 10.9 m² (117 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 273.1 mm (10.8 in). Head Material: Stainless Steel 316. Length: 2,413 mm (95 in). Tube Type: Straight Tube. Tube Number: 76. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,413 mm (95 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzles: Two 8" nozzles, Two 2" nozzles, One 4" vent, Two 0.75" drains .

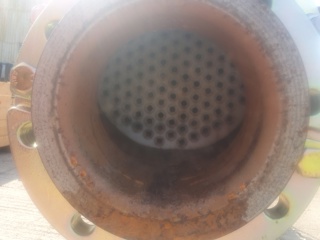

(1) 304/(1)CS Head "U" stamped 426 tube holes tube pitch 1.25" TRI Four baffles, baffle spacing 2'0" Heat Transfer Surface Area: 109.8 m² (1,182 ft²). Orientation: Vertical. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.38 bar (20 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 762 mm (30 in). Head Material: Stainless Steel 304. Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,251 mm (128 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 1.5", 6".

23" diameter x 1.25" thick. (2) bolted dished heads Heat Transfer Surface Area: 74 m² (796 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 2.4 bar (35 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 584.2 mm (23 in). Head Material: Hastelloy - C276. Length: 4,674 mm (184 in). Tube-side Passes: 1. Tube Number: 155. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 4,775 mm (188 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Shell - (1) 4", (1) 2"; One Head (1) 8", (1) 2"; Other head - (1)16", (1) 1".

w/ haastelloy C22 clad "U" stamped baffle spacing 2'0", four baffles Heat Transfer Surface Area: 107.7 m² (1,159 ft²). Orientation: Vertical. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.38 bar (20 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 762 mm (30 in). Head Material: Carbon Steel. Tube Number: 426. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,251 mm (128 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: shell nozzles 1.5",6.

Rated pressure shell side 5 bar @ -10/+120 degrees C (670 liter); tube side 5 bar + full vacuum @ -10/+150 degrees C (730 liter) 316L stainless steel tubes. (2) 316L stainless steel bonnet heads. 2800 KG empty weight Heat Transfer Surface Area: 100 m² (1,076 ft²). Orientation: Vertical. Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 695 mm (27.4 in). Head Material: Stainless Steel 316. Length: 3,000 mm (118.1 in). Tube Number: 533. Tube Diameter: 20 mm (0.79 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 3" center, (1) 6" in side of head; Shell has (2) 6" openings. . Capacity: 730 L (192.8 gallons).

pressure tubeside 18 bar + full vacuum @ 130 degrees C, shell 12 bar @ 130 degrees C, (1) 316L stainless steel dished top head, (1) 316L stainless steel bottm coned head. 4145mm overall length Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Tube Number: 525. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.5 mm (0.06 in).

Rated pressure shell side 5 bar @ -10/+120 degrees C ( 670 liter); tube side 5 bar + full vacuum @ -10/+150 degrees C (730 liters). (2) 316L stainless steel bolted dished heads (7) baffles in the shell Weight 2800 Kg empty Heat Transfer Surface Area: 100 m² (1,076 ft²). Orientation: Vertical. Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 3,000 mm (118.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 533. Tube Diameter: 20 mm (0.79 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: One top head (1) 6", Bottom head (1) 3" center, (1) 6" in side of head; shell (2) 6". . Capacity: 730 L (192.8 gallons).

pressure tube side 18 bar/full vacuum @ 130 degrees C (945 liter), shell 12 bar @ 130 degrees C (895 liter). 316L stainless steel clad tube sheets (7) 304 stainless steel internal baffles in the shell,Single pass on both sides, (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head, 4145mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head 1-6", Bottom Head 1-6" (center), 1-6" on side of cone, Shell 2-10",.

• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 304LSS clad Tube sheets
• Baffles: 7 304SS baffles in the shell
• (2) bolted heads; (1) 304L stainless steel dished top head, (1) 304L stainless steel bottom cone head.
• Weight: Empty weight of 5000 kg.
• shell is 850 mm diameter x 2425 flange to flange, 4146 mm overall length. Heat Transfer Surface Area: 96 m² (1,033 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 304. Length: 2,425 mm (95.5 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,425 mm (95.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 4"; Bottom Head (1) 4" Center (1) 6" on cone; Shell (2) 10". .

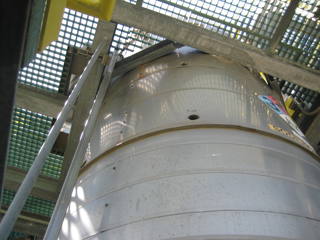

• Condenser orientation: Vertical
• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• (7 ) 304SS baffles in the shell.
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Empty weight: 4890 kg.
• shell is 850mm diameter x 2468 flange to flange,
• 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings: Top head (1) 6"; Bottom head (1) 6"; Center (1) 6" on cone; Shell (2) 10".

• Type: Vertical condenser
• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Weight: Empty weight of 4890 kg.
• Baffles: 7 304SS baffles in the shell
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10"..

• Type: Vertical condenser
• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Baffles: 7, made of 304SS, in the shell
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight: 4890 kg (empty)
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".

pressure tubeside 18 bar + full vacuum @ 130 degrees C (945 liter), shell 12 bar @ 130 degrees C (895 liter), (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom coned head. 4145mm overall length Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in).

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design Heat Transfer Surface Area: 32.5 m² (350 ft²). Orientation: Horizontal. Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 4,140 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,353 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.

0.750" diameter x 16 ga wall thickness 2 pass Heat Transfer Surface Area: 19.2 m² (207 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - Other. Head Material: Carbon Steel. Length: 4,140 mm (163 in). Tube Type: U-Tube. Tube Number: 88. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.63 mm (0.06 in). Nozzle Schedule: - Tube side nozzles: two 6" - Shell side nozzles: two 8".

kettle type reboiler U tube bundle is 12" diameter x 16' 11" straight side. 403 " long total length around the bend (1) CS bolted dished head for tube bundle Carbon Steel Kettle type re-boiler shell 280" over all length. Heat Transfer Surface Area: 17.9 m² (193 ft²). Orientation: Horizontal. Shell Pressure: 9.7 bar (140 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 8.3 bar (120 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 6,274 mm (247 in). Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,156 mm (203 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Tube side - (1) 3" inlet, (1) 1" outlet; Shell side - (1) 6" inlet, (1) 8" vapor outlet, (1) 2" liquid outlet.

304L SS with Hastelloy C clad tube sheet Hastelloy lined CS shell Heat Transfer Surface Area: 15.1 m² (163 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 182.2 °C (360 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 182.2 °C (360 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Hastelloy - C276. Length: 1,524 mm (60 in). Tube Type: Straight Tube. Tube Number: 333. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 660.4 mm (26 in). Tube Thickness: 0.76 mm (0.03 in). Nozzle Schedule: One 8" nozzle, One 4" nozzle, three 3" nozzles. .

Heat Transfer Surface Area: 14.2 m² (153 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Carbon Steel. Shell Diameter: 323.9 mm (12.8 in). Head Material: Hastelloy - C276. Length: 1,829 mm (72 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 130. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Two 6", two 3".

Heat Transfer Surface Area: 22.3 m² (240 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Nickel. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Nickel. Length: 2,413 mm (95 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 153. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,413 mm (95 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (1) 6' inlet, (2) 4" inlet/outlet, (1) 3" outlet, (1) 3/4" vent.

Heat Transfer Surface Area: 15.4 m² (166 ft²). Orientation: Vertical. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Hastelloy - C276. Length: 1,549 mm (61 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 212. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,213 mm (47.8 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: one-8", two 3", two 2" and two 1".

42 x 18 diameter x 1850mm Long pipes, (1) 316L stainless steel flat bonnet head, (1) 316L stainless steel flat head Heat Transfer Surface Area: 4.4 m² (47.4 ft²). Orientation: Vertical. Shell Pressure: 8.5 bar (123.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.5 bar (123.3 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316.

design pressure tube side 8.5 barg @ 180 degrees C shell side 8.5 barg @ 180 degrees C 42 x 18 diameter x 1850mm Long pipes, (1) 316L stainless steel flat bonnet head (1) 316L stainless steel flat head Heat Transfer Surface Area: 4.4 m² (47.4 ft²). Orientation: Vertical. Shell Pressure: 8.5 bar (123.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.5 bar (123.3 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316.

design pressure tube side 8.5 barg @ 180 degrees C shell side 8.5 barg @ 180 degrees C 42 x 18 diameter x 1850mm Long pipes, (1) 316L stainless steel flat bonnet head, (1) 316L stainless steel flat head Heat Transfer Surface Area: 4.4 m² (47.4 ft²). Orientation: Vertical. Shell Pressure: 8.5 bar (123.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.5 bar (123.3 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316.

42 x 18 diameter x 1850mm Long pipes, (1) 316L stainless steel flat bonnet head, (1) 316L stainless steel flat head Heat Transfer Surface Area: 4.4 m² (47.4 ft²). Orientation: Vertical. Shell Pressure: 8.5 bar (123.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.5 bar (123.3 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316.

pressure tube side -1/8 bar @ 100 deg C (25 liter), shell -1/8 bar @ 180 deg C (44 liter) (2) carbon steel dished heads. fabricated from 1.4452 stainless steel. Heat Transfer Surface Area: 4 m² (43.1 ft²). Orientation: Horizontal. Shell Pressure: 8 bar (116 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 904. Tube Pressure: 8 bar (116 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 904. Vacuum: Yes. Head Material: Carbon Steel. Tube Number: 26. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,000 mm (78.7 in). Tube Thickness: 2 mm (0.08 in). Capacity: 44 L (11.6 gallons).

sanitary two pass Brackets tags and tube sides are 316L SS, internal all thread is Monel O rings are FDA approved EDPM. Product finish is <25Ra and Nitric Passivated, non product is Mill finish and pickled 34- 1/8 x 0.035" wall seamless "U" tubes Heat Transfer Surface Area: 1.02 m² (11 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 152.4 mm (6 in). Length: 812.8 mm (32 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 34. Tube Diameter: 3.2 mm (0.13 in). Tube Length: 584.2 mm (23 in). Tube Thickness: 0.89 mm (0.04 in). Nozzle Schedule: shell in 2", shell out 1", shell vent 0.75" shell drain 0.75".

Bolted heads with Tantalum lining Top head is 9" long, bottom head is 13" long. Heat Transfer Surface Area: 7 m² (75 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Head Material: Tantalum. Length: 2,388 mm (94 in). Tube Length: 228.6 mm (9 in). Nozzle Schedule: Shell side openings are two 2", tube side in is 3" tube side out is 1"..

Rated 150/FV @ -20 to 400 degrees F tube side 150/FV @ -20 to 400 degrees F Shell Side Unit has (2) bolted flat heads (1) Tanalum, (1) CS with tantalum lining Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 304.8 mm (12 in). Head Material: Tantalum. Length: 2,400 mm (94.5 in). Tube Number: 84. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Nozzle Schedule: - Nozzles: Shell side has two 4" nozzles with 1" reducing flanges - Inlet/outlet: Tube side inlet is 4", tube side outlet is 3" with a 1" drain..

• Tantalum clad heads
• Tube pitch: 1-1/8" triangle pitch. Heat Transfer Surface Area: 11.4 m² (123 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Shell Diameter: 355.6 mm (14 in). Head Material: Tantalum. Length: 2,743 mm (108 in). Tube Type: Straight Tube. Tube Number: 105. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 0.25 mm (0.01 in).

and two 1" vent/drains Heat Transfer Surface Area: 12.3 m² (132 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Head Material: Tantalum. Length: 1,219 mm (48 in). Tube Type: Straight Tube. Tube Number: 168. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,219 mm (48 in). Tube Thickness: 0.25 mm (0.01 in). Nozzle Schedule: shell side has two 4" nozzles, Bottom Bonnet has two 3" nozzles, top has one 8" nozzle.

One Tantalum(97TA-3W) lined CS head, One rubber lined CS head, (second tag SN # D343D5660 with expansion Joint in Shell. Heat Transfer Surface Area: 3.5 m² (38 ft²). Orientation: Vertical. Shell Pressure: 150 bar (2,176 psi). Shell Temperature: 375 °C (707 °F). Shell Material: Carbon Steel. Tube Pressure: 150 bar (2,176 psi). Tube Temperature: 375 °C (707 °F). Tube Material: Tantalum. Shell Diameter: 254 mm (10 in). Head Material: Carbon Steel. Length: 3,378 mm (133 in). Tube Number: 28. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,134 mm (84 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Nozzles: Two 3" on shell, two 4" on tubes..

Heat Transfer Surface Area: 8.6 m² (93 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 2,235 mm (88 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 60. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: - Shell nozzle size: Two 2" - Tube nozzle size: Two 3" - Vent & drain line size: 1".

Rated 300/FV @ -20 to 425 degrees tube side; FV/50 psi @- 20 to 425 degrees F shell side. clamped heads Heat Transfer Surface Area: 7.9 m² (85 ft²). Orientation: Horizontal. Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 218.3 °C (425 °F). Shell Material: Glasslined. Tube Pressure: 20.7 bar (300 psi). Tube Temperature: 218.3 °C (425 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Glasslined. Tube Type: U-Tube. Tube Number: 18. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 5,486 mm (216 in).

Rated FV/300 psi @ -20 to 425 degrees tube side; FV/50 psi @ -20 to 425 degrees F shell side.

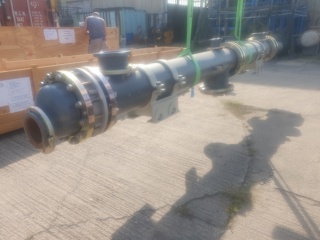

with glass lined clamped heads Heat Transfer Surface Area: 7.9 m² (85 ft²). Orientation: Horizontal. Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 218.3 °C (425 °F). Shell Material: Glasslined. Tube Pressure: 20.7 bar (300 psi). Tube Temperature: 218.3 °C (425 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Glasslined. Tube Type: U-Tube. Tube Number: 18. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 5,486 mm (216 in).

type shell/tube (2) c/steel flat heads Heat Transfer Surface Area: 9.4 m² (101.2 ft²). Orientation: Vertical. Shell Pressure: 6.4 bar (92.8 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 1.8 bar (26.1 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 332 mm (13.1 in). Head Material: Carbon Steel. Tube Number: 37. Tube Diameter: 22.1 mm (0.87 in). Tube Length: 2,900 mm (114.2 in). Tube Thickness: 31.8 mm (1.25 in). Nozzle Schedule: - Tube side openings: (1) head with 1-4", 1-1 1/2", (1) head with 1-4", 1-3", 1-2" - Shell side openings: 2-3".

type shell/tube heads with c/steel flat plates Heat Transfer Surface Area: 9.4 m² (101.2 ft²). Orientation: Vertical. Shell Pressure: 6.4 bar (92.8 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 1.8 bar (26.1 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 332 mm (13.1 in). Head Material: Carbon Steel. Length: 4,209 mm (165.7 in). Shell-side Passes: 2. Tube-side Passes: 2. Tube Number: 37. Tube Diameter: 22.1 mm (0.87 in). Tube Length: 2,900 mm (114.2 in). Tube Thickness: 31.8 mm (1.25 in). Nozzle Schedule: Tube side openings: (1) head with 1-4", 1-1 1/2", (1) head with 1-4", 1-3", 1-2" - Shell side openings: 2-3".

Heat Transfer Surface Area: 11.1 m² (120 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 323.9 mm (12.8 in). Head Material: Hastelloy - C276. Length: 1,295 mm (51 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 239. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,168 mm (46 in). Tube Thickness: 19.8 mm (0.78 in). Nozzle Schedule: 2-3" nozzle, 2-2" nozzle, 2-1" drain nozzle.

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 # Heat Transfer Surface Area: 9.3 m² (100 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Cast Iron heads Part #: 5-162-06-036-046 Four pass' , Heat Transfer Surface Area: 3.2 m² (34 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 1,016 mm (40 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads.

Heads: Cast iron Part #: 5-162-06-036-046 Four pass' Heat Transfer Surface Area: 3.2 m² (34 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 1,016 mm (40 in). Shell-side Passes: 4. Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads.

Heads: Cast Iron Part #: 5-162-06-036-046 Two pass' Heat Transfer Surface Area: 2.6 m² (28 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 914.4 mm (36 in). Tube Type: Straight Tube. Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads..

• Certification: Certified by Taylor Tank Co. Heat Transfer Surface Area: 2.3 m² (25 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 165.1 mm (6.5 in). Head Material: Stainless Steel 316. Length: 2,413 mm (95 in). Tube Type: U-Tube. Tube Number: 9. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,184 mm (86 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Openings: Head - (2) 1"; Shell - (2) 2" and 2 0.75" drain/vents.

pressure tube side 3 bar @ 20 degrees C, total volume 22 liter; shell side -1/+1 bar @ 150 degrees C, total volume 58 liter Material HEADS s/steel 1.4301 Heat Transfer Surface Area: 8 m² (86.1 ft²). Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Glasslined. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 20 °C (68 °F). Tube Material: Glasslined. Vacuum: Yes. Shell Diameter: . Head Material: Stainless Steel 304. Length: 3,325 mm (130.9 in). Tube Type: Straight Tube. Tube Diameter: . Tube Length: 2,900 mm (114.2 in). Nozzle Schedule: (2) .

Heat Transfer Surface Area: 13.3 m² (143 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Hastelloy - C276. Length: 1,524 mm (60 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 146. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,524 mm (60 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (1) 6" inlet, (2) 2" inlet/outlet, (1) 2" outlet.

Hastelloy B2 (SB-626) tubes, 16" diameter x 6' 1.5" long tube sheet to tube sheet. Heat Transfer Surface Area: 21.4 m² (230 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 226.7 °C (440 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - C276. Head Material: Hastelloy - C276. Tube Type: Straight Tube. Tube Number: 196. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,867 mm (73.5 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: One 6" nozzle, four 3" nozzles, three 2.5" nozzles..

Heat Transfer Surface Area: 20.1 m² (216 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 5,131 mm (202 in). Head Material: Hastelloy - Other. Length: 1,016 mm (40 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,016 mm (40 in). Tube Thickness: 12.4 mm (0.49 in). Nozzle Schedule: Two 6", two 3" two 1"one 3/4".

Heat Transfer Pump Skid Features a 20 sq. ft. horizontal shell & tube heat exchanger, where the shell is rated for150psi @ -20 to 375 degree F. and the tubes are rated for 125psi @ -20 to 375 degree F. Skid mounted with a vertical 100 gallon CS receiver, manufactured by John Wood Company, NB #11489, rated 125 psi @ 32 to 240 degree F. Skid also contains (2) horizontal centrifugal pumps. Heat Transfer Surface Area: 1.86 m² (20 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Carbon Steel. Tube Pressure: 8.6 bar (125 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Copper. Tubesheet Material: Carbon Steel. Shell Diameter: 273.1 mm (10.8 in). Head Material: Cast Iron. Length: 831.9 mm (32.8 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 38. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 812.8 mm (32 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: one 4" inlet, one 1.5 outlet, one 0.75 vent, one 0.5 drain.

pressure tube side -1/8 bar @ 200 degrees C (315 liter) Shell -1/13 bar @ 200 degrees C (61 liter) (2) 316L stainless steel (1.4571) dished heads Heat Transfer Surface Area: 5.1 m² (54.9 ft²). Orientation: Horizontal. Shell Pressure: 13 bar (188.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 200 mm (7.9 in). Head Material: Stainless Steel Austentic. Length: 3,000 mm (118.1 in). Tube-side Passes: 2. Tube Number: 26. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,496 mm (98.3 in). Tube Thickness: 2 mm (0.08 in).

Pressure tube side -1/13 bar @ 200 degrees C (17.3 liter), shell -1/13 bar @ 200 degrees C (33.1 liter) (2) 316Ti stainless steel dished heads Heat Transfer Surface Area: 2.8 m² (29.6 ft²). Orientation: Horizontal. Shell Pressure: 13 bar (188.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 13 bar (188.5 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 150 mm (5.9 in). Head Material: Stainless Steel Austentic. Length: 2,850 mm (112.2 in). Tube-side Passes: 2. Tube Number: 14. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,496 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: 1-head with 2-50mm, 1- head with no openings, shell: 2-180mm.

Heat Transfer Surface Area: 37.2 m² (400 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Stainless Steel 316L. Length: 3,353 mm (132 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 262. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 12", Three 3", Two 2", and Two 1".

Used with DMPA reactor as its condenser, Reactor is stock # 246701 & 246699 Heat Transfer Surface Area: 11 m² (118 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 203.2 mm (8 in). Head Material: Stainless Steel 316. Length: 2,362 mm (93 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 74. Tube Diameter: 15.9 mm (0.63 in). Tube Length: 2,362 mm (93 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 4" nozzle, three 2" nozzles, one 1.5" nozzle..

Heat Transfer Surface Area: 11.8 m² (127 ft²). Shell Material: Stainless Steel Austentic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in).

vertical heat exchanger (overhead condenser), TUV, pressure tube side -1/6 bar @ 150 degrees C (4100 liter), shell -1/ 4 bar @ 150 degrees C (7310 liter), (1) 316Ti stainless steel (1.4571) flat head, (1) 316Ti stainless steel (1.4571) bonnet head

• Overall height: 20009mm Heat Transfer Surface Area: 360 m² (3,875 ft²). Orientation: Vertical. Shell Pressure: 4 bar (58 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 950 mm (37.4 in). Head Material: Stainless Steel Austentic. Tube-side Passes: 1. Tube Number: 140. Tube Diameter: 60.3 mm (2.4 in). Tube Length: 14,000 mm (551.2 in). Tube Thickness: 1.25 mm (0.05 in). Nozzle Schedule: openings: top head: 1-950mm manway, 1-600mm (feed), 2-25/50mm, bottom head: 1-200mm, 2-100mm sight glasses, 1-100mm (outlet), 4-80mm, 1-25/50mm, shell: 2-400mm, 1-6mm.

TUV, design pressure tubeside -1/5 bar @ 200 degrees C (4100 liter), shell -1/4 bar @ 200 degrees C (3500 liter), product is feed into the heat exchanger from the bottom head via a 139.7mm diameter central tube (center of tubesheets), this sends the product up the center of the heat exchanger where it is dispersed into the top head, product then flows down (1) 316Ti stainless steel flat head, (1) 316Ti stainless steel bonnet head, Product inlet: 1-600mm, 1-100mm Product outlet: 1-100mm Central tube diameter: 139.7mm Overall height: 24634mm Heat Transfer Surface Area: 25.5 m² (275 ft²). Orientation: Vertical. Shell Pressure: 4 bar (58 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Head Material: Stainless Steel 316. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 48. Tube Diameter: 60.3 mm (2.4 in). Tube Length: 18,000 mm (708.7 in). Tube Thickness: 1.25 mm (0.05 in). Nozzle Schedule: tubeside: top head: 1-700mm manway, bottom head: 1-600mm manway with cover and 100mm sightglass, 1-600mm, 1-100mm (product inlet), 1-100mm (product outlet), shell: 1-400mm, 1-150mm, 2-6mm.

Heat Transfer Surface Area: 3.8 m² (41 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Hastelloy - Other. Length: 1,270 mm (50 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,168 mm (46 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 3", Two 3" and Two 1" nozzles.

multi pass tube side. 3/16" thick. (2) CS heads Heat Transfer Surface Area: 23.1 m² (249 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 457.2 mm (18 in). Head Material: Carbon Steel. Length: 2,794 mm (110 in). Tube Type: Straight Tube. Tube Number: 160. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 2.8 mm (0.11 in). Nozzle Schedule: Openings include (2) 6" in one head, (2) 4" in the shell..

Multiple passes on the tube side Heat Transfer Surface Area: 19.5 m² (210 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 355.6 mm (14 in). Head Material: Carbon Steel. Length: 2,438 mm (96 in). Tube Type: Straight Tube. Tube Number: 136. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,413 mm (95 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Nozzles: shell inlet & outlet 3", tube side nozzles 3" and 6".

Estimated No tag on this piece on a 15/16" triangler pitch Heat Transfer Surface Area: 24.9 m² (268 ft²). Orientation: Horizontal. Shell Material: Stainless Steel 316. Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 304.8 mm (12 in). Head Material: Stainless Steel 316. Length: 4,826 mm (190 in). Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 114. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,658 mm (144 in).

12" diameter x 15' 9.5" tangent to tangent, Heat Transfer Surface Area: 29.8 m² (321 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 5,309 mm (209 in). Tube Type: Straight Tube. Tube Number: 104. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,801 mm (189 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Two 6" nozzles, two 4" nozzles..

Heat Transfer Surface Area: 30.1 m² (324 ft²). Orientation: Horizontal. Shell Pressure: 12.4 bar (180 psi). Shell Temperature: 193.3 °C (380 °F). Shell Material: Carbon Steel. Tube Pressure: 12.4 bar (180 psi). Tube Temperature: 193.3 °C (380 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 4,873 mm (191.9 in). Tube Type: Straight Tube. Tube Number: 104. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,851 mm (191 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Four 3" nozzles..

16-120 steam condenser with steam in the shell and water in the tubes. Heat Transfer Surface Area: 30.8 m² (331 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 406.4 mm (16 in). Head Material: Carbon Steel. Length: 3,023 mm (119 in). Tube Type: Straight Tube. Tube Number: 172. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,987 mm (117.6 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: (1x) 10in, (2x) 8in, (1x) 2in, (4x) 0.75in.

Heat Transfer Surface Area: 36.7 m² (395 ft²). Orientation: Vertical. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 148.9 °C (300 °F). Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 5,969 mm (235 in). Tube Type: Straight Tube. Tube Number: 126. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: One 16" nozzle, two 6" nozzles, one 2" nozzle, and two 1" nozzles..

Heat Transfer Surface Area: 37.2 m² (400 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Stainless Steel 316L. Length: 2,388 mm (94 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 262. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 12", Three 3", Two 2", and Two 1".

Heat Transfer Surface Area: 37.2 m² (400 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Stainless Steel 316L. Length: 3,353 mm (132 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 262. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 12", Three 3", Two 2", and Two 1".

Overall length, 13' Heat Transfer Surface Area: 42 m² (452 ft²). Orientation: Horizontal. Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 304. Head Material: Stainless Steel 304. Length: 3,581 mm (141 in). Tube Type: Straight Tube. Tube Number: 196. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,581 mm (141 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Nozzle schedule: One 10", One 4", one 3", one 2", one 1", two 3/4" nipples..

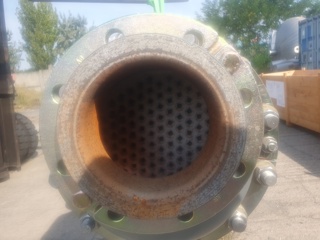

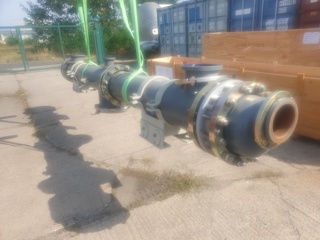

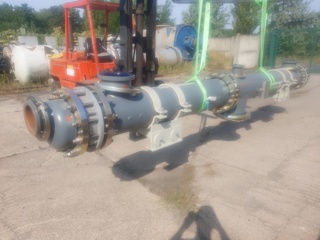

• Type: Duplex heat exchanger
• Tube configuration: Multi-pass
• Expansion bellows: Yes (2) Duplex s/steel (1.4462) bonnet heads Heat Transfer Surface Area: 33.2 m² (357.4 ft²). Orientation: Horizontal. Shell Pressure: 20 bar (290.1 psi). Shell Temperature: 220 °C (428 °F). Shell Material: Carbon Steel. Tube Pressure: 13.5 bar (195.8 psi). Tube Temperature: 220 °C (428 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 400 mm (15.7 in). Head Material: Stainless Steel Other. Tube Number: 144. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,670 mm (144.5 in). Nozzle Schedule: - Tube side openings: - 1 head with 2-3" - 1 head with none - Shell side openings: - 1-3" - 2-2" .

(2) 316 s/steel bonnet heads Expansion bellows: Yes Heat Transfer Surface Area: 39 m² (419.8 ft²). Orientation: Horizontal. Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 288 °C (550.4 °F). Shell Material: Carbon Steel. Tube Pressure: 5.3 bar (76.9 psi). Tube Temperature: 288 °C (550.4 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 316. Length: 4,300 mm (169.3 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 190. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,660 mm (144.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Tube openings: - 1 head with 2-4" - 1 head with none - Shell openings: - 2-3" - 1-1".

(1) c/steel flat channel head Heat Transfer Surface Area: 22.5 m² (242.2 ft²). Orientation: Horizontal. Shell Pressure: 1.1 bar (16 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.7 bar (126.2 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,555 mm (140 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 140. Tube Diameter: 19.5 mm (0.77 in). Tube Length: 2,974 mm (117.1 in). Nozzle Schedule: - Openings: tubeside - 2-2", shellside - 1-18", 1-6", 1-3".

(1) c/steel flat channel head Heat Transfer Surface Area: 39 m² (419.8 ft²). Orientation: Horizontal. Shell Pressure: 1.1 bar (16 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.7 bar (126.2 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,555 mm (140 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 70. Tube Diameter: 19.5 mm (0.77 in). Tube Length: 2,800 mm (110.2 in). Nozzle Schedule: - Head openings: tubeside - 2-2", shell side - 1-18", 1-6", 1-3".

Expansion joint: Incolly 825 (2) carbon steel flat channel heads Heat Transfer Surface Area: 135 m² (1,453 ft²). Orientation: Horizontal. Shell Pressure: 6.1 bar (88.5 psi). Shell Temperature: 220 °C (428 °F). Shell Material: Stainless Steel Other. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 220 °C (428 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 876 mm (34.5 in). Head Material: Carbon Steel. Length: 3,900 mm (153.5 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 738. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Openings: - Tubeside: (1) head with 2-6", (1) head with none - Shellside: 1-24", 5-3", 1-1".

(1) c/steel channel head Heat Transfer Surface Area: 25.2 m² (271.3 ft²). Orientation: Horizontal. Shell Pressure: 8.7 bar (126.2 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel Other. Tube Pressure: 12.8 bar (185.6 psi). Tube Temperature: 210 °C (410 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,125 mm (123 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 2,600 mm (102.4 in). Nozzle Schedule: - Head openings: tubeside - 2-2", shell side - 1-6", 1-3", 2-2", 1-1 1/2".

(2) 316 stainless steel bonnet heads Heat Transfer Surface Area: 195 m² (2,099 ft²). Orientation: Horizontal. Shell Pressure: 20 bar (290.1 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Carbon Steel. Tube Pressure: 12.8 bar (185.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,020 mm (40.2 in). Head Material: Stainless Steel 316. Length: 4,228 mm (166.5 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Number: 1,135. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,044 mm (119.8 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Tube side openings: (1) head with 2-10", (1) head with none - Shell side openings: 1-4", 2-2".

No tag 7.5" diameter x 122" tube sheet to tube sheet Heat Transfer Surface Area: 15 m² (161 ft²). Orientation: Horizontal. Shell Material: Carbon Steel. Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 3,353 mm (132 in). Nozzle Schedule: Shell nozzles are two 3" tube nozzles are two 3"..

Heat Transfer Surface Area: 7.1 m² (76 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 323.9 mm (12.8 in). Head Material: Carbon Steel. Length: 2,408 mm (94.8 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 50. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,362 mm (93 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Nozzle schedule is as follows: two 3.5", two 2.375" nozzles, and two 0.75" nozzles..

2.5% Tung tubes (Non code) with TA liner silver brazed to tube sheet, glass lined carbon steel heads (tubes are roller expanded into grooves and seal welded to tube sheet face) 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end. 4" thick foam glass insulation covered with 12 GA 316 L sheathing on the shell side only. Sheathing has a 50 RA finish with vent & drain. Six, PTFE Teflon (1/4" thick) baffles @8" spacing face to face. Heat Transfer Surface Area: 2.4 m² (26 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Glasslined. Length: 2,086 mm (82.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 26. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Nozzle schedule : (1) 3" top left. (1) 3" nozzle bottom right. 8 5/8" diameter x 82 1/8" overall length. 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end..

Heat Transfer Surface Area: 27.9 m² (300 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,448 mm (57 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 10", Three 4", One 3", Two 1".

Heat Transfer Surface Area: 3.4 m² (37 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 1,477 mm (58.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,477 mm (58.1 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Two 2" , one 2.5", one 1".

Heat Transfer Surface Area: 3.4 m² (37 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 1,477 mm (58.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,477 mm (58.1 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Two 2" , one 2.5", one 1".

shell rated 150psi FV @ 150 psi @450 deg F tubes rated 150psi FV@ 450 degF Heat Transfer Surface Area: 29.5 m² (317 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in).

Heat Transfer Surface Area: 3.4 m² (37 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 1,477 mm (58.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,477 mm (58.1 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Two 2" , one 2.5", one 1".

CS shell rated 150psi FV @ 150 psi @450 deg F. Tantalum tubes rated 150psi FV@ 450 degF Heat Transfer Surface Area: 29.5 m² (317 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in). Tube Type: Straight Tube.

Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F).

Shell rated 150psi FV @ 450 degF. Tubes rated. 150psi FV @ 450 degF Heat Transfer Surface Area: 20.8 m² (224 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes.

Heat Transfer Surface Area: 27.9 m² (300 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,753 mm (69 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (2) 4" inlet/outlet nozzle, (2) 1" vent/drain nozzle, (1) 1/2" drain nozzle, (1) 10" inlet nozzle, (1) 3" outlet, (1) 4" outlet nozzle..

Heat Transfer Surface Area: 13.9 m² (150 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Alloy 20. Tubesheet Material: Alloy 20. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Nickel. Length: 558.8 mm (22 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 481. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 558.8 mm (22 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (2) 4" inlet/outlet, (2) 1" vent/drain, (1) 1/2" drain, (1) 10" inlet. (1) 3" outlet. (1) 4" outlet.

Heat Transfer Surface Area: 18.6 m² (200 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Nickel. Tubesheet Material: Alloy 20. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Length: 1,473 mm (58 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,473 mm (58 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (1x) 10" inlet, (1x) 3" outlet, (1x) 4" outlet, (2x) 4" inlet/outlet (2x) 1" vent/drain.

8367-Austenitic stainless tubes 8367-Austenitic stainless tube sheets 8367-Austenitic stainless heads TEMA type BEM size 10-54 Heat Transfer Surface Area: 3.8 m² (41 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 273.1 mm (10.8 in). Head Material: Stainless Steel Austentic. Length: 1,321 mm (52 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 48. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,321 mm (52 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (2x) 3" nozzles, (2x) 2" nozzles, (4x) 1" nozzles..

Heat Transfer Surface Area: 2.8 m² (30 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 273.1 mm (10.8 in). Head Material: Stainless Steel 316. Length: 1,244 mm (49 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 38. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,219 mm (48 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Inlet one 4", Outlet one 4", shell inlet 3".

TEMA type BEM size 17-96 Heat Transfer Surface Area: 37.3 m² (402 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Hastelloy - C276. Length: 2,388 mm (94 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 262. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Nozzle schedule; one 12" nozzle, three 3" nozzles, two 2" nozzles, and two 1" nozzles..

Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Horizontal. Shell Pressure: 20.7 bar (300 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 2,438 mm (96 in). Head Material: Carbon Steel. Length: 1,829 mm (72 in). Nozzle Schedule: 3in inlet & outlet, 2in shell nozzle.

Heat Transfer Surface Area: 274.4 m² (2,954 ft²). Orientation: Vertical. Shell Pressure: 8.6 bar (125 psi). Shell Temperature: 15.6 °C (60 °F). Shell Material: Carbon Steel. Tube Pressure: 8.6 bar (125 psi). Tube Temperature: 36.7 °C (98 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Carbon Steel. Shell Diameter: 838.2 mm (33 in). Head Material: Carbon Steel. Length: 5,429 mm (213.8 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 848. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 5,410 mm (213 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 8" nozzles, two 6" nozzles five 3" nozzles 9 0.75" couplings. .

Methanol Vaporizer Heat Transfer Surface Area: 511 m² (5,500 ft²). Orientation: Vertical. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,372 mm (54 in). Head Material: Carbon Steel. Length: 4,877 mm (192 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,350. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,801 mm (189 in). Tube Thickness: 2.1 mm (0.08 in).

After Cooler With expansion joint Heat Transfer Surface Area: 545 m² (5,866 ft²). Orientation: Vertical. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,422 mm (56 in). Head Material: Carbon Steel. Length: 4,877 mm (192 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,423. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,801 mm (189 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 20",one 8" one 6" two 2" one 1".

With top vapor dome-Dowtherm Condenser Heat Transfer Surface Area: 186.5 m² (2,007 ft²). Orientation: Horizontal. Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 230 °C (446 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 1,372 mm (54 in). Head Material: Carbon Steel. Length: 4,242 mm (167 in). Tube Type: Straight Tube. Tube Number: 548. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,242 mm (167 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 6", four 4", one 2" four 1.5".

Designed for steam condensate in the shell and water in the tubes. Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 254 mm (10 in). Head Material: Carbon Steel. Length: 2,388 mm (94 in). Tube Type: Straight Tube. Tube Number: 65. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: One 6" nozzle, two 4" nozzles, two 1.5" nozzles, three 0.75" nipples..

Heat Transfer Surface Area: 37.2 m² (400 ft²). Orientation: Vertical. Shell Material: Carbon Steel. Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 355.6 mm (14 in). Head Material: Carbon Steel. Length: 4,191 mm (165 in).

Heat Transfer Surface Area: 45.4 m² (489 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 185.6 °C (366 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 533.4 mm (21 in). Head Material: Carbon Steel. Length: 2,515 mm (99 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 302. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,515 mm (99 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (2) 6" Nozzles, (2) 4" nozzles, (4) 1" nozzles, (1) 0.5" nozzle.

sanitary, horizontal "U" tube heat exchanger Heat transfer: 1,620,000 BTU/Hr Bundle: Removable, sanitary design, completely drainable Shell side nozzles: Two 3" 150# Tube side nozzles: 3" Tri Clover Heat Transfer Surface Area: 3.1 m² (33 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,473 mm (58 in). Tube Type: U-Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,463 mm (57.6 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell side nozzles two 3" 150#, Tube side nozzles 3" Tri Clover..

Shell side nozzles: 4" 150# Tube side nozzles: 3" Tri-Cl Gaskets: O ring, EPDM BTU/hr rating: 1,080,000 Heat Transfer Surface Area: 8 m² (86 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 8,890 mm (350 in). Head Material: Stainless Steel 316. Length: 1,880 mm (74 in). Tube Type: U-Tube. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 1.27 mm (0.05 in). Nozzle Schedule: Shell side nozzles: 4" 150# - Tube side nozzles: 3" Tri-Cl.

Heat Transfer Surface Area: 12.6 m² (136 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Head Material: Hastelloy - Other. Length: 1,448 mm (57 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 295. Tube Diameter: 15.9 mm (0.63 in). Tube Length: 863.6 mm (34 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 8", One 4", Three 3", One 2", Two 0.75" nozzles..

304 SS with Hastelloy C clad tube sheet Hastelloy lined CS shell 20" diameter x 58" face to face, overall length is 89" long Heat Transfer Surface Area: 27.6 m² (297 ft²). Orientation: Vertical. Shell Pressure: 6.2 bar (90 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,473 mm (58 in). Tube Type: Straight Tube. Tube Number: 325. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,473 mm (58 in). Tube Thickness: 0.76 mm (0.03 in).

shell pressure rated by -1/7bar @ -10/260 degrees C ( 1.910 liter ) (1) pass, tube pressure rated by -1/5bar @ -29/260 degrees C ( 2.100 liter ) (1)pass Heat Transfer Surface Area: 364 m² (3,918 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 910 mm (35.8 in). Head Material: Hastelloy - Other. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,014. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: first head (2)DN400, second Head (2)DN20, shell (1)DN300, (2)DN80, (2)DN25, (1)DN20. Capacity: 4,010 L (1,059 gallons). Heat Exchanger Tube Capacity: 2,100 L (554.8 gallons).

• 1248 straight "Lo FIN" finned tubes
• 0.75" diameter x 0.065" under fin x approx. 10' long
• Four 4" auxiliary connections
• Four 1" vents/drains
• Twelve 3/4" NPT connections. Heat Transfer Surface Area: 555.7 m² (5,981 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 4,140 mm (163 in). Tube Number: 1,248. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule as follows: Shell inlet One 36", shell outlet one 4", channel inlet/outlet are two 6".

321 SS tubes (Steel Type SA213 TP321), 321 SS tube sheets (Steel Type SA336 TP321), 321 SS clad CS heads (Steel type SA336 Gr.F22 CL3 +CRO TP347), 321 SS clad Shell (Steel type SA336 Gr.F22 CL3 +CRO TP347) Canadian Registration Number U8145.2 Shell rated for FV/2226 at 740 degrees F, tubes rated for FV/1994 at 840 degrees F TEMA type DEU size 42" x 416" Heat Transfer Surface Area: 300.9 m² (3,239 ft²). Orientation: Horizontal. Shell Pressure: 153.5 bar (2,226 psi). Shell Temperature: 393.3 °C (740 °F). Shell Material: Stainless Steel 321. Tube Pressure: 137.5 bar (1,994 psi). Tube Temperature: 448.9 °C (840 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Carbon Steel. Length: 10,566 mm (416 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 353. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,486 mm (216 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two shell side nozzles 10" NPS, two tube side nozzles 12" NPS.

design pressure tubeside: -1/10.6 bar @ 200 degrees C, shell side: -1/12.8 bar@ 200 degrees C, (1) duplex stainless steel bonnet head (1) duplex stainless steel dished head Heat Transfer Surface Area: 339 m² (3,649 ft²). Orientation: Horizontal. Shell Pressure: 12.8 bar (185.6 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 10.6 bar (153.7 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel Other. Length: 5,207 mm (205 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 1,550. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,658 mm (144 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Openings: - Tubeside: 2-250mm - Shell: 1-150mm, 2-75mm.

Certification: TUV pressure tube side 6 barg @ 200 degrees C (6530 liter) shell -1/3 barg @ 200 degrees C (8860 liter) multi-pass tube side, (2) 316L stainless steel (1.4571) dished heads, shell with expansion bellows, bottom of shell with a 600mm diameter x 800mm total height sump Heat Transfer Surface Area: 329 m² (3,541 ft²). Orientation: Horizontal. Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 2,200 mm (86.6 in). Head Material: Stainless Steel Austentic. Length: 4,672 mm (183.9 in). Tube Number: 1,396. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,998 mm (118 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings tube side: 1 x head with 2-300mm, 2-50/25mm, 1 x head with 2-50/25mm, shell side: 1-1200mm, 1-400mm, 1-100mm (sump), 1-80mm (sump), 1-50mm (sump), 2-50/25mm.

Heat Transfer Surface Area: 485.6 m² (5,227 ft²). Orientation: Horizontal. Shell Pressure: 10.6 bar (154 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 3.6 bar (52 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,473 mm (58 in). Head Material: Stainless Steel 316. Length: 8,788 mm (346 in). Tube Number: 674. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Shell nozzles are 10' and 16". Tube nozzles are two 28"..

CS baffles (2) channel heads, with end covers mounted on davits expanison joint Heat Transfer Surface Area: 481.6 m² (5,184 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,295 mm (51 in). Head Material: Stainless Steel 304. Length: 9,144 mm (360 in). Tube-side Passes: 2. Tube Number: 440. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 9,144 mm (360 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Openings include: (2) 16", (1) 14", (1) 8", (1) 3".

(20) baffles on 10" spacing 1" SQ pitch Heat Transfer Surface Area: 458.8 m² (4,939 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 42.5 bar (616 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Stainless Steel 304. Length: 8,534 mm (336 in). Tube-side Passes: 1. Tube Number: 1,286. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Shell (2) 14"; Heads - (2) 18".

Heat Transfer Surface Area: 465 m² (5,005 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 187.2 °C (369 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 155.6 °C (312 °F). Tube Material: Stainless Steel 317. Head Material: Stainless Steel 317. Tube Diameter: 30 mm (1.18 in). Tube Length: 2,430 mm (95.7 in). Nozzle Schedule: openings tube side: 1 head with 1-585mm, shell side: 1-300mm, 1-100mm,.

TEMA type CEU, size 30-336. Shell 2-8" connections; tube 2-8" connections. Heat Transfer Surface Area: 367.6 m² (3,957 ft²). Orientation: Vertical. Shell Pressure: 17.2 bar (250 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 350. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 8,534 mm (336 in). Tube Thickness: 1.27 mm (0.05 in). Nozzle Schedule: Shell 2-8" connections; tube 2-8" connections..

shell pressure rated by -1/7bar @ -10/260 degrees C ( 1.910 liter ) (1) pass, tube pressure rated by -1/5bar @ -29/260 degrees C ( 2.100 liter ) (1)pass Heat Transfer Surface Area: 364 m² (3,918 ft²). Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 900 mm (35.4 in). Head Material: Hastelloy - Other. Length: 6,095 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,014. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,092 mm (239.8 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: first head (2)DN400, second Head (2)DN20, shell (1)DN300, (2)DN80, (2)DN25, (1)DN20. Capacity: 4,010 L (1,059 gallons). Heat Exchanger Tube Capacity: 2,100 L (554.8 gallons).

shell pressure rated by -1/7bar @ -10/260 degrees C ( 1.910 liter ) (1) pass, tube pressure rated by -1/5bar @ -29/260 degrees C ( 2.100 liter ) (1)pass Heat Transfer Surface Area: 364 m² (3,918 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 900 mm (35.4 in). Head Material: Hastelloy - Other. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,014. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,092 mm (239.8 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: first head (2)DN400, second Head (2)DN20, shell (1)DN300, (2)DN80, (2)DN25, (1)DN20. Capacity: 4,010 L (1,059 gallons). Heat Exchanger Tube Capacity: 2,100 L (554.8 gallons).

Note: the NB Papers report this unit to be vertical, however it is set to be in the horizontal position. (AS) Heat Transfer Surface Area: 301.8 m² (3,249 ft²). Orientation: Horizontal. Shell Pressure: 8.3 bar (120 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 8.3 bar (120 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 1,194 mm (47 in). Head Material: Stainless Steel 316L. Length: 3,785 mm (149 in). Tube Type: Straight Tube. Tube Number: 1,000. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,785 mm (149 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: 16" Inlet, one 6" two 3", one 8" and two 1".

Size 44-240 Heat Transfer Surface Area: 469.2 m² (5,050 ft²). Orientation: Horizontal. Shell Pressure: 3.2 bar (47 psi). Shell Temperature: 143.3 °C (290 °F). Shell Material: Carbon Steel. Tube Pressure: 41.8 bar (606 psi). Tube Temperature: 183.3 °C (362 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,245 mm (49 in). Head Material: Carbon Steel. Length: 7,239 mm (285 in). Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 660. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 12,192 mm (480 in). Tube Thickness: 10.7 mm (0.42 in). Nozzle Schedule: - Nozzles: 16".

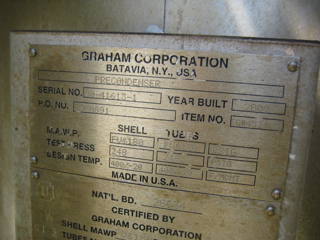

Single Element Two Stage Condensing Ejector Package Shell side MAWP Tube side MAWP 8 ' high Heat Transfer Surface Area: 16.7 m² (180 ft²). Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 287.8 °C (550 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 65.6 °C (150 °F). Vacuum: Yes. Length: 3,353 mm (132 in).

Tantalum clad heads 18" diameter x 75.25" Overall length. (face to face 48") Heat Transfer Surface Area: 12.3 m² (132 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Tantalum. Length: 1,911 mm (75.3 in). Tube Type: Straight Tube. Tube Number: 168. Tube Diameter: 17.8 mm (0.7 in). Tube Length: 1,219 mm (48 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Shell side - two 4", Tube side - one 8" and two 3"..

Heat Transfer Surface Area: 1.49 m² (16 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,172 mm (46.1 in). Head Material: Stainless Steel 304. Length: 1,172 mm (46.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,172 mm (46.1 in). Tube Thickness: 16.5 mm (0.65 in). Nozzle Schedule: 1-3" inlet nozzle, 1-3" outlet nozzle, 1-2" shell outlet.

heat exchanger, as a falling film evaporater. Bolted dish heads Heat Transfer Surface Area: 294 m² (3,165 ft²). Orientation: Vertical. Shell Material: Carbon Steel. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 48.9 °C (120 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Carbon Steel. Length: 8,026 mm (316 in). Tube Type: Straight Tube. Tube Number: 288. Tube Diameter: 38.1 mm (1.5 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Nozzles: Two 10" bottom side nozzles, four 1.5" bottom nozzles, one 24" top side opening.

heat exchanger with vapour head. No Manufactures tag. Tube sheet: 18" ID x 1" thick Vapour head: at top, OD of 24.5" Heat Transfer Surface Area: 48.1 m² (518 ft²). Orientation: Vertical. Shell Material: Stainless Steel 304. Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Carbon Steel. Length: 7,925 mm (312 in). Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 7,315 mm (288 in). Tube Thickness: 3 mm (0.12 in). Nozzle Schedule: - Inlets: 16" and 12" at the top - Outlet: 8" tapered outlet at the bottom, with two 2" and a 4" nozzle at the bottom.

Heat Transfer Surface Area: 0.37 m² (4 ft²). Orientation: Horizontal. Shell Pressure: 6.2 bar (90 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 168.3 mm (6.6 in). Head Material: Stainless Steel 316L. Length: 490.5 mm (19.3 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 14. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 38.1 mm (1.5 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: shell side nozzles are 1.5", tube side nozzles are 1.5" and 2" with a 1" drain..

With Badger expansion joint. TEMA type BEM 10-4-96. Heat Transfer Surface Area: 15.3 m² (165 ft²). Orientation: Horizontal. Shell Pressure: 20 bar (290 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316. Tube Pressure: 20 bar (290 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Vacuum: Yes. Shell Diameter: 254 mm (10 in). Head Material: 316L SS w/TA. Length: 2,337 mm (92 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 160. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 2,438 mm (96 in). Nozzle Schedule: Four 3” nozzles..

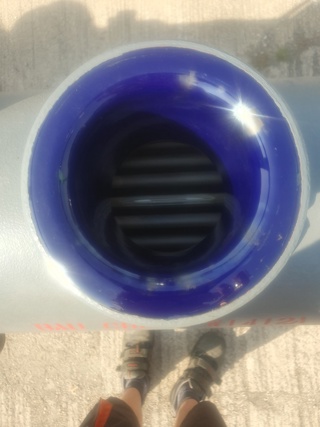

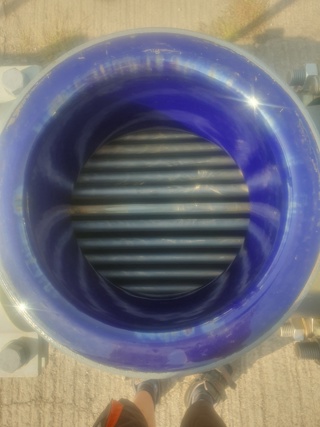

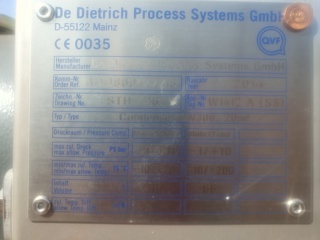

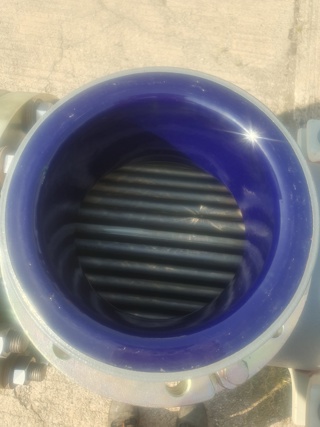

(48) 1" OD welded tubes. (2) Glass lined heads. Heat Transfer Surface Area: 11.4 m² (123 ft²). Orientation: Horizontal. Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Head Material: Carbon Steel. Tube Number: 48. Tube Diameter: 25.4 mm (1 in).

surface condensor Certified by Allyn American Heat Transfer Surface Area: 1.95 m² (21 ft²). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 1,524 mm (60 in). Nozzle Schedule: Openings include: Shell - (2) 3"; Bottom Head - (1) 2"; Top Head - (2) 1.5". .

sanitary horizontal "U" tube heat exchanger. With internal finish <25 RA & electropolished 84.75" overall length 2 Pass construction. Heat Transfer Surface Area: 1.67 m² (18 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Tube Type: U-Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule: - Tube side: two 2" sanitary nozzles - Shell side: One 2", one 1" and two 3/4" drain/vent..

Tubes rated FV Heat Transfer Surface Area: 1.9 m² (20.5 ft²). Orientation: Vertical. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 606.4 mm (23.9 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 606.4 mm (23.9 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 2", two 1.5".

Heat Transfer Surface Area: 4 m² (43 ft²). Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Length: 1,194 mm (47 in). Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,194 mm (47 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (1) 6" inlet/outlet, ( 1) 3" (1) 2" (2) 3" (2) 3/4" drain, (1) 3/4" drain .

Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: 50 °C (122 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: 65 °C (149 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 3,028 mm (119.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN50; tube side: (2) DN150. Capacity: 1,300 L (343.4 gallons). Heat Exchanger Tube Capacity: 750 L (198.1 gallons).

Heat Transfer Surface Area: 22 m² (236.8 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 58.8 °C (137.8 °F). Shell Material: Carbon Steel. Tube Pressure: 13.8 bar (200.2 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 416.4 mm (16.4 in). Head Material: Carbon Steel. Length: 3,048 mm (120 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 91. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,046 mm (119.9 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN20, (1) DN100, (1) DN200; tube side: (2) DN20, (2) DN200. Capacity: 420 L (111 gallons). Heat Exchanger Tube Capacity: 210 L (55.5 gallons).

Heat Transfer Surface Area: 29.2 m² (314.2 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 13.4 bar (194.9 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 333.9 mm (13.1 in). Head Material: Stainless Steel 316L. Length: 6,092 mm (239.8 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 60. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: shell side: (6) DN50; tube side: (2)DN20, (2) DN80. Capacity: 460 L (121.5 gallons). Heat Exchanger Tube Capacity: 200 L (52.8 gallons).

TEMA type BEU. Internal Gaskets FDA Class A-F Heat Transfer Surface Area: 8.4 m² (90.2 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 18.6 °C (65.6 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 70 bar (1,015 psi). Tube Temperature: -9.1 °C (15.6 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 202 mm (8 in). Head Material: Stainless Steel 316L. Length: 2,500 mm (98.4 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 41. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.25 mm (0.05 in). Nozzle Schedule: Two 52.502 mm, one, 35.02 mm, one 26.645 mm. Capacity: 160 L (42.3 gallons).

TEMA type BEU. Internal Gaskets FDA Class A-F Heat Transfer Surface Area: 8.4 m² (90.2 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 18.6 °C (65.6 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 70 bar (1,015 psi). Tube Temperature: -9.1 °C (15.6 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 202 mm (8 in). Head Material: Stainless Steel 316L. Length: 2,500 mm (98.4 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 41. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.25 mm (0.05 in). Nozzle Schedule: Two 52.502 mm, one, 35.02 mm, one 26.645 mm. Capacity: 160 L (42.3 gallons).

shell with expansion joint, design code: VSR-S-M Ed.95, Mod G 97/23/CE (PED), CE1233 Heat Transfer Surface Area: 130 m² (1,399 ft²). Orientation: Inclined. Shell Pressure: 6 bar (87 psi). Shell Temperature: 99 °C (210.2 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6 bar (87 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 688 mm (27.1 in). Head Material: Stainless Steel 316L. Length: 5,100 mm (200.8 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: Straight Tube. Tube Number: 468. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,756 mm (187.2 in). Tube Thickness: 1.65 mm (0.06 in). Capacity: 1,188 L (313.8 gallons). Heat Exchanger Tube Capacity: 248 L (65.5 gallons).

Heat Transfer Surface Area: 135.2 m² (1,455 ft²). Orientation: Inclined. Shell Pressure: 6 bar (87 psi). Shell Temperature: 50 °C (122 °F). Shell Material: Stainless Steel 316. Tube Pressure: 2.5 bar (36.3 psi). Tube Temperature: 140 °C (284 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 720 mm (28.3 in). Head Material: Stainless Steel 316. Tube Type: Straight Tube. Tube Length: 4,700 mm (185 in).

31m² tantalum tube carbon steel shell, horizontal shell and tube heat exchanger, manufactured by Tantec, serial number 4278, tube pressure rated by -1/6bar @-10/200 degrees C (volume 100 liter), shell pressure rated by -1/8bar @ -10/200 degrees C (volume403 liter), carbon steel shell 490mm diameter x 4508mm length, (175) tubes 12.7mm diameter x 0.4mm thickness x 4.500mm length, openings shell side: (1)DN100, (1)DN250; openings tubeside: (2)DN150, mounted on 2 saddles Heat Transfer Surface Area: 31 m² (333.7 ft²). Orientation: Horizontal. Shell Pressure: 8 bar (116 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 490 mm (19.3 in). Length: 4,508 mm (177.5 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 175. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 4,500 mm (177.2 in). Tube Thickness: 0.4 mm (0.016 in). Nozzle Schedule: shell side: (1)DN100, (1)DN250; tubeside: (2)DN150. Capacity: 503 L (132.9 gallons). Heat Exchanger Tube Capacity: 100 L (26.4 gallons).

tube pressure rated by -1/10bar @-10/200 degrees C (volume 66 liter), shell pressure rated by -1/10bar @ -10/200 degrees C (volume 180 liter) Heat Transfer Surface Area: 20 m² (215.3 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Hexoloy SE (Sintered Silicon Carbide). Tubesheet Material: Plastic. Vacuum: Yes. Shell Diameter: 324 mm (12.8 in). Head Material: Glasslined. Length: 4,787 mm (188.5 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 121. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,200 mm (165.4 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: shell side: (1) DN100, (2) DN200, (1) DN300; tube side: (1) DN150, (1) DN200. Capacity: 246 L (65 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).

(2) stainless steel channels with flat heads. Heat Transfer Surface Area: 48 m² (516.7 ft²). Orientation: Horizontal. Shell Material: Carbon Steel. Tube Pressure: 2.1 bar (30 psi). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel Other. Shell Diameter: 558.8 mm (22 in). Head Material: Stainless Steel 316. Length: 2,438 mm (96 in). Tube-side Passes: 1. Tube Number: 329. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,438 mm (96 in). Nozzle Schedule: - Tube side openings: 1-12", 1-3", 1-1 1/2" - Shell side openings: 2-6".

Heat Transfer Surface Area: 2 m² (21.5 ft²). Orientation: Vertical. Shell Pressure: 9 bar (130 psi). Shell Temperature: 147.2 °C (297 °F). Shell Material: Carbon Steel. Tube Pressure: 9 bar (130 psi). Tube Temperature: 147.2 °C (297 °F). Tube Material: Graphite. Shell Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Shell-side Passes: 1. Nozzle Schedule: Openings: Tube side 2-5"; Shell side 2-3".

design pressure process side 7 bar @ 50/61 degrees C, service 3.6 bar @ 23/34 degrees C, exchanger made up of 8- blocks of HP2/20 elements Heat Transfer Surface Area: 21 m² (226 ft²). Orientation: Vertical. Shell Pressure: 2.5 bar (36.3 psi). Shell Temperature: 34 °C (93.2 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 61 °C (141.8 °F). Tube Material: Graphite. Shell-side Passes: 2. Tube-side Passes: 3. Nozzle Schedule: openings: process 2-100mm, 2-25mm, service 2-100mm,.

(2) c/steel bonnet heads Additional features: Expansion bellow Heat Transfer Surface Area: 10.3 m² (110.9 ft²). Orientation: Horizontal. Shell Pressure: 4.1 bar (60 psi). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Material: Stainless Steel 316. Shell Diameter: 420 mm (16.5 in). Head Material: Carbon Steel. Tube Number: 57. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,846 mm (72.7 in). Nozzle Schedule: - Tube side openings: 2-50mm - Shell openings: 1-200mm, 1-150mm, 1-50mm.

(2) c/steel bonnet heads Additional features: Expansion bellow Heat Transfer Surface Area: 10.3 m² (110.9 ft²). Orientation: Horizontal. Shell Pressure: 4.1 bar (60 psi). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Material: Stainless Steel 316. Shell Diameter: 420 mm (16.5 in). Head Material: Carbon Steel. Tube Number: 57. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,846 mm (72.7 in). Nozzle Schedule: - Tube side openings: 2-50mm - Shell openings: 1-200mm, 1-150mm, 1-50mm.

Additional features: expansion bellow, (2) carbon steel channel heads, Heat Transfer Surface Area: 24 m² (258.3 ft²). Orientation: Horizontal. Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 75 °C (167 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 560 mm (22 in). Head Material: Carbon Steel. Length: 3,050 mm (120.1 in). Tube-side Passes: 4. Tube Number: 122. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm.

('U' bend not included) Heat Transfer Surface Area: 9.6 m² (103.3 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,830 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.

Expansion bellow: Yes (2) c/steel channel heads Heat Transfer Surface Area: 10 m² (107.6 ft²). Orientation: Horizontal. Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 140 °C (284 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 2,950 mm (116.1 in). Tube-side Passes: 4. Tube Number: 54. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: Head openings: - Tubeside: 2-50mm, 4-6mm - Shell: 1-150mm, 1-75mm, 1-50mm, 1-6mm.

Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads Heat Transfer Surface Area: 25.8 m² (277.7 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750.2 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570.2 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,060 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,060 mm (238.6 in).

inclined Hykarb tube in shell graphite heat exchanger Manufacturer's job #: E80-5939 Design pressure (shell side): 5.2 bar @ 90 degrees C Design pressure (tubeside): 3.5 bar @ 170 degrees C Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm long Number of internal baffle plates: 10 Heat Transfer Surface Area: 11.6 m² (125.1 ft²). Orientation: Inclined. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Shell Diameter: 438 mm (17.2 in). Length: 63,500 mm (2,500 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,391 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-150mm, 1-100mm, 1-80mm, shell: 2-80mm.

inclined Hykarb tube in shell graphite heat exchanger Job number: 3420A Design pressure (shell side): 5.2 bar @ 90 degrees C Design pressure (tubeside): 3.5 bar @ 170 degrees C Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm long Number of internal baffle plates: 10 Heat Transfer Surface Area: 11.6 m² (125.1 ft²). Orientation: Inclined. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 438 mm (17.2 in). Length: 2,500 mm (98.4 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,391 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-150mm, 1-100mm, 1-80mm, shell: 2-80mm,.

inclined Hykarb tube in shell graphite heat exchanger Job number: 3420B Design pressure shell side: 5.2 bar @ 90 degrees C Design pressure tubeside: 3.5 bar @ 170 degrees C Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm long Number of internal baffle plates: 10 Heat Transfer Surface Area: 11.6 m² (125.1 ft²). Orientation: Horizontal. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Shell Diameter: 438 mm (17.2 in). Length: 2,500 mm (98.4 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,391 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-150mm, 1- 100mm, 1-80mm, shell: 2-80mm,.

Heat Transfer Surface Area: 15.3 m² (165 ft²). Orientation: Inclined. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 170 °C (338 °F). Tube Pressure: 2.5 bar (36.3 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 350 mm (13.8 in). Length: 4,000 mm (157.5 in). Tube Number: 42. Tube Diameter: 32 mm (1.26 in). Tube Thickness: 10 mm (0.39 in).

• inclined Hykarb graphite tube
• Design Pressure (Service Side): 7.8 bar @ 170 degrees C
• Design Pressure (Process Side): 5.2 bar @ 170 degrees C
• 22mm inside diameter x 32mm outside diameter graphite tubes Heat Transfer Surface Area: 15.3 m² (165 ft²). Orientation: Horizontal. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 2.5 bar (36.3 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 350 mm (13.8 in). Length: 4,000 mm (157.5 in). Tube Number: 42. Tube Diameter: 32 mm (1.26 in). Tube Thickness: 10 mm (0.39 in).

• Heat exchanger type: Hykarb tube in shell graphite
• Design pressure shell side: 5.2 bar @ 90 degrees C
• Design pressure tubeside: 3.5 bar @ 170 degrees C
• Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm long
• Baffle plates: (10) internal Heat Transfer Surface Area: 11.6 m² (125.1 ft²). Orientation: Inclined. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 438 mm (17.2 in). Length: 2,500 mm (98.4 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,391 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-100mm, 150mm, shell: 2-80mm,.

Tantalum/2.5%W (Tungsten) tube Design and fabricated per ASME SECT. V111. DIV. 1 1988 and 1998 ADDENDA TEMA “C” design pressure tube side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F), shell side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F) on a 28.6mm (1 1/8”) triangle pitch, double grooved roller expanded and seal welded tubes, (2) 304L stainless steel tube sheets with Tantalum/2.5% W (Tungsten) lining, (2) Tantalum/2.5%W (Tungsten) lined channel heads with a flat removeable end cover 304L stainless steel shell with expansion bellows (40) Teflon/PTFE internal baffle plates, 39 spaces @ 50.8mm (2”) 39 spaces @ 50.8mm (2”) Heat Transfer Surface Area: 4.6 m² (49.5 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100.1 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.9 bar (100.1 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219 mm (8.6 in). Head Material: Tantalum. Length: 3,016 mm (118.7 in). Tube-side Passes: 1. Tube Number: 32. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Openings: tubes side - 1 head with 1-4”, 1 head with 1-3”, 1-1 ½”, shell side - 2-3”.

working pressure tube side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C), shell side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C) single pass 200mm I.D 304L stainless steel shell with expansion bellows (2) 304L stainless steel heads with Tantalum lining (1) flat channel head Heat Transfer Surface Area: 4.3 m² (46.3 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 200 mm (7.9 in). Head Material: Stainless Steel 304. Tube-side Passes: 1. Tube Number: 33. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,280 mm (89.8 in). Nozzle Schedule: - Tube side openings: Coned head with 1-100mm, flat channel head with 1-50mm - Shell side openings: 2-80mm.

Heat Transfer Surface Area: 3 m² (32 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Hastelloy - C276. Length: 889 mm (35 in). Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 889 mm (35 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (2) 2" inlet/outlet, (2) 2" inlet/outlet, (1) 2", (2) 3/4" vent/drain, (1) 3/4".

Shell is rated for MAWP, 225 psi at 450 degrees F. Shell MDMT is -20 degrees F. at 225 psi. Tubes are rated for MAWP 150 psi at 450 degrees F Tubes MDMT is rated for -20 degrees F. at 150 psi Shell side inlet and outlet are 3" threaded. Tube side inlet and outlet are 2" threaded. Heat Transfer Surface Area: 1.86 m² (20 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 247.7 mm (9.8 in). Length: 914.4 mm (36 in).

Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: -12.2 °C (10 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: -7.6 °C (18.3 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 3,028 mm (119.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN50; tube side: (2) DN150. Capacity: 1,300 L (343.4 gallons). Heat Exchanger Tube Capacity: 750 L (198.1 gallons).

Heat Transfer Surface Area: 39 m² (419.8 ft²). Orientation: Vertical. Shell Pressure: 7.5 bar (108.8 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 7.5 bar (108.8 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304L. Tubesheet Material: Stainless Steel 304L. Vacuum: Yes. Shell Diameter: 605 mm (23.8 in). Head Material: Stainless Steel 304L. Length: 1,508 mm (59.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 457. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,524 mm (60 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (1) DN20, (1) DN25, (1) DN50, (1) DN80; tube side: (1) DN20, (1) DN40, (1) DN100, (1) DN450. Capacity: 735 L (194.2 gallons). Heat Exchanger Tube Capacity: 535 L (141.3 gallons).

Heat Transfer Surface Area: 29.8 m² (320.8 ft²). Orientation: Vertical. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 4 bar (57.3 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 516 mm (20.3 in). Head Material: Stainless Steel 304. Length: 2,020 mm (79.5 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 178. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,028 mm (79.8 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: shell side: (2) DN80; tube side: (1) DN20, (1) DN40, (1) DN80, (1) DN150. Capacity: 535 L (141.3 gallons). Heat Exchanger Tube Capacity: 343 L (90.6 gallons).

Heat Transfer Surface Area: 34.6 m² (372.4 ft²). Orientation: Horizontal. Shell Pressure: 35.9 bar (520.7 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (269.8 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 326.4 mm (12.9 in). Head Material: Stainless Steel 316L. Length: 6,100 mm (240.2 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: Straight Tube. Tube Number: 96. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (1) DN80, (3) DN150; tube side: (1) DN20, (1) DN50, (2) DN80. Capacity: 500 L (132.1 gallons). Heat Exchanger Tube Capacity: 210 L (55.5 gallons).

Heat Transfer Surface Area: 136 m² (1,464 ft²). Orientation: Horizontal. Shell Pressure: 45 bar (652.7 psi). Shell Temperature: 61.9 °C (143.3 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 55.1 bar (799.2 psi). Tube Temperature: 86.5 °C (187.8 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 909 mm (35.8 in). Head Material: Carbon Steel. Length: 6,466 mm (254.6 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.4 mm (0.09 in). Nozzle Schedule: shell side: (1) DN20, (2) DN600; tube side: (1) DN25, (2) DN150. Capacity: 4,325 L (1,143 gallons). Heat Exchanger Tube Capacity: 1,000 L (264.2 gallons).

Heat Transfer Surface Area: 62 m² (667.4 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 11.2 bar (162.4 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 415.2 mm (16.3 in). Head Material: Stainless Steel 304. Length: 6,100 mm (240.2 in). Shell-side Passes: 2. Tube-side Passes: 6. Tube Type: Straight Tube. Tube Number: 172. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN80; tube side: (2) DN20, (2) DN80. Capacity: 6,675 L (1,763 gallons). Heat Exchanger Tube Capacity: 335 L (88.5 gallons).

Heat Transfer Surface Area: 17.6 m² (189.4 ft²). Orientation: Horizontal. Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 40.2 °C (104.4 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10 bar (145 psi). Tube Temperature: 9.7 °C (49.4 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 323.9 mm (12.8 in). Length: 2,986 mm (117.6 in). Tube Type: Straight Tube. Tube Number: 98. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (1) DN50, (1) DN80, (1) DN100; tube side: (2) DN150. Capacity: 280 L (74 gallons). Heat Exchanger Tube Capacity: 140 L (37 gallons).

shell pressure rated by -1/11.72bar @ -29/260 degrees C ( 301 liter ) (1) pass, tube pressure rated by -1/6.9bar @ -29/204 degrees C ( 245 liter ) (1)pass Heat Transfer Surface Area: 36.9 m² (397.2 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100.1 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Stainless Steel 304. Length: 6,098 mm (240.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 76. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: shell side: (2) DN50, (2) DN150; tube side: (2) DN20, (2) DN40, (1) DN50, (1) DN150. Capacity: 546 L (144.2 gallons). Heat Exchanger Tube Capacity: 245 L (64.7 gallons).

shell pressure rated by -1/6.5bar @ -29/290 degrees C ( 1.050 liter ) (1) pass, tube pressure rated by -1/10bar @ -29/260 degrees C ( 740 liter ) (1)pass Heat Transfer Surface Area: 127.5 m² (1,372 ft²). Orientation: Horizontal. Shell Pressure: 6.5 bar (94.3 psi). Shell Temperature: 61.9 °C (143.3 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 52.6 °C (126.7 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 623.6 mm (24.6 in). Head Material: Stainless Steel 316L. Length: 6,100 mm (240.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 354. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN20 expansion joint, (1) DN350, (1) DN400; tube side: (2) DN20, (2) DN150. Capacity: 1,790 L (472.9 gallons). Heat Exchanger Tube Capacity: 740 L (195.5 gallons).

shell pressure rated by -1/7.2bar @ -29/260 degrees C ( 465 liter ) (2) pass, tube pressure rated by -1/11bar @ -29/204 degrees C ( 420 liter ) (2)passes Heat Transfer Surface Area: 43.2 m² (465.3 ft²). Orientation: Horizontal. Shell Pressure: 7.2 bar (104.4 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 11 bar (159.5 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 416 mm (16.4 in). Head Material: Stainless Steel 316L. Length: 6,100 mm (240.2 in). Shell-side Passes: 2. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 90. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: shell side: (2) DN20, (2) DN50, (1) DN200; tube side: (2) DN20, (2) DN100. Capacity: 885 L (233.8 gallons). Heat Exchanger Tube Capacity: 420 L (111 gallons).

shell pressure rated by -1/11.72bar @ -29/260 degrees C ( 220 liter ) (1) pass, tube pressure rated by -1/8.62bar @ -29/204 degrees C ( 138 liter ) (4)passes Heat Transfer Surface Area: 28.4 m² (305.7 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 8.6 bar (125 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Stainless Steel 304. Length: 6,098 mm (240.1 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 72. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN50, (2) DN100; tube side: (2) DN20, (2) DN50. Capacity: 358 L (94.6 gallons). Heat Exchanger Tube Capacity: 138 L (36.5 gallons).

shell pressure rated by -1/11.7bar @ -29/260 degrees C ( 240 liter ) (1) pass, tube pressure rated by -1/11bar @ -29/204 degrees C ( 80 liter ) (4)passes. Heat Transfer Surface Area: 26.6 m² (286.3 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 11 bar (159.5 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 283 mm (11.1 in). Head Material: Stainless Steel 316L. Length: 6,100 mm (240.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 72. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN50, (2) DN100; tube side: (2) DN20, (2) DN50. Capacity: 320 L (84.5 gallons).

shell pressure rated by -1/10bar @ -29/50 degrees C ( 550 liter ) (1) pass, tube pressure rated by -1/13.7bar @ -29/65 degrees C ( 750 liter ) (4)passes Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: -12.2 °C (10 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: -7.6 °C (18.3 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 3,028 mm (119.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2)DN50; tube side: (2) DN150. Capacity: 1,300 L (343.4 gallons).

shell pressure rated by -1/10bar @ -29/50 degrees C ( 550 liter ) (1) pass, tube pressure rated by -1/13.7bar @ -29/65 degrees C ( 750 liter ) (4)passes Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: -12.2 °C (10 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: -7.6 °C (18.3 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 3,028 mm (119.2 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150, shell side: (2) DN50. Capacity: 1,300 L (343.4 gallons).

shell pressure rated by -1/10bar @ -29/50 degrees C ( 550 liter ) (1) pass, tube pressure rated by -1/13.7bar @ -29/65 degrees C ( 750 liter ) (4)passes Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: 50 °C (122 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: 65 °C (149 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 3,028 mm (119.2 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2)DN50; tube side: (2) DN150. Capacity: 1,300 L (343.4 gallons).

shell pressure rated by -1/10bar @ -29/50 degrees C ( 550 liter ) (1) pass, tube pressure rated by -1/13.7bar @ -29/65 degrees C ( 750 liter ) (4)passes Heat Transfer Surface Area: 99.8 m² (1,074 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: 50 °C (122 °F). Shell Material: Carbon Steel. Tube Pressure: 13.7 bar (198.7 psi). Tube Temperature: 65 °C (149 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 699 mm (27.5 in). Head Material: Stainless Steel 316L. Length: 2,930 mm (115.4 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 556. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,048 mm (120 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (2) DN50; tube side: (2) DN150. Capacity: 1,300 L (343.4 gallons).

shell pressure rated by -1/35.9bar @ -29/260 degrees C ( 290 liter ) (1) pass, tube pressure rated by -1/18.6bar @ -29/204 degrees C ( 210 liter ) (6)passes Heat Transfer Surface Area: 34.6 m² (372.4 ft²). Orientation: Horizontal. Shell Pressure: 35.9 bar (520.7 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (269.8 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 336 mm (13.2 in). Head Material: Stainless Steel 316L. Length: 6,100 mm (240.2 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: Straight Tube. Tube Number: 96. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (3) DN150 (1) DN80; tube side: first head (2) DN80, second head (1) DN20 (1) DN50. Capacity: 500 L (132.1 gallons).

shell pressure rated by -1/11.72bar @ -29/260 degrees C ( 302 liter ) (1) pass, tube pressure rated by -1/13.1bar @ -29/204 degrees C ( 232 liter ) Heat Transfer Surface Area: 45.1 m² (485.5 ft²). Orientation: Vertical. Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 13.1 bar (190 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 355 mm (14 in). Head Material: Stainless Steel 304. Length: 6,080 mm (239.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 124. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,098 mm (240.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: tube side: (2)DN80; shell side (2)DN100. Capacity: 534 L (141.1 gallons). Heat Exchanger Tube Capacity: 232 L (61.3 gallons).

shell pressure rated by -1/11.7bar @ -29/260 degrees C ( 1.180 liter ) (1) pass, tube pressure rated by -1/10bar @ -29/204 degrees C ( 530 liter ) (4)passes Heat Transfer Surface Area: 92.7 m² (997.8 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 622 mm (24.5 in). Head Material: Stainless Steel 304. Length: 6,028 mm (237.3 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 254. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Shell (2) DN150 / tube (2) DN100.

Heat Transfer Surface Area: 55.1 m² (593.1 ft²). Orientation: Horizontal. Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Carbon Steel. Tube Pressure: 6.5 bar (94.3 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 418.9 mm (16.5 in). Head Material: Stainless Steel 304. Length: 6,100 mm (240.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 151. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (4) DN50, (2) DN150; tube side: (2) DN25, (1) DN50, (1) DN300. Capacity: 820 L (216.6 gallons). Heat Exchanger Tube Capacity: 340 L (89.8 gallons).

condensing heat exchanger Shell side= Ethanol / tube side =water Single pass TEMA type: BEM class c Heat Transfer Surface Area: 120.8 m² (1,300 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 660.4 mm (26 in). Head Material: Stainless Steel 304. Length: 4,597 mm (181 in). Tube Type: Straight Tube. Tube Number: 552. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,658 mm (144 in). Tube Thickness: 0.04 mm (0.002 in). Nozzle Schedule: - Nozzles: Shell inlet nozzle =10.75", shell side outlet nozzle=3.5", tube side inlet nozzle=6.625", tube side outlet nozzle=12.75"..

pressure service side -1/3 bar @ -10/80 degrees C (44 liter) process side -1/3 bar @ -10/180 degrees C (44 liter) (2) carbon steel flat heads Heat Transfer Surface Area: 11 m² (118.4 ft²). Orientation: Vertical. Shell Pressure: 0.21 bar (3 psi). Shell Temperature: 80 °C (176 °F). Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 180 °C (356 °F). Vacuum: Yes. Head Material: Carbon Steel.

tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section Heat Transfer Surface Area: 38 m² (409 ft²). Shell Material: Stainless Steel 321. Tube Pressure: 23 bar (333.6 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.55 in). Tube Length: 1,652 mm (65 in). Nozzle Schedule: - Tubeside openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).

15.25" diameter x 1.5" thick. (2) Hastelloy B heads. Alloy 600 expansion joint n the shell. Heat Transfer Surface Area: 30.8 m² (331 ft²). Orientation: Horizontal. Shell Pressure: 18.6 bar (270 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (270 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - B. Tubesheet Material: Hastelloy - B. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Head Material: Hastelloy - B. Length: 6,020 mm (237 in). Tube Number: 64. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,020 mm (237 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include Tube side: (2) 6"; shell side (1) 4"; (1) 2". .

Heat Transfer Surface Area: 22.3 m² (240 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 355.6 mm (14 in). Head Material: Hastelloy - C276. Length: 2,388 mm (94 in). Tube Type: Straight Tube. Tube Number: 153. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (2) 4" nozzle, (1) 6" nozzle, (1) 3" outlet, ( 1) 3/4" vent.

Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Vertical. Shell Pressure: 6.2 bar (90 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 254 mm (10 in). Head Material: Hastelloy - C276. Length: 1,803 mm (71 in). Tube Type: Straight Tube. Tube Number: 85. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,803 mm (71 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (1) 4" inlet, (2) 3" inlet/outlet, (1) 3" outlets , (1) 2" outlet, (1) 3/4" vent.

Heat Transfer Surface Area: 28.3 m² (305 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - C276. Length: 1,448 mm (57 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 10",three 4" one 3", and two 1".

Heat Transfer Surface Area: 9.2 m² (99 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 323.9 mm (12.8 in). Head Material: Hastelloy - C276. Length: 1,216 mm (47.9 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 126. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,194 mm (47 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 6", three 2" one 0.50" half coupling.

Tubes rated 15 psi @ 200 to -20 deg. F min (2) heads, 1 bonnet and 1 cone. Heat Transfer Surface Area: 141.4 m² (1,522 ft²). Orientation: Horizontal. Shell Pressure: 4.1 bar (60 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,219 mm (48 in). Head Material: Stainless Steel 316. Length: 3,200 mm (126 in). Tube Number: 612. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,896 mm (114 in). Nozzle Schedule: Openings: Tube side - 1-6" 1-8"; Shell side - 2-6"..

Tubes rated -20f @ FV/150 psi, Shell rated -20f @ FV/175 psi Orientation: Vertical. Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 190.6 °C (375 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Vacuum: Yes.

polytube graphilor heat exchanger Tube sheets Face to face is 23' 9" Heat Transfer Surface Area: 420 m² (4,521 ft²). Orientation: Vertical. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 176.7 °C (350 °F). Vacuum: Yes. Shell Diameter: 1,270 mm (50 in). Tube Diameter: 38.1 mm (1.5 in). Nozzle Schedule: (1) 28" opening , (1) 6" nozzle on end , (1) 3" nozzle on end section of head, (1) 6" nozzle on end section, (5) 4" nozzles on end section of head..

Service and Process side rated for FV/100 psi at 350 degrees F. Heat Transfer Surface Area: 17.7 m² (190 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Graphite. Vacuum: Yes. Length: 4,801 mm (189 in). Tube Type: Straight Tube. Tube Number: 69. Tube Diameter: 22.2 mm (0.88 in). Tube Length: 3,937 mm (155 in).

Tubes rated 15 psi @ 200 to -20 degrees. F min Repaired by: Alabama Heat Exchangers Inc. (2) heads, 1 bonnet and 1 cone Heat Transfer Surface Area: 141.4 m² (1,522 ft²). Orientation: Horizontal. Shell Pressure: 4.1 bar (60 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 3,200 mm (126 in). Tube Number: 612. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,896 mm (114 in). Nozzle Schedule: Openings: Tube side - 1-6" 1-8"; Shell side - 2-6". .

Heat Transfer Surface Area: 9.3 m² (100 ft²). Orientation: Horizontal. Shell Material: Stainless Steel 316. Tube Material: Stainless Steel 317. Tubesheet Material: Stainless Steel 316. Shell Diameter: 317.5 mm (12.5 in). Head Material: Stainless Steel 316. Length: 3,658 mm (144 in). Shell-side Passes: 2. Tube-side Passes: 1.

Rated 150 psi @ -20 to 450 degrees F tube side, 225 psi @ -20 to 450 degrees F shell side. Heat Transfer Surface Area: 15.4 m² (166 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Shell Diameter: 203.2 mm (8 in). Head Material: Stainless Steel 316. Length: 2,743 mm (108 in). Tube Type: U-Tube. Tube Number: 210. Tube Diameter: 9.4 mm (0.37 in). Nozzle Schedule: Inlet and outlet are 2" threaded. Shell side nozzles are 3" threaded..

Size is 10-A-108 Shell side MAWP is 150 psi at 400 degrees F. MDMT; is -20 degrees at 150 psi Heat Transfer Surface Area: 7.9 m² (85 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -28.9 °C (-20 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 3,048 mm (120 in). Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 15.7 mm (0.62 in). Tube Thickness: 1.2 mm (0.05 in).

Shell with an MDMT of 32 degrees F at 150 psi. Tubes with an MDMT of 32 degrees F at 150 psi. Heat Transfer Surface Area: 20.8 m² (224 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 3,251 mm (128 in). Tube Type: U-Tube. Tube Number: 69. Tube Diameter: 15.7 mm (0.62 in). Tube Thickness: 0.76 mm (0.03 in). Nozzle Schedule: - Shell Nozzles: Two 4" - Tube Nozzles: Two 2" sanitary fittings - Vent and Drain: 1".

Heat Transfer Surface Area: 27.9 m² (300 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,464 mm (57.6 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 325. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 10",THree 4", One 3".Two 1".

Head coating: Ceramic coating glass lined Shell: 60 PSI @ 350 degrees F Tube: 60 PSI @ 350 degrees F Heat Transfer Surface Area: 9.3 m² (100 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Glasslined. Shell Diameter: 304.8 mm (12 in). Head Material: Glasslined. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,829 mm (72 in).

(2) heads: 1 bonnet and 1 cone Heat Transfer Surface Area: 111.5 m² (1,200 ft²). Orientation: Horizontal. Shell Pressure: 2.8 bar (40 psi). Shell Material: Carbon Steel. Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 914.4 mm (36 in). Head Material: Stainless Steel 316. Length: 3,200 mm (126 in). Tube Length: 3,200 mm (126 in). Nozzle Schedule: Openings: Tube side - 1-18", 2-12", 1-6"; Shell side - 2-6".

321SS U-tubes (SA213 TP321), 321 SS tube sheets, SS Clad channel head (SA387 Cr.22 + CRO TP347), SS Clad shell (SA387 Cr.22 + CRO TP347) TEMA type DEU Size 39" x 240" Canadian Registration Number U8421.2 Shell rated for FV/2182 psi @ -20 to 775 degrees F; tubes rated for FV/2006 psi at -20 to 840 degrees F 321SS tube sheet (SA336 F321), 40.70" diameter x 5.11" thick with (600) tube holes. One Channel head, SS Clad with flat bolted cover, CS construction,3'8" long Heat Transfer Surface Area: 285.6 m² (3,075 ft²). Orientation: Horizontal. Shell Pressure: 150.4 bar (2,182 psi). Shell Temperature: 412.8 °C (775 °F). Shell Material: Stainless Steel Other. Tube Pressure: 138.3 bar (2,006 psi). Tube Temperature: 448.9 °C (840 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 990.6 mm (39 in). Head Material: Stainless Steel Other. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 300. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Openings include: Shell side (2)10" NPS, (1) 2"; Tube side (2) 12", (1) 2" in the channel Head.

• Orientation: Vertical/horizontal
• Tube Volume: 81 liters
• Shell Volume: 213 liters
• Tube Dimensions: 20 mm ID x 32 mm OD x 2985 mm long
• Weight: 855 kgs. Heat Transfer Surface Area: 10 m² (107.6 ft²). Shell Pressure: 6 bar (87 psi). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Material: Graphite. Shell Diameter: 420 mm (16.5 in). Length: 3,675 mm (144.7 in). Tube Number: 60. Tube Diameter: 32 mm (1.26 in). Tube Length: 2,985 mm (117.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Openings: Tube side (2) 150 mm each head; Shell side (20) 100 mm.

Shell volume: 370 liter Tube volume: 115 liter Heat Transfer Surface Area: 22 m² (236.8 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 570 mm (22.4 in). Nozzle Schedule: Openings: - Head 1: 1-250mm - Head 2: 1-150mm - Shell: 2-150mm, 1-50mm.

heads with carbon steel flat plates Heat Transfer Surface Area: 17.3 m² (186.2 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 5.5 bar (79.8 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 332 mm (13.1 in). Head Material: Carbon Steel. Length: 6,366 mm (250.6 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Number: 37. Tube Diameter: 32 mm (1.26 in). Tube Length: 5,500 mm (216.5 in). Tube Thickness: 5 mm (0.2 in). Nozzle Schedule: - Tube side openings: (1) head with 2-1 1/2", (1) head with none - Shell side openings: 2-1 1/2", 2-1".

Heat Transfer Surface Area: 8.1 m² (87 ft²). Orientation: Horizontal. Shell Pressure: 13.8 bar (200 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 152.4 mm (6 in). Head Material: Hastelloy - C276. Tube Type: Straight Tube. Tube Number: 28. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,801 mm (189 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Openings: Shell (1) 6", (1) 2", (1) 1"; One Head - (1) 3", (1) 1"; Other Head (1) 3" .

Shell with an MDMT of 32 degrees at 150 psi. Tube with an MDMT of 32 degrees at 150 psi. Additional Features: Expansion joint single pass Heat Transfer Surface Area: 0.56 m² (6 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Hastelloy - C22. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C22. Head Material: Carbon Steel. Length: 2,286 mm (90 in). Tube Type: Straight Tube. Tube Number: 7. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 19.1 mm (0.75 in). Nozzle Schedule: - Nozzle Sizes: Four 1" shell nozzles, two 2" tube nozzles, two 1" vent and drains.

Heat Transfer Surface Area: 2.5 m² (27 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - Other. Vacuum: Yes. Head Material: Hastelloy - C276. Length: 1,219 mm (48 in). Tube Type: Straight Tube. Tube Number: 40. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,067 mm (42 in). Tube Thickness: 1.27 mm (0.05 in). Nozzle Schedule: One 3" nozzle, Two 2" nozzles, two 1.5" nozzles..

10" diameter x 11'2" face to face. Overall length13' 3" Heat Transfer Surface Area: 13.1 m² (141 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 3,404 mm (134 in). Tube Number: 72. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,353 mm (132 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: One 6" nozzle, Two 3" nozzles, and one 2" nozzle..

Internals are 25 Ra electropolished. External as welded and passivated Inner and outer tube sheets are removable hell inlet and outlets are 8" RFSO flange, Tube inlet/outlet are 3" WE. Two 3/4" couplings for the vents & drain. Heat Transfer Surface Area: 14.6 m² (157 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 12.7 mm (0.5 in). Head Material: Stainless Steel 316L. Length: 2,235 mm (88 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: U-Tube. Tube Number: 172. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 2,134 mm (84 in). Tube Thickness: 1.02 mm (0.04 in).

condenser 1' NPT vent/drain Heat Transfer Surface Area: 19.3 m² (208 ft²). Orientation: Horizontal. Shell Material: Stainless Steel 304. Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Stainless Steel 304. Length: 3,505 mm (138 in). Tube Type: Straight Tube. Tube Number: 114. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,835 mm (111.6 in). Tube Thickness: 1.27 mm (0.05 in). Nozzle Schedule: Openings include: Two shell openings inlet and outlet are 4". Vapor head, has one 8" nozzle, Discharge head has one offset 6" nozzle. .

Shell rated 75 psi @ 400 deg. F, tubes rated 150 psi @ -65 deg. F Tube length: 18' around the bend Heat Transfer Surface Area: 22.7 m² (244 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -53.9 °C (-65 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 304.8 mm (12 in). Head Material: Stainless Steel 304. Length: 3,658 mm (144 in). Tube Type: U-Tube. Tube Number: 69. Tube Diameter: 19.1 mm (0.75 in). Nozzle Schedule: openings: Tube side - 2-6", Shell side 1-6", 1-4"..

316L SS tubes (SA213-TP316L), 321 SS tube sheets, 316L SS Clad Floating head, 316L SS Clad Channel Head (SA516-70 + 316L Clad), 316 LSS Clad Shell (SA516-70 + 316L Clad)

• Tube sheets: 321 SS
• Floating head: 316L SS Clad
• Channel Head: 316L SS Clad (SA516-70 + 316L Clad), 59" diameter x 4' long
• Canadian Registration Number: U2528.2
• Tema Type: AES Shell rated for FV/425 psi @ -20 to 725 degrees F:
  tubes rated for FV/425 psi @ -20 to 750 degrees F.
• Tube sheet diameter: 63.66"
• Tube sheet thickness: 9.44"
• Heat exchange capacity: 329.7 mm/BTU/hr Heat Transfer Surface Area: 789.6 m² (8,499 ft²). Orientation: Horizontal. Shell Pressure: 29.3 bar (425 psi). Shell Temperature: 385 °C (725 °F). Shell Material: Stainless Steel 316. Tube Pressure: 29.3 bar (425 psi). Tube Temperature: 398.9 °C (750 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,499 mm (59 in). Head Material: Stainless Steel 316. Shell-side Passes: 1. Tube-side Passes: 8. Tube Number: 1,398. Tube Diameter: 25.4 mm (1 in). Tube Length: 7,315 mm (288 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Openings Include: (2) 10" NPS shell nozzles: Tube Side - (2) 10" NPS nozzles in the channel head.

vapor condenser(shell and tube) with surge head cylinder, Surge cylinder is 6" diameter x 5' long. Heat Transfer Surface Area: 10 m² (108 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 86.2 bar (1,250 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Carbon Steel. Length: 3,734 mm (147 in). Tube Type: Straight Tube. Tube Number: 45. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,734 mm (147 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: One 8" nozzle, six 2" nozzles..

80 kw electric heat exchanger, Fluid heater manufactured by HEAT NEMA 7 Class 1 Div. 1 with separate control panel Heat Transfer Surface Area: 2.2 m² (24 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 107.2 °C (225 °F). Shell Material: Carbon Steel. Tube Material: Stainless Steel 304. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 1,499 mm (59 in). Shell-side Passes: 1. Tube Type: Straight Tube. Tube Number: 24. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,499 mm (59 in). Nozzle Schedule: 8". Capacity: 45.4 L (12 gallons).

Heat Transfer Surface Area: 4 m² (43 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316. Shell Diameter: 304.8 mm (12 in). Head Material: Stainless Steel 316L. Length: 914.4 mm (36 in). Tube Type: Straight Tube. Tube Number: 31. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 914.4 mm (36 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: (2) 3" nozzle. (2) 1 1/2" nozzle, (1) 3/4" vent nozzle.

Heat Transfer Surface Area: 18.6 m² (200 ft²). Orientation: Horizontal. Shell Diameter: 203.2 mm (8 in). Length: 4,572 mm (180 in).

Single Pass Heat Transfer Surface Area: 8.3 m² (89 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 171.1 °C (340 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 171.1 °C (340 °F). Tube Material: Graphite. Tube Number: 50. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,286 mm (90 in).

split flow shell side Heat Transfer Surface Area: 212.8 m² (2,291 ft²). Orientation: Horizontal. Shell Pressure: 20.7 bar (300 psi). Shell Temperature: 37.8 °C (100 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 787.4 mm (31 in). Head Material: Carbon Steel. Length: 7,036 mm (277 in). Tube-side Passes: 6. Tube Number: 594. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell openings: 2-3", 1-6" on shell side; 2-6" on tube side.

Heat Transfer Surface Area: 127.7 m² (1,375 ft²). Orientation: Horizontal. Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 4,877 mm (192 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 452. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,877 mm (192 in).

Heat Transfer Surface Area: 139.5 m² (1,502 ft²). Orientation: Horizontal. Shell Pressure: 13.8 bar (200 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 3,658 mm (144 in). Tube Number: 638. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in).

TEMA Type BEM Heat Transfer Surface Area: 3.3 m² (35 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 107.2 °C (225 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -3.9 °C (25 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Tube Type: Straight Tube. Tube Number: 36.

Heat Transfer Surface Area: 5.6 m² (60 ft²). Orientation: Horizontal. Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 2,438 mm (96 in).

Heat Transfer Surface Area: 10.2 m² (110 ft²). Orientation: Horizontal. Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 3,048 mm (120 in).

• Cupronickel 90-10 tubes, CS Tube sheet(with Monel overlay on tubeside)
• TEMA size and type: 17-240 "BEM" Heat Transfer Surface Area: 124.4 m² (1,339 ft²). Orientation: Horizontal. Shell Pressure: 27.6 bar (400 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Copper Nickel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 6,604 mm (260 in). Tube Type: Straight Tube. Tube Number: 420. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 5,969 mm (235 in). Tube Thickness: 12.4 mm (0.49 in). Nozzle Schedule: Nozzle schedule as follows: channel inlet and outlet are 6" shell side inlet and outlet are 3" and seven 3/4" nozzles.(drain/vent/etc.).

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. 42" Outside diameter x 537 & 7/16" overall length, Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4".

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4"..

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4". .

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4"..

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4". .

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4". .

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 17.3 mm (0.68 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4". .

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 16.5 mm (0.65 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4".

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 17.3 mm (0.68 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4". .

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4".

Thermal capacity- 13,935,591 Btu/hr. Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1. Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. 42" Outside diameter x 537 & 7/16" overall length, Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4"..

Thermal capacity- 13,935,591 Btu/hr. 42" Outside diameter x 537 & 7/16" overall length Surface finish SSPC-SP10, Exterior paint per TransCanada spec., TES-COAT-P1 Design specs: Shell: Crude oil at 1984 GPM, Tubes: Ammonia at 106761 #/hr. Heat Transfer Surface Area: 1,044 m² (11,238 ft²). Orientation: Horizontal. Shell Pressure: 99.3 bar (1,440 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Carbon Steel. Tube Pressure: 27.6 bar (400 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,067 mm (42 in). Head Material: Carbon Steel. Length: 13,640 mm (537 in). Tube Type: Straight Tube. Tube Number: 1,815. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule as follows: Two 16" inlet/outlet, Two 12" inlets, one 10" inlet, three 2" and two 3/4"..

Tube pitch 1.25" , 9 baffles, with spacing at 10" Heat Transfer Surface Area: 110.1 m² (1,185 ft²). Orientation: Horizontal. Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 145 °C (293 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.9 bar (56 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 812.8 mm (32 in). Head Material: Stainless Steel 304. Length: 4,166 mm (164 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 460. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,896 mm (114 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 8" and 4", tube nozzles are two 12"..

The shell has a bottom concentric head and bolts directly to heat exchanger H-1606 Tube pitch 1.25" , 6 baffles, with spacing 2' 1" Heat Transfer Surface Area: 370.4 m² (3,987 ft²). Orientation: Vertical. Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 45 °C (113 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,524 mm (60 in). Head Material: Stainless Steel 304. Length: 6,883 mm (271 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 926. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,004 mm (197 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 14", and 4", tube nozzles are 12" and 1".

Tube pitch 1.25" , 7 baffles, with spacing 1' 2" Heat Transfer Surface Area: 178 m² (1,916 ft²). Orientation: Vertical. Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 135 °C (275 °F). Shell Material: Stainless Steel 304. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 90 °C (194 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,346 mm (53 in). Head Material: Stainless Steel 304. Length: 5,461 mm (215 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 744. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,997 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 12", and 2" - Tube nozzles: 24" and 18".

Tube pitch 1.5" , 3 baffles, with spacing 2' 8" Heat Transfer Surface Area: 53.9 m² (580 ft²). Orientation: Horizontal. Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 60 °C (140 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.9 bar (56 psi). Tube Temperature: 55 °C (131 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 711.2 mm (28 in). Head Material: Stainless Steel 304. Length: 4,674 mm (184 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 260. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,997 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 12", 4", and 1" - Tube nozzles: two 12".

Tube pitch 1.25" , 4 baffles, with spacing 1' 7" Heat Transfer Surface Area: 234.1 m² (2,520 ft²). Orientation: Vertical. Shell Pressure: 2 bar (29 psi). Shell Temperature: 115 °C (239 °F). Shell Material: Stainless Steel 304. Tube Pressure: 0.69 bar (10 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,092 mm (43 in). Head Material: Stainless Steel 304. Length: 5,715 mm (225 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 978. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,997 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 1-8", 1-3" Tube nozzles are 1-20", and 1-28"..

Eight baffles spaced at 29". TEMA type AXS. Heat Transfer Surface Area: 875.6 m² (9,425 ft²). Orientation: Horizontal. Shell Pressure: 5.9 bar (86 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 10.5 bar (153 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,422 mm (56 in). Head Material: Stainless Steel 304. Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 2,451. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: two 4", one 24", one 36" - Tube nozzles: two 14".

with 5 baffles spaced at 4' With expansion joint. Heat Transfer Surface Area: 371.1 m² (3,995 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6 bar (87 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 838.2 mm (33 in). Head Material: Carbon Steel. Length: 8,433 mm (332 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,040. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are five 18"on the top and five 6" on the bottom., tube nozzles are two 20"..

Size 59-240

• Baffles: (5) in the shell on 2'4.5" spacing
• Head dimensions: (1) channel head 3'7" long with flat bolted cover and one bolted dished head 2'1" OAL Heat Transfer Surface Area: 975.5 m² (10,500 ft²). Orientation: Horizontal. Shell Pressure: 12.8 bar (185 psi). Shell Temperature: 110 °C (230 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,245 mm (49 in). Head Material: Carbon Steel. Length: 8,026 mm (316 in). Tube-side Passes: 2. Tube Number: 2,819. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: Shell - (1) 18", x(1) 20"; Heads (2) 16".

Size 59-240 (5) baffles in the shell on 2'4.5" spacing (1) channel head 3'7" long with flat bolted cover and one bolted dished head 2'1" OAL Heat Transfer Surface Area: 975.5 m² (10,500 ft²). Orientation: Horizontal. Shell Pressure: 12.8 bar (185 psi). Shell Temperature: 110 °C (230 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,245 mm (49 in). Head Material: Carbon Steel. Length: 8,026 mm (316 in). Tube-side Passes: 2. Tube Number: 2,819. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 21.6 mm (0.85 in). Nozzle Schedule: - Openings: Shell - (1) 18", x(1) 20"; Heads (2) 16".

• Estimated weight: 52,300 lbs
• Design conditions: 3504 GPM of water at 109.8 degrees F to be returned at 112 degrees F. Make water to the system is 461 gpm at 90 degrees F. Heat Transfer Surface Area: 761.8 m² (8,200 ft²). Orientation: Horizontal. Shell Pressure: 2.8 bar (40 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 2.1 bar (30 psi). Tube Temperature: 107.2 °C (225 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Head Material: Stainless Steel 304. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 1,044. Tube Diameter: 38.1 mm (1.5 in). Tube Thickness: 1.52 mm (0.06 in).

• Estimated weight: 9,000 lbs. Heat Transfer Surface Area: 142.4 m² (1,533 ft²). Orientation: Vertical. Shell Pressure: 2.1 bar (30 psi). Shell Temperature: 135 °C (275 °F). Shell Material: Stainless Steel 316. Tube Pressure: 2.1 bar (30 psi). Tube Temperature: 135 °C (275 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 685.8 mm (27 in). Head Material: Stainless Steel 316. Length: 9,144 mm (360 in). Tube Type: Straight Tube. Tube Number: 130. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 9,144 mm (360 in). Tube Thickness: 1.27 mm (0.05 in).

1.250" TRI pitch. with (19) baffles on 12" spacing Heat Transfer Surface Area: 10.1 m² (109 ft²). Orientation: Horizontal. Shell Pressure: 5.9 bar (85 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Length: 6,706 mm (264 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Number: 20. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: Shell (2) 4"; Heads - (2) 2"..

alloy (Sandvik2RK65-20Cr 15 Ni) tubes 15/16" TRI pitch with (22) baffles on 9" spacing Heat Transfer Surface Area: 854.7 m² (9,200 ft²). Orientation: Horizontal. Shell Pressure: 60.7 bar (880 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (270 psi). Tube Temperature: 376.7 °C (710 °F). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,245 mm (49 in). Head Material: Stainless Steel 304. Length: 9,093 mm (358 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 2,343. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell Openings: (2) 12" - Head Openings: (1) 24", (1) 26".

• Shell length: 3' Heat Transfer Surface Area: 3.2 m² (34 ft²). Orientation: Horizontal. Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 65.6 °C (150 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 152.4 mm (6 in). Length: 914.4 mm (36 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in).

Heat Transfer Surface Area: 195.6 m² (2,105 ft²). Orientation: Horizontal. Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel Other. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 3,962 mm (156 in). Shell-side Passes: 1. Tube-side Passes: 10. Tube Number: 1,100. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Tube nozzles: Two 6" - Shell nozzles: One 16" and one 20".

insulated and clad Heat Transfer Surface Area: 14.8 m² (159.3 ft²). Orientation: Horizontal. Shell Material: Stainless Steel Austentic. Tube Material: Stainless Steel Austentic. Shell Diameter: 700 mm (27.6 in). Head Material: Carbon Steel. Length: 3,516 mm (138.4 in). Tube Type: U-Tube. Tube Number: 48. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-100mm, shell - 1-800mm, 1-600mm, 1-50mm with sump.

working pressure on both sides 5mm hg absolute (0.09 psi) @ 200 degrees C Heat Transfer Surface Area: 35 m² (376.7 ft²). Orientation: Horizontal. Shell Pressure: 0.006 bar (0.09 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austentic. Tube Pressure: 0.006 bar (0.09 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austentic. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 5,181 mm (204 in). Tube-side Passes: 4. Tube Number: 80. Tube Diameter: 28 mm (1.1 in). Tube Length: 5,181 mm (204 in). Nozzle Schedule: - Openings: Tubeside - 2-75mm, Shell - 1-400mm, 1-300mm, 2-50mm (with sump) .

316L stainless steel 'U' tubes multi-pass Heat Transfer Surface Area: 54.4 m² (585.8 ft²). Orientation: Horizontal. Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austentic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austentic. Tubesheet Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).

multi-pass Heat Transfer Surface Area: 54.4 m² (585.8 ft²). Orientation: Horizontal. Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austentic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austentic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).

Incoloy 625 vert tube and shell heat exchanger Mfd by W Schulz/Krefeld Tubes, tubesheet and heads made of 2.4856 (NiCrMo9Nb) Tube pitch: 60 deg triangular pitch @ 32mm distance Single pass design. Heat Transfer Surface Area: 120.7 m² (1,299 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Inconel. Vacuum: Yes. Shell Diameter: 700 mm (27.6 in). Length: 4,000 mm (157.5 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 379. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: . Openings: head 1-400mm, head 1-250mm, 1-50mm; shell 1-150mm, 1-50mm..

(58) 316 stainless steel internal baffles fully insulated and clad (1) carbon steel channel head Heat Transfer Surface Area: 28 m² (301.4 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Stainless Steel 316. Tube Pressure: 103.4 bar (1,500 psi). Tube Temperature: 350 °C (662 °F). Tube Material: Stainless Steel 316. Shell Diameter: 381 mm (15 in). Head Material: Carbon Steel. Length: 3,835 mm (151 in). Tube Type: U-Tube. Tube Number: 158. Tube Diameter: 17 mm (0.67 in). Tube Length: 3,657 mm (144 in). Nozzle Schedule: - Openings: tubeside - 1-75mm, 1-50mm; shell - 3-50mm.

• Tube Sheets: 321 SS, 316L SS Clad
• Floating Head: 316L SS Clad (SA516-70N + 316L Clad)
• Channel Head: 316L SS Clad, 59" diameter x 4' long, with flat bolted cover
• Canadian Registration Number: U2531.2
• Tema Type: AES Shell rated for FV/425 psi @ -20 to 725 degrees F:
  tubes rated for FV/425 psi @ -20 to 750 degrees F.
• Tube Sheet Diameter: 63.66"
• Tube Sheet Thickness: 9.44"
• Heat Exchange Capacity: 329.7 mm/BTU/hr Heat Transfer Surface Area: 789.6 m² (8,499 ft²). Orientation: Horizontal. Shell Pressure: 29.3 bar (425 psi). Shell Temperature: 385 °C (725 °F). Shell Material: Stainless Steel 316. Tube Pressure: 29.3 bar (425 psi). Tube Temperature: 398.9 °C (750 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 7,315 mm (288 in). Shell-side Passes: 1. Tube-side Passes: 8. Tube Number: 1,398. Tube Diameter: 25.4 mm (1 in). Tube Length: 7,315 mm (288 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: - Openings: (2) 10" NPS shell nozzles, (2) 10" NPS nozzles in the channel head.

AL6XN channel heads with R-Stamp(1994) Heat Transfer Surface Area: 529.5 m² (5,700 ft²). Orientation: Horizontal. Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 121.1 °C (250 °F). Shell Material: Stainless Steel 316. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 121.1 °C (250 °F). Tube Material: Titanium. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,638 mm (64.5 in). Tube Type: Straight Tube. Tube Number: 1,450. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 3,658 mm (144 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzle Schedule: - Two 32" tube side nozzles (brine inlet & outlet) - One 18" steam inlet - One 4" condensate outlet - One 3" drain - Two 1" drain/vents.

CS jacket Jacket rated for FV/150 psi at 650 degrees F. with a jacket of 3/8" thick CS 26" in diameter and 16' long Heat Transfer Surface Area: 25.5 m² (274 ft²). Orientation: Horizontal. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 558.8 mm (22 in). Head Material: Carbon Steel. Length: 5,283 mm (208 in). Tube Type: U-Tube. Tube Number: 34. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,572 mm (180 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Nozzle schedule: Shell inlet/outlet, two 6", and one 2", Jacket inlet/outlet, two 1.5" and three 1", Bonnet, Two 3" and one 1"..

Type BEM. Replacement shell, spare, no heads with the unit. Heat Transfer Surface Area: 28.5 m² (307 ft²). Orientation: Horizontal. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 662 °C (1,224 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 662 °C (1,224 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Length: 3,575 mm (140.8 in). Tube Type: Straight Tube. Tube Number: 135. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,575 mm (140.8 in). Tube Thickness: 0.08 mm (0.003 in).

Certification: TUV pressure tube side 8 barg @ 200 degrees C (910 liter) shell -1/3 barg @ 200 degrees C (2350 liter) Volume (tube side): 910 liters Volume (shell side): 2350 liters (2) 321 stainless steel dished heads Heat Transfer Surface Area: 124 m² (1,335 ft²). Orientation: Horizontal. Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 321. Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Head Material: Stainless Steel 321. Length: 3,903 mm (153.7 in). Tube-side Passes: 4. Tube Number: 536. Tube Diameter: 25 mm (0.98 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in).

Certification: TUV pressure tube side 8 barg @ 250 degrees C (1335 liter) shell 15 barg @ 250 degrees C (900 liter) Volume (tube side): 1335 liters Volume (shell side): 900 liters (1) carbon steel bonnet head, (1) carbon steel dished head Heat Transfer Surface Area: 145 m² (1,561 ft²). Orientation: Vertical. Shell Pressure: 15 bar (217.6 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 8 bar (116 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 900 mm (35.4 in). Head Material: Carbon Steel. Length: 4,600 mm (181.1 in). Tube-side Passes: 1. Tube Number: 618. Tube Diameter: 25 mm (0.98 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in).

pressure tube side 15 barg @ 300 degrees C (1235 liter) shell 8 barg @ 300 degrees C (1110 liter) with expansion bellows, (1) 321 stainless steel bonnet head, (1) 321 stainless steel dished head Heat Transfer Surface Area: 146.7 m² (1,579 ft²). Orientation: Vertical. Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 900 mm (35.4 in). Head Material: Stainless Steel 321. Length: 3,500 mm (137.8 in). Tube-side Passes: 1. Tube Number: 636. Tube Diameter: 21 mm (0.83 in). Tube Length: 3,480 mm (137 in). Nozzle Schedule: openings tube side: (1) head with1-480mm, 1-25mm, (1) head with 1-250mm, shell: 2-250mm, 2-50mm.

pressure tube side 8 barg @ 250 degrees C (780 liter) shell 15 barg @ 250 degrees C (610 liter) Heat Transfer Surface Area: 67.2 m² (723.3 ft²). Orientation: Vertical. Shell Pressure: 15 bar (217.6 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 8 bar (116 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Length: 3,000 mm (118.1 in).

pressure tube side 15 barg @ 300 degrees C (312 liter) shell 8 barg @ 300 degrees C (212 liter) Volume: Tube side: 312 liters, Shell side: 212 liters (1) 321 stainless steel (1.4541) top bonnet head, (1) 321 stainless steel (1.4541) bottom dished head Heat Transfer Surface Area: 34 m² (366 ft²). Orientation: Vertical. Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Carbon Steel. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 321. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 321. Length: 5,169 mm (203.5 in). Tube-side Passes: 1. Tube Number: 150. Tube Diameter: 21 mm (0.83 in). Tube Length: 3,500 mm (137.8 in).

pressure tube side 14 barg @ 300 degrees C (192 liter) shell 8 barg @ 300 degrees C (352 liter) Certification: TUV (2) 321 stainless steel dished heads Heat Transfer Surface Area: 28 m² (301.4 ft²). Orientation: Vertical. Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 14 bar (203.1 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 3,641 mm (143.3 in). Tube-side Passes: 1. Tube Diameter: 25 mm (0.98 in). Tube Length: 1,500 mm (59.1 in).

Shell has expansion bellows Heat Transfer Surface Area: 160 m² (1,722 ft²). Orientation: Vertical. Shell Pressure: 65 bar (942.7 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,963 mm (274.1 in). Tube-side Passes: 1. Tube Number: 406. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in).

Certification: TUV pressure tube side 15 barg @ 300 degrees C (1270 liter) shell 65 barg @ 300 degrees C (1180 liter) Expansion bellows: Yes (1) 321 stainless steel bonnet head, (1) 321 stainless steel dished head Heat Transfer Surface Area: 160 m² (1,722 ft²). Orientation: Vertical. Shell Pressure: 65 bar (942.7 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,963 mm (274.1 in). Tube-side Passes: 1. Tube Number: 406. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in).

Expansion bellows: Yes (1) 321 stainless steel (1.4541) top bonnet head, (1) 321 stainless steel (1.4541) bottom dished head, Heat Transfer Surface Area: 59 m² (635.1 ft²). Orientation: Vertical. Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Carbon Steel. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 321. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 5,636 mm (221.9 in). Tube-side Passes: 1. Tube Number: 181. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,000 mm (157.5 in).

pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter; shell rated 12 bar @ 130 degrees C, 895 liter.
316LSS clad Tube sheets

• Baffles: 7, made of 304SS, in the shell
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight: Empty weight of 4890 kg.
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10". .

pressure tube side 18 bar/full vacuum @ 130 degrees C , 915 liter; shell rated 12 bar @ 130 degrees C, 860 liter.
316LSS clad Tube sheets shell is 850mm diameter x 2500 flange to flange, 4145 mm overall length. (7 ) 304SS baffles in the shell. (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head. Shell and bundle weight 2980 kg. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,500 mm (98.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 525. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Openings: Top head (1) 150mm; Bottom head (1) 150mm; Center (1) 150mm on cone; Shell (2) 250mm.

• Type: Vertical condenser pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Baffles: 7, made of 304SS
• (2) bolted heads; (1) 316L stainless steel dished top head,
• Weight: Empty weight of 4890 kg.
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".

• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Baffles: 7, made of 304SS, in the shell
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight: 4890 kg (empty)
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".

• Type: Vertical condenser
• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
  shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Baffles: 7, made of 304SS
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight: 4890 kg (empty)
• shell is 850mm diameter x 2468 flange to flange, 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 30 °C (86 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".

Type: Vertical condenser pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
shell rated 12 bar @ 130 degrees C, 895 liter. 316LSS clad Tube sheets Baffles: 7 304SS baffles in the shell (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head. Weight: Empty weight of 4890 kg. 4145 mm overall length. Heat Transfer Surface Area: 98.5 m² (1,060 ft²). Orientation: Vertical. Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Openings: Top head (1) 6"; Bottom head (1) 6"; Center (1) 6" on cone; Shell (2) 10".
