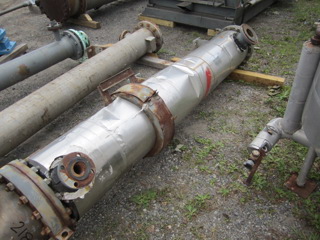

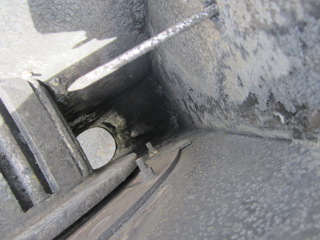

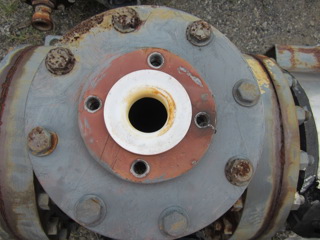

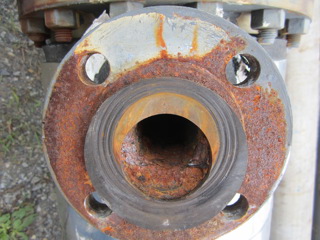

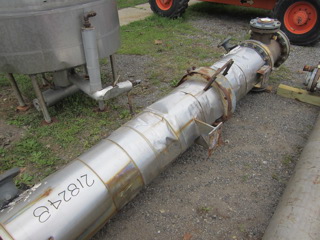

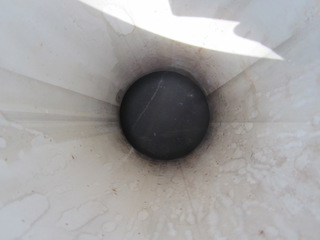

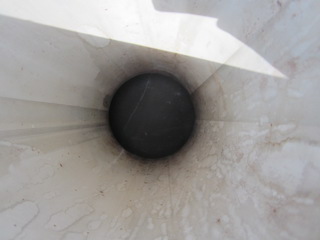

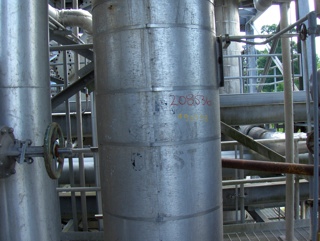

Titanium Clad Shell and Tube Heat Exchanger - IPP# 228100

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Industrial Alloy Fabricators

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 142.4 m² (1,533 ft²)

Orientation: Vertical

• Estimated weight: 9,000 lbs.

Shell Pressure: 2.1 bar (30 psi). Shell Temperature: 135 °C (275 °F). Shell Material: Stainless Steel 316. Tube Pressure: 2.1 bar (30 psi). Tube Temperature: 135 °C (275 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 685.8 mm (27 in). Head Material: Stainless Steel 316. Length: 9,144 mm (360 in). Tube Type: Straight Tube. Tube Number: 130. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 9,144 mm (360 in). Tube Thickness: 1.27 mm (0.05 in).

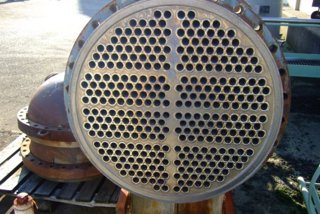

Type: Heat Exchanger

Subtype: Shell and Tube

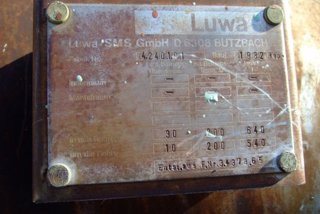

Manufacturer: Luwa SMS

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 58.4 m² (629 ft²)

Orientation: Horizontal

pressure tube side 30 bar@ 200 degrees C (640 liter), shell side 10 bar @ 200 degrees C (540 liter) shell with expansion bellows (4) internal baffle plates (2) titanium hemispherical heads TUV certified

Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 321. Tube Pressure: 30 bar (435.1 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Titanium. Shell Diameter: 700 mm (27.6 in). Head Material: Titanium. Length: 3,700 mm (145.7 in). Tube Number: 324. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.2 mm (0.05 in). Nozzle Schedule: - Openings: - Tube side: (1) head with 1-100mm, (1) head with 1-100mm, 1-80mm - Shell: 2-100mm, 1-50mm.

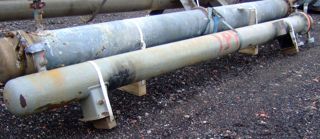

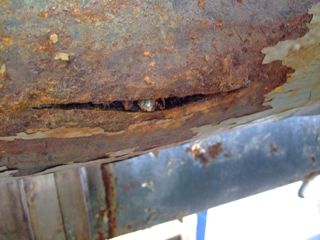

Type: Heat Exchanger

Subtype: Shell and Tube

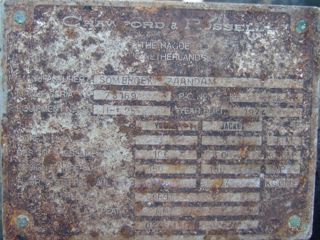

Manufacturer: Sombroek

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 14.5 m² (156 ft²)

Orientation: Horizontal

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Titanium. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Titanium. Length: 5,300 mm (208.7 in). Tube Type: U-Tube. Tube Number: 31. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,710 mm (185.4 in). Nozzle Schedule: - Openings: - Tubeside: 2-1 1/2" - Shell side: 2-2".

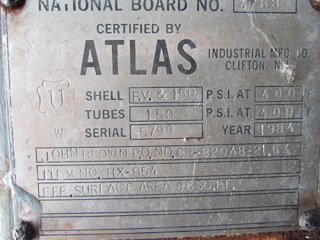

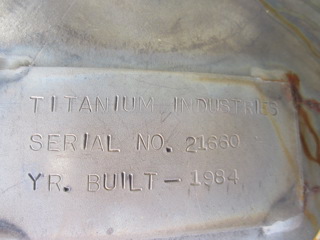

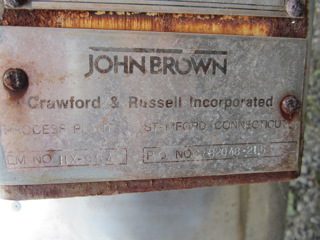

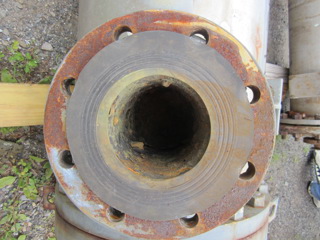

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 8.2 m² (88 ft²)

Orientation: Horizontal

2 Pass

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Titanium. Vacuum: Yes. Shell Diameter: 330.2 mm (13 in). Head Material: Titanium. Shell-side Passes: 2. Tube Type: Straight Tube. Tube Number: 42. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,134 mm (84 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Tema type A-E-M Tube side nozzles are 6" - Shell side nozzles are 4" and 2" - 1" drain vent on head..
