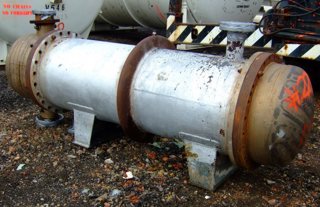

Titanium Sombroek Shell and Tube Heat Exchanger - IPP# 221531

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 60.5 m² (651.2 ft²)

Orientation: Horizontal

• Expansion bellow: Yes (1) 304 s/steel bonnet heads (1) 304 s/steel dished head

Shell Pressure: 12.8 bar (185.6 psi). Shell Temperature: 232 °C (449.6 °F). Shell Material: Carbon Steel. Tube Pressure: 5.3 bar (76.9 psi). Tube Temperature: 232 °C (449.6 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 304. Length: 2,600 mm (102.4 in). Tube Number: 554. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,880 mm (74 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Openings tubeside: (1) head with 2-6", (1) head with none - Openings shell side: 1-4", 1-2".

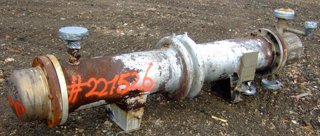

Type: Heat Exchanger

Subtype: Shell and Tube

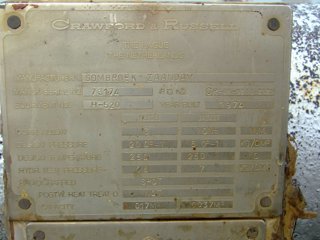

Manufacturer: Sombroek

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 39 m² (419.8 ft²)

Orientation: Horizontal

(2) 316 s/steel bonnet heads Expansion bellows: Yes

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 288 °C (550.4 °F). Shell Material: Carbon Steel. Tube Pressure: 5.3 bar (76.9 psi). Tube Temperature: 288 °C (550.4 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 316. Length: 4,300 mm (169.3 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 190. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,660 mm (144.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Tube openings: - 1 head with 2-4" - 1 head with none - Shell openings: - 2-3" - 1-1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 11.4 m² (122.7 ft²)

Orientation: Horizontal

Expansion bellows: Yes (2) 304 s/steel bonnet heads

Shell Pressure: 20 bar (290.1 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 323 mm (12.7 in). Head Material: Stainless Steel 304. Length: 2,900 mm (114.2 in). Tube Number: 48. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,070 mm (81.5 in). Nozzle Schedule: Tube side openings: (1) head with 2-3", (1) head with none - Shell side openings: 1-2", 1-1 1/2".

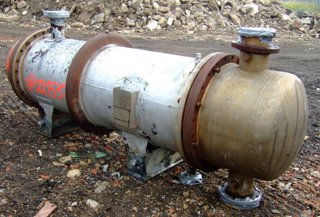

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Luwa SMS

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 58.4 m² (629 ft²)

Orientation: Horizontal

pressure tube side 30 bar@ 200 degrees C (640 liter), shell side 10 bar @ 200 degrees C (540 liter) shell with expansion bellows (4) internal baffle plates (2) titanium hemispherical heads TUV certified

Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 321. Tube Pressure: 30 bar (435.1 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Titanium. Shell Diameter: 700 mm (27.6 in). Head Material: Titanium. Length: 3,700 mm (145.7 in). Tube Number: 324. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.2 mm (0.05 in). Nozzle Schedule: - Openings: - Tube side: (1) head with 1-100mm, (1) head with 1-100mm, 1-80mm - Shell: 2-100mm, 1-50mm.
