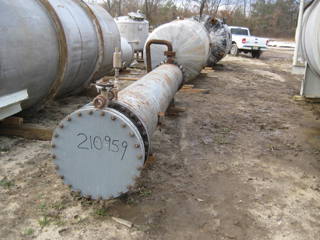

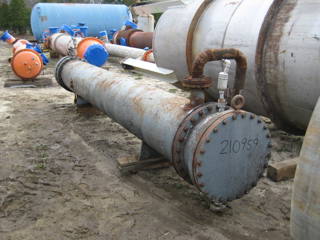

Stainless Steel 304 Shell and Tube Heat Exchanger 60.5 m² (651.2 ft²) For Sale - IPP# 221537

Type:

Heat Exchanger

Subtype:

Shell and Tube

Manufacturer:

Sombroek

Condition:

Used

Material:

Stainless Steel 304

Heat Transfer Surface Area:

60.5 m² (651.2 ft²)

Orientation:

Horizontal

Shell Pressure:

12.8 bar (185.6 psi)

Shell Temperature:

232 °C (449.6 °F)

Shell Material:

Carbon Steel

Tube Pressure:

5.3 bar (76.9 psi)

Tube Temperature:

232 °C (449.6 °F)

Tube Material:

Stainless Steel 304

Tubesheet Material:

Stainless Steel 304

Vacuum:

Yes

Shell Diameter:

850 mm (33.5 in)

Head Material:

Stainless Steel 304

Length:

2,600 mm (102.4 in)

Tube Number:

554

Tube Diameter:

19.1 mm (0.75 in)

Tube Length:

1,880 mm (74 in)

Tube Thickness:

1.65 mm (0.06 in)

Nozzle Schedule:

- Openings tubeside: (1) head with 2-6", (1) head with none - Openings shell side: 1-4", 1-2"

Additional Info:

Expansion bellow: Yes (1) 304 s/steel bonnet heads (1) 304 s/steel dished head
