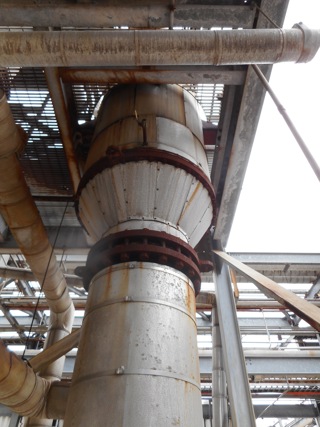

Stainless Steel 304 Manning and Lewis Shell and Tube Heat Exchanger - IPP# 210959

Type: Heat Exchanger

Subtype: Shell and Tube

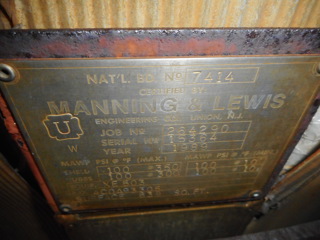

Manufacturer: Manning and Lewis

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Heat Transfer Surface Area: 59.4 m² (639 ft²)

Orientation: Vertical

AL6XN Alloy clad with Zirconium (SB-658) tube sheets
1 7/8" pitch
Shell=Steam/Tubes=4% Aqueous Chloride solution.

Shell Pressure: 6.89 bar (100 psi). Shell Temperature: 177 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.89 bar (100 psi). Tube Temperature: 177 °C (350 °F). Tube Material: Stainless Steel Austenitic. Length: 2,946 mm (116 in). Tube Type: Straight Tube. Tube Number: 281. Tube Diameter: 38.1 mm (1.5 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 0.762 mm (0.03 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Worsham Enterprises

Model: AEL

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 161 m² (1,730 ft²)

Shell Pressure: 5.17 bar (75 psi)

Size 33-144
33" OD x 1 7/8" thick
Expansion joint in shell
(2) bolted SS heads

Shell Temperature: 232 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 5.17 bar (75 psi). Tube Temperature: 232 °C (450 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 864 mm (34 in). Head Material: Stainless Steel 304. Length: 3,565 mm (140 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 558. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,581 mm (141 in). Tube Thickness: 1.65 mm (0.065 in). Nozzle Schedule: Nozzle schedule as follows: Shell side one 6" at expansion joint, one 3" at expansion joint, one 3" and two 1" NPT (vent & Drain). Radius head has one 6" nozzle, Cone head has a 10" nozzle orientated down and a 12" nozzle at the end of cone with a butterfly valve.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: O'Neils Welding and Fab

Model: NEN

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 459 m² (4,939 ft²)

Orientation: Horizontal

(20) baffles on 10" spacing
1" SQ pitch

Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 42.5 bar (616 psi). Tube Temperature: 204 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Stainless Steel 304. Length: 8,534 mm (336 in). Tube-side Passes: 1. Tube Number: 1,286. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Shell (2) 14"; Heads - (2) 18".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Roberts

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 762 m² (8,200 ft²)

Orientation: Horizontal

• Estimated weight: 52,300 lbs
• Design conditions: 3504 GPM of water at 109.8 degrees F to be returned at 112 degrees F. Make water to the system is 461 gpm at 90 degrees F.

Shell Pressure: 2.76 bar (40 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 2.07 bar (30 psi). Tube Temperature: 107 °C (225 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Head Material: Stainless Steel 304. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 1,044. Tube Diameter: 38.1 mm (1.5 in). Tube Thickness: 1.52 mm (0.06 in).
