Shell and Tube Heat Exchanger 762 m² (8,200 ft²) Stainless Steel 304 For Sale - IPP# 208514

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning and Lewis

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 100.8 m² (1,100 ft²)

Orientation: Horizontal

Job #: 161730

Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Stainless Steel 304. Length: 4,850 mm (191 in). Tube Type: Straight Tube. Tube Number: 402. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell side nozzles: two 4" with 1" vents and drains - Tube side nozzles: 2" and 1.5" with 1/2 " vent and drains.. Capacity: 568 L (150 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Worsham Enterprises

Model: AEL

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 160.7 m² (1,750 ft²)

Shell Pressure: 5.2 bar (75 psi)

Size 33-144 33" OD x 1 7/8" thick Expansion joint in shell (2) bolted SS heads

Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 864 mm (34 in). Head Material: Stainless Steel 304. Length: 3,550 mm (140.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 558. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,600 mm (141 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Nozzle schedule as follows: Shell side one 6" at expansion joint, one 3" at expansion joint, one 3" and two 1" NPT (vent & Drain). Radius head has one 6" nozzle, Cone head has a 10" nozzle orientated down and a 12" nozzle at the end of cone with a butterfly valve.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: O'Neils Welding and Fab

Model: NEN

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 458.8 m² (4,950 ft²)

Orientation: Horizontal

(20) baffles on 10" spacing 1" SQ pitch

Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 42.5 bar (616 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,050 mm (42 in). Head Material: Stainless Steel 304. Length: 8,550 mm (336 in). Tube-side Passes: 1. Tube Number: 1,286. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Shell (2) 14"; Heads - (2) 18".

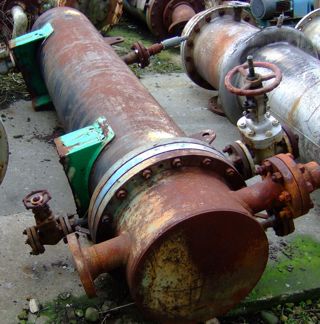

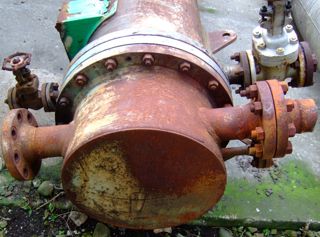

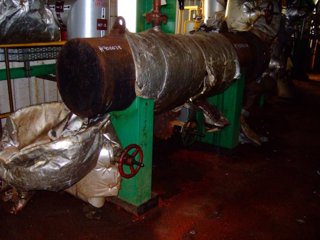

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9.6 m² (103.3 ft²)

Orientation: Horizontal

('U' bend not included)

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 330 °C (626 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 330 °C (626 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304L. Shell Diameter: 450 mm (17.7 in). Head Material: Carbon Steel. Tube Type: U-Tube. Tube Number: 84. Tube Diameter: 19 mm (0.75 in). Tube Length: 1,850 mm (72 in). Nozzle Schedule: openings: 2-75mm - Shell side openings: 3-50mm, 1-25mm.
