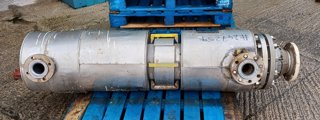

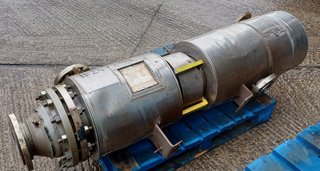

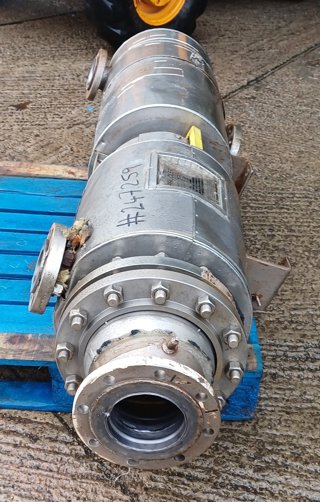

Tantalum & Glass Lined Pfaudler Shell and Tube Heat Exchanger - IPP# 203648

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Pfaudler

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 2.4 m² (26 ft²)

Orientation: Horizontal

2.5% Tung tubes (Non code) with TA liner silver brazed to tube sheet, glass lined carbon steel heads (tubes are roller expanded into grooves and seal welded to tube sheet face) 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end. 4" thick foam glass insulation covered with 12 GA 316 L sheathing on the shell side only. Sheathing has a 50 RA finish with vent & drain. Six, PTFE Teflon (1/4" thick) baffles @8" spacing face to face.

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Glasslined. Length: 2,086 mm (82.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 26. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Nozzle schedule : (1) 3" top left. (1) 3" nozzle bottom right. 8 5/8" diameter x 82 1/8" overall length. 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end..

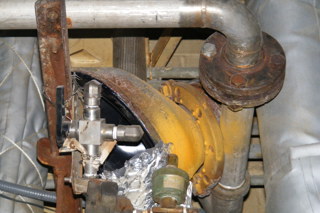

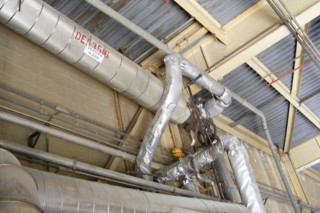

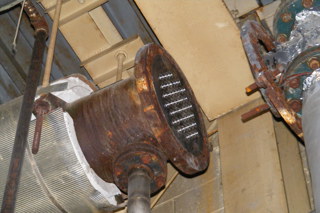

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Pfaudler

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 11.4 m² (123 ft²)

Orientation: Horizontal

(48) 1" OD welded tubes. (2) Glass lined heads.

Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Head Material: Carbon Steel. Tube Number: 48. Tube Diameter: 25.4 mm (1 in).

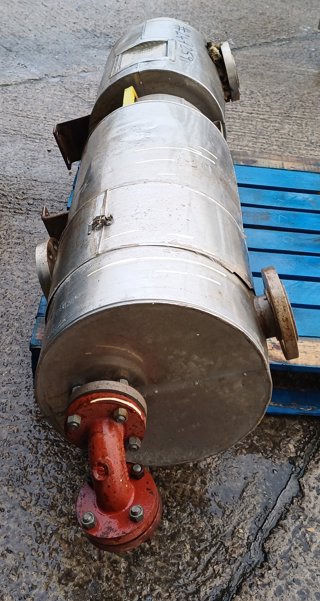

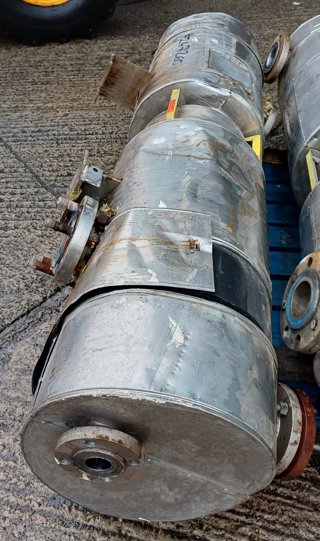

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Pfaudler

Model: 99R74074

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 5 m² (53.8 ft²)

Orientation: Inclined

design pressure tube side: 10.3 barg + full vacuum @ -40/204 degrees C (100 psig + full vacuum @ -40/400 degrees F), shell 10.3 barg + full vacuum @ -40/204 degrees C (100 psig + full vacuum @ -40/400 degrees F), 316L stainless steel baffles, design code: ASME VIII, DIV 1,

Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Vacuum: Yes. Shell Diameter: 254 mm (10 in). Head Material: 316L SS w/TA. Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 2-80mm, shell side: 1-150mm, 2-50mm, .

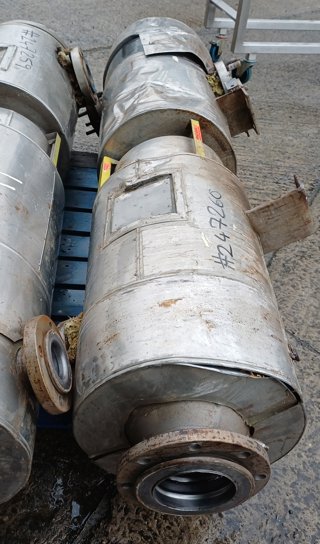

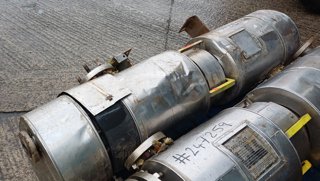

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Pfaudler

Model: 99R74074

Condition: Used

Material: Tantalum

Heat Transfer Surface Area: 5 m² (53.8 ft²)

Orientation: Inclined

design pressure tube side: 10.3 barg + full vacuum @ -40/204 degrees C (100 psig + full vacuum @ -40/400 degrees F), shell 10.3 barg + full vacuum @ -40/204 degrees C (100 psig + full vacuum @ -40/400 degrees F), 316L stainless steel baffles, design code: ASME VIII, DIV 1,

Shell Pressure: 10.3 bar (149.4 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10.3 bar (149.4 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: 316L SS w/TA. Shell Diameter: 254 mm (10 in). Head Material: 316L SS w/TA. Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: tube side: 2-80mm, shell side: 1-150mm, 2-50mm, .
