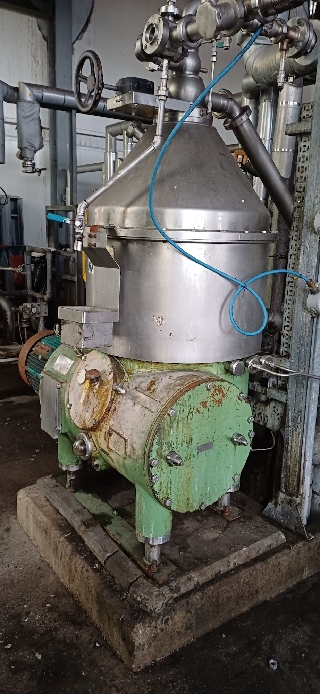

Centrifuge-Disc Bowl - IPP# 20407

Type: Centrifuge-Disc Bowl

Manufacturer: GEA Westfalia

Model: RTC 150 01 076

Condition: Used

Material: Stainless Steel 316L

Motor Horsepower: 22 kW (29.5 HP)

Number of Phases: 3

• max admissible density of product 1.2kg/dm3,
• heavy liquid 1.2 kg/dm3,
• solids 1.2 kg/cm3,
• 12-18 m3/hr throughput,
• temperature of feed product -/95 degrees C,
• housing pressure 0/0.15 bar,
• driven by 22kW, 3/50/400/690 volt, 1470 rpm motor,
• liquid/liquid/solid separation,

RPM Maximum: 4,950.

Type: Centrifuge-Disc Bowl

Manufacturer: GEA Westfalia

Model: RTC 150 01 076

Condition: Used

Material: Stainless Steel 316L

Motor Horsepower: 22 kW (29.5 HP)

Number of Phases: 3

• max admissible density of product 1.2kg/dm3,
• heavy liquid 1.2 kg/dm3,
• solids 1.2 kg/cm3,
• 12-18 m3/hr throughput,
• temperature of feed product -/95 degrees C,
• housing pressure 0/0.15 bar,
• driven by 22kW, 3/50/400/660 volt, 1470 rpm motor,
• liquid/liquid/solid separation,

RPM Maximum: 4,950.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: BRPX 213S-34

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 18.5 kW (24.8 HP)

With tools

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: CHPX 510 SGD-35CGRX

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 22 kW (29.5 HP)

Bowl Diameter: 405 mm (15.9 in)

seperator (clarifier) centrifuge Product # 88185-01-01 max. density of feed 1100 kg/m3 Max. density of sediment, 1238 kg.m3 Max density of operating liquid, 1000 kg/m3 Max operating temp. 100 degrees C Intermittent discharge of sediment Bowl size 10 Complete with motor, inlet & outlet housing, centrifugal pump/pairing disk, water harness, Manuals, inlet/outlet flowmeters and controls

Inlet Diameter: 35.5 mm (1.4 in). Bowl Volume: 16 L (4.2 gallons). Controls: Yes. RPM Maximum: 6,236.
