Fine grind air swept mill Approx 1000 CFM. Unit fine grinds and classifies. Features of this unit are Dust free operation, ease of mainteneance, and an exceptional ratio of product yeils to energy consumption. Simple adjustments to the machine allow for a narrow distibution range of output particles on wet, dry, fiberous, or heat sensitive materials. Capable of grinding down to the 5 micro range with maximum plates and speed. Mill speed of 1800 rpm, includes self contained lube system and volumetric feeder. Mian mill rotates counter clockwise 3/60/230/460V through a lubricated shaft. All seals purged with air/nitrogen. On board oil system features 12 gallon lube oil storage tank with self contained pump & regulator including sight glass. On board Volumetric feeder, 304SS, features a 4" screw with a 12" x 16" hopper, is chain driven by a 1 hp electric motor through a gear box.
Type: Pulverizer
Subtype: Granulator/Disintegrator

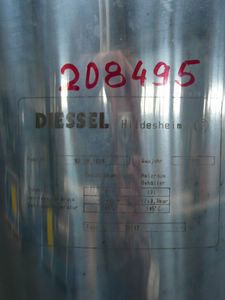

Manufacturer: Diessel Hildesheim
Model: R300
Condition: Used
Material: Stainless Steel 304
Capacity: 91 m3 (3,214 ft3)
Motor Power (Design): 4 kW (5.4 HP)

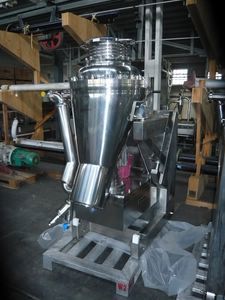

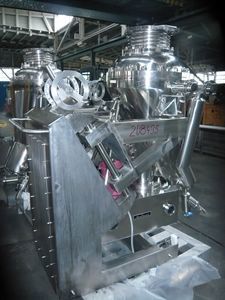

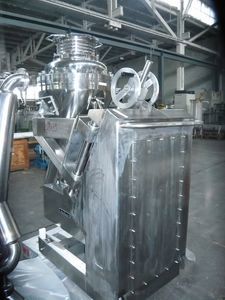

Alexanderwerk Pharma pressure internal -1/3 bar @ 145 deg C (91ltr), jacket -1/3.3 bar @ 145 deg C (13ltr) underdriven by a DIETZ 400-690 Volt
Pressure: 3 bar (43.5 psi). Temperature: 145 °C (293 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alexanderwerk Pharma
Model: R300
Condition: Used
Material: Stainless Steel 304
Capacity: 91 m3 (3,214 ft3)
Orientation: Vertical
pressure internal -1/3 bar @ 145 deg C (91ltr), jacket -1/3.3 bar @ 145 deg C (13ltr), underdriven
Pressure: 3 bar (43.5 psi). Temperature: 145 °C (293 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: The Young Industries, Inc.
Condition: Used
Material: Stainless Steel 304
Outlet Discharge Diameter: 203.2 mm (8 in)
Inlet Diameter: 406.4 mm (16 in)
Shop # 3921, Size 1212 Delumper has four rotating blades with a screen with 1" holes Chamber size is 12" X 12" Rotaing shaft is mounted by 2 3/16" pillow block bearings and has adjustable packing glands on the shaft Allis Chalmers motor rotating 220/440 volt, 22/11 amps.
Motor Power (Design): 5.6 kW (7.5 HP). Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator

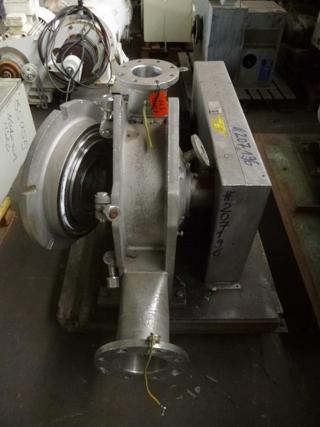

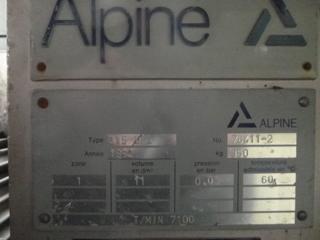

Manufacturer: Alpine (Hosokawa)
Model: Multiplex 315 UPZ
Condition: Used
Material: Stainless Steel 304
Capacity: 11 m3 (388.5 ft3)
Outlet Discharge Diameter: 156.5 mm (6.2 in)

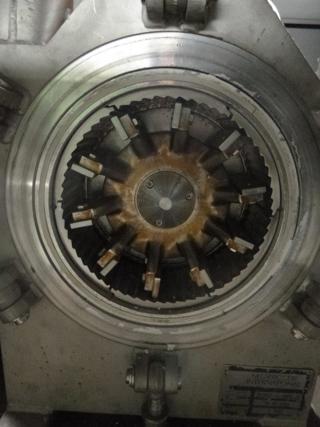

rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm
Inlet Diameter: 150 mm (5.9 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).
