Used Pulverizers Most Pulverizers have a housing with and internal rotors that spins at a high speed with either fixed or swinging knives, hammers, or rods/pins to size reduction using impact. Most have a screen discharge, where the product stays in the pulverizing chamber until it is small enough to fall through the screen. For finer particle sizes, Air classification mills are used, where the product stays in the pulverization chamber until it is light enough to flow out of the mill in an air stream. The different types of Pulverizers are: • Knife mills – Fitzpatrick, Fitzmills, Commutators • Hammer Mills – Micro Pulverizer, Pulva Mills • Pin Mills – Alpine mills, Bauer mills • Rotary Mills – Williams, Jeffery • Air Class Mills – Micro Atomizer, Hosikowa, ACM, Imp Mills
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: GEA
Model: Pharmodule PMA Advance 300
Condition: Unused
Material: Stainless Steel 316L
Capacity (Design): 300 L (10.6 ft3)
Inlet Diameter: 101.6 mm (4 in)

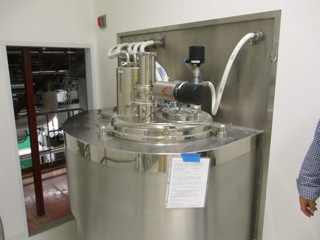

100 kg typical batch weight (Polished to a 0.1 Ra Min finish) Standard capacity range is 120-240 liters. This granulator features a through the wall design where the utilities are located outside the clean room. It has a jacket for the base and bowl with temperature sensor. The main impeller is capable of being raised and lowered. The side chopping system has a variable speed control. Discharge is into a through the wall mill model U-20. Features sanitary design and Clean in place. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. This machinery is electronically controlled. Can be used with Fluid bed dryer IPP stock # 233968.
Outlet Discharge Diameter: 50.8 mm (2 in). Motor Power: 15 kW (20.1 HP). Orientation: Vertical. Choppers: Yes side mounted with VFD-7.5 kW. Jacket: Yes. Clean In Place: Yes.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Raymond
Model: 50
Condition: Used
Material: Carbon Steel
Inlet Diameter: 406.4 mm (16 in)
Outlet Discharge Diameter: 279.4 mm (11 in)
bare mill only. (no drive).
Air flow and power requirement are 6000 acfm,
Fan power 40 Hp.,
Mill power minimum 50 HP, maximum 100 HP.
The Imp mill is designed for low cost, dependable, grinding for fine to medium grinds.
Motor Power: 74.6 kW (100 HP). Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Frewitt
Model: Conwitt 250
Condition: Used
Material: Stainless Steel Other
Orientation: Horizontal
stainless steel (polished) Frewitt Delumper with crushing and grinding system, type Delumpwitt, upto 9000kg/hr flow rate, system includes: (1) stainless steel Frewitt Conwitt 250 conical sieve mill, serial #12014519069, internal CE 1258 Ex II 1Dckb T157 degrees C X, external CE Ex II 3D c Ex tD T125 degrees C X, (1) stainless steel infeed hopper, (1) stainless steel Frewitt crushing unit, serial #12014532028, internal CE 1258 Ex II 1Dckb T157 degrees C X, external CE Ex II 3D c Ex tD T125 degrees C X, (1) Frewitt Conwitt 250 vibrating unit, serial #1201459069, internal CE 1258 Ex II 1Dckb T157 degrees C X, external CE Ex II 3D c Ex tD T125 degrees C X, (1) servolift elevating/lifting machine, serial #12885, all mounted on a stainless steel frame
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Buhler Group
Model: DMBQ
Condition: Used
Material: Carbon Steel
Orientation: Horizontal
Coffee grinder
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: GEA
Model: Pharmadule PMA Advance 60
Condition: Unused
Material: Stainless Steel 316
Capacity (Design): 48 L (1.7 ft3)
Inlet Diameter: 101.6 mm (4 in)
20 kg typical batch weight (Polished to a 0.1 Ra Min finish) high shear granulator Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration Standard capacity range is 24-48 liters This granulator features a through the wall design where the utilities are located outside the clean room It has a jacket for the base and bowl with temperature sensor and ¾” BSP connections The loading chute and is 4” CPC and designed for Hyco Flex loading. The main impeller is an M-8 and is capable of being raised and lowered The side chopping system is driven by a 4-kw motor with variable speed control. The discharge and transfer chute is 2” CPC. Discharge is into a through the wall mill, Comil, model U-10, with a 0.1 Ra finish. The mill is driven by a 1.8 k-w motor with variable speed control. The Granulator features sanitary design and features clean in place. It has the ability for solutions addition, and is fully automated. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. It is designed for rapid change overs and easy cleaning. This machinery is electronically controlled and can be operated by a local operations station. The Advance 60 mill can be part of an integrated system with upstream and downstream equipment. This mill can be used with Fluid bed dryer IPP stock # 233966. And a CIP skid is available at additional cost, see IPP stock number 234966.
Outlet Discharge Diameter: 50.8 mm (2 in). Motor Power: 4 kW (5.4 HP). Orientation: Horizontal. Choppers: Yes.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Multiplex 315 UPZ
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 11 L (0.39 ft3)
Inlet Diameter: 150 mm (5.9 in)
rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm
Outlet Discharge Diameter: 156.5 mm (6.2 in). Motor Power: 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Frewitt
Model: MGE
Condition: Used
Material: Stainless Steel 304
Outlet Discharge Diameter: 360 mm (14.2 in)
Motor Power: 1.1 kW (1.48 HP)
oscillating granulator. milling chamber 370 mm wide x 550 mm long 3~ 380V/220V 2,7A/4,7A 1,1 kW; 50Hz completely enclosed in stand
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Frewitt
Model: SG
Condition: Used
Material: Stainless Steel 321
Capacity (Design): 47.8 L (1.69 ft3)
Motor Power: 4 kW (5.4 HP)
1000 kg/h 120x160 mm drum screen, scraper drum 120x160 mm
Pressure: 0.21 bar (3 psi). Temperature: 61.7 °C (143 °F).
