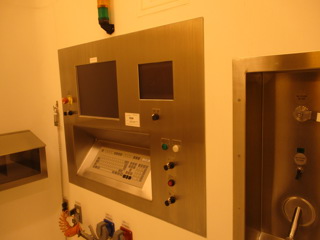

100 kg typical batch weight (Polished to a 0.1 Ra Min finish) Standard capacity range is 120-240 liters. This granulator features a through the wall design where the utilities are located outside the clean room. It has a jacket for the base and bowl with temperature sensor. The main impeller is capable of being raised and lowered. The side chopping system has a variable speed control. Discharge is into a through the wall mill model U-20. Features sanitary design and Clean in place. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. This machinery is electronically controlled. Can be used with Fluid bed dryer IPP stock # 233968.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: GEA
Model: Pharmadule PMA Advance 60
Condition: Unused
Material: Stainless Steel 316
Capacity: 48 m3 (1,700 ft3)
Outlet Discharge Diameter: 50.8 mm (2 in)

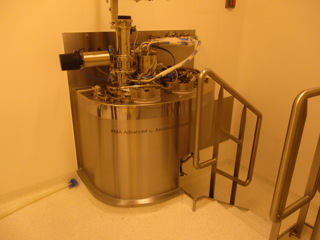

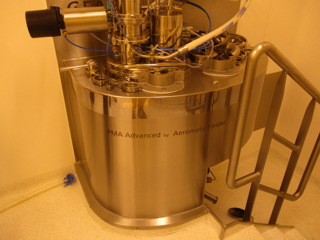

20 kg typical batch weight (Polished to a 0.1 Ra Min finish) high shear granulator Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration Standard capacity range is 24-48 liters This granulator features a through the wall design where the utilities are located outside the clean room It has a jacket for the base and bowl with temperature sensor and ¾” BSP connections The loading chute and is 4” CPC and designed for Hyco Flex loading. The main impeller is an M-8 and is capable of being raised and lowered The side chopping system is driven by a 4-kw motor with variable speed control. The discharge and transfer chute is 2” CPC. Discharge is into a through the wall mill, Comil, model U-10, with a 0.1 Ra finish. The mill is driven by a 1.8 k-w motor with variable speed control. The Granulator features sanitary design and features clean in place. It has the ability for solutions addition, and is fully automated. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. It is designed for rapid change overs and easy cleaning. This machinery is electronically controlled and can be operated by a local operations station. The Advance 60 mill can be part of an integrated system with upstream and downstream equipment. This mill can be used with Fluid bed dryer IPP stock # 233966. And a CIP skid is available at additional cost, see IPP stock number 234966.
Inlet Diameter: 101.6 mm (4 in). Motor Power (Design): 4 kW (5.4 HP). Orientation: Horizontal. Choppers: Yes.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: UPZ 315
Condition: Used
Material: Stainless Steel 316L
Capacity: 0.03 m3 (1.2 ft3)
Motor Power (Design): 18 kW (24.1 HP)
UPZ 315 highly polished 316L stainless steel fine impact mill with pin disc grinding system consisting of:
(1) UPZ 315 highly polished 316L stainless steel pin disc mill, manufactured by Hosokawa, serial #P1 125 630/1, asset #12302, 4500 rpm,(max 9200 rpm), permissible overpressure 0.09 bar @ 50 degrees C, inside 34 liter, pin size 7mm diameter x 35mm long, (236) pins on door side, (231) pins on drive side, plate beater diameter 298mm, (10) plate beaters, mill driven by approx 18kw motor
(1) 13.5 square meter 316L stainless steel vertical heat exchanger (gas cooler), manufactured by Transitherm GmbH, type WTGDP 273/2400 1-PASS, fabrik #10830, design pressure tube side -1/10 bar @ -29/100 degrees C (82 liter), shell side -1/10 bar @ -29/100 degrees C (76 liter), TUV, (132) 14mm diameter x 1 x 2.4m long 316L stainless steel tubes, single pass tube side, 273mm diameter 316L stainless steel shell
(2) 316L stainless steel heads with 90 degree bend, openings tube side each head with a 150mm, shell: 2-75mm, mounted on lugs
(1) stainless steel screw feeder
(1) 22 square meter polished 316L stainless steel reverse jet dust filter, manufactured by Hosokawa Alpine, type AR 34 M, serial #P1 140 710/1, pressure -0.1/+0.49 bar @ -29/80 degrees C, stainless steel polished to Ra max 0.5um, 1.3m diameter x 2m straight side x 1250mm bottom cone section, clamp bonnet head, (34) 130mm diameter x 1820mm long internal filter cages, 6-sets of valves
(1) highly polished 316L stainless steel cantilever rotary sifter, ATEX zone 22, manufactured by Kemutec Powder Technologies Ltd, type K650C sifter, serial #K650C A10942/1, asset #12230, working pressure -0.1/0.49 barg, design temperature 40 degrees C max, driven by 2.2kw, 3/50/415 volt 1500 rpm EExde IIB T4 zone 1 & 22, motor, mounted on a stainless steel frame with wheels
(1) 25m3/hr @ 7.06m head 316L stainless steel centrifugal pump, manufactured by HMD Sealless Pumps, serial #824545, type GSI 80-50-200 D-4A, NPSHa 19.68m, driven by 1.1kw, 3/50/415 volt 1450 rpm EExd IIB T4 motor, mounted on a baseplate
(1) 15 m3/minute 316L stainless steel Radial blower/fan, manufactured by Reitz, type single stage KXE080-001430-00, serial #175747, total pressure increase 746 daPa, impellor speed 3000 rpm, inlet size 140mm, discharge 100mm, driven by 7.5kw, 3/50/415 volt 3000 rpm EExdeIIBT4 motor
(1) 160mm diameter polished 316L stainless steel motorised rotary valve, manufactured by Engelsmann, type ZSA 200, driven by 0.55kw, 3/50/415 volt 10 rpm EExdIICT4 motor
(1x) stainless steel Lowbotech discharge unit with metal detector
(1x) 316L stainless steel Matcon Hopper discharge unit,
Speed (RPM): 9,200. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F).

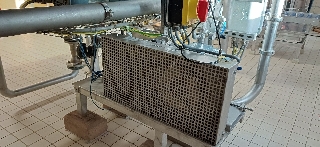

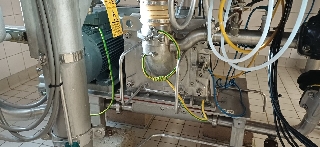

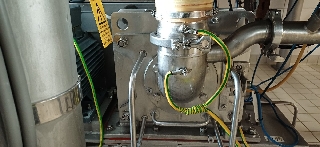

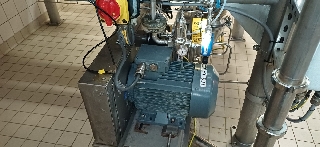

Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Condux
Model: CUM 150/S-D-WG Universal impact mill
Condition: Used
Material: Stainless Steel 316L
Motor Power (Design): 5.5 kW (7.4 HP)
Speed (RPM): 16,000
Orientation: Vertical.
