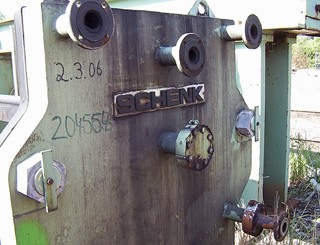

Stainless Steel Austenitic Schenk F1 - 1000/85 Press Filter - IPP# 208460

Type: Filter

Subtype: Press

Manufacturer: Schenk

Model: F1 - 1000/125

Condition: Used

Material: Stainless Steel 316

Filtration Area: 187.6 m² (2,000 ft²)

Pressure: 8 bar (116 psi)

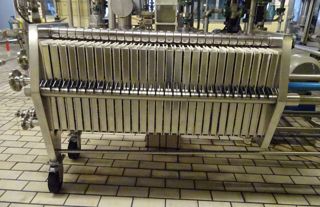

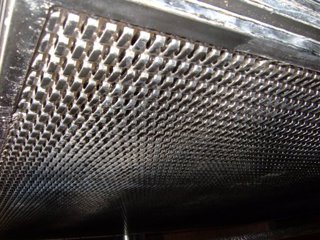

• Polishing plate, filter press with (199) 316 s/steel polishing plates.

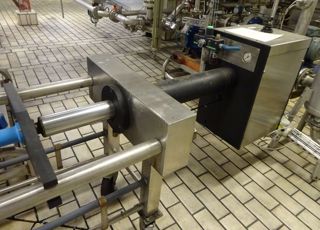

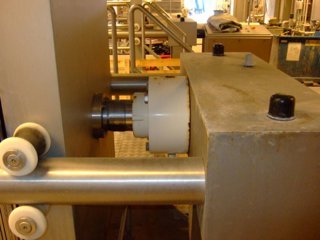

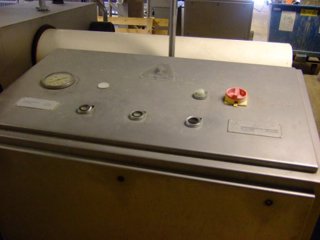

• Hydraulic press mechanism driven by hydraulic power pac which is built into a control cabinet.
• 2 -80mm openings on plates
• Stainless Steel skeleton, includes (1) Photometer, manufactured by Sigrist, and a s/steel walkway platform with steps and handrail.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 199. Plate MOC: Stainless Steel 316. Skeleton MOC: Stainless Steel 316. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Thickness: 9 mm (0.35 in). Plates Shifted By: Manual.

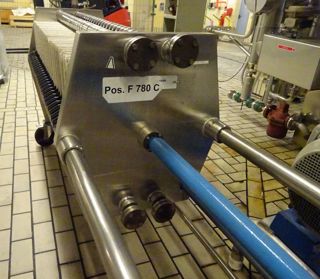

Type: Filter

Subtype: Press

Manufacturer: Schenk

Condition: Used

Material: Polypropylene

Filtration Area: 17.5 m² (188.4 ft²)

Cake Volume: 2 m3 (70.6 ft3)

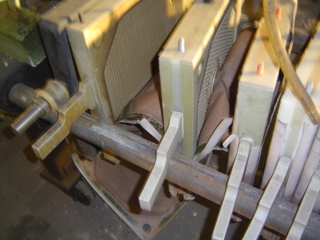

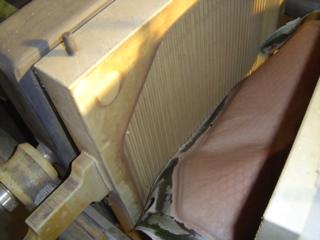

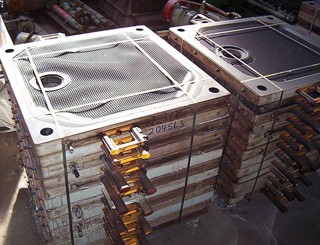

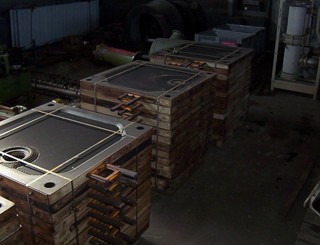

• Stainless steel recessed plate and polypropylene frame filter press.
• (2) eye top and bottom feed/discharge.
• Stainless steel skeleton.
• Hydraulic press mechanism with built on power pack and manual controls

Filter Press Plate Type: Plate and Frame. Number of Frames: 28. Number of Plates: 27. Plate MOC: Stainless Steel 316. Skeleton MOC: 316 SS. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in). Plate Thickness: 50 mm (1.97 in). Plates Recessed: Yes. Plates Shifted By: Manual.

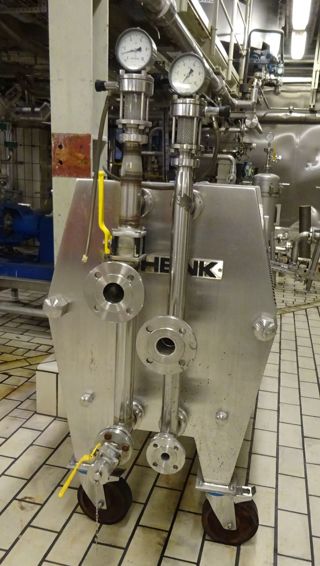

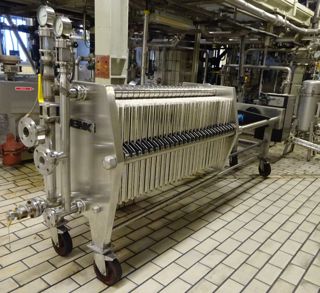

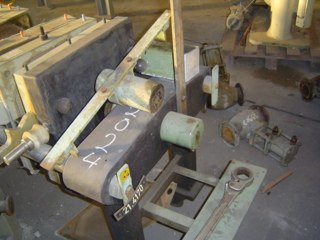

Type: Filter

Subtype: Press

Manufacturer: Schenk

Model: KFP 470/30-9

Condition: Used

Material: Polypropylene

Filtration Area: 2.5 m² (26.5 ft²)

Pressure: 15 bar (217.6 psi)

• Operating pressure 7/15 bar. 4 eye.
• With red and blue button plates for washing.

Cake Volume: 0.07 m3 (2.4 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 15. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 470 mm (18.5 in). Plate Height: 470 mm (18.5 in). Plate Thickness: 75 mm (3 in). Plates Recessed: Yes. Plates Shifted By: Manual.

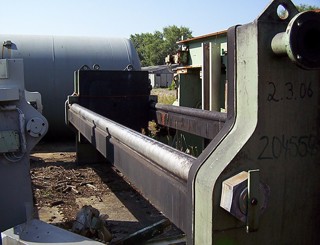

Type: Filter

Subtype: Press

Manufacturer: Schenk

Condition: Used

Material: Polypropylene

Filtration Area: 76 m² (818 ft²)

Cake Volume: 2.8 m3 (100 ft3)

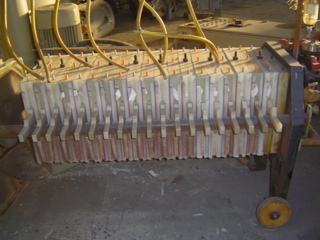

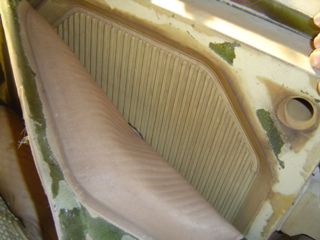

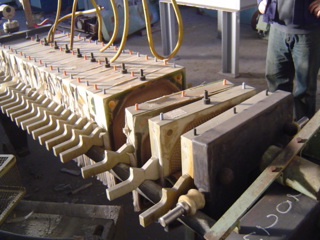

• Membrane filter press.
• Hydraulic driven by Siemens 500 V 50 Hz 4,2 A 1410 rpm EEx e II.

Filter Press Plate Type: Membrane Plates. Number of Plates: 53. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 80 mm (3.1 in). Plates Shifted By: Manual.
