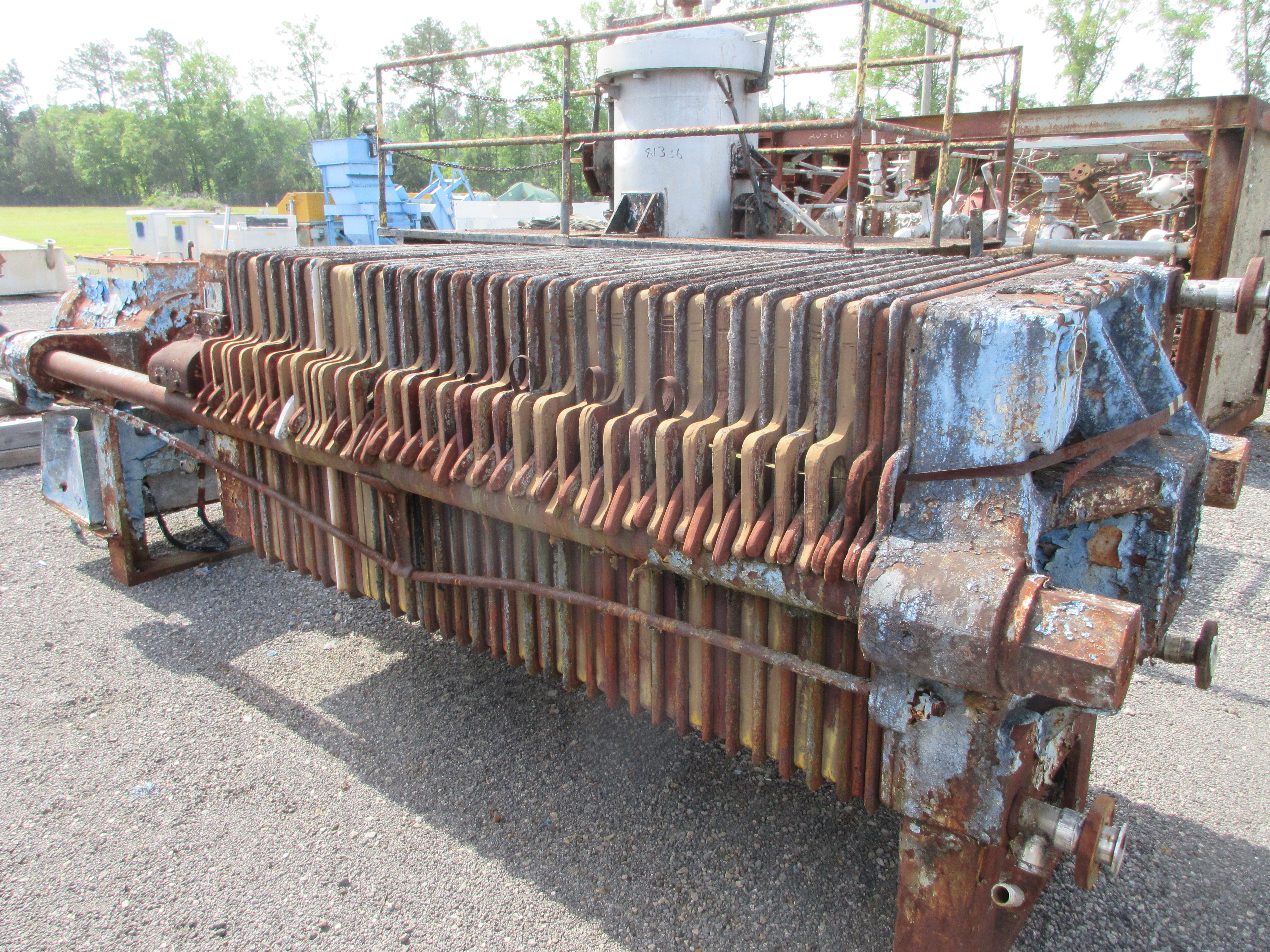

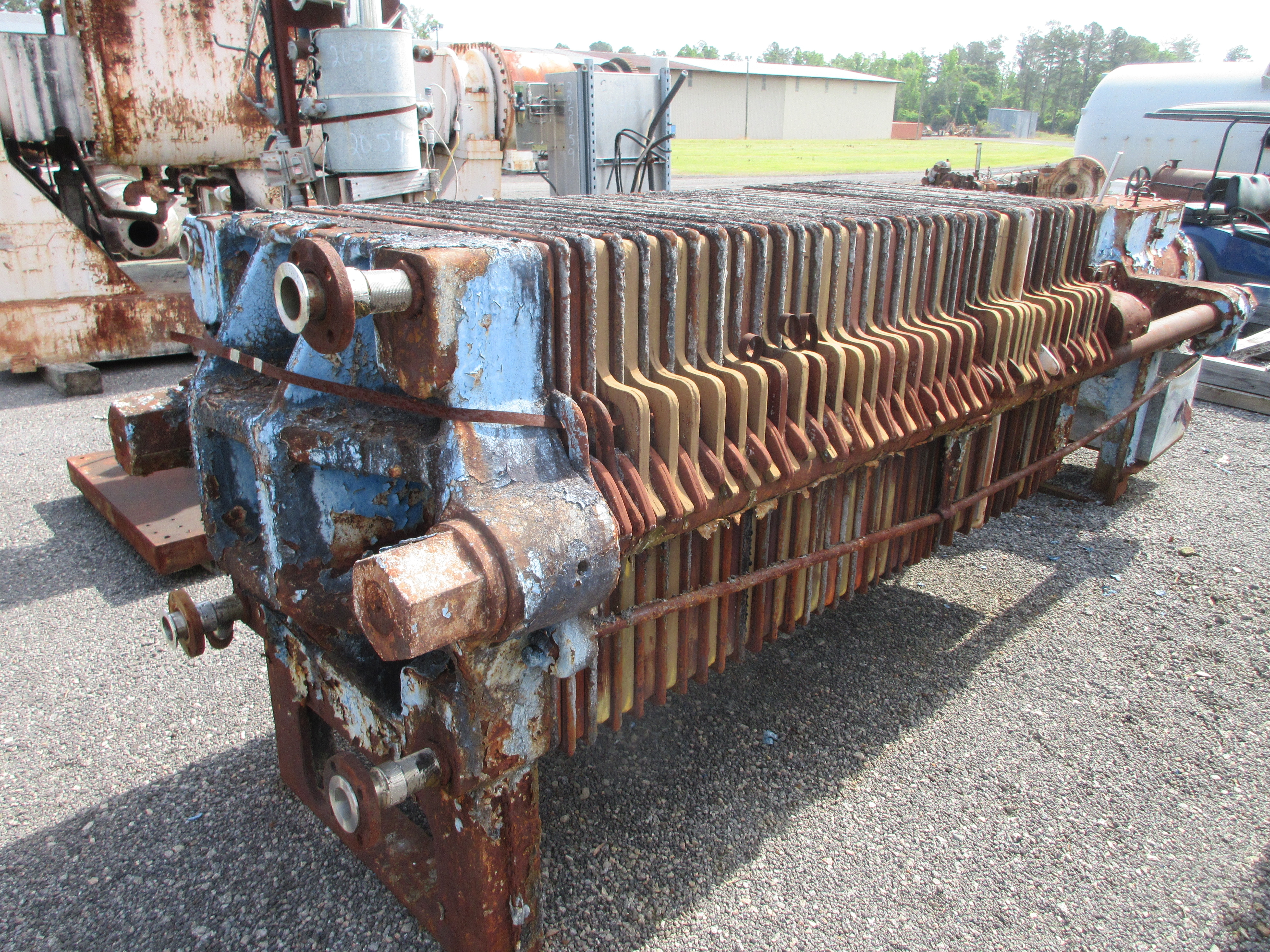

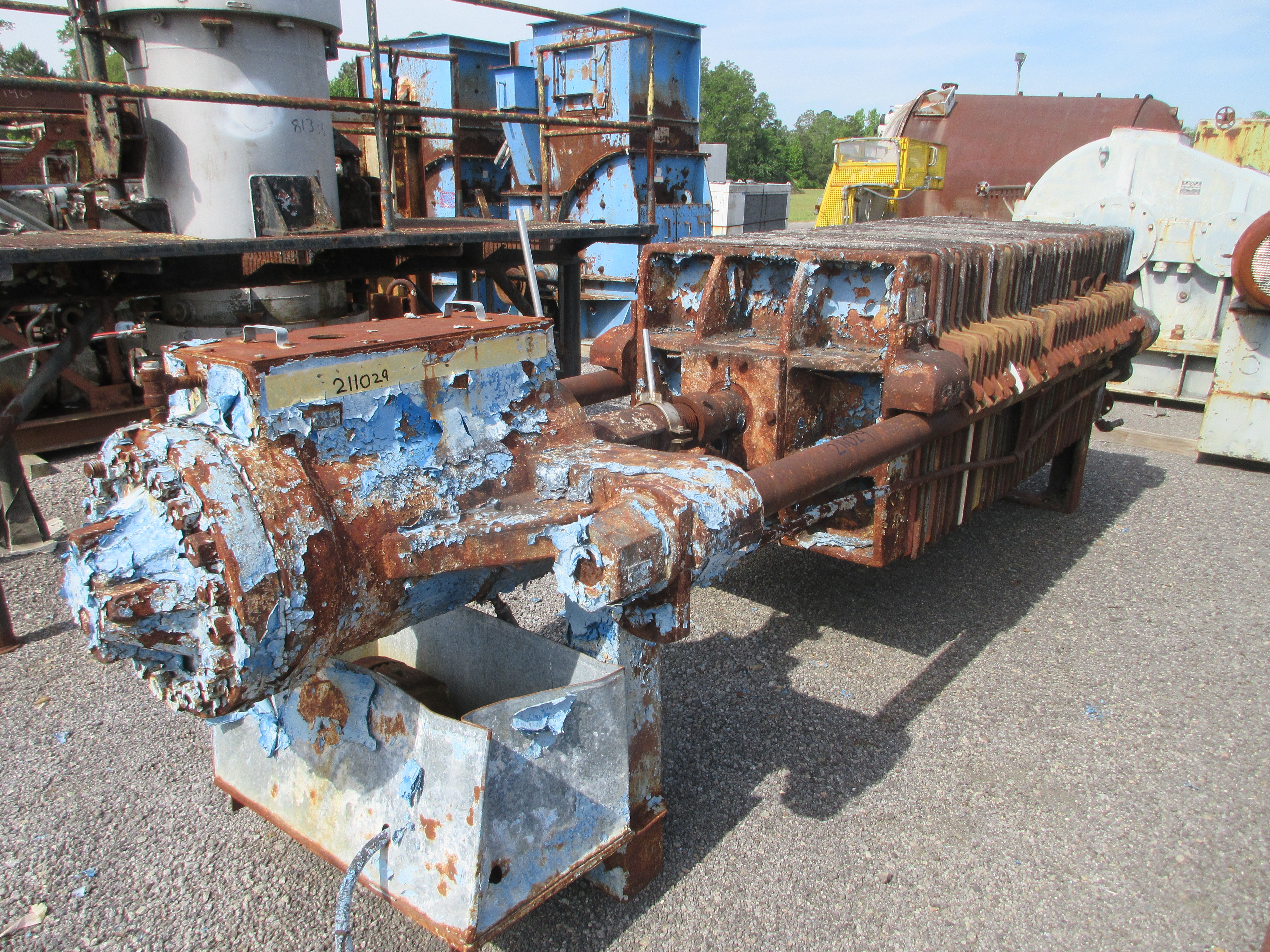

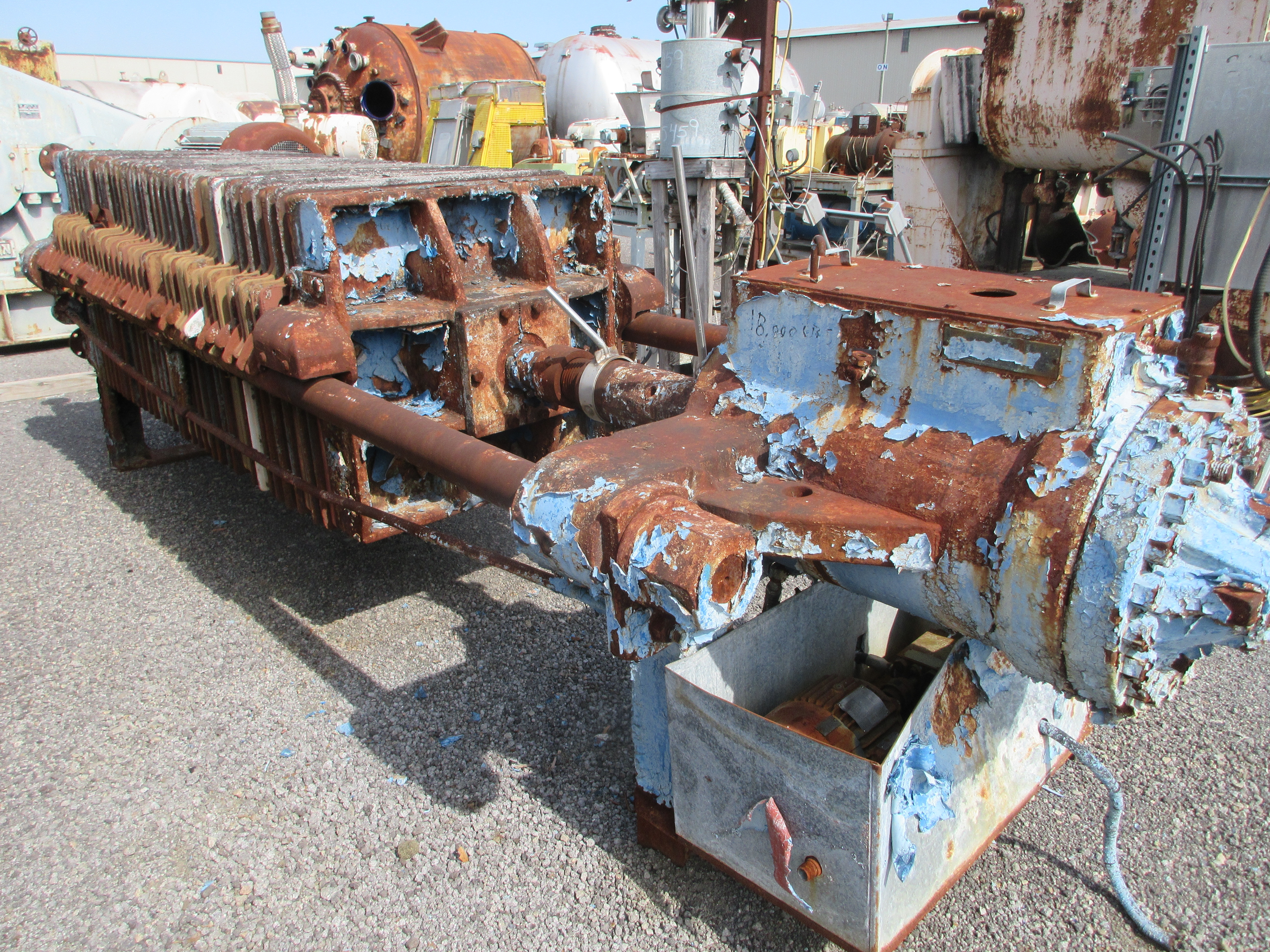

Sperry 47 Press Filter - IPP# 211029

Type: Filter

Subtype: Press

Manufacturer: Sperry

Model: 4142

Condition: Used

Material: Carbon Steel

Overall Length: 3,050 mm (120 in)

Overall Width: 1,300 mm (52 in)

• Skeleton Only. Has round side rails.

Overall Height: 1,550 mm (62 in). Skeleton MOC: Carbon Steel. Plate Diameter or Width: 914 mm (36 in). Plate Height: 914 mm (36 in).

Type: Filter

Subtype: Press

Manufacturer: Von Roll

Condition: Used

Material: MISC

Filtration Area: 18.3 m² (197.4 ft²)

Pressure: 6 bar (87 psi)

• filter press complete with 53 chambers of mixed pack membrane plates/recessed plates with (1) head plate, weight 122 kg and (1) end plate. To be top center feed, 4 corner closed discharge, Filter has 27 membrane plates, weight piece 111 kg and 26 recessed plates, weight piece 86 kg, plates manufactured by JV Kunstoffwerk GmbH, material of membrane EPDM. 50mm cake thickness before squeeze. Filter rated 6 bar @ 20 to 70 degrees C. Hydraulic closer rated 6/170 bar @ 90 degrees C.

Temperature: 70 °C (158 °F). Overall Length: 7,950 mm (312.4 in). Overall Width: 2,000 mm (77.8 in). Overall Height: 2,000 mm (78.1 in). Cake Volume: 5 m3 (178 ft3). Filter Press Plate Type: Membrane Plates. Number of Plates: 53. Plate MOC: Rubberlined. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,450 mm (57.1 in). Plate Height: 1,450 mm (57.1 in). Plates Recessed: Yes.
