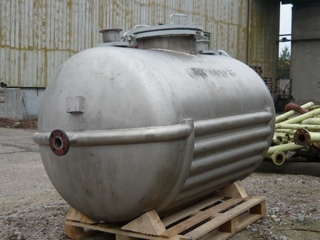

Stainless Steel Other WAFAG Tank - IPP# 211541

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 317

Capacity (Design): 1,600 L (422.7 gallons)

Orientation: Horizontal

jacketed receiver Jacket on bottom 1/2 of tank

Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,486 mm (58.5 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 317. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Support: Other.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 10,000 L (2,642 gallons)

Orientation: Vertical

• Overall Length is 4390 mm.
• Heads are 7mm thick.

Diameter: 2,000 mm (78.7 in). Straight-side Length: 3,218 mm (126.7 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 50 °C (122 °F). Support: Legs.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

• Jacket on bottom 1/2 of tank.
• 4mm head thickness.

Diameter: 800 mm (31.5 in). Straight-side Length: 1,902 mm (74.9 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 317. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Other.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

jacketed receiver Rated -1/6 bar @ 200 degrees C internal 6 bar @ 200 degrees C in the 1/2 pipe coil jacket Jacket on bottom 1/2 of tank 4mm head thickness.

Diameter: 800 mm (31.5 in). Straight-side Length: 1,902 mm (74.9 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Other.
